Kawasaki WHEEL LOADER 45ZV-2 PARTS MANUAL 93304-00100 PDF

$29.95

Kawasaki WHEEL LOADER 45ZV-2 PARTS MANUAL 93304-00100  – PDF DOWNLOAD

KUBOTA V3307-DI-T-KDN Engine
Serial No. 000193
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Kawasaki WHEEL LOADER 45ZV-2 PARTS MANUAL 93304-00100  – PDF DOWNLOAD

FILE DETAILS:

Kawasaki WHEEL LOADER 45ZV-2 PARTS MANUAL 93304-00100  – PDF DOWNLOAD

Language :English_Japanese
Pages :338
Downloadable : Yes
File Type : PDF

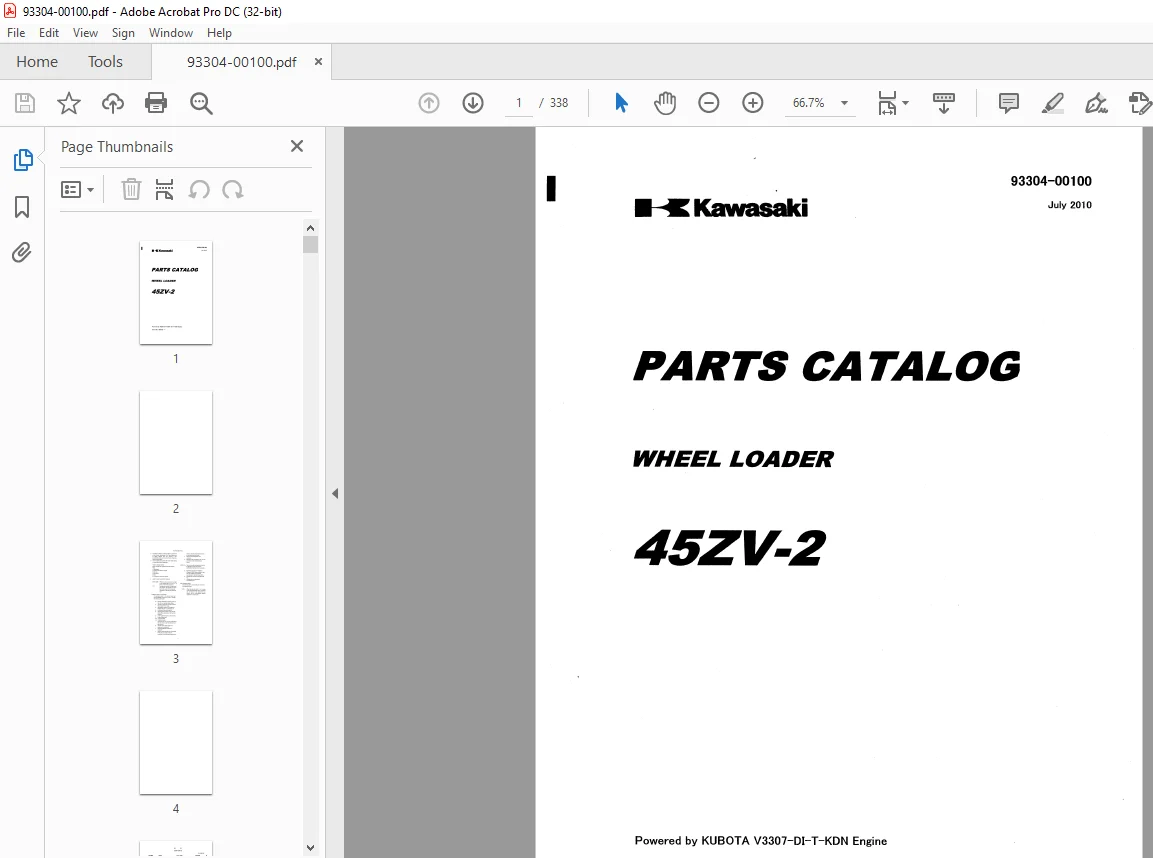

IMAGES PREVIEW OF THE MANUAL:

DESCRIPRION:

Kawasaki WHEEL LOADER 45ZV-2 PARTS MANUAL 93304-00100  – PDF DOWNLOAD

KUBOTA V3307-DI-T-KDN Engine
Serial No. 000193
According to Hitachi continuous effort to improve the product quality, descriptions in the Parts Catalog may be slightly different from your machine. If any questionable points are found, feel free to contact your nearest KCM dealer.
@ For the engine parts, please refer to the parts catalog of diesel engine issued separately.
1. HOW TO ORDER PARTS:
When ordering parts, please specify the following items.
(1) Model/type
(2) Product Identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchaser’s Name and Address
2. HOW TO USE THIS PARTS CATALOG PART NAME:
When the part is used as an inner part of an assembly part, the mark “.” is shown in front of the part name.
QTY: Indicates the number of the part used per machine. The quantity of an inner part is the number of the inner part necessary to organize one assembly part.
SYMBOLS USED IN THIS BOOK:
The symbols shown in the service code and interchangeability columns are used to indicate the following information.
W: Requires additional processing at the job site. Ask your nearest KCM dealer.
H: Indicate a precise part. Ask your nearest KCM dealer for its repair.
D: Impossible to replace as a single part. Replace the part in an assembly unit.
K: Contained in the service part kit.
R: Indicate that the quantity of the part like shims differs depending on the machine serial No.
S: To be supplied as repair or service parts.
Z: Engine related parts. OS: Over-sized parts
US: Undersized parts (Part with mark “OS, or US” is described in the next column under the standard size part column.) #: Indicates newly added parts to the equipment or component. Y: Interchangeable part without any constraint

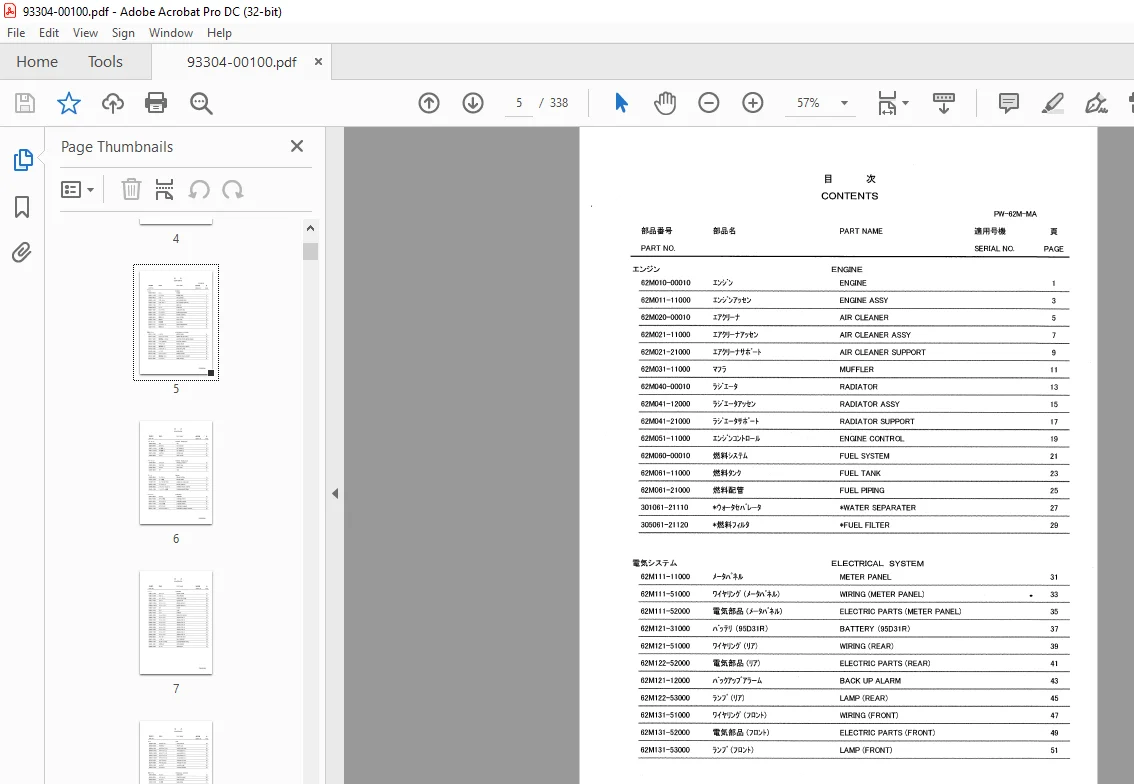

TABLE OF CONTENTS:

Kawasaki WHEEL LOADER 45ZV-2 PARTS MANUAL 93304-00100  – PDF DOWNLOAD

KUBOTA V3307-DI-T-KDN Engine
Serial No. 000193

エンジン
エンジンアッセン
62M010-00010
エンジン
62M011-11000
62M020-00010
エアクリーナ
62M021-11000
エアクリーナアッセン
62M021-21000 エアクリーナサポート
62M031-11000 マフラ
62M040-00010
ラジエータ
62M041-12000
ラジエータアッセン
62M041-21000 ラジエータサポート
ENGINE
ENGINE
ENGINE ASSY
AIR CLEANER
AIR CLEANER ASSY
AIR CLEANER SUPPORT
MUFFLER
RADIATOR
RADIATOR ASSY
RADIATOR SUPPORT
62M051-11000
エンジンコントロール
62M050-00010
燃料システム
62M051-11000
燃料タンク
62M051-21000 燃料配管
301061-21110
ウォータセパレータ
305061-21120
燃料フィルタ
ENGINE CONTROL
FUEL SYSTEM
FUEL TANK
FUEL PIPING
*WATER SEPARATER
*FUEL FILTER
62M111-11000
電気システム
メータバネル
62M111-51000
ワイヤリング(メータバネル)
62M111-52000
電気部品 (メータパネル)
ELECTRICAL SYSTEM
METER PANEL
WIRING (METER PANEL)
ELECTRIC PARTS (METER PANEL)
62M121-31000
バッテリ (95D31R)
BATTERY (95D31R)
62M121-51000 ワイヤリング(リア)
62M122-52000
電気部品 (リア)
62M121-12000
バックアップアラーム
62M122-53000 ランプ(リア)
62M131-51000 ワイヤリング(フロント)
G2M131-52000 電気部品 (フロント)
62M131-53000 ランプ (フロント)
WIRING (REAR)
ELECTRIC PARTS (REAR)
BACK UP ALARM
LAMP (REAR)
WIRING (FRONT)
ELECTRIC PARTS (FRONT)
LAMP (FRONT)

パワートレイン
62M250-00010
HST
62M270-00010
HSTシステム
62M271-11000-1 HST 配管 (1)
62M271-11000-2 HST配管 (2)
62H271-31000
フィルタアッセン
62M280-00010
シフトレバー
POWER TRAIN (HST)
HST
HST SYSTEM
HST PIPING (1)
HST PIPING (2)
FILTER ASSY
SHIFT LEVER
パワートレイン
62M340-00010
プロペラシャフト
62M350-00010
フロントアクスル
62M350-00010
リアアクスル
62M370-00010
タイヤ
ブレーキ
62M420-00010
ブレーキシステム
62M421-12000
ブレーキ配管
301426-12110
*ブレーキオイルタンクアッセン
62M431-11000 ブレーキコントロール
62M400-00010
パーキングブレーキコントロール
62M461-11000
パーキングブレーキ配管
ステアリング
62M510-00010
ステアリング
62M51112000
ステアリング部品
62M530-00010
ステアリングシステム
62M531-11000 ステアリング配管
62M540-00010
ステアリングシリンダ
62M541-11000
ステアリングシリンダサポート
POWER TRAIN (AXLE)
PRORELLER SHAFT
FRONT AXLE
REAR AXLE
TIRE
BRAKE
BRAKE SYSTEM
BRAKE PIPING
*BRAKE OIL TANK ASSY
BRAKE CONRTOL
PARKING BRAKE CONTROL
PARKING BRAKE PIPING
STEERING
STEERING
STEERING PARTS
STEERING SYSTEM
STEERING PIPING
STEERING CYLINDER
STEERING CYLINDER SUPPORT

部品番号
部品名
PART NO.
PART NAME
シャーシ
62M611-11000
フロントフレーム
62M611-12000
リアフレーム
62M611-13000
62MG11-14000 センターピン
オペレータフレーム
CHASSIS
FRONT FRAME
REAR FRAME
OPERATOR FRAME
CENTER PIN
62M622-11000-1 エンジンフード (1)
ENGINE HOOD (1)
62M622-11000-2 エンジンフード (2)
62M621-12000 707
62M622-13000
ステップ
62M621-14000
フェンダ
62M962-10000 インシュレータグループ
ENGINE HOOD (2) FLOOR STEP
FENDER
INSULATOR GROUP
62M962-11000
*インシュレータ (1)
*INSULATOR (1)
62M962-12000
*インシュレータ (2)
*INSULATOR (2)
62M962-13000
*インシュレータ (3)
*INSULATOR (3)
62M962-14000
*インシュレータ (4)
*INSULATOR (4)
62M962-15000
*インシュレータ (5)
*INSULATOR (5)
62M962-16000
*インシュレータ (6)
*INSULATOR (6)
62M962-17000 *インシュレータ (7)
*INSULATOR (7)
62M962-10000
インシュレータ (8)
*INSULATOR (8)
62M630-00010 オペレータシート
OPERATOR SEAT
62M531-21000
シートサポート
62M642-11000 カウンタウェイト 870kg
62J651-41000
ROPSH/E
62M986-12000
ミラーキット
SEAT SUPPORT
COUNTERWEIGHT 870kg
ROPS CANOPY
MIRROR KIT

PART NO.
キャブ
62M906-13000 ROPSキャプキット
CAB
ROPS CAB KIT
*ROPS CAB
62M834-00010
*ROPS++7
62M934-10000
ROPSキャブアッセン
**ROPS CAB ASSY
62M934-11000-1
****+7’4” (1)
***CAB BODY (1)
62M934-11000-2 キャプボディ (2)
***CAB BODY (2)
62M934-11000-3 キャプボディ (3)
***CAB BODY (3)
62M934-11000-4
****<(4)
***CAB BODY (4)
62J934-12000
(左) アッセン
***DOOR (L) ASSY
62J934-13000
ド(右) アッセン
62M934-14000
リアランプ
62M934-15000
リアウォッシャ
***DOOR (R) ASSY
***REAR LAMP
***REAR WASHER
油圧システム
62M710-00010
メインポン
62M740-00010
コントロールバルブ
82M780-00010
メインシステム
62M781-11000 メイン配管
62M781-21000
オイルタンク
62M781-31000
フィルタアッセン
HYDRAULIC SYSTEM
MAIN PUMP
CONTROL VALVE
MAIN SYSTEM
MAIN PIPING
OIL TANK
FILTER ASSY
