Kawasaki WHEEL LOADER 65ZV Parts Manual 93307-00340 – PDF DOWNLOAD –

Description

Kawasaki WHEEL LOADER 65ZV Parts Manual 93307-00340 – PDF DOWNLOAD

FILE DETAILS:

Kawasaki WHEEL LOADER 65ZV Parts Manual 93307-00340 – PDF DOWNLOAD

Language :English
Pages :66
Downloadable : Yes
File Type : PDF

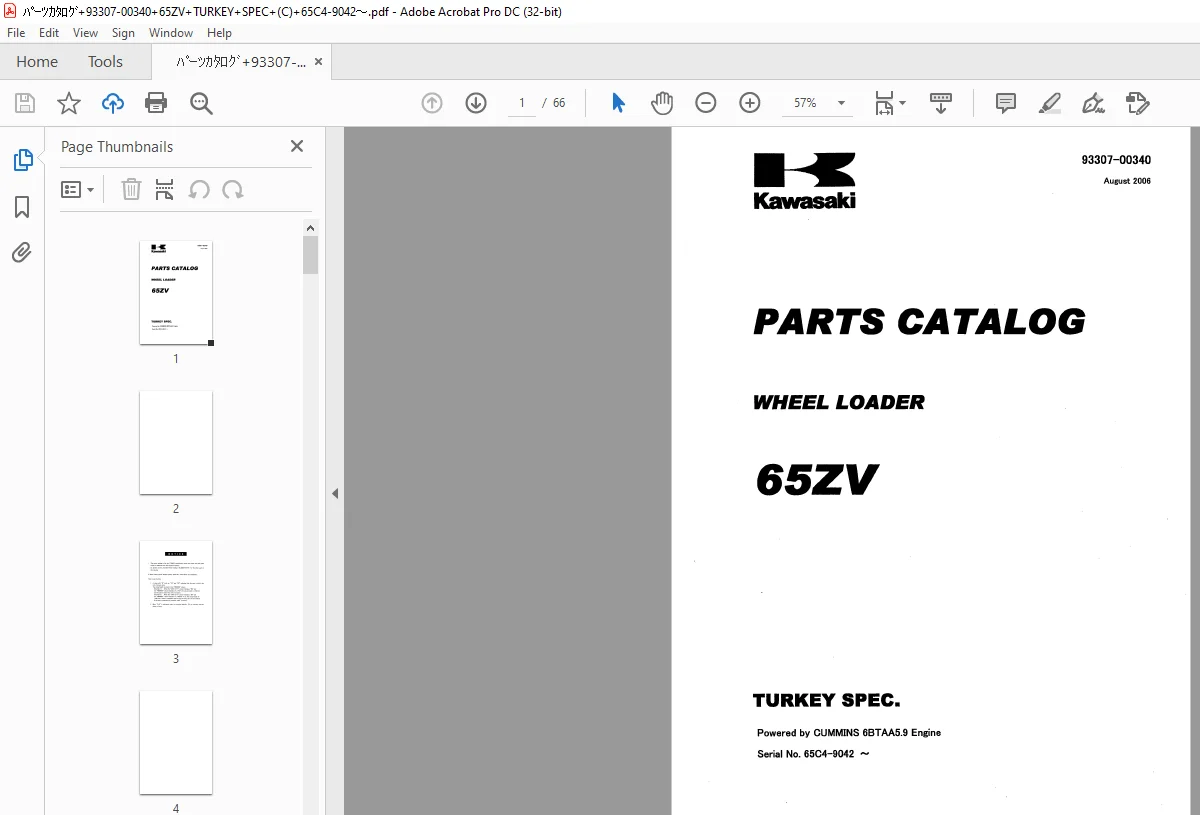

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kawasaki WHEEL LOADER 65ZV Parts Manual 93307-00340 – PDF DOWNLOAD

1. This parts catalog is for the TURKEY specification parts and shows only the
parts which are different from the standard machine. So, please use the standard Parts Catalog ( No.93307-00174 ) for the other parts in this catalog.

2. When ordering parts, always specify “Serial No.” “Part Name” and “Quantity”.

How to use the lists;

1. A value with “M” such as “1 M” and “2M” indicates that the part is sold in the
unit of shown value.
The actual length is shown in the “REMARK” column.
[Example 1] When the “UNIT Q’ TY” column indicates “2M” and
the “REMARK” column indicates “L=1700”, the actual length is 1,700 mm and the part is sold
in the unit of 2 meters.
[Example 2] When the “UNIT Q’ TY” column indicates “2M” and
the “REMARK” column indicates “L=l400xQ’ TY 2”, the actual length of 1,400 mm is used in
2 positions and the part is sold in the unit of 2 meters. If the part is required in 2
positions, order “3 meters”.

2. When “A/R” is indicated, order the required quantity. This is normally used for
shims or liriers.

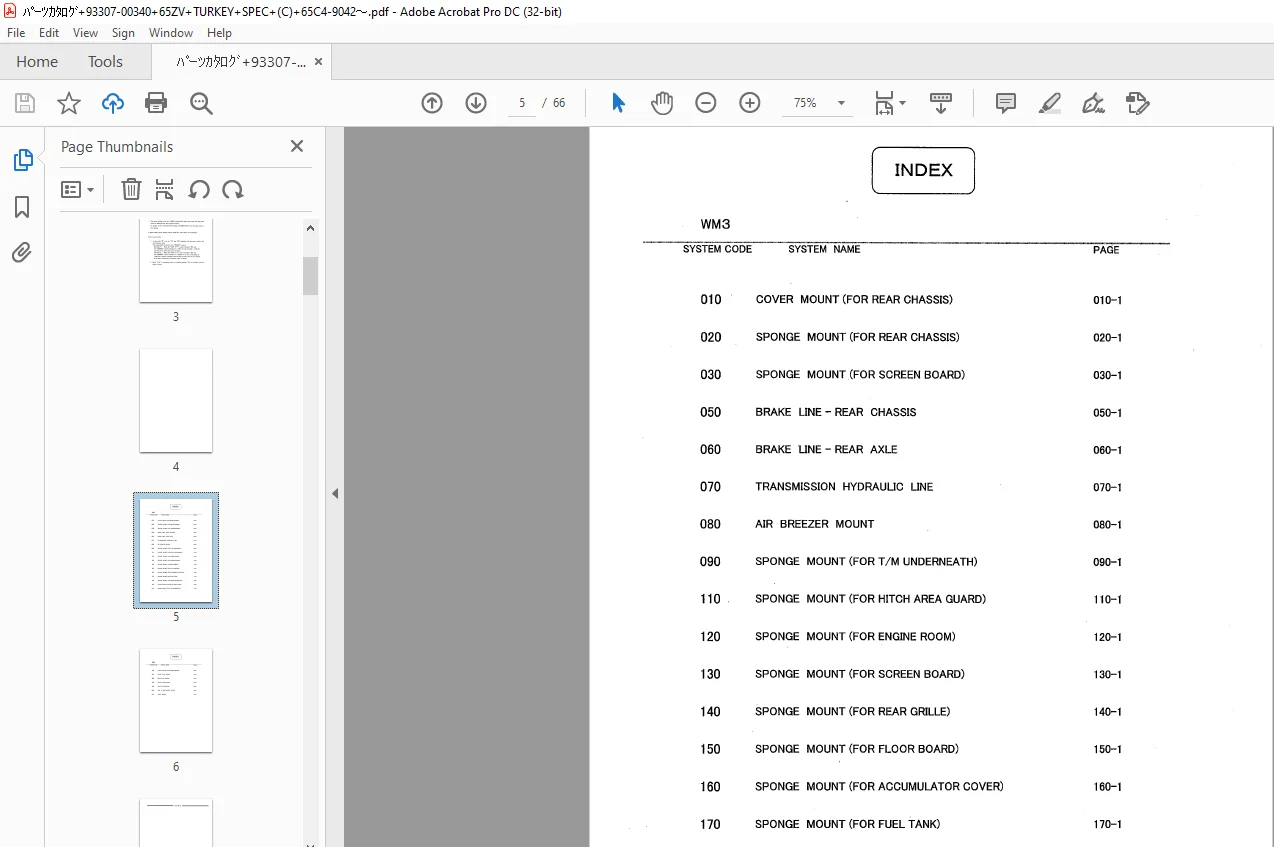

TABLE OF CONTENTS:

Kawasaki WHEEL LOADER 65ZV Parts Manual 93307-00340 – PDF DOWNLOAD

COVER MOUNT (FOR REAR CHASSIS) 010-1
020 SPONGE MOUNT (FOR REAR CHASSIS) 020-1
030 SPONGE MOUNT (FOR SCREEN BOARD) 030-1
050 BRAKE LINE – REAR CHASSIS 050-1
060 BRAKE UNE – REAR AXLE 060-1
070 TRANSMISSION HYDRAULIC LINE 070-1
080 AIR BREEZER MOUNT 080-1
090 SPONGE MOUNT (FOR T /M UNDERNEATH) 090-1
110 . SPONGE MOUNT (FOR HITCH AREA GUARD) 110-1
120 SPONGE MOUNT (FOR ENGINE ROOM) 120-1
130 SPONGE MOUNT (FOR SCREEN BOARD) 130-1
140 SPONGE MOUNT (FOR REAR GRILLE) 140-1
150 SPONGE MOUNT (FOR FLOOR BOARD) 150-1
160 SPONGE MOUNT (FOR ACCUMULATOR COVER) 160-1
170 SPONGE MOUNT (FOR FUEL TANK) 170-1
180 SPONGE MOUNT (FOR RADIATOR BRACKET) 180-1
190 COVER MOUNT (FOR HITCH AREA GUARD) 190-1
210 GUARD MOUNT (FORT /M UNDERNEATH) 210-1
[ INDEX ]
WM3
SYSTEM CODE SYSTEM NAME PAGE
220 COVER MOUNT (FOR SCREEN BOARD) 220-1
310 FRONT AXLE GROUP 310-1
320 REAR AXLE GROUP 320-1
330 FRONT DIFFERENTIAL 330-1
340 REAR DIFFERENTIAL 340-1
350 TIRE & DISC WHEEL GROUP · 350-1
410 LABEL MOUNT 410-1
