Kawasaki WHEEL LOADER 95ZV SHOP MANUAL 93215-00292 – PDF DOWNLOAD

Description

Kawasaki WHEEL LOADER 95ZV SHOP MANUAL 93215-00292 – PDF DOWNLOAD

FILE DETAILS:

Kawasaki WHEEL LOADER 95ZV SHOP MANUAL 93215-00292 – PDF DOWNLOAD

Language :English
Pages :392
Downloadable : Yes
File Type : PDF

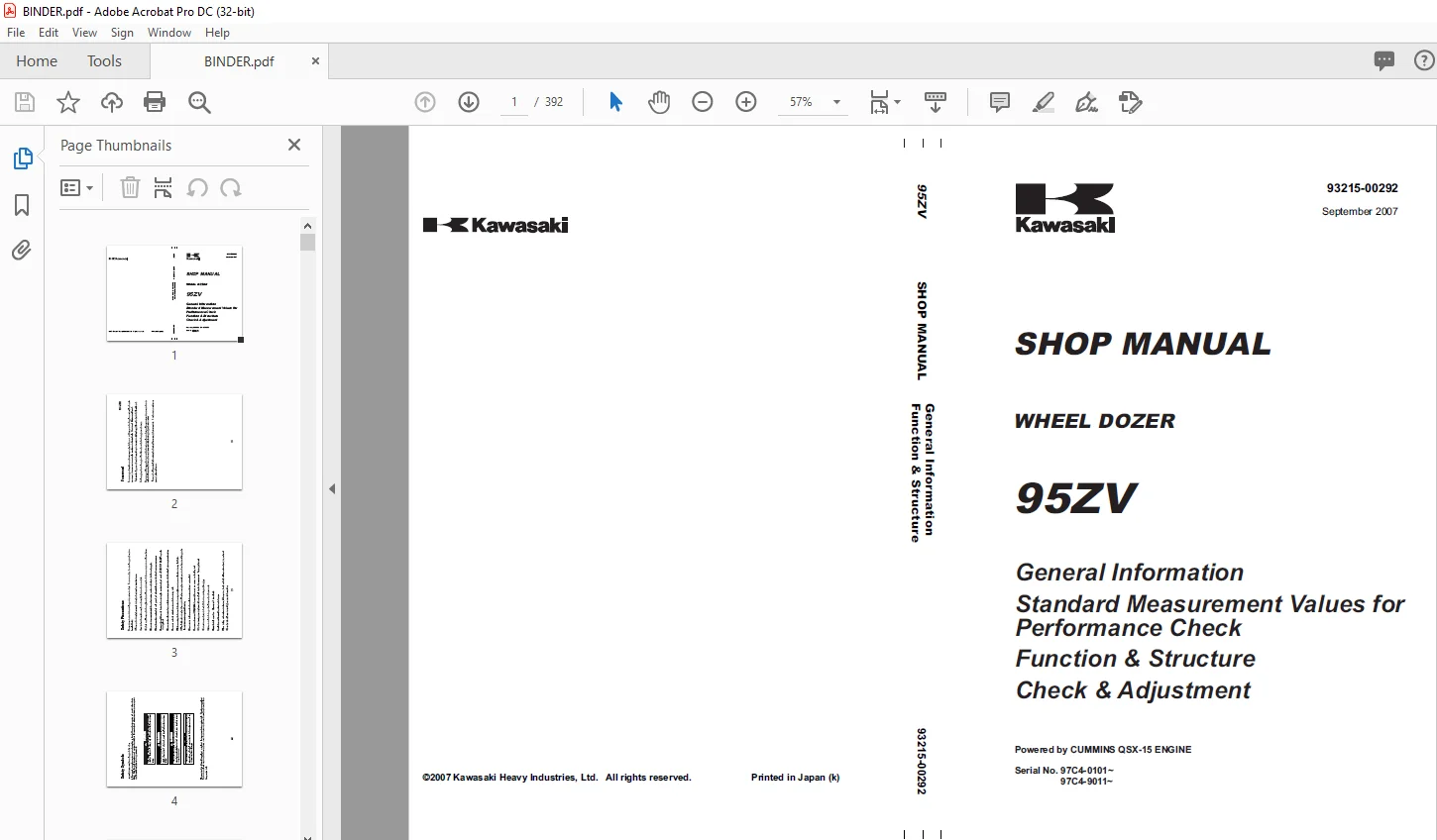

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kawasaki WHEEL LOADER 95ZV SHOP MANUAL 93215-00292 – PDF DOWNLOAD

General Information
Standard Measurement Values for
Performance Check
Function & Structure
Check & Adjustment
Powered by CUMMINS QSX-15 ENGINE
Serial No. 97C4-0101~
97C4-9011~

Foreword

• To ensure good machine performance, reduce failures or problems, and prolong the service life of each
  component, it is necessary to operate the machine as is directed in the Operator and Maintenance Manual.
• To effectively diagnose and repair the machine, it is important to follow the guidelines laid out in this Shop Manual.
  For the engine, refer to the engine Shop Manual provided by the engine manufacturer.
• The purpose of this manual is to provide information on the product and the correct maintenance and repair
  methods. Please read this manual to ensure correct troubleshooting and good repair service.
• This manual will be periodically reviewed and revised for more satisfactory content. If you have any opinion or
  requests, please inform us.

Safety Precautions

The most important point in providing repair service is safety. To ensure safety, observe the general cautions
described below.
This manual is intended for properly trained and equipped service technicians.
Any work on the machine must be performed by the trained personnel only.
Carefully read this manual to thoroughly understand the operation method before you operate or repair the machine.
Be sure to wear appropriate clothes and protectors, such as safety boots, hard hat and goggles.
Place the machine on level and solid ground, and place chocks against the wheels to prevent movement.
Remove the cable from the battery before starting the service work, and attach a “DO NOT OPERATE!” tag to the
steering wheel.
Be sure to release the internal pressure before you remove a pipe, such as the hydraulic oil, air, or engine coolant pipe.
Be sure to apply the articulation stopper before starting work.
While supporting the bottom of the chassis using a jack, be sure to support the chassis using the blocks.
When the blade is raised or when a unit is lifted by a crane, be sure to place a stand or adequate cribbing under
the unit to prevent unexpected dropping.
Do not start to work in an enclosed area if adequate ventilation is not provided.
To remove a heavy unit (20kgf (40 lbs) or more), be sure to use a crane or other lifting tool.
Just after stopping operation, be careful not to directly touch a hot component. You may get burned.
Contact tire manufacturer’s local dealer for tire servicing and changing.
Always store the tools in good condition, and use them properly.
Keep the work area clean. Clean up spills immediately.
Avoid the use of flammable solvents and cleaners.
When working outdoors keep work areas, ladders, steps, decks and work platforms clear of snow, ice, and mud.
Use safe work platforms to reach higher areas of the machine.

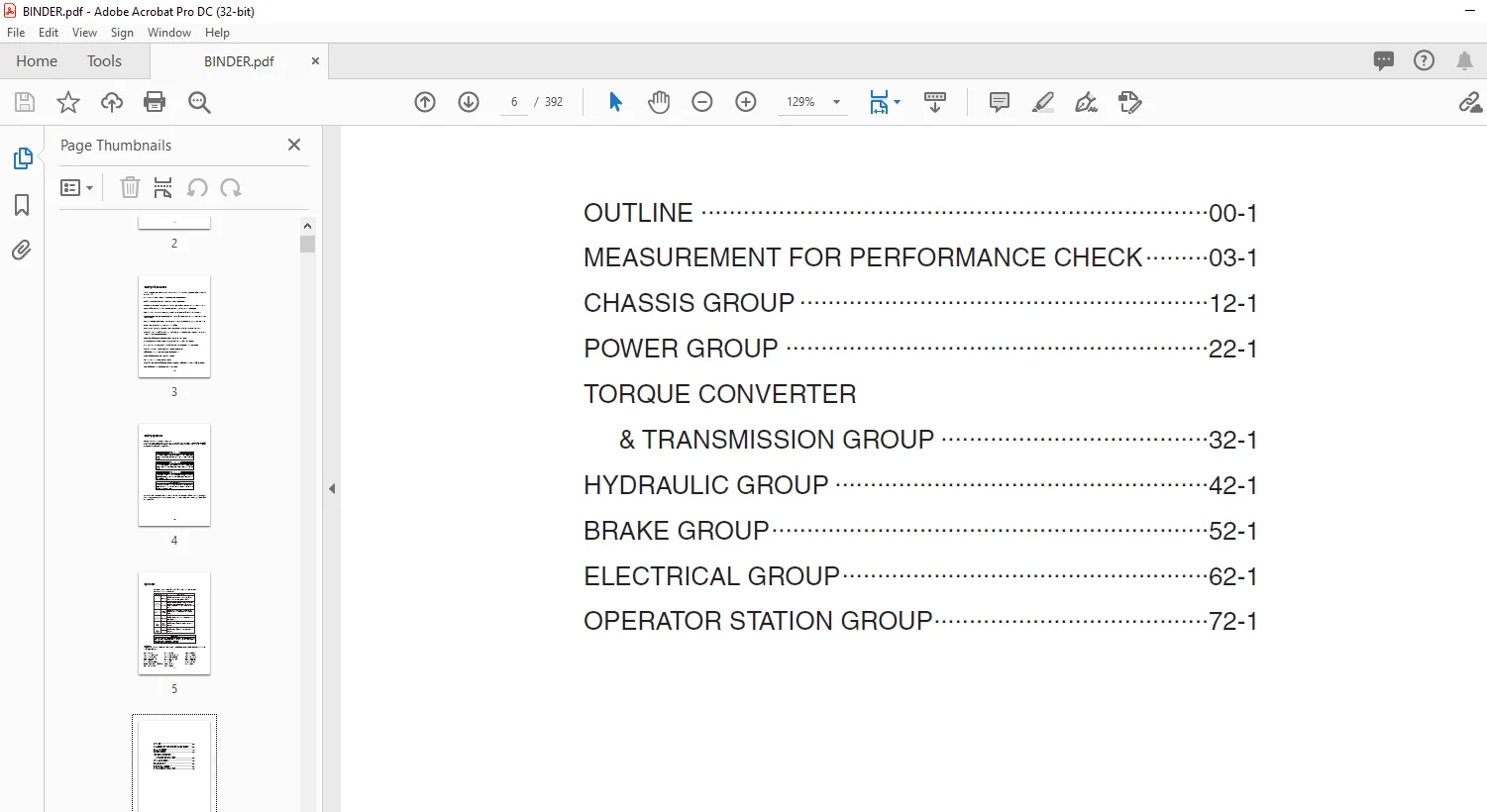

TABLE OF CONTENTS:

Kawasaki WHEEL LOADER 95ZV SHOP MANUAL 93215-00292 – PDF DOWNLOAD

General Information
Standard Measurement Values for
Performance Check
Function & Structure
Check & Adjustment
Powered by CUMMINS QSX-15 ENGINE
Serial No. 97C4-0101~
97C4-9011~

OUTLINE 00-1
MEASUREMENT FOR PERFORMANCE CHECK 03-1
CHASSIS GROUP 12-1
POWER GROUP 22-1
TORQUE CONVERTER
& TRANSMISSION GROUP 32-1
HYDRAULIC GROUP 42-1
BRAKE GROUP 52-1
ELECTRICAL GROUP 62-1
OPERATOR STATION GROUP 72-1
OUTLINE
Layout of Main Components 00-2
Recommended Lubricants 00-3
Coolant 00-4
Lubrication Chart 00-5
Weight of Main Components 00-6
Bolt Tightening Torque 00-7
Hose Band Tightening Torque 00-10
Liquid Gasket and Screw Lock Agent 00-11
Cautions Regarding Welding Repair Service

S.M 7/2/2025
