KCM 115Z7 WHEEL LOADER(General Information Function & Structure) ISUZU 6WG1 ENGINE Shop Manual – PDF DOWNLOAD
SN 11J1-5001 and up
PN 93216-00570
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
KCM 115Z7 WHEEL LOADER(General Information Function & Structure) ISUZU 6WG1 ENGINE Shop Manual – PDF DOWNLOAD
FILE DETAILS:
KCM 115Z7 WHEEL LOADER(General Information Function & Structure) ISUZU 6WG1 ENGINE Shop Manual – PDF DOWNLOAD
SN 11J1-5001 and up
PN 93216-00570
Language : English
Pages : 456
Downloadable : Yes
File Type : PDF
Pages : 456
Downloadable : Yes
File Type : PDF

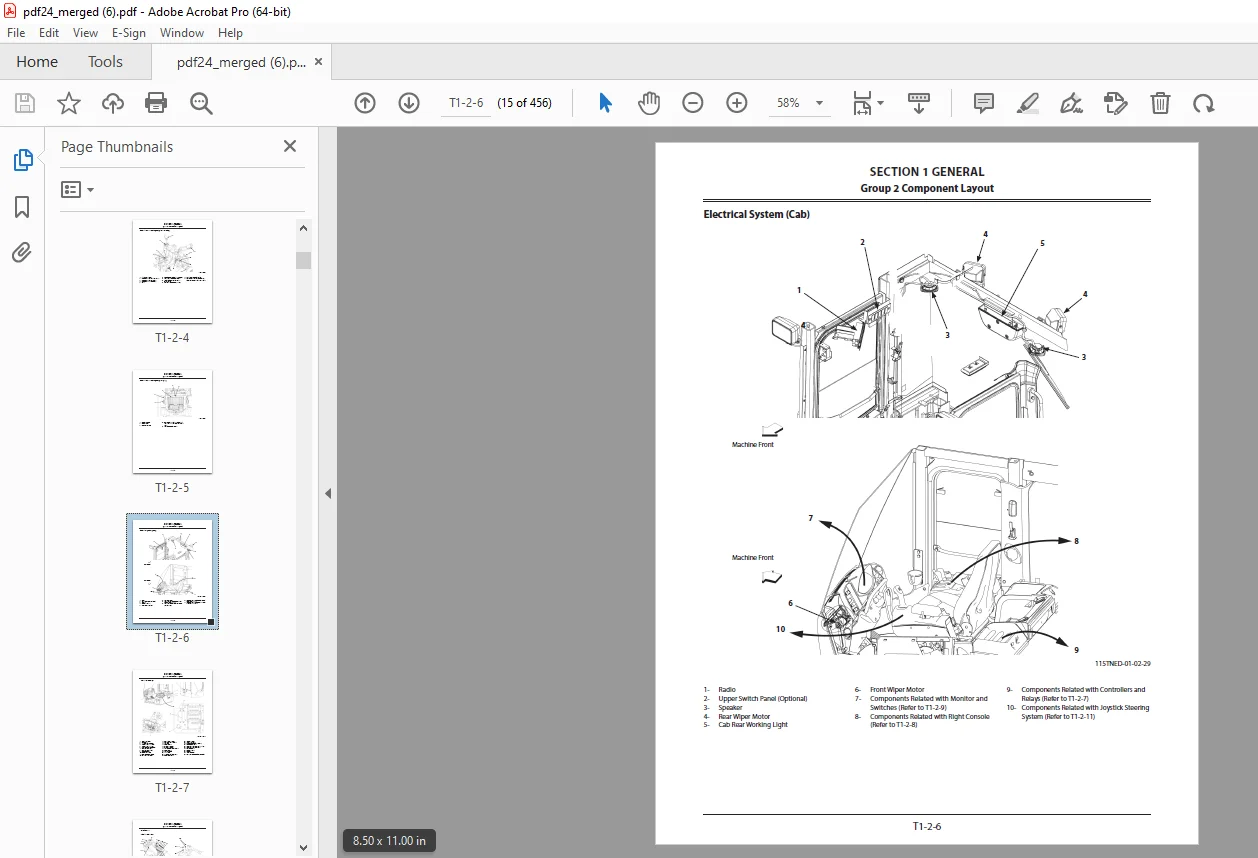

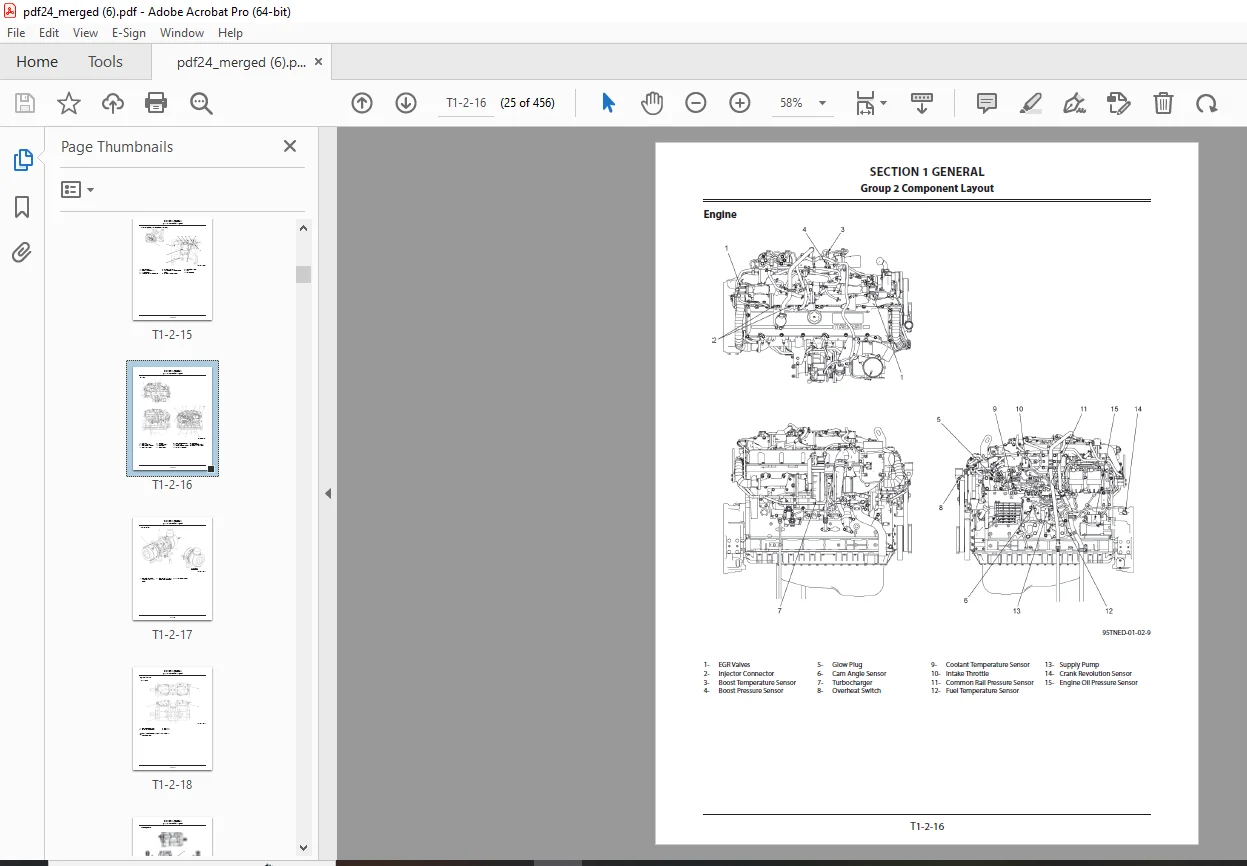

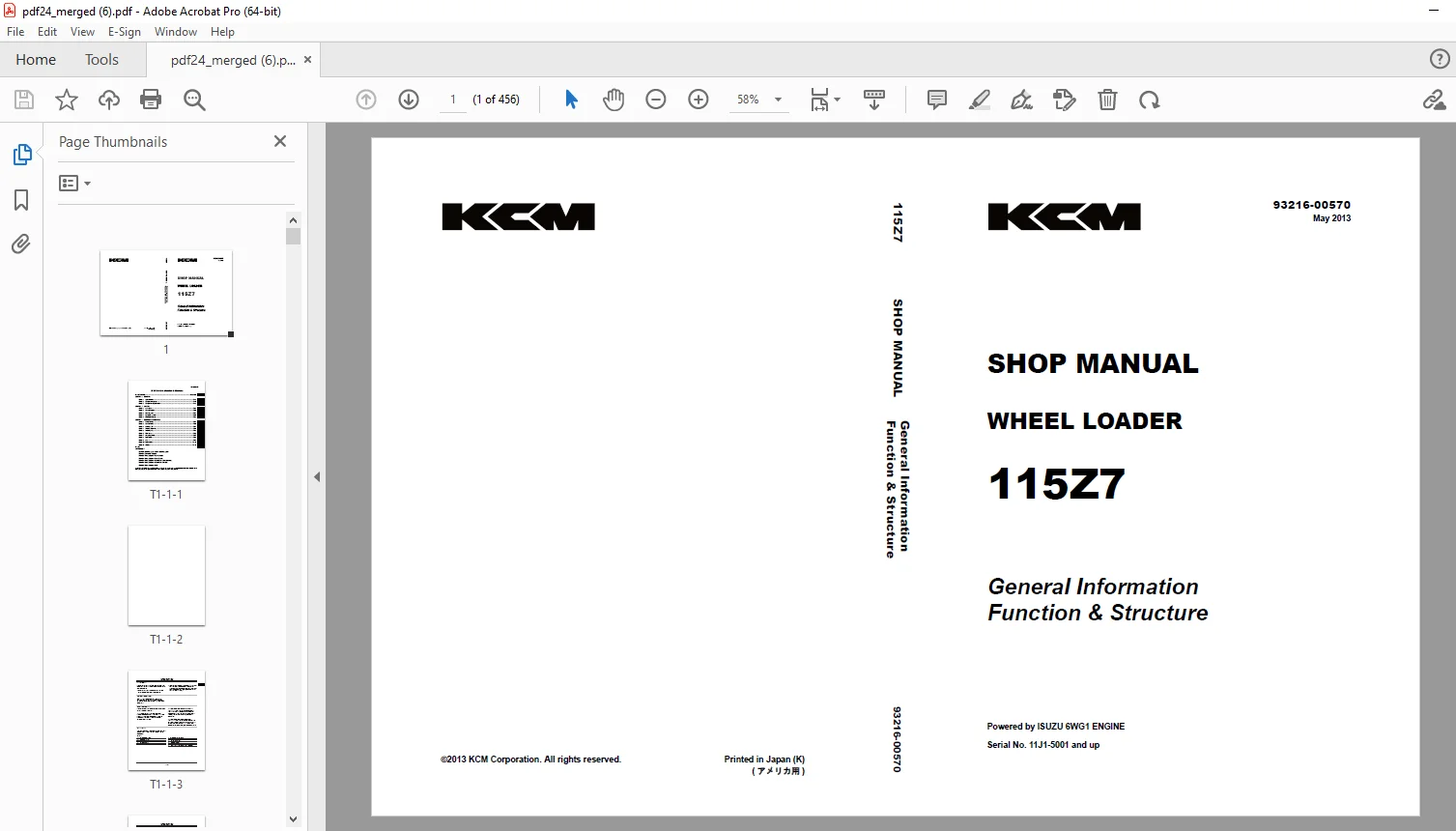

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KCM 115Z7 WHEEL LOADER(General Information Function & Structure) ISUZU 6WG1 ENGINE Shop Manual – PDF DOWNLOAD
SN 11J1-5001 and up
PN 93216-00570
INTRODUCTION IN-01~02
SECTION 1 GENERAL
Group 1 Specifications T1-1
Group 2 Component LayoutT1-2
Group 3 Component Specifications T1-3
SECTION 2 SYSTEM
Group 1 ControllerT2-1
Group 2 Control SystemT2-2
Group 3 ECM System T2-3
Group 4 Hydraulic System T2-4
Group 5 Electrical SystemT2-5
SECTION 3 COMPONENT OPERATION
Group 1 Pump DeviceT3-1
Group 2 Control ValveT3-2
Group 3 Cooling FanT3-3
Group 4 Steering Pilot Valve T3-4
Group 5 Steering Valve T3-5
Group 6 Pilot ValveT3-6
Group 7 Charging Circuit T3-7
Group 8 Drive UnitT3-8
Group 9 Axle T3-9
Group 10 Brake Valve T3-10
Group 11 Others T3-11
SECTION 1 GENERAL
Group 1 Specifications T1-1
Group 2 Component LayoutT1-2
Group 3 Component Specifications T1-3
SECTION 2 SYSTEM
Group 1 ControllerT2-1
Group 2 Control SystemT2-2
Group 3 ECM System T2-3
Group 4 Hydraulic System T2-4
Group 5 Electrical SystemT2-5
SECTION 3 COMPONENT OPERATION
Group 1 Pump DeviceT3-1
Group 2 Control ValveT3-2
Group 3 Cooling FanT3-3
Group 4 Steering Pilot Valve T3-4
Group 5 Steering Valve T3-5
Group 6 Pilot ValveT3-6
Group 7 Charging Circuit T3-7
Group 8 Drive UnitT3-8
Group 9 Axle T3-9
Group 10 Brake Valve T3-10
Group 11 Others T3-11
DESCRIPTION:
KCM 115Z7 WHEEL LOADER(General Information Function & Structure) ISUZU 6WG1 ENGINE Shop Manual – PDF DOWNLOAD
SN 11J1-5001 and up
PN 93216-00570
TO THE READER:
- This manual is written for trained and skilled technicians to provide technical information needed to maintain and repair this machine.
- Be sure to thoroughly read this manual for correct product information and service procedures.
- If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual. (Note: Do not tear off the form. Copy it for usage.
MANUAL COMPOSITION:
- This manual consists the Technical Manual, the Workshop Manual and the Engine Manual.
- Information included in the Technical Manual: Technical information needed for machine pre-delivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
- Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assembly / disassembly procedures.
- Information included in the Engine Manual: Technical information needed for machine pre-delivery and delivery and maintenance and repair of the engine, operation and activation of all devices and systems, troubleshooting and assembly / disassembly procedures.
