KCM 60Z7 Wheel Loader DEUTZ TCD3.6L4 Engine Parts Manual - PDF

KCM 60Z7 Wheel Loader DEUTZ TCD3.6L4 Engine Parts Manual – PDF

Name: KCM 60Z7 Wheel Loader DEUTZ TCD3.6L4 Engine Parts Manual - PDF
SKU: 920383
Availability: InStock

$27.95

KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual – PDF DOWNLOAD

SN 60D1-8001

PN 93306-00330

Category: KCM Tags: KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine, KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual, KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual - PDF DOWNLOAD Vendor: ECU Manuals

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual – PDF DOWNLOAD

FILE DETAILS:

KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual – PDF DOWNLOAD

SN 60D1-8001

PN 93306-00330

Language : English
Pages : 134
Downloadable : Yes
File Type : PDF

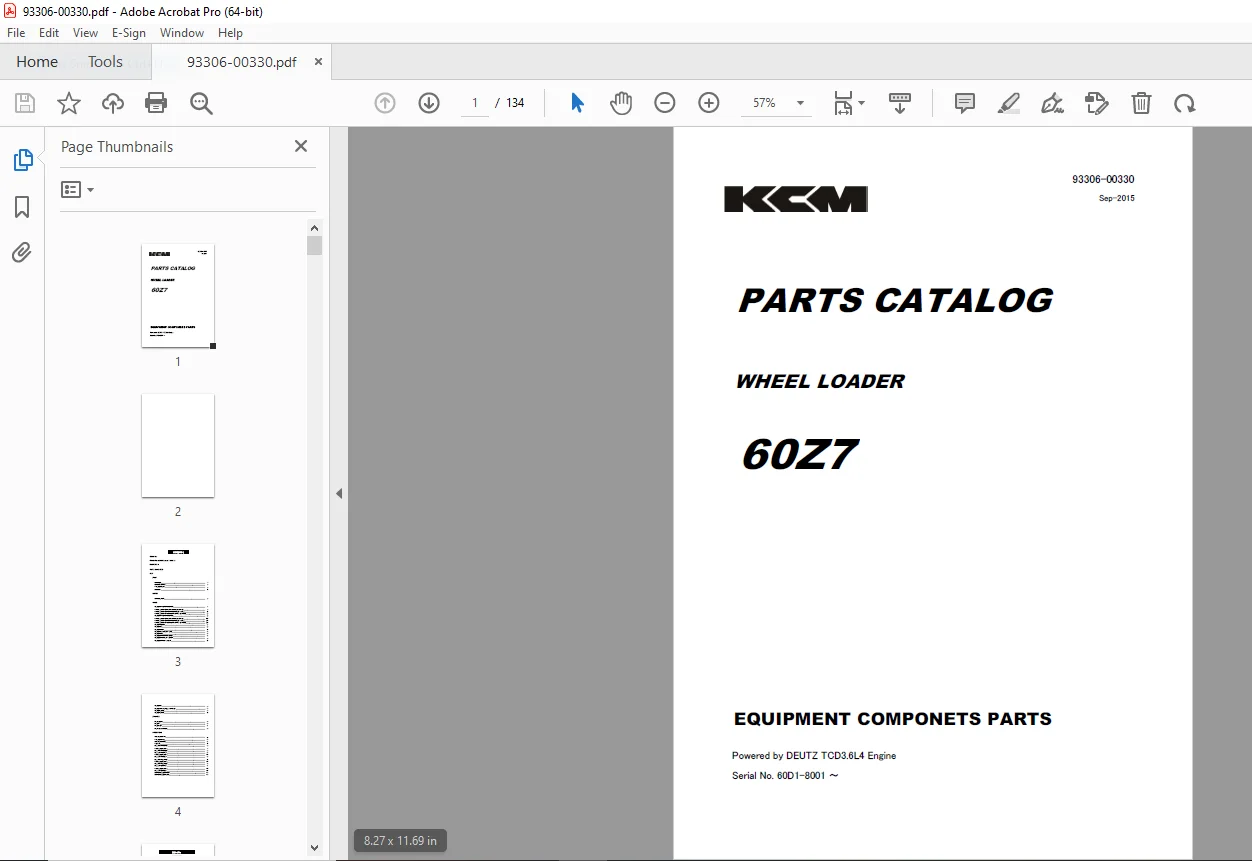

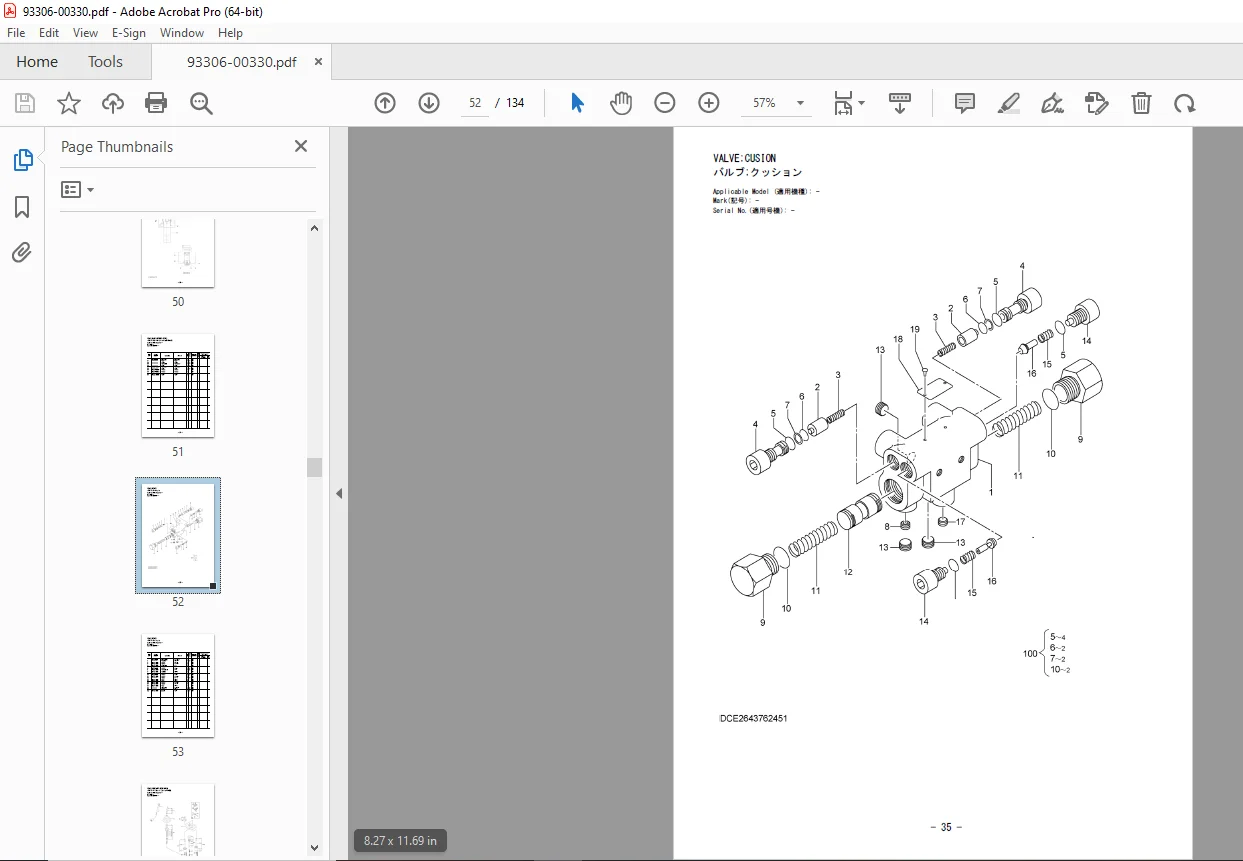

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual – PDF DOWNLOAD

SN 60D1-8001

PN 93306-00330

PUMP;PISTON (HST)
* VALVE;HOUSING
MOTOR
MOTOR;OIL (HST)
VALVE;BRAKE (INCHING VALVE)
VALVE;CUSION
VALVE;PILOT (FOR MONO LEVER)
VALVE;PILOT (AUXILIARY LEVER)
VALVE;PILOT (FRONT, SWING)
* SPOOL SECTION (LIFT ARM)(POC)(FOR 2,3,4 SPOOL)
* SPOOL SECTION (ATTACHMENT)(POC)(FOR 3,4 SPOOL)
VALVE;STREERING
VALVE;BRAKE
VALVE;PRIORITY
* SPOOL SECTION (BUCKET)(POC)(FOR 2,3,4 SPOOL)
* SPOOL SECTION (LIFT ARM)(POC)(FOR 2,3,4 SPOOL)
* SPOOL SECTION (ATTACHMENT)(POC)(FOR 3,4 SPOOL)
VALVE;CONTROL (4 SPOOL)(POC)
* SPOOL SECTION (BUCKET)(POC)(FOR 2,3,4 SPOOL)
UNIT;PUMP
MOTOR
MOTOR;OIL (HST)
VALVE
VALVE;LOCK
VALVE;CONTOROL （RIDE CONTOROL）
VALVE;SOLENOID
VALVE;STEERING
CYL;STEERING
CYL ;LIFT
CYL ;BUCKET
CYL (QUICK COUPLER)
AXLE;REAR (LSD)(2/2)
SHAFT;PROPELLER (FRONT)
SHAFT;PROPELLER (REAR)
AXLE;FRONT (LSD)(1/2)
* CARRIER;PLANETARY
AXLE;FRONT (LSD)(2/2)
AXLE;REAR (LSD)(1/2)
* CARRIER;PLANETARY
* CARRIER;PLANETARY
AXLE;FRONT (TPD)(2/2)
AXLE;REAR (TPD)(1/2)
* CARRIER;PLANETARY
AXLE;REAR (TPD)(2/2)

DESCRIPTION:

KCM 60Z7 Wheel Loader(Equipment Components Parts) DEUTZ TCD3.6L4 Engine Parts Manual – PDF DOWNLOAD

SN 60D1-8001

PN 93306-00330

@ According to KCM’s continuous effort to improve the product quality, descriptions in the Parts Catalog may be slightly different from your machine. If any questionable points are found, feel free to contact your nearest KCM dealer.

@ For the engine parts, please refer to the parts catalog of diesel engine issued separately.
