KCM 70Z7/70TM7 Wheel Loader CUMMINS QSB6.7 Engine Shop Manual(Volume 1) – PDF
$30.95
KCM 70Z7/70TM7 Wheel Loader(Disassembly & Reassembly) CUMMINS QSB6.7 Engine Shop Manual – PDF DOWNLOAD
Description
KCM 70Z7/70TM7 Wheel Loader(Disassembly & Reassembly) CUMMINS QSB6.7 Engine Shop Manual – PDF DOWNLOAD
FILE DETAILS:
KCM 70Z7/70TM7 Wheel Loader (Disassembly & Reassembly)CUMMINS QSB6.7 Engine Shop Manual – PDF DOWNLOAD
Language : English
Pages : 525
Downloadable : Yes
File Type : PDF

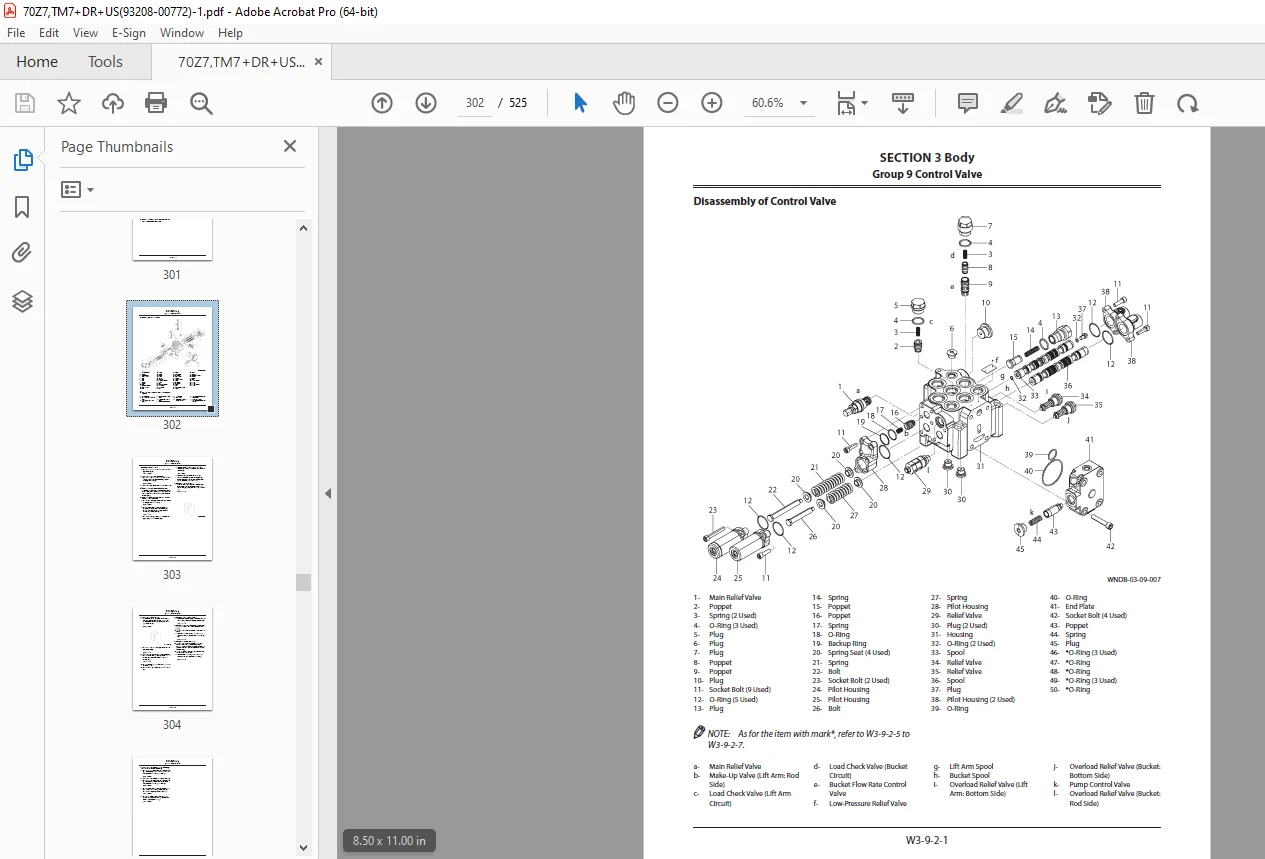

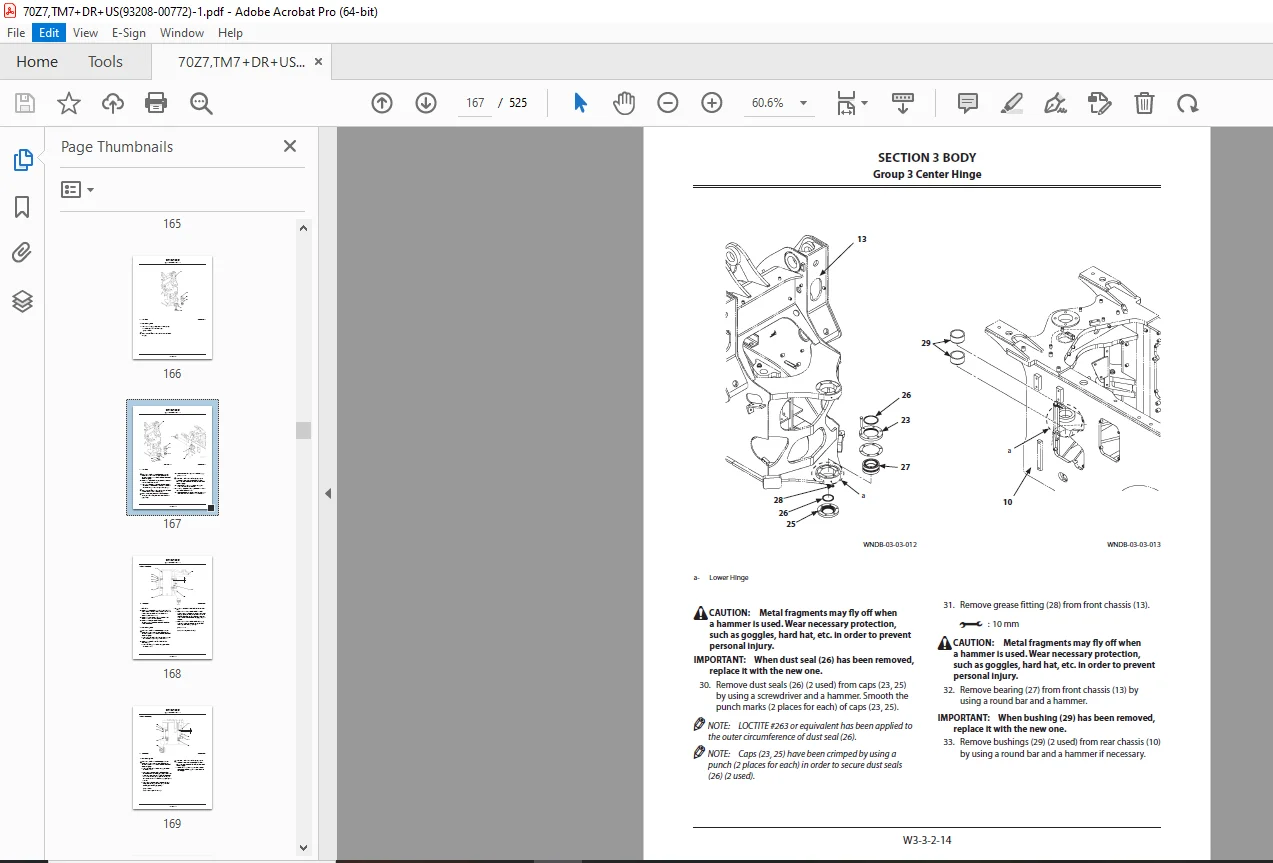

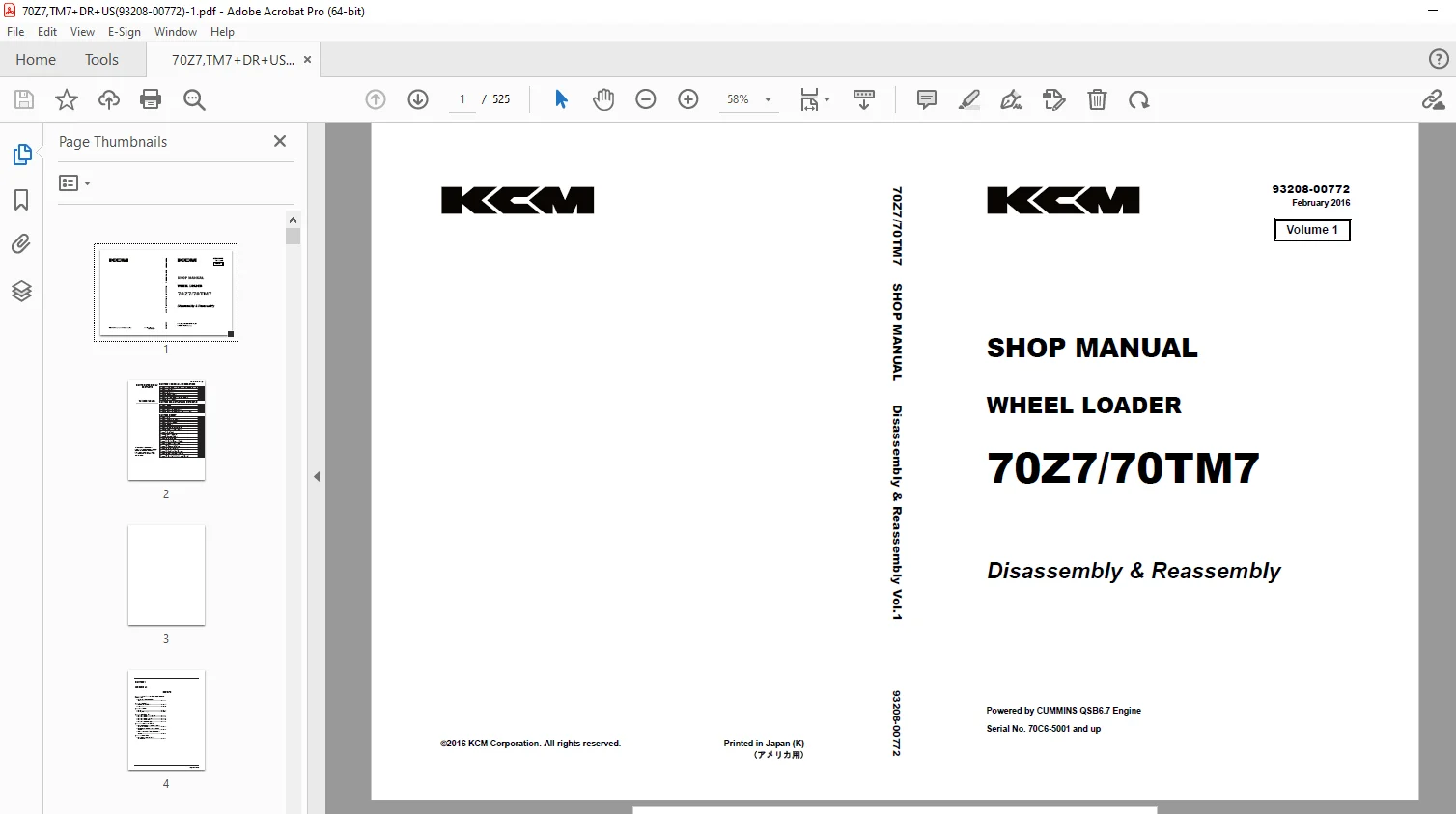

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KCM 70Z7/70TM7 Wheel Loader(Disassembly & Reassembly) CUMMINS QSB6.7 Engine Shop Manual – PDF DOWNLOAD
SECTION 1 GENERAL INFORMATION
Group 1 Precautions for Disassembling and Assembling
Group 2 Tightening
Group 3 Painting
Group 4 Bleeding Air
Group 5 Pressure Release Procedure
Group 6 Preparation
SECTION 2 MAINTENANCE STANDARD
Group 1 Body
Group 2 Travel System
Group 3 Front Attachment
Group 4 Front Attachment (Parallel Link)
SECTION 3 BODY
Group 1 Cab
Group 2 Counterweight
Group 3 Center Hinge
Group 4 Engine
Group 5 Radiator Assembly
Group 6 Hydraulic Oil Tank
Group 7 Fuel Tank
Group 8 Pump Device
Group 9 Control Valve
Group 10 Pilot Valve
Group 11 Brake Charge Valve
Group 12 Manifold Valve
Group 13 Solenoid Valve
Group 14 Priority Valve
Group 15 Cooling Fan System
Group 16 Ride Control Device
Group 17 Parallel Link (Special Parts)
DESCRIPTION:
KCM 70Z7/70TM7 Wheel Loader(Disassembly & Reassembly) CUMMINS QSB6.7 Engine Shop Manual – PDF DOWNLOAD
Precautions for Disassembling and Assembling:
Precautions for Disassembling:
- Clean the Machine Thoroughly wash the machine before bringing it into the shop. Bringing a dirty machine into the shop may cause machine components to be contaminated during disassembling / assembling, resulting in damage to machine components, as well as decreased efficiency in service work.
- Inspect the Machine Be sure to thoroughly understand all disassembling / assembling procedures beforehand to help avoid incorrect disassembling of components as well as personal injury. Check and record the items listed below to prevent problems from occurring in the future.
- The machine model, machine serial number, and hour meter reading.
- Reason for disassembly (symptoms, failed parts, and causes).
- Clogging of filters and oil, water or air leaks, if any. Capacities and condition of lubricants.
- Loose or damaged parts.
- Prepare and Clean Tools and Disassembly Area Prepare the necessary tools to be used and the area for disassembling work. Precautions for Disassembling and Assembling
- Precautions for Disassembling
- Cap the open ends in case the hoses and pipes have been disconnected. In addition, attach an identification tag onto the connectors, hoses, and pipes for assembling.
- Before disassembling, clean the exterior of the components and place on a workbench.
- Drain hydraulic oil and gear oil from the hydraulic components and reduction gear.
- Be sure to provide appropriate containers for draining fluids.
- Use matching marks for easier reassembling if necessary.
- Be sure to use the specified special tools when instrucute
Maintenance Standard Terminology “Standard”:
1. Dimension for parts on a new machine.
2. Dimension of new components or assemblies adjusted to specification. Allowable errors will be indicated if necessary
