KCM 80Z7 Wheel Loader CUMMINS QSB6.7Engine Parts Manual – PDF DOWNLOAD

SN 80C6-5001
PN 93309-00442
Category: Tags: , , Vendor: Spanner Docs
⚡
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

KCM 80Z7 Wheel Loader CUMMINS QSB6.7Engine Parts Manual – PDF DOWNLOAD

FILE DETAILS:

KCM 80Z7 Wheel Loader CUMMINS QSB6.7Engine Parts Manual – PDF DOWNLOAD

SN 80C6-5001
PN 93309-00442
Language : English, French , Spanish, Japanese
Pages : 240
Downloadable : Yes
File Type : PDF

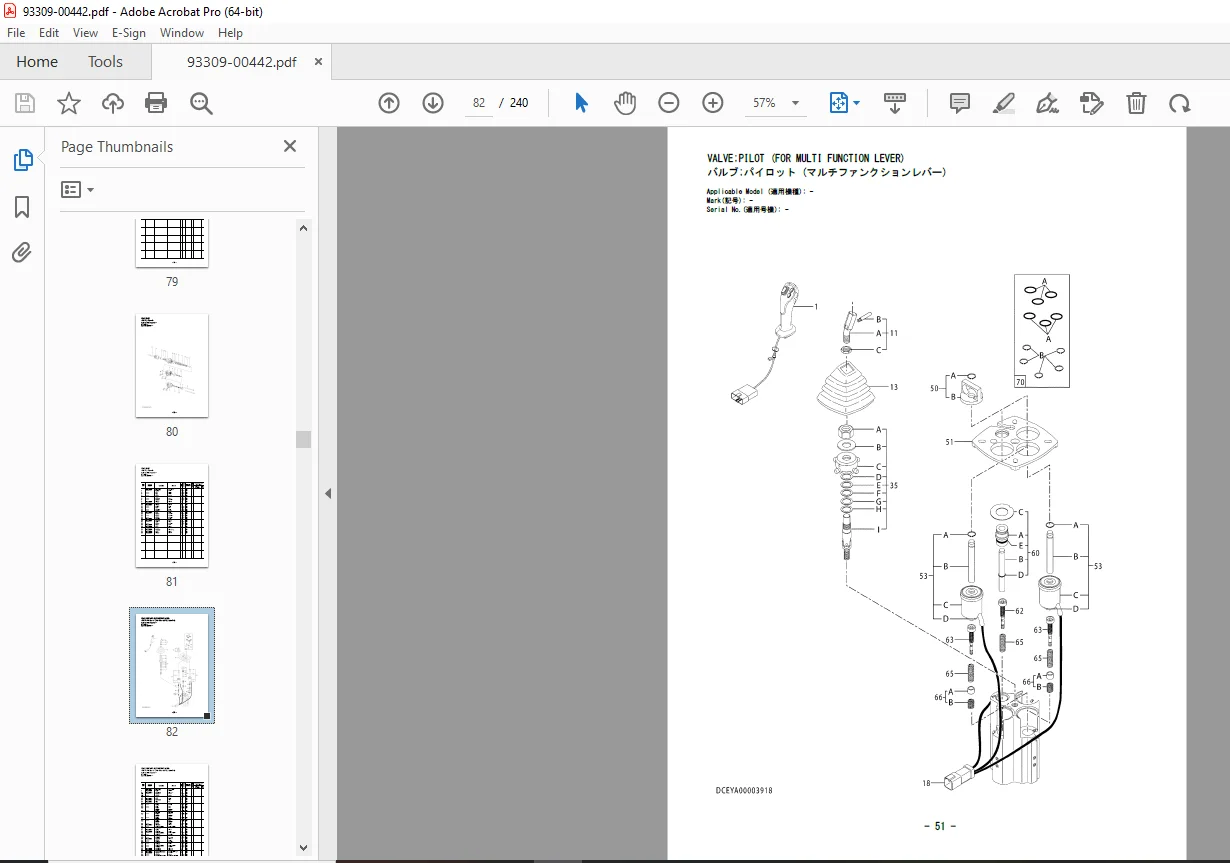

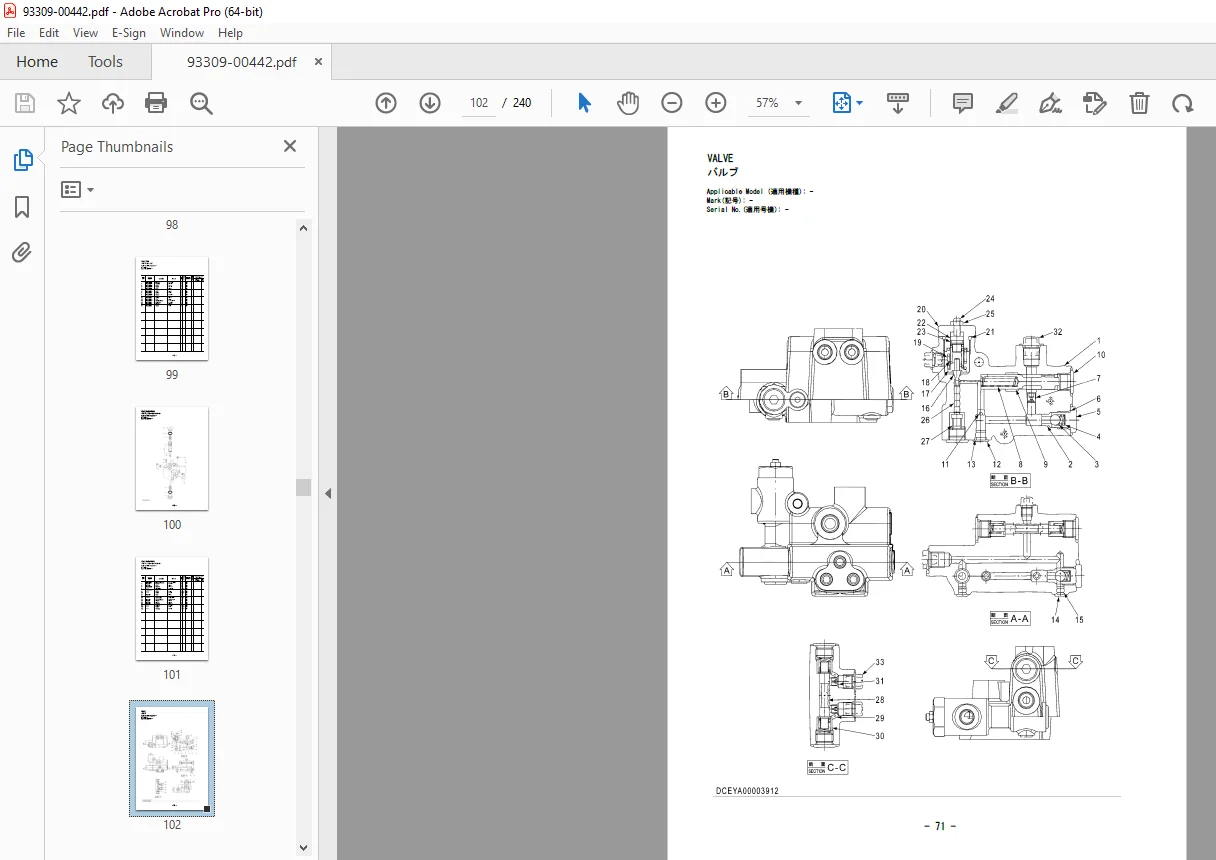

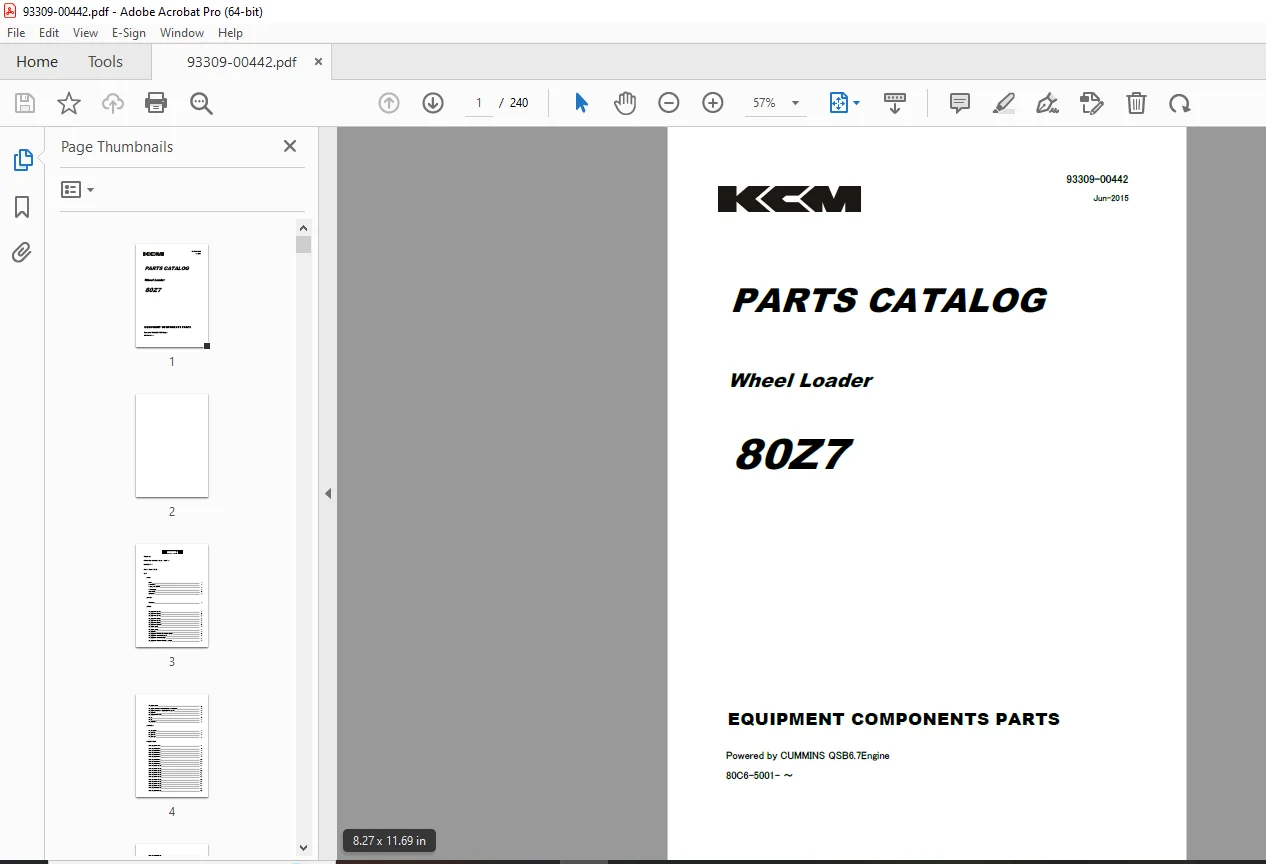

IMAGES PREVIEW OF THE  MANUAL:

TABLE OF CONTENTS:

KCM 80Z7 Wheel Loader CUMMINS QSB6.7Engine Parts Manual – PDF DOWNLOAD

SN 80C6-5001
PN 93309-00442

PUMP
* PUMP;UNIT
* REGULATOR;PUMP
PUMP;GEAR
PUMP (FAN)
UNIT;PUMP
MOTOR;OIL
VALVE;CONTROL (1/2)
VALVE;CONTROL (2/2)
VALVE;CONTROL (1/2)
VALVE;CONTROL (2/2)
VALVE;CONTROL (1/2)
VALVE;CONTROL (2/2)
VALVE;CONTROL (FAN)
VALVE;SOLENOID
VALVE;SOLENOID
VALVE;BRAKE
VALVE;PILOT (FOR MULTI FUNCTION LEVER)
VALVE;PILOT (FOR WORK LEVER)
VALVE;PILOT (FOR AUX LEVER)
VALVE;PILOT (FOR AUX JOYSTICK LEVER)
VALVE;STEERING
VALVE;STEERING (WITHOUT EMERGENCY STEERING)
VALVE;STEERING (WITH EMERGENCY STEERING)
VALVE;STOP
VALVE;FLOW-CONTROL
VALVE
VALVE
VALVE;CHECK
TRANSMISSION (17/30)
TRANSMISSION (18/30)
TRANSMISSION (19/30)
TRANSMISSION (20/30)
TRANSMISSION (21/30)
TRANSMISSION (12/30)
TRANSMISSION (13/30)
TRANSMISSION (14/30)
TRANSMISSION (15/30)
TRANSMISSION (16/30)
TRANSMISSION (7/30)
TRANSMISSION (8/30)
TRANSMISSION (9/30)
TRANSMISSION (10/30)
TRANSMISSION (11/30)
TRANSMISSION (2/30)
TRANSMISSION (3/30)
TRANSMISSION (4/30)
TRANSMISSION (5/30)
TRANSMISSION (6/30)
CYL;LIFT (L)
CYL;LIFT (R)
CYL;BUCKET
POWER TRAIN
TRANSMISSION (1/30)
VALVE
VALVE
VALVE;CHECK
CYLINDER
ACCUMULATOR (FOR BRAKE)
ACCUMULATOR (FOR STEERING)
ACCUMULATOR (FOR RIDE CONTROL)
ACCUMULATOR (FOR PILOT)
ACCUMULATOR (FOR PARKING BRAKE)
* AXLE;REAR PARTS (LSD)(2)
** CARRIER;PLANET
PROPELLER SHAFT (FRONT)
PROPELLER SHAFT (REAR)
ETC
* AXLE;FRONT PARTS (1)
* AXLE;FRONT PARTS (LSD)(2)
** CARRIER;PLANET
AXLE;REAR (LSD)
* AXLE;REAR PARTS (1)
TRANSMISSION (27/30)
TRANSMISSION (28/30)
TRANSMISSION (29/30)
TRANSMISSION (30/30)
AXLE;FRONT (LSD)
TRANSMISSION

DESCRIPTION:

KCM 80Z7 Wheel Loader CUMMINS QSB6.7Engine Parts Manual – PDF DOWNLOAD

SN 80C6-5001
PN 93309-00442
FOREWORD:
@ According to KCM’s continuous effort to improve the product quality, descriptions in the Parts Catalog may be slightly different from your machine. If any questionable points are found, feel free to contact your nearest KCM dealer.
@ For the engine parts, please refer to the parts catalog of diesel engine issued separately.
1. HOW TO ORDER PARTS When ordering parts, please specify the following items.
(1) Model/type
(2) Product Identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchaser’s Name and Address
2. HOW TO USE THIS PARTS CATALOG PART NAME:
When the part is used as an inner part of an assembly part, the mark “.” is shown in front of the part name.
QTY: Indicates the number of the part used per machine. The quantity of an inner part is the number of the inner part necessary to organize one assembly part.
SYMBOLS USED IN THIS BOOK: The symbols shown in the service code and interchangeability columns are used to indicate the following information.
W: Requires additional processing at the job site. Ask your nearest KCM dealer. H: Indicate a precise part. Ask your nearest KCM dealer for its repair.
D: Impossible to replace as a single part. Replace the part in an assembly unit.
K: Contained in the service part kit.
R: Indicate that the quantity of the part like shims differs depending on the machine serial No.
S: To be supplied as repair or service parts.
Z: Engine related parts. OS: Over-sized parts
US: Undersized parts (Part with mark “OS, or US” is described in the next column under the standard size part column.) #: Indicates newly added parts to the equipment or component.
Y: Interchangeable part without any constraint
