KCM CUMMINS QSB4.5 ENGINE For 62Z7B/67Z7B/67TM7B Parts Manual PDF
$27.95
KCM CUMMINS QSB4.5 ENGINE For 62Z7B/67Z7B/67TM7B Parts Manual – PDF DOWNLOAD
SN 26651667
PN 93307-00660
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
KCM CUMMINS QSB4.5 ENGINE For 62Z7B/67Z7B/67TM7B Parts Manual – PDF DOWNLOAD
FILE DETAILS:
KCM CUMMINS QSB4.5 ENGINE For 62Z7B/67Z7B/67TM7B Parts Manual – PDF DOWNLOAD
SN 26651667
PN 93307-00660
Language : English
Pages : 193
Downloadable : Yes
File Type : PDF

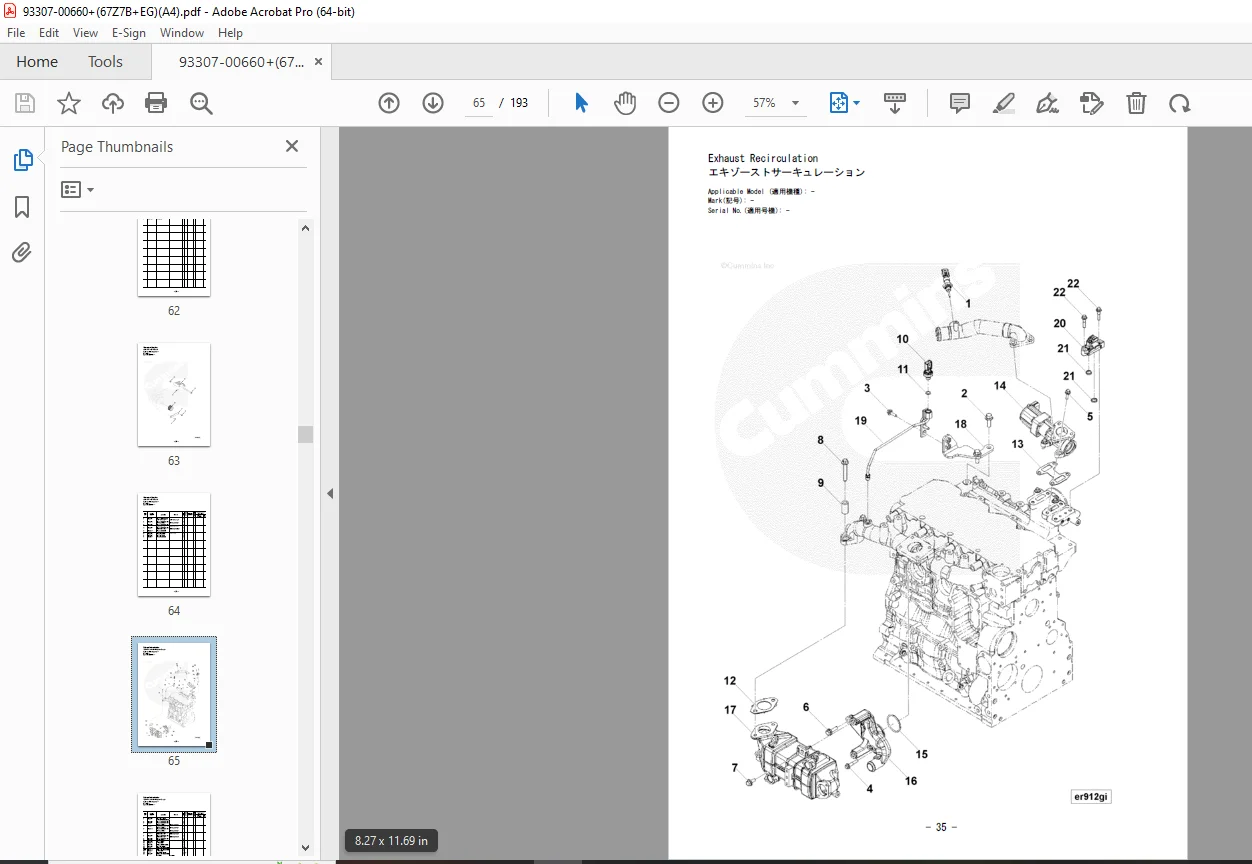

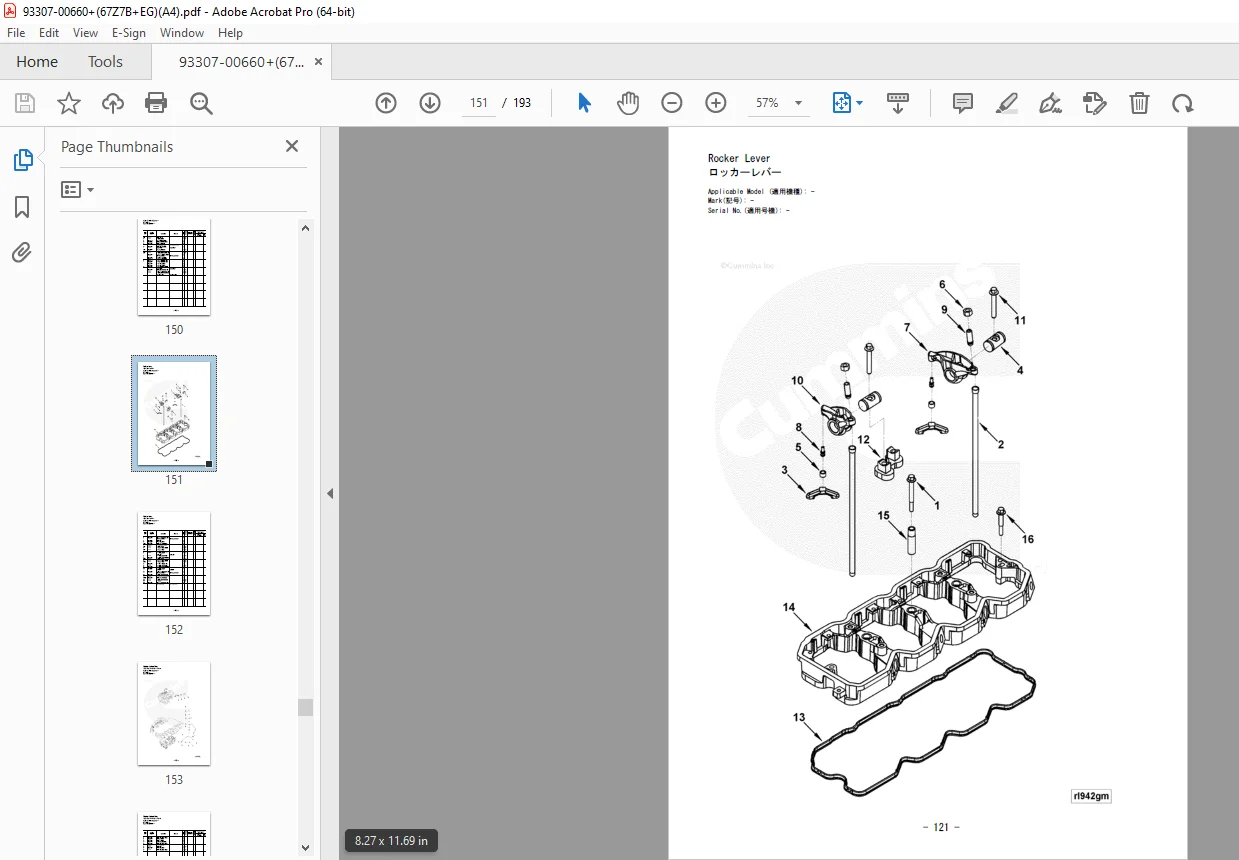

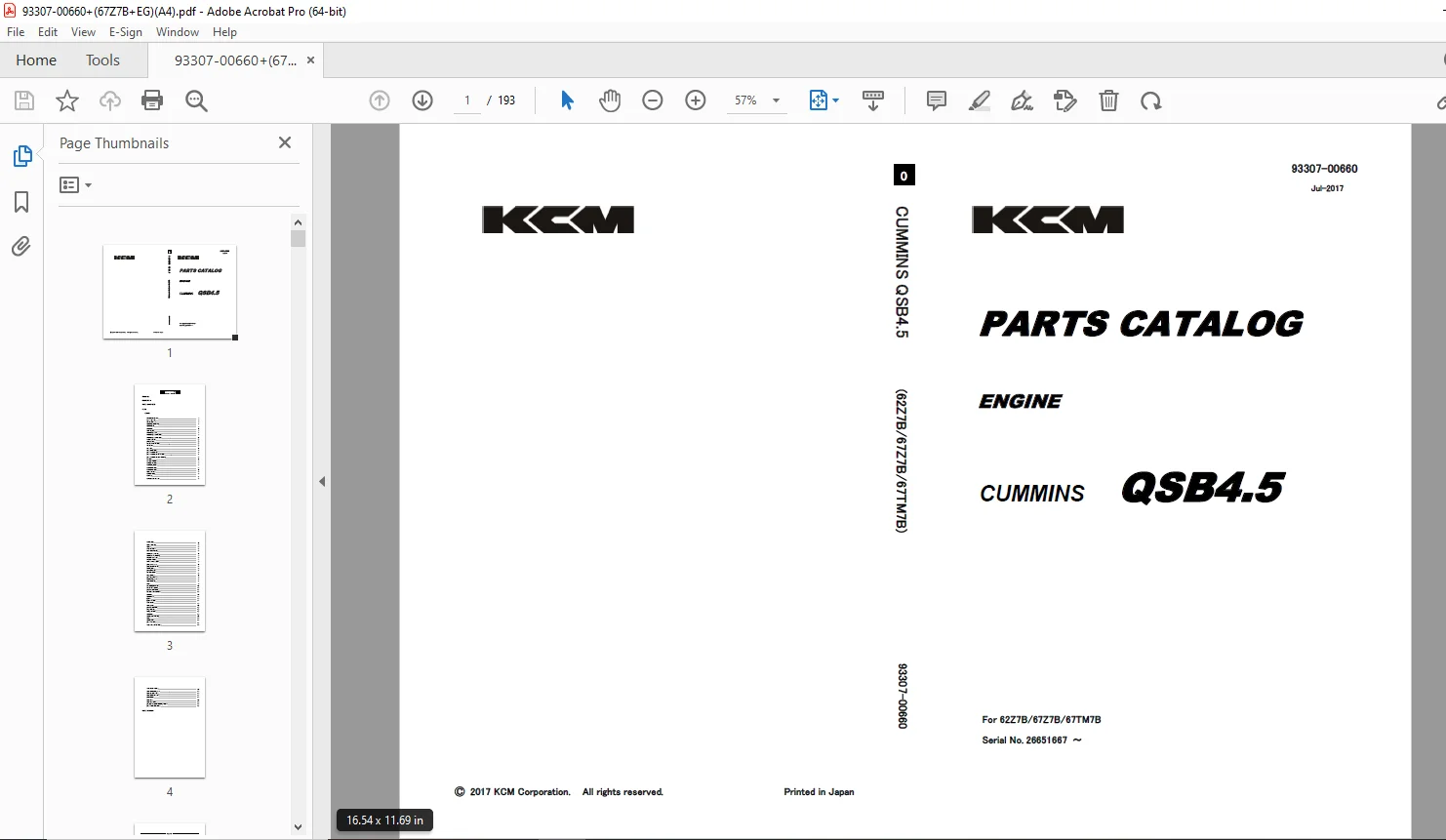

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KCM CUMMINS QSB4.5 ENGINE For 62Z7B/67Z7B/67TM7B Parts Manual – PDF DOWNLOAD
SN 26651667
PN 93307-00660
93307-00660 1
CONTENTS I 2
Before Use 6
Chassis No and Manufacturer’s Serial No 8
CONTENTS Ⅱ 18
PARTS NAME INDEX 29
Air Heater Starting Aid 31
Agency Approval 33
Rear Gear Housing 35
Cylinder Block Plumbing 37
Cylinder Block 39
Crankshaft 41
Valve Tappets 45
Crankcase Breather 47
Crankcase Breather Plumbing 49
Crankcase Breather Mounting 51
Vibration Damper 53
Drain Location 55
Rear Gear Train Mounting 57
Thermostat 59
Alternator 61
Alternator Mounting 63
Exhaust Recirculation 65
Exhaust Recirculation Air Plumbing 67
Exhaust Recirculation Water Plumbing 69
Fan Drive 71
Fan Drive Mounting 73
Fuel Drain Plumbing 75
Fuel Filter Location 77
Fuel Filter Plumbing 79
Fuel Filter Mounting 81
Flywheel Housing 83
Fuel Inlet Fitting 85
Fuel Pump 87
Fuel System Accessories 89
Fuel Plumbing 91
Flywheel Mounting 93
Flywheel 95
Front Gear Cover 97
Cabin Heater Plumbing 99
Auxiliary Pump Mounting101
Auxiliary Cooling Plumbing103
Air Intake Connection105
Air Intake Manifold107
Air Transfer Connection109
Lifting Arrangement111
Lifting Bracket Mounting113
Oil Fill Labeling115
Engine Oil Cooler117
Full Flow Oil Filter119
Oil Level Gauge121
Lubricating Oil Pump123
Oil Fill Arrangement125
Hand Hole Cover127
Oil Pan129
Accessory Drive Pulley131
Aftertreatment Device133
Engine Control Module137
Connecting Rod And Piston139
Camshaft141
Cylinder Head143
Injector145
Injector Plumbing147
Turbocharger149
Rocker Lever151
Engine Coolant Vent153
Oil Level Sensor155
Fluid Level Sensor157
Heat Shield159
Starting Motor Mounting161
Paint163
Starting Motor165
Exhaust Manifold167
Torque Converter Oil Cooler169
Turbocharger Plumbing171
Valve Cover Arrangement173
Water Inlet Connection175
Water Outlet Connection177
Belt Tensioner179
Water Pump181
Water Pump Drive183
Electronic Control Module Wiring Harness185
Exhaust Outlet Connection187
PARTS No INDEX191
CONTENTS I 2
Before Use 6
Chassis No and Manufacturer’s Serial No 8
CONTENTS Ⅱ 18
PARTS NAME INDEX 29
Air Heater Starting Aid 31
Agency Approval 33
Rear Gear Housing 35
Cylinder Block Plumbing 37
Cylinder Block 39
Crankshaft 41
Valve Tappets 45
Crankcase Breather 47
Crankcase Breather Plumbing 49
Crankcase Breather Mounting 51
Vibration Damper 53
Drain Location 55
Rear Gear Train Mounting 57
Thermostat 59
Alternator 61
Alternator Mounting 63
Exhaust Recirculation 65
Exhaust Recirculation Air Plumbing 67
Exhaust Recirculation Water Plumbing 69
Fan Drive 71
Fan Drive Mounting 73
Fuel Drain Plumbing 75
Fuel Filter Location 77
Fuel Filter Plumbing 79
Fuel Filter Mounting 81
Flywheel Housing 83
Fuel Inlet Fitting 85
Fuel Pump 87
Fuel System Accessories 89
Fuel Plumbing 91
Flywheel Mounting 93
Flywheel 95
Front Gear Cover 97
Cabin Heater Plumbing 99
Auxiliary Pump Mounting101
Auxiliary Cooling Plumbing103
Air Intake Connection105
Air Intake Manifold107
Air Transfer Connection109
Lifting Arrangement111
Lifting Bracket Mounting113
Oil Fill Labeling115
Engine Oil Cooler117
Full Flow Oil Filter119
Oil Level Gauge121
Lubricating Oil Pump123
Oil Fill Arrangement125
Hand Hole Cover127
Oil Pan129
Accessory Drive Pulley131
Aftertreatment Device133
Engine Control Module137
Connecting Rod And Piston139
Camshaft141
Cylinder Head143
Injector145
Injector Plumbing147
Turbocharger149
Rocker Lever151
Engine Coolant Vent153
Oil Level Sensor155
Fluid Level Sensor157
Heat Shield159
Starting Motor Mounting161
Paint163
Starting Motor165
Exhaust Manifold167
Torque Converter Oil Cooler169
Turbocharger Plumbing171
Valve Cover Arrangement173
Water Inlet Connection175
Water Outlet Connection177
Belt Tensioner179
Water Pump181
Water Pump Drive183
Electronic Control Module Wiring Harness185
Exhaust Outlet Connection187
PARTS No INDEX191
DESCRIPTION:
KCM CUMMINS QSB4.5 ENGINE For 62Z7B/67Z7B/67TM7B Parts Manual – PDF DOWNLOAD
SN 26651667
PN 93307-00660
FOREWORD:
According to KCM’s continuous effort to improve the product quality, descriptions in the Parts Catalog may be slightly different from your machine. If any questionable points are found , feel free to contact your nearest KCM dealer.
@ For the engine parts, please refer to the parts catalog of diesel engine issued separately.
1. HOW TO ORDER PARTS :
When ordering parts, please specify the following items.
(1) Model/type
(2) Product Identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchaser’s Name and Address
2. HOW TO USE THIS PARTS CATALOG PART NAME: When the part is used as an inner part of an assembly part, the mark “.” is shown in front of the part name.
Q’TY: Indicates the number of the part used per machine. The quantity of an inner part is the number of the inner part necessary to organize one assembly part.
SYMBOLS USED IN THIS BOOK: The symbols shown in the service code and interchangeability columns are used to indicate the following information.
W: Requires additional processing at the job site. Ask your nearest KCM dealer.
H: Indicate a precise part. Ask your nearest KCM dealer for its repair.
D: Impossible to replace as a single part. Replace the part in an assembly unit.
K: Contained in the service part kit.
R: Indicate that the quantity of the part like shims differs depending on the machine serial No.
S: To be supplied as repair or service parts.
Z: Engine related parts.
OS: Over-sized parts
US: Undersized parts (Part with mark “OS, or US” is described in the next column under the standard size part column.) #: Indicates newly added parts to the equipment or component.
Y: Interchangeable part without any constrain
G.B 01/02/25
