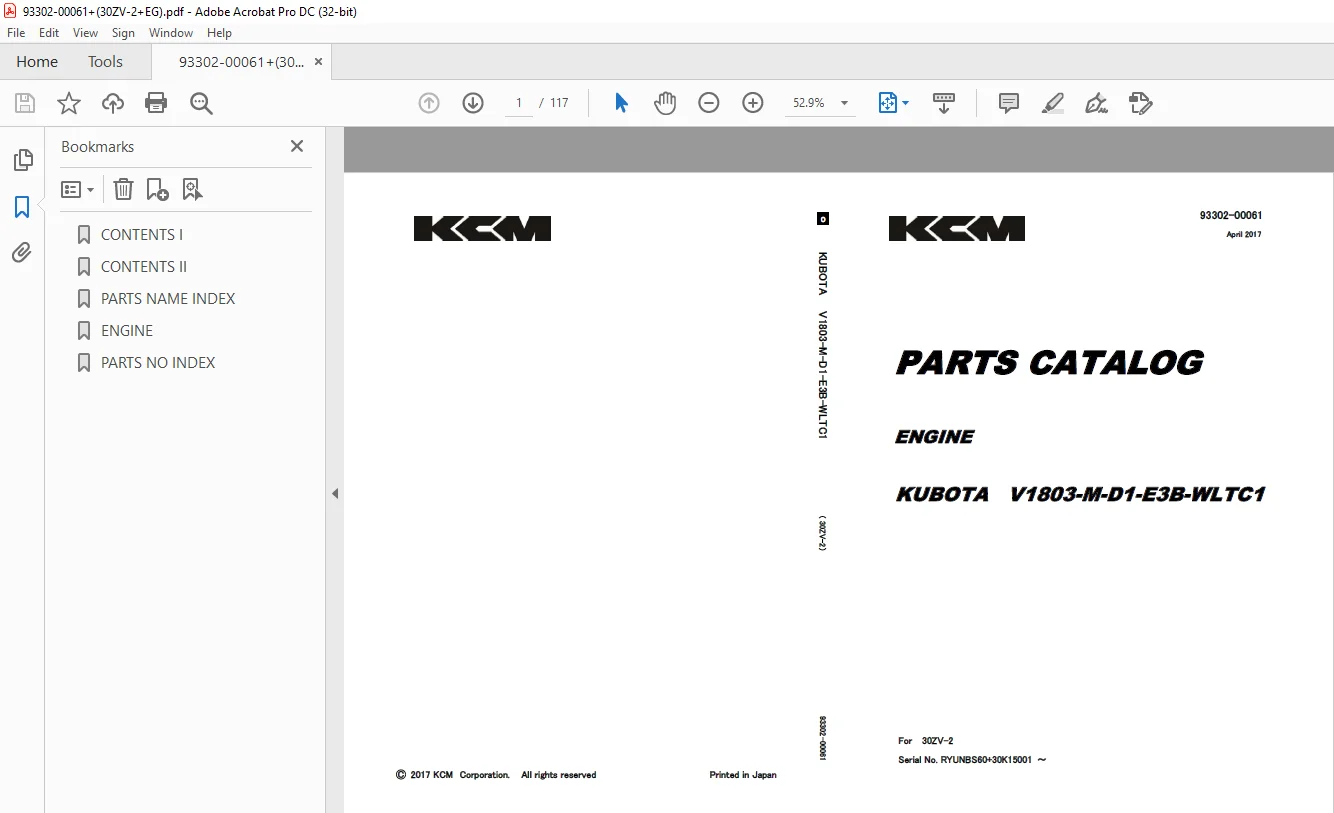

KCM ENGINE KUBOTA V1803-M-D1-E3B-WLTC1 Parts Manual 93302-00061 PDF

According to Hitachi continuous effort to improve the product quality, descriptions in the Parts Catalog may be slightly different from your machine. If any questionable points are found, feel free to contact your nearest KCM dealer.

@ For the engine parts, please refer to the parts catalog of diesel engine issued separately.

When ordering parts, please specify the following items.

(1) Model/type

(2) Product Identification Number

(3) Part No.

(4) Part Name

(5) Q’ty

(6) Purchaser’s Name and Address

When the part is used as an inner part of an assembly part, the mark “.” is shown in front of the part name.

QTY: Indicates the number of the part used per machine. The quantity of an inner part is the number of the inner part necessary to organize one assembly part.

The symbols shown in the service code and interchangeability columns are used to indicate the following information.

W: Requires additional processing at the job site. Ask your nearest KCM dealer.

H: Indicate a precise part. Ask your nearest KCM dealer for its repair.

D: Impossible to replace as a single part. Replace the part in an assembly unit.

K: Contained in the service part kit.

R: Indicate that the quantity of the part like shims differs depending on the machine serial No.

S: To be supplied as repair or service parts.

Z: Engine related parts. OS: Over-sized parts

US: Undersized parts (Part with mark “OS, or US” is described in the next column under the standard size part column.) #: Indicates newly added parts to the equipment or component. Y: Interchangeable part without any constraint

・Before Use
・Chassis No and Manufacturer’s Serial No
・CONTENTS II
・PARTS NAME INDEX
SEDIMENTER (COMPONENT PARTS)
ALTERNATOR AND PULLEY
ALTERNATOR (COMPONENT PARTS)
STARTER
SPEED CONTROL PLATE
NOZZLE HOLDER AND GLOW PLUG
FUEL FILTER
FUEL PUMP (ELECTRICAL)
COVER
IDLE APPARATUS
ENGINE STOP LEVER
STOP SOLENOID
INJECTION PUMP
GOVERNOR
MAIN BEARING CASE
CAMSHAFT AND IDLE GEAR SHAFT
PISTON AND CRANKSHAFT
FLYWHEEL
FUEL CAMSHAFT AND GOVERNOR SHAFT
GEAR CASE
HEAD COVER
OIL FILTER
DIPSTICK AND GUIDE
OIL PUMP
・30ZV-2
ENGINE
CRANKCASE
OIL PAN
CYLINDER HEAD

STARTER (COMPONENT PARTS)
OIL SWITCH/THERMOMETER
WATER FLANGE AND THERMOSTAT
WATER PUMP

FAN

RESERVE TANK

VALVE AND ROCKER ARM

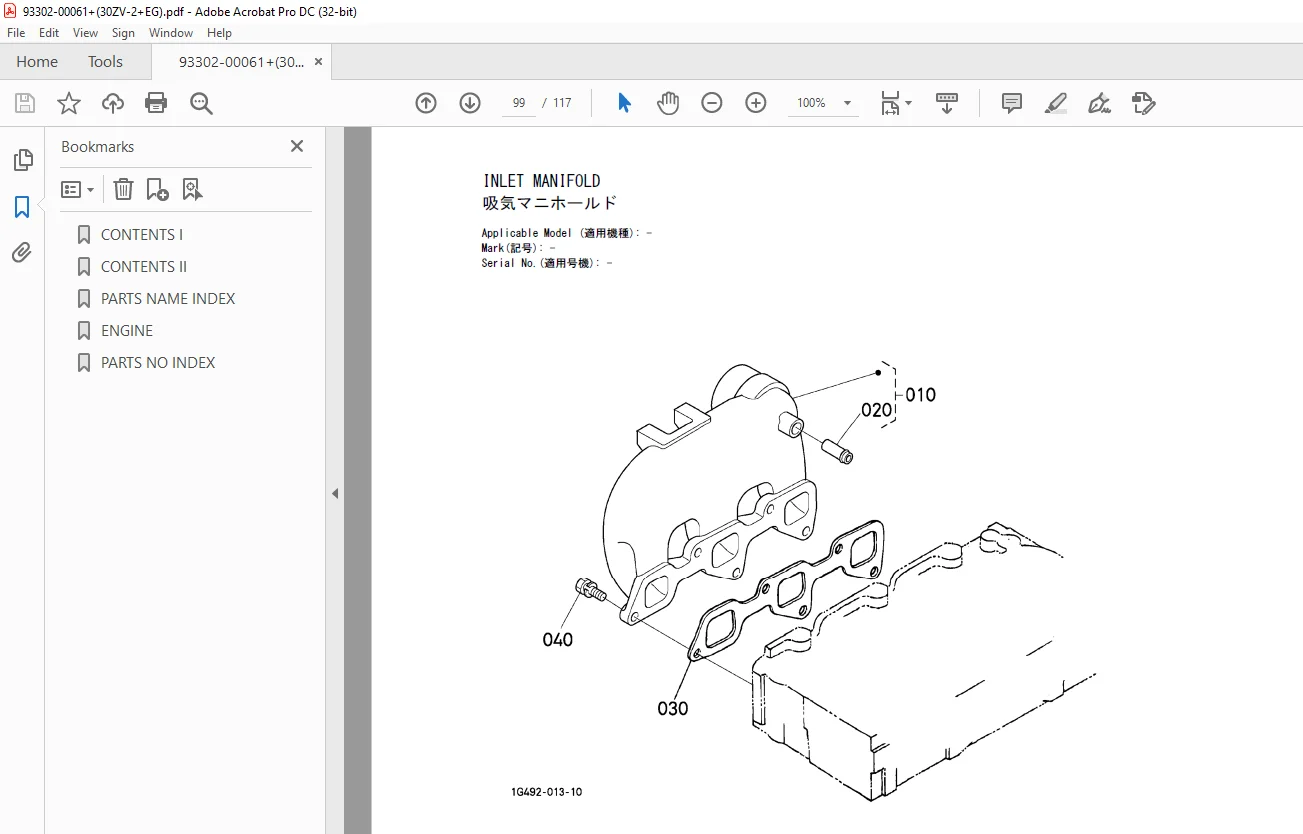

INLET MANIFOLD
EXHAUST MANIFOLD
AIR CLEANER

GLOW LAMP AND TIMER
ACCESSORIES AND SERVICE PARTS
LABEL AND OPERATOR’S MANUAL
HOUR METER KIT [OPTION]

PARTS NO INDEX
