KCM WHEEL LOADER AUTHENT 80ZA,A-2 80ZIV,IV-2 Parts Manual 93309-00018 PDF
$27.95
KCM WHEEL LOADER AUTHENT 80ZA A-2 80ZIV IV-2 Parts Manual 93309-00018Β – PDF DOWNLOAD
NISSAN NE6T04 Engine
Serial No. 80N2-0101 ο½
Description
KCM WHEEL LOADER AUTHENT 80ZA,A-2 80ZIV,IV-2 Parts Manual 93309-00018Β – PDF DOWNLOAD
FILE DETAILS:
KCM WHEEL LOADER AUTHENT 80ZA,A-2 80ZIV,IV-2 Parts Manual 93309-00018Β – PDF DOWNLOAD
Language :English
Pages :291
Downloadable : Yes
File Type : PDF

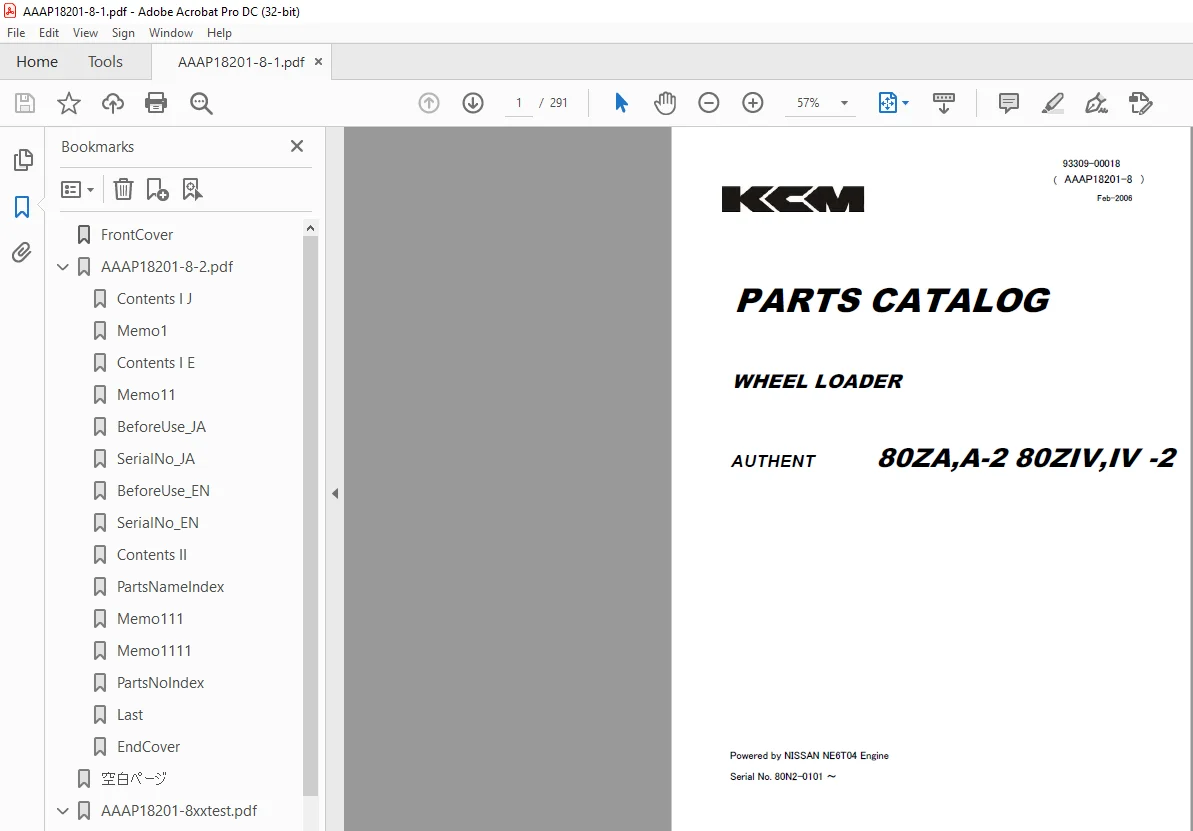

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
KCM WHEEL LOADER AUTHENT 80ZA,A-2 80ZIV,IV-2 Parts Manual 93309-00018Β – PDF DOWNLOAD
NISSAN NE6T04 Engine
Serial No. 80N2-0101 ο½
This parts catalog is applied to models indicated on the cover. Parts of special specifications are
not included.
For engines, refer to the “Engine Parts Catalog” offered separately.
When ordering a part, refer to illustrations and lists in this parts catalog, and clearly notify
our company of the model name, the chassis No., the parts No., the parts name, the required
quantity, etc.
Illustrations in the parts catalog show the “positionand shape” of each part in the range required
in ordering. Accordingly, illustrations do not always agree with actual parts.
TABLE OF CONTENTS:
KCM WHEEL LOADER AUTHENT 80ZA A-2 80ZIV IV-2 Parts Manual 93309-00018Β – PDF DOWNLOAD
NISSAN NE6T04 Engine
Serial No. 80N2-0101 ο½

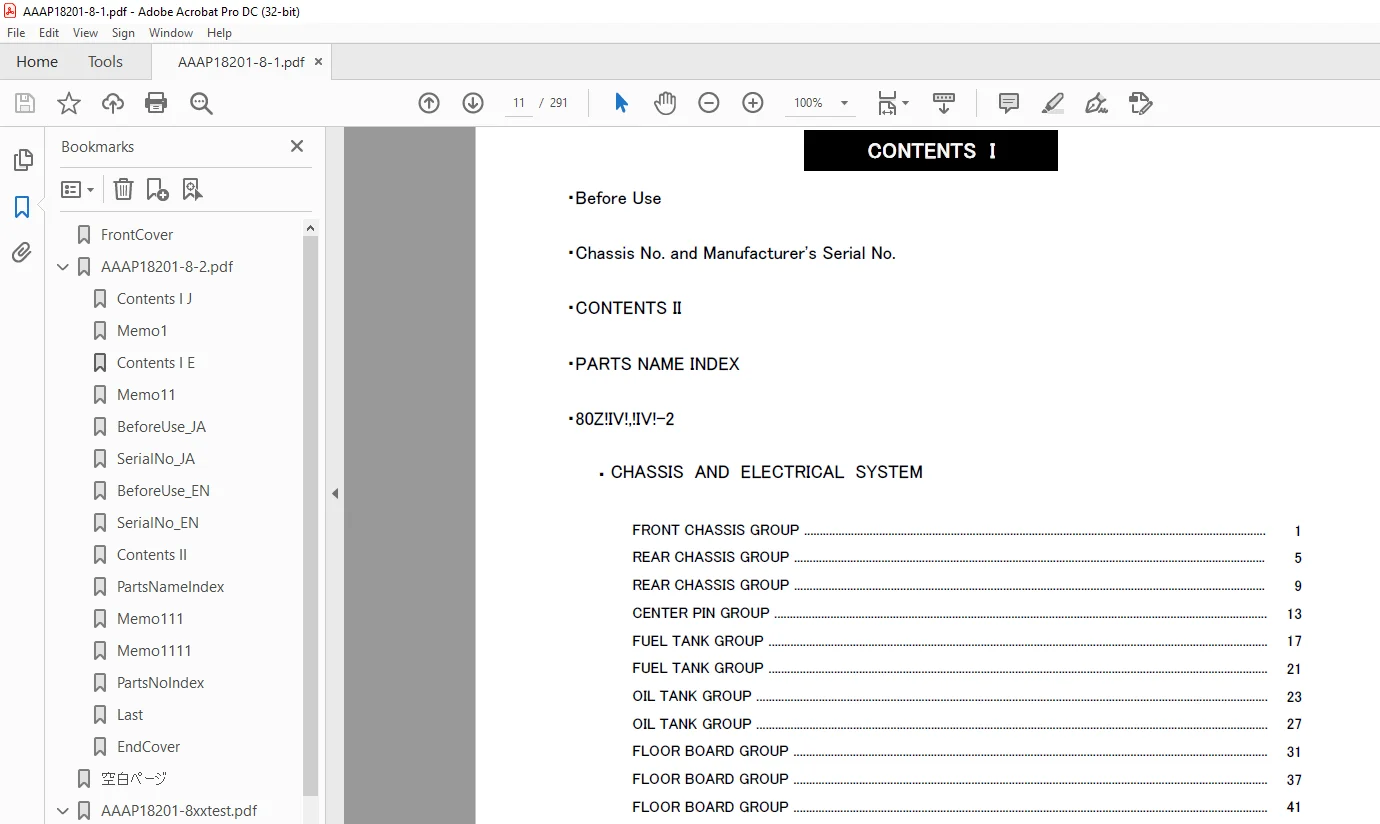

γ»80Z!IV!,!IV!-2
CHASSIS AND ELECTRICAL SYSTEM
FRONT CHASSIS GROUP
REAR CHASSIS GROUP
REAR CHASSIS GROUP
CONTENTS I
γ»Before Use
γ»Chassis No and Manufacturer’s Serial No
γ»CONTENTS II
γ»PARTS NAME INDEX
FLOOR BOARD GROUP
FLOOR BOARD GROUP
FLOOR BOARD GROUP
OPERATION STAND GROUP
OPERATION STAND GROUP
CENTER PIN GROUP
FUEL TANK GROUP
FUEL TANK GROUP
OIL TANK GROUP
OIL TANK GROUP
ENGINE ROOM GROUP
ENGINE ROOM GROUP
REAR GRILLE & WIND SHIELD GROUP
COVER MOUNT(FOR REAR CHASSIS)
COVER MOUNT(FOR CONTROL BOX)
DECK & STEP MOUNT
DECK & HANDRAIL GROUP
ENGINE ROOM GROUP
ENGINE ROOM GROUP
ENGINE ROOM GROUP
COVER MOUNT(FOR CONTROL BOX)
COVER MOUNT(FOR CONTROL BOX)
GAUGE GROUP
GAUGE GROUP(OPTION)
ELECTRICAL WIRING – FRONT CHASSIS
ELECTRICAL WIRING – REAR CHASSIS
ELECTRICAL WIRING – REAR CHASSIS
ELECTRICAL WIRING – REAR CHASSIS
ELECTRICAL WIRING – REAR CHASSIS
ELECTRICAL WIRING – FRONT CHASSIS
ELECTRICAL PARTS MOUNT
ELECTRICAL PARTS MOUNT
ELECTRICAL PARTS MOUNT
ELECTRICAL PARTS MOUNT
LAMP GROUP
ELECTRICAL WIRING – FLOOR BOARD
ELECTRICAL WIRING – FLOOR BOARD
ELECTRICAL WIRING – FLOOR BOARD
ELECTRICAL WIRING – FLOOR BOARD
ELECTRICAL PARTS MOUNT
SEAT & SUSPENSION GROUP-EXPORT SPEC
POWER SYSTEM
POWER GROUP
FUEL LINE
FUEL CONTROL GROUP
LAMP GROUP
LAMP GROUP
BATTERY MOUNT
GENARATOR MOUNT (OPTION )
SEAT & SUSPENSION GROUP
3RD PROPELLER SHAFT
3RD PROPELLER SHAFT
TORQUE CONVERTER AND TRANSMISSION SYSTEM
T/M HYDRAULIC LINE
RADIATOR MOUNT
RADIATOR
AIR CLEANER GROUP
EXHAUST GROUP
2ND PROPELLER SHAFT
T/M HYDRAULIC LINE
GEAR SHAFT & OIL PUMP GROUP
TRANSMISSION
TRANSMISSION
TRANSMISSION
FORWARD & 3RD CLUTCH
TORQUE CONVERTER
TORQUE CONVERTER
TORQUE CONVERTER
GEAR SHAFT & OIL PUMP GROUP
GEAR SHAFT & OIL PUMP GROUP
REVERSE & 2ND CLUTCH
REVERSE & 2ND CLUTCH
REVERSE & 2ND CLUTCH
1ST CLUTCH
1ST CLUTCH
FORWARD & 3RD CLUTCH
FORWARD & 3RD CLUTCH
4TH CLUTCH
4TH CLUTCH
4TH CLUTCH
TRANSMISSION CONTROL VALVE
TRANSMISSION CONTROL VALVE
REPAIR KIT GROUP (LIST ONLY)
REPAIR KIT GROUP (LIST ONLY)
REPAIR KIT GROUP (LIST ONLY)
1ST CLUTCH
OUTPUT SHAFT GROUP
OUTPUT SHAFT GROUP
OUTPUT SHAFT GROUP
TRANSMISSION CONTROL VALVE
AIR BREATHER MOUNT
AXLE AND DIFFERENTIAL
FRONT AXLE GROUP
REAR AXLE GROUP
AXLE SUPPORT GROUP
AXLE SUPPORT GROUP
TIRE & DISC WHEEL GROUP
FRONT DIFFERENTIAL
REAR DIFFERENTIAL
BRAKE SYSTEM
BRAKE LINE – REAR CHASSIS
BRAKE LINE – AXLE
PARKING BRAKE LINK GROUP
AIR TANK & AIR MASTER MOUNT
AIR TANK & AIR MASTER MOUNT
BRAKE LINE – FLOOR BOARD
BRAKE LINE – FLOOR BOARD
BRAKE LINE – REAR CHASSIS
BRAKE LINE – REAR CHASSIS
BRAKE LINE – REAR CHASSIS
UNLOADER VALVE
UNLOADER VALVE
BRAKE OIL TANK
CONTROL SYSTEM
HANDLE & SHIFT LEVER GROUP
AIR TANK & AIR MASTER MOUNT
BRAKE VALVE GROUP
AIR MASTER
BRAKE VALVE
AIR CYLINDER
STEERING LINK GROUP
VALVE CONTROL GROUP
VALVE CONTROL GROUP
VALVE CONTROL GROUP
STEERING CYLINDER GROUP
HANDLE & SHIFT LEVER GROUP
TILT CASE GROUP
TILT CASE GROUP
STEERING GEAR & WHEEL
STEERING GEAR & WHEEL
EMERGENCY STEERING GROUP(OPTION)
KICKOUT GROUP (OPTION)
LOADING HYDRAULIC SYSTEM
LOADING HYDRAULIC LINE – FRONT CHASSIS
LOADING HYDRAULIC LINE – FRONT CHASSIS
LOADING HYDRAULIC LINE – REAR CHASSIS
STEERING VALVE
STEERING CYLINDER
STEERING CYLINDER
BUCKET POSITIONER GROUP
OIL PUMP
CONTOROL VALVE
CONTOROL VALVE
LIFT CYLINDER
LIFT CYLINDER
LOADING HYDRAULIC LINE – REAR CHASSIS
LOADING HYDRAULIC LINE – REAR CHASSIS
LOADING HYDRAULIC LINE – STEERING CYLINDER
HYDRAULIC LINE – OIL COOLER
OIL PUMP
PILOT HYDRAULIC LINE
PILOT HYDRAULIC LINE
ACCESSORIES, BUCKET, ETC
MARKING GROUP
MARKING GROUP
TILT CYLINDER
PILOT VALVE
PILOT VALVE
PILOT VALVE
PILOT HYDRAULIC LINE
MARKING GROUP-EXPORT SPEC
MARKING GROUP
MARKING GROUP
MARKING GROUP
MARKING GROUP-EXPORT SPEC
MARKING GROUP-EXPORT SPEC
MARKING GROUP-EXPORT SPEC
GREASE PIPING
AIR DRIER GROUP(OPTION)
AIR DRIER (OPTION)
AWNING & BACK MIRROR GROUP-EXPORT SPEC
AIR HORN MOUNT (OPTION)
COVER MOUNT(FOR BRAKE PIPE)-OPTION
VIBRATION DAMPER – CONTROL VALVE ( OPTION )
VIBRATION DAMPER – HYDRAULIC LINE ( OPTION )
AIR DRIER (OPTION)
PERIOD OFFICAL INSPECTION
PERIOD OFFICAL INSPECTION
AWNING & BACK MIRROR GROUP-EXPORT SPEC
AWNING & BACK MIRROR GROUP-EXPORT SPEC
VIBRATION DAMPER – ELECTRICAL WIRING ( OPTION )
BUCKET (FOR GENERAL PURPOSE)
BUCKET (FOR ROCK)
OPTION PARTS (FOR BUCKET)
REPAIR & MAINTENANCE PARTS
VIBRATION DAMPER – HYDRAULIC LINE ( OPTION )
VIBRATION DAMPER – HYDRAULIC LINE (FOR 4-WAY PIPING)-OPTIO
VIBRATION DAMPER – ACCUMULATOR ( OPTION )
VIBRATION DAMPER – ACCUMULATOR ( OPTION )
VIBRATION DAMPER – ELECTRICAL WIRING ( OPTION )
CAB(OR80)
DOOR GROUP(OR42)
DOOR GROUP(OR42)
DOOR GROUP(OR80)
CAB ACCESSORIES MOUNT
CAB (OPTION)
CAB MOUNT
CAB MOUNT
CAB(OR42)
CAB(OR42)
FRONT WIPER,WINDOW WASHER & ELECTRICAL PARTS GROUP (OR80)
REAR WIPER & MIRROR GROUP
COVER GROUP
AIR DUCT GROUP
AIR DUCT GROUP
AIR CONDITIONER COVER GROUP
AIR CONDITIONER COVER GROUP
AIR CONDITIONER COVER GROUP
CAB ACCESSORIES GROUP
AIR CONDITIONER MOUNT
AIR CONDITIONER LINE(FOR FLOOR)
CONDENSER MOUNT
COMPRESSOR MOUNT
COMPRESSOR MOUNT
AIR CONDITIONER UNIT
AIR CONDITIONER COVER GROUP-EXPORT SPEC
AIR CONDITIONER LINE
AIR CONDITIONER LINE
AIR CONDITIONER LINE
AIR CONDITIONER LINE(FOR FLOOR)
CONDENSER(NEW TYPE REFRIGERANT)
ELECTRICAL PARTS GROUP(FOR AIR CONDETIONER)
ELECTRICAL PARTS GROUP(FOR AIR CONDETIONER)
