Kioti CK20 Parts Manual – PDF

Description

Kioti CK20 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kioti CK20 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 353
Downloadable : Yes
File Type : PDF

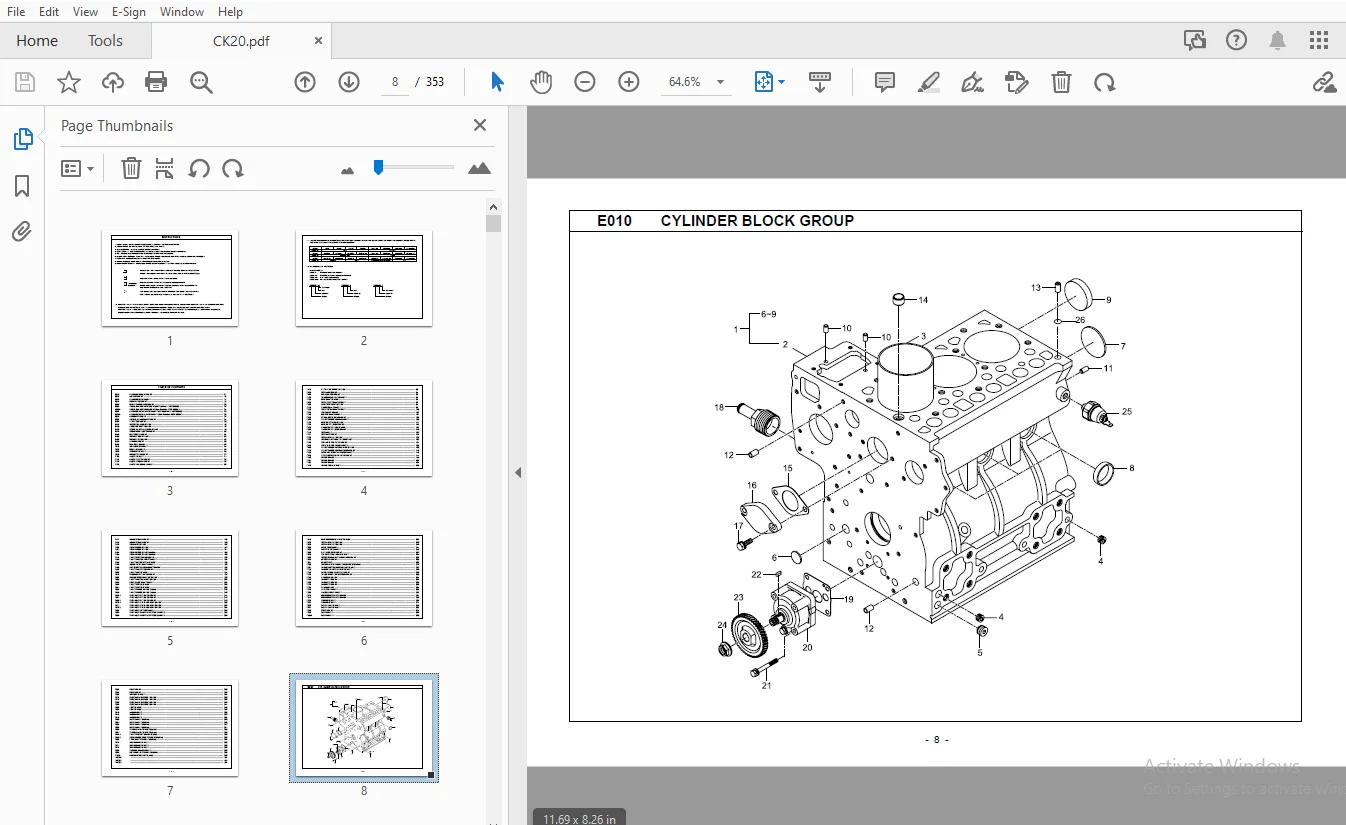

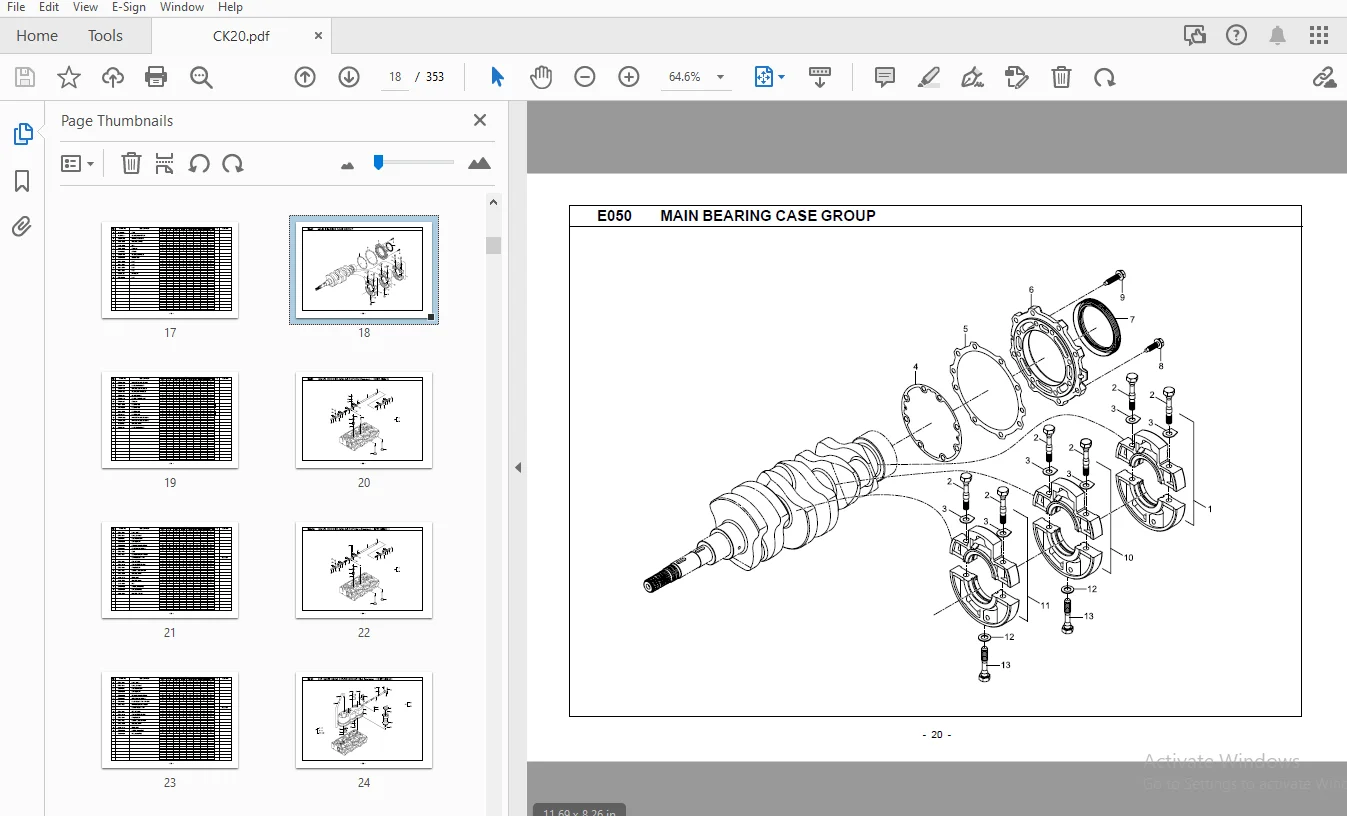

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kioti CK20 Parts Manual – PDF DOWNLOAD

E010 CYLINDER BLOCK GROUP 8
E020 OIL PAN GROUP 12
E030 CYLINDER HEAD GROUP 14
E040 GEAR CASE GROUP 16
E050 MAIN BEARING CASE GROUP 20
E060 VALVE, ROCKER ARM GROUP (Old Revision : ~D257-00642) 22
E060A VALVE, ROCKER ARM GROUP (New Revision : E257-00001~) 24
E070 CYLINDER HEAD COVER GROUP (Old Revision : ~D257-00642) 26
E070A CYLINDER HEAD COVER GROUP (New Revision : E257-00001~) 30
E080 CAMSHAFT GROUP 32
E090 PISTON, CRANKSHAFT GROUP 34
E100 FLYWHEEL GROUP 38
E110 NOZZLE HOLDER GROUP 40
E120 FUEL CAM SHAFT GROUP 42
E130 SPEED CONTROL LEVER GROUP 46
E140 ENGINE STOP LEVER GROUP 50
E150 GOVERNOR GROUP 54
E160 WATER PUMP GROUP 56
E170 WATER PIPE GROUP 58
E180 DYNAMO GROUP 60
E190 MANIFOLD GROUP 62
T010 AIRCLEANER GROUP 64
T020 MUFFLER GROUP 66
T030 RADIATOR GROUP 68
T040 WATER TANK GROUP 72
T100 CLUTCH GROUP 74
T110 CLUTCH LEVER GROUP 76
T120 CLUTCH PEDAL GROUP 78
T130 CLUTCH HOUSING 1 GROUP 80
T140 CLUTCH HOUSING 2 GROUP 82
T150 HST CASE GROUP 84
T160 MIDDLE CASE GROUP 86
T170 TRANSMISSION CASE GROUP 88
T180 MAIN SHAFT GROUP 90
T190 HST OUTPUT SHAFT GROUP 92
T200 COUNTER SHAFT GROUP 94
T210 RANGE SHAFT GROUP 98
T220 PTO DRIVING SHAFT GROUP 100
T230 PTO SHAFT GROUP 102
T240 MID PTO SHAFT GROUP 104
T250 SPIRAL BEVEL GEAR GROUP 106
T260 FRONT WHEEL DRIVING GROUP 108
T270 MAIN SHIFT FORK GROUP 114
T280 MAIN SHIFT LEVER GROUP 116
T290 RANGE SHIFT FORK GROUP 118
T300 RANGE SHIFT LEVER GROUP 120
T310 HST GROUP 122
T311 HST PART GROUP 124
T320 HST CONTROL 1 GROUP 130
T330 HST INNER HYDRAULIC LINE GROUP 132
T340 PTO & MID PTO FORK GROUP 134
T350 PTO & MID PTO LEVER GROUP 136
T360 FRONT WHEEL DRIVING FORK GROUP 138
T370 FRONT WHEEL DRIVING LEVER GROUP 140
T380 REAR DIFFERENTIAL SYSTEM GROUP 142
T390 DIFFERENTIAL LOCK FORK GROUP 144
T400 BRAKE GROUP 146
T401 BRAKE GROUP 150
T405 BRAKE GROUP 154
T410 BRAKE PEDAL GROUP 158
T411 BRAKE PEDAL GROUP 162
T415 BRAKE PEDAL GROUP 166
T420 REAR AXLE GROUP 170
T430 REAR WHEEL GROUP 172
T431 REAR WHEEL GROUP 174
T435 REAR WHEEL GROUP (Option) 176
T436 REAR WHEEL GROUP (Option) 178
T440 FRONT AXLE FRAME GROUP 180
T450 FRONT AXLE SUPPORT GROUP 184
T460 FRONT DIFFERENTIAL GROUP 186
T470 BEVEL PINION SHAFT GROUP 188
T480 DIFFERENTIAL GEAR SHAFT GROUP 190
T490 FRONT AXLE CASE GROUP 192
T500 FRONT AXLE GROUP 194
T510 STEERING CYLINDER GROUP 196
T520 POWER STEERING UNIT GROUP 198
T530 FRONT AXLE BRACKET GROUP 202
T540 PROPELLER SHAFT GROUP 204
T550 FRONT WHEEL GROUP 206
T551 FRONT WHEEL GROUP 208
T555 FRONT WHEEL GROUP (Option) 210
T556 FRONT WHEEL GROUP (Option) 212
T560-1 HYDRAULIC CYLINDER GROUP 214
T561 HYDRAULIC CYLINDER GROUP 216
T560-2 HYDRAULIC CYLINDER GROUP 218
T570-1 HYDRAULIC CYLINDER BODY GROUP 220
T571 HYDRAULIC CYLINDER BODY GROUP 222
T570-2 HYDRAULIC CYLINDER BODY GROUP 224
T580 HYDRAULIC LIFT ARM GROUP 226
T590 HYDRAULIC CONTROL SYSTEM 1 GROUP 228
T600 HYDRAULIC CONTROL SYSTEM 2 GROUP 230
T610 MAIN DISTRIBUTOR VALVE GROUP 232
T620 HST CONTROL 2 GROUP 236
T630 HST CONTROL 3 GROUP 240
T640 GEAR PUMP GROUP 244
T650 SUCTION PIPE GROUP 248
T660 OIL FILLER PIPE GROUP 252
T670 FLOW CONTROL VALVE GROUP 254
T680 HST EXTERNAL HYDRAULIC LINE GROUP 258
T690 JOYSTICK GROUP 262
T691 JOYSTICK (1) 266
T700 EXTERNAL HYDRAULIC VALVE GROUP (Option) 270
T701 DOUBLE ACTING VALVE GROUP (Option) 272
T710 POSITION CONTROL VALVE GROUP 276
T720 DOWN SPEED CONTROL GROUP 278
T730 THREE POINT LINK SYSTEM GROUP 280
T740 DRAWBAR GROUP 284
T750 BONNET 1 GROUP 286
T760 BONNET 2 GROUP 288
T770 BONNET 3 GROUP 292
T780 FRAME GROUP 294
T790 FUEL TANK GROUP 298
T800 ACCELERATOR GROUP 302
T810 INSTRUMENT COVER GROUP 304
T815 INSTRUMENT COVER GROUP 306
T820 FENDER GROUP 308
T825 FENDER GROUP 314
T830 SEAT FLOOR GROUP 320
T831 SEAT FLOOR GROUP 322
T840 STEP GROUP 324
T850 SEAT GROUP 326
T850A SEAT GROUP 328
T855 SEAT GROUP 330
T856 SEAT GROUP 332
T860 BATTERY GROUP 334
T870 ELECTRICAL SYSTEM 1 GROUP 336
T875 ELECTRICAL SYSTEM 1 GROUP 338
T880 ELECTRICAL SYSTEM 2 GROUP 340
T890 ELECTRICAL SYSTEM 3 GROUP 344
T900 LIGHT GROUP 346
T905 LIGHT GROUP 348
T910 LABEL GROUP 352
T915 LABEL GROUP 356
T916 LABEL GROUP 364
T920 ROPS GROUP (Option) 368
T921 ROPS GROUP (Option) 370
T925 ROPS GROUP (Option) 372
T928 ROPS GROUP (Option) 374
T930 TOWING HOOK GROUP (Option) 376
T931 TOWING HOOK GROUP (Option) 378
T940-1 FRONT WEIGHT GROUP (Option) 380
T940-2 REAR WHEEL WEIGHT GROUP (Option) 382
T960 7 PIN SOCKET GROUP (Option) 384
T970 BACKMIRROR GROUP 386
T971 BACKMIRROR GROUP 388
T975 BACKMIRROR GROUP 390
T980 PARKING BRAKE GROUP 392
T990 WORKING LIGHT GROUP (Option) 396
T1020 SUNSHADE GROUP (Option) 398
INDEX1 401
INDEX2 421
INDEX3 427

S.S 08/24
