KIS DKS Generation 3 Service Manual (1610-1770) – PDF DOWNLOAD
Original price was: $95.00.$31.95Current price is: $31.95.
Comprehensive Service Manual for KIS DKS Generation 3 Minilabs (Models 1610, 1670, 1710, 1750, 1770). This 370+ page guide covers installation, calibration, preventive maintenance, and component-level repair. Includes detailed electrical diagrams, software installation procedures (v4.4x), and mechanical adjustments for the exposure deck, chemical tanks, and paper transport systems. Essential for technicians maintaining high-volume photo labs.
Description
KIS DKS Generation 3 Service Manual (1610-1770) Repair, Maintenance & Schematics – PDF DOWNLOAD
Description
Product Overview
The KIS DKS Generation 3 Service Manual is the definitive technical resource for the installation, troubleshooting, and repair of the DKS Gen 3 series of digital minilabs. It provides in-depth engineering data, from dismantling the LED exposure head to calibrating the rack motor speeds for specific chemistry processes (SP20 EM, Kodak Prime SP). This manual is indispensable for maintaining image quality and mechanical reliability in models DKS 1610, 1670, 1710, 1750, and 1770.
Key Features & Categorized Content
Installation & Commissioning
Site Prep: Electrical requirements (230V/208V), floor leveling, and water supply.
Unpacking: Step-by-step uncrating of the main module and optional Second Paper Feeder.
Chemical Preparation: Mixing formulas for Developer, Bleach-Fix, and Stabilizer (KIS SP20 EM & Kodak Chemistry).
Initial Setup: Tank filling, pump flow-rate adjustment, and Elo TouchScreen calibration.
Mechanical Repair & Adjustment

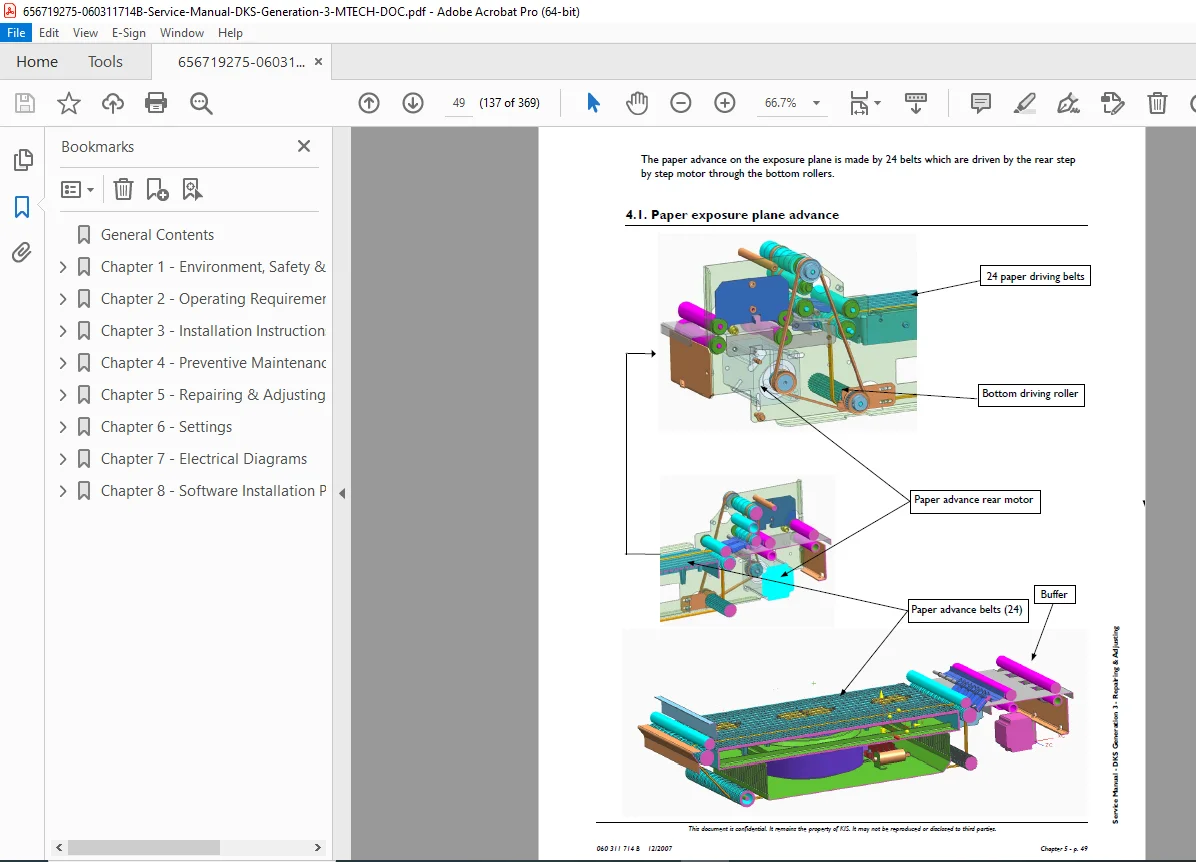

Paper Transport: Replacing conveyor belts, Paper Cutter blade replacement, and adjusting the Mm/Top settings.
Exposure System:
LCD & Lens: Focus adjustment, Piezo calibration, and Optical Center alignment.
LED Head: Replacing Red/Green/Blue LED sub-assemblies and Photodiode cordsets.
Chemical Processor:
Tank Drive: Replacing circulation pumps, heating elements, and rack motor shafts.
Temperature Regulation: Calibrating offsets for Developer ($40.0^\circ C$), Bleach ($38^\circ C$), and Stabilizer ($37^\circ C$).
Dryer & Sorter: Fan replacement, sorter belt adjustment, and stacker emitter board replacement.
Software & Electronics
Software Installation: Procedures for installing DKS Software v4.4x, XP Ghost recovery, and firmware updates.
Settings & Calibration:
PRNU (Pixel Response Non-Uniformity): Correction procedures for uniform density.
Flicker Setting: LCD polarization voltage adjustment.
Densitometer: Calibration using X-Rite and internal targets.
Electrical Diagrams:
Complete Low Tension & 230V Schematics.
Board Layouts: Tank Board, Cutter CAN Board, Sequencer Board, and LED Motor Board.
Preventive Maintenance
Technician Schedules: Annual checks for tank leaks, belt tension, and filter replacements.
User Maintenance: Daily/Weekly cleaning of rack gears, chemical filters, and scanner optics.
Technical Specifications Covered
| Feature | Details |
| :— | :— |
| Chemistry Types | KIS SP20 EM, Kodak Ektakolor Prime SP |
| Tank Capacities | Dev (10L), Bleach (10L), Stab (11L each) |
| Process Speeds | 20s (180 Hz), 30s (120 Hz), 45s (80 Hz) |
| Paper Formats | Single/Double track (89mm to 305mm widths) |
File Details

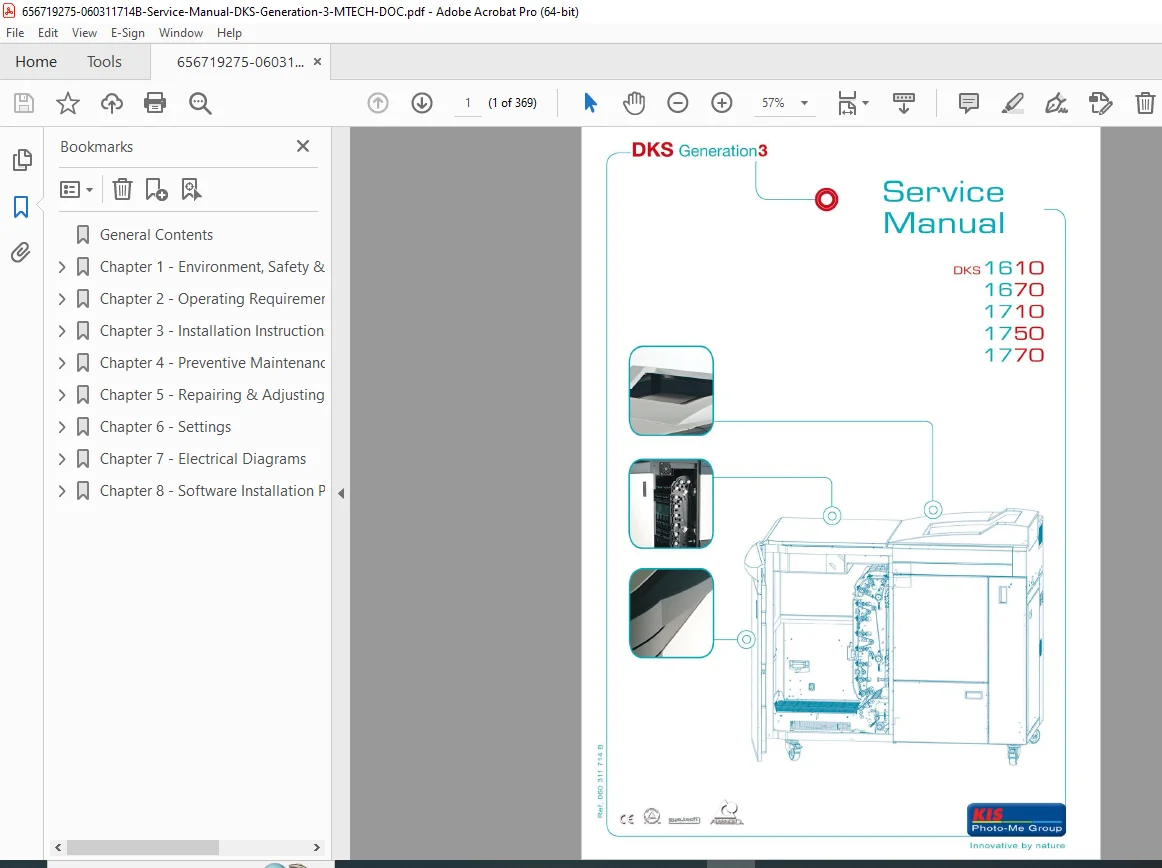

Manual Name: Service Manual – DKS Generation 3
Models Covered: DKS 1610, DKS 1670, DKS 1710, DKS 1750, DKS 1770
Year: December 2007 (Ref. 060 311 714 B)
File Type: PDF
File Quality: High-Quality Digital Text (Searchable with clear vector diagrams)
Number of Pages: 369
