Kobelco 17SR-Tier 4 Hydraulic Excavator Shop Manual – PDF DOWNLOAD
Original price was: $98.95.$34.95Current price is: $34.95.
Kobelco 17SR-Tier 4 Hydraulic Excavator Shop Manual – PDF DOWNLOAD
TOTAL NUMBER OF PAGES: 710
Kobelco 17SR Tier 4
Serial# PU09-08001~
Model: 17SR T4
Model: 17SR T4
Engine L3E
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Kobelco 17SR-Tier 4 Hydraulic Excavator Shop Manual – PDF DOWNLOAD
DESCRIPTION:
Kobelco 17SR-Tier 4 Hydraulic Excavator Shop Manual – PDF DOWNLOAD
TOTAL NUMBER OF PAGES: 710
Kobelco 17SR Tier 4
Serial# PU09-08001~
Model: 17SR T4
Model: 17SR T4
Engine L3E
SAFETY PRECAUTIONS :
The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS.
The following is a list of basic precautions that must always be observed.
(1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
(2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
(3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
(4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
(5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.
6) Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
(7) Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.
(8) Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.
(9) To avoid back injury, use a hoist when lifting components which weigh 20kg (45lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.
(10)To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments.
TABLE OF CONTENTS:
Kobelco 17SR-Tier 4 Hydraulic Excavator Shop Manual – PDF DOWNLOAD
KOBELCO 17SR Tier 4 SHOP MANUAL............... 1 REVISION HISTORY.............................. 2 GENERAL SAFETY INFORMATION.................... 4 SAFETY PRECAUTIONS............................ 5 INDEX......................................... 7 1. OUTLINE.................................... 9 2. SPECIFICATIONS............................. 19 3. ATTACHMENT DIMENSIONS...................... 33 11. TOOLS..................................... 57 12. STANDARD MAINTENANCE TIMETABLE............ 71 13. MAINTENANCE STANDARD ANDTEST PROCEDURE.... 83 22. HYDRAULIC SYSTEM..........................105 23. ELECTRICAL SYSTEM.........................133 24. COMPONENTS SYSTEM.........................179 31. GENERAL DISASSEMBLY ANDASSEMBLY...........251 32. ATTACHMENTS...............................255 33. UPPER SLEWING STRUCTURE...................287 34. TRAVEL SYSTEM.............................415 42. TROUBLESHOOTING(HYDRAULIC SYSTEM).........479 43. TROUBLESHOOTING(ELECTRICAL SYSTEM)........491 44. TROUBLESHOOTING (ENGINE)..................501 ENGINE SERVICE MANUAL - Mitsubishi............513
KOBELCO 17SR-TIER 4 HYDRAULIC EXCAVATOR SHOP MANUAL – PDF DOWNLOAD:

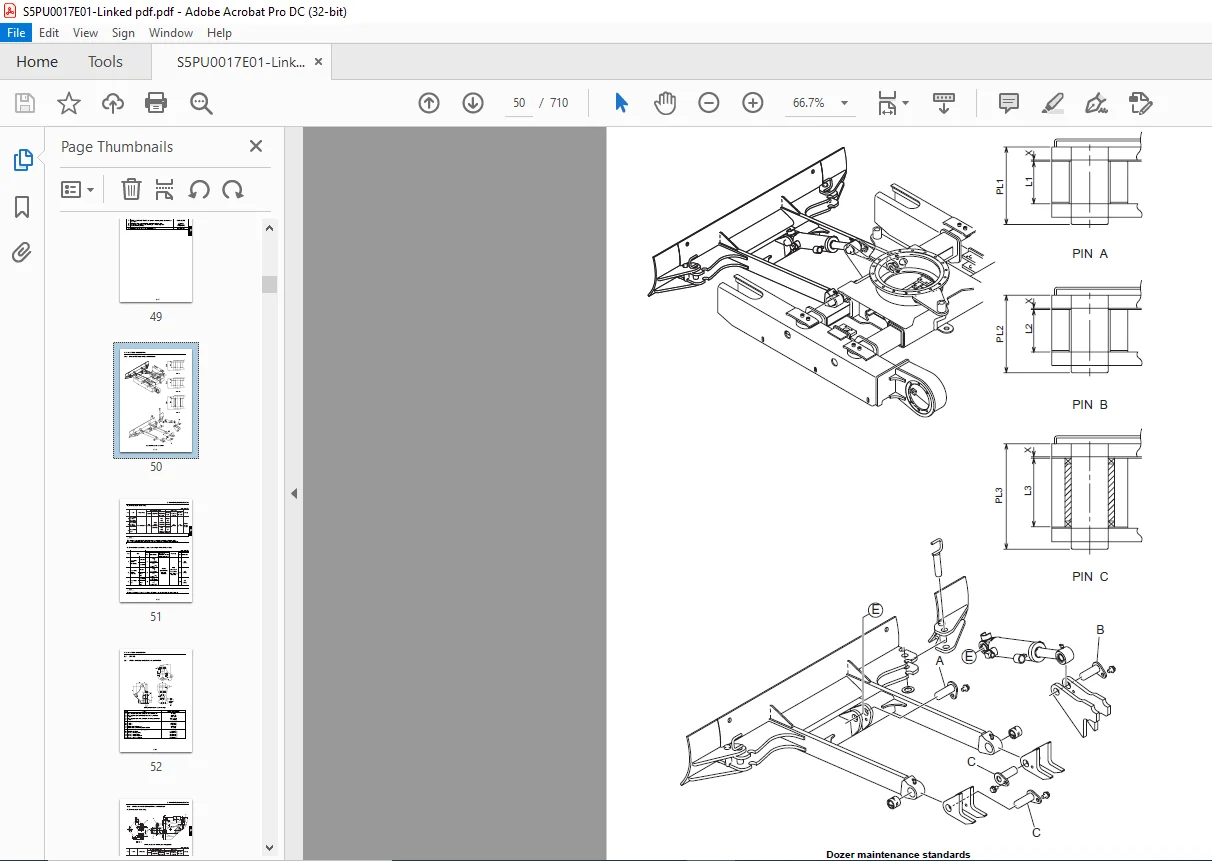

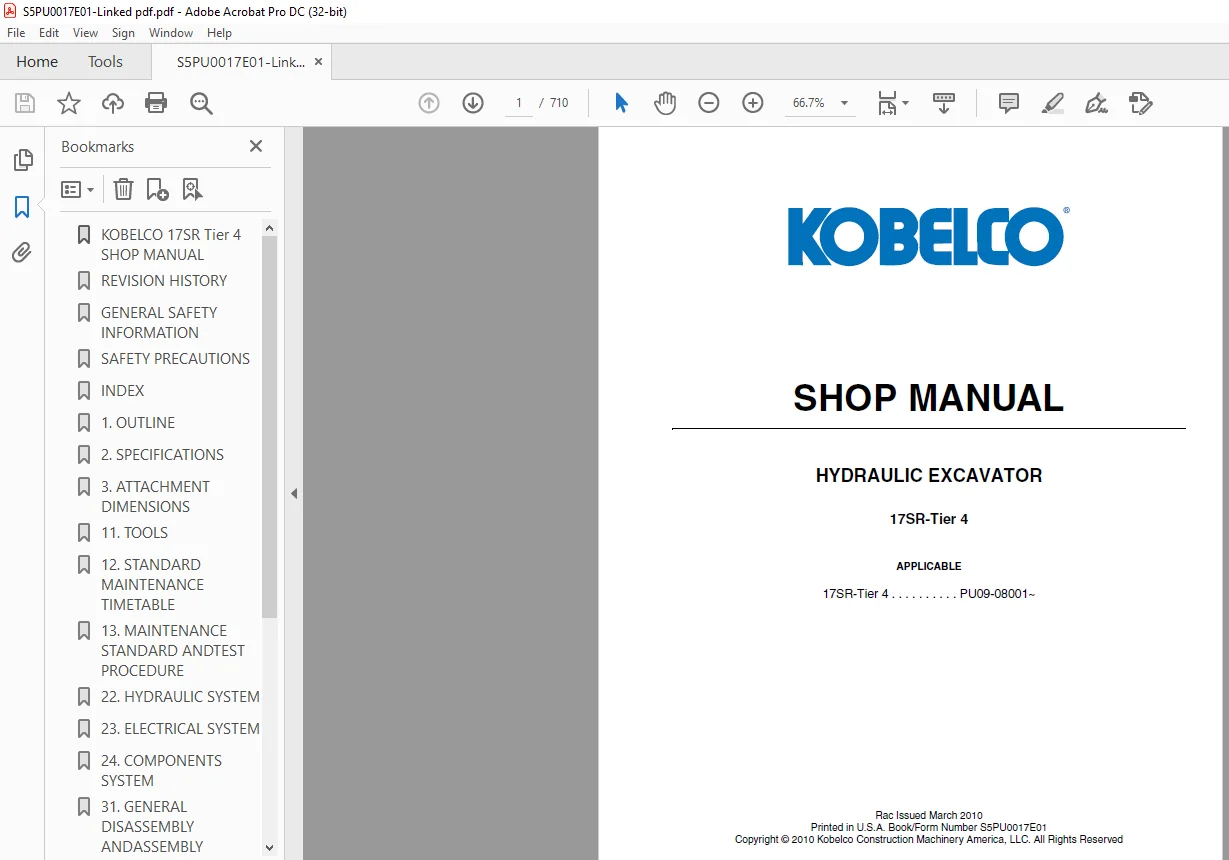

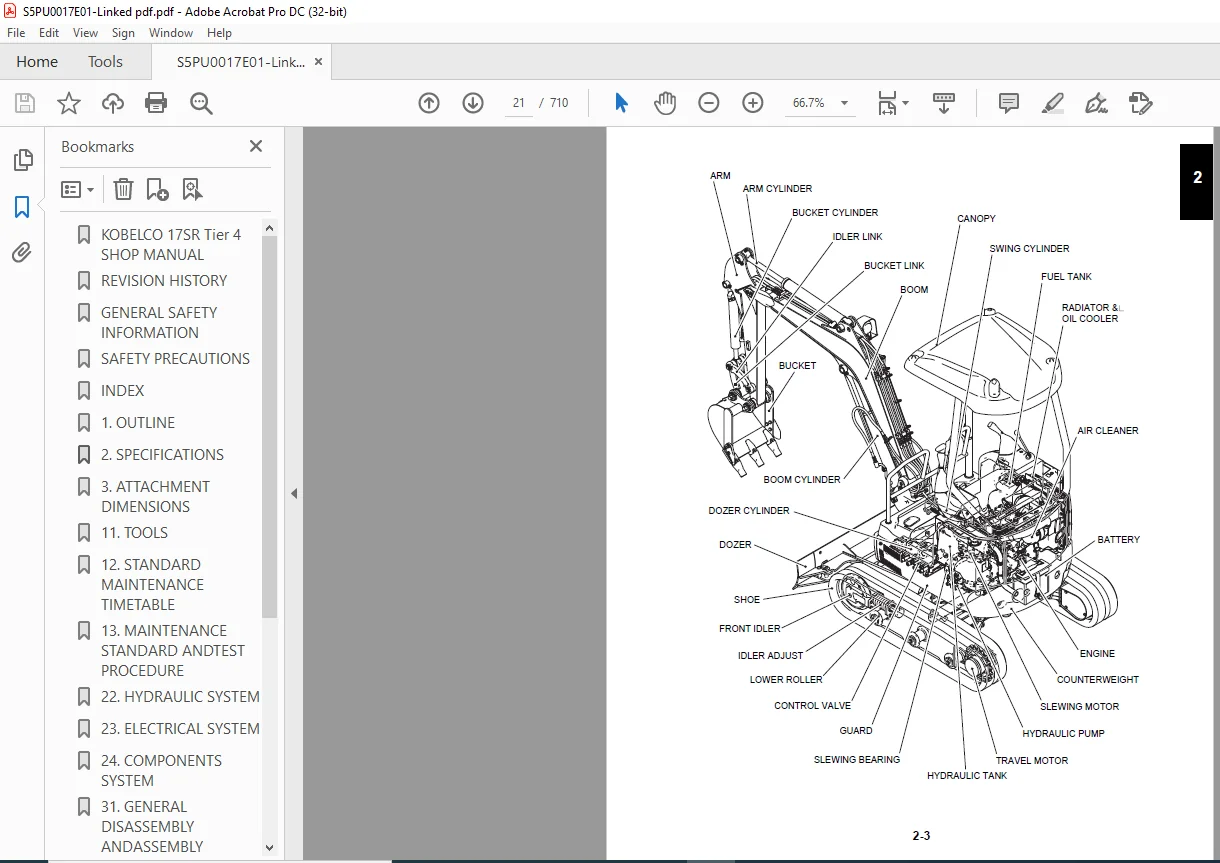

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
