KOBELCO 6D2 MITSUBISHI DIESEL ENGINE For Industrial Use SERVICE MANUAL – PDF DOWNLOAD

Description

KOBELCO 6D2 MITSUBISHI DIESEL ENGINE For Industrial Use SERVICE MANUAL – PDF DOWNLOAD

DESCRIPTION:

KOBELCO 6D2 MITSUBISHI DIESEL ENGINE For Industrial Use SERVICE MANUAL – PDF DOWNLOAD

Applicable Engine :Models:6D24,6d24-T,6d25-TC,6D24-TL

FOREWORD

This shop manual contains the specification, construction, operation, adjustment and service procedures of the Model 602 diesel engine for service mechanics engaged in servicing of the Mitsubishi diesel engines. Please make the most of this shop manual to perform correct servicing and wasteless operations. Note that some of the contents of this shop manual are subject to change owing to improvements, etc. that may be introduced after publication of this shop manual

1. TERMS AND UNITS

The following terms and units are used throughout the entire texts of this manual.

(1) Front and rear The terms “front” is the fan side and “rear” the flywheel side of the engine.

(2) Right and left The terms “right” and “left” shall be used to indicate the side as viewed from the flywheel side of the engine.

(3) Service standard terms

• Nominal value Shows the nominal dimensions, dimension of an individual part, standard clearance between parts in an assembly, or the standard performance of an assembly.

• Limit 4 Shows the value of a part at which the part is no longer serviceable from the performance as well as strength viewpoints, requiring replacement or repair.

(4) lightening torque Over- or undertightening of bolts and nuts has critical effects on performance and functions. lightening torque is therefore specified for some tightening points.

All tightening torque specifications may be considered as “dry” unless “wet” is specified. Where no tightening torque is specified, use a torque value specified in the General Bolts and Nuts lightening Torque Table.

(5) Units Length, weight, surface area and capacity are given in International Systems of Units with metric units indicated in ( ). Temperatures are given in degrees Celsius. For the conversion into the foot-pound system, refer to the following conversion table.
TABLE OF CONTENTS:

KOBELCO 6D2 MITSUBISHI DIESEL ENGINE For Industrial Use SERVICE MANUAL – PDF DOWNLOAD

Table of Contents …………………… 3
General ……………………………. 10
Engine …………………………….. 24
Lubrication ………………………… 94
Fuel and Engine Control ………………114
Electronically Controlled Fuel System ….172
Cooling …………………………….208
Intake and Exhaust …………………..232
Engine Electrical ……………………262
Clutch ……………………………..376
Special Equipment ……………………394
KOBELCO 6D2 MITSUBISHI DIESEL ENGINE FOR INDUSTRIAL USE SERVICE MANUAL – PDF DOWNLOAD:

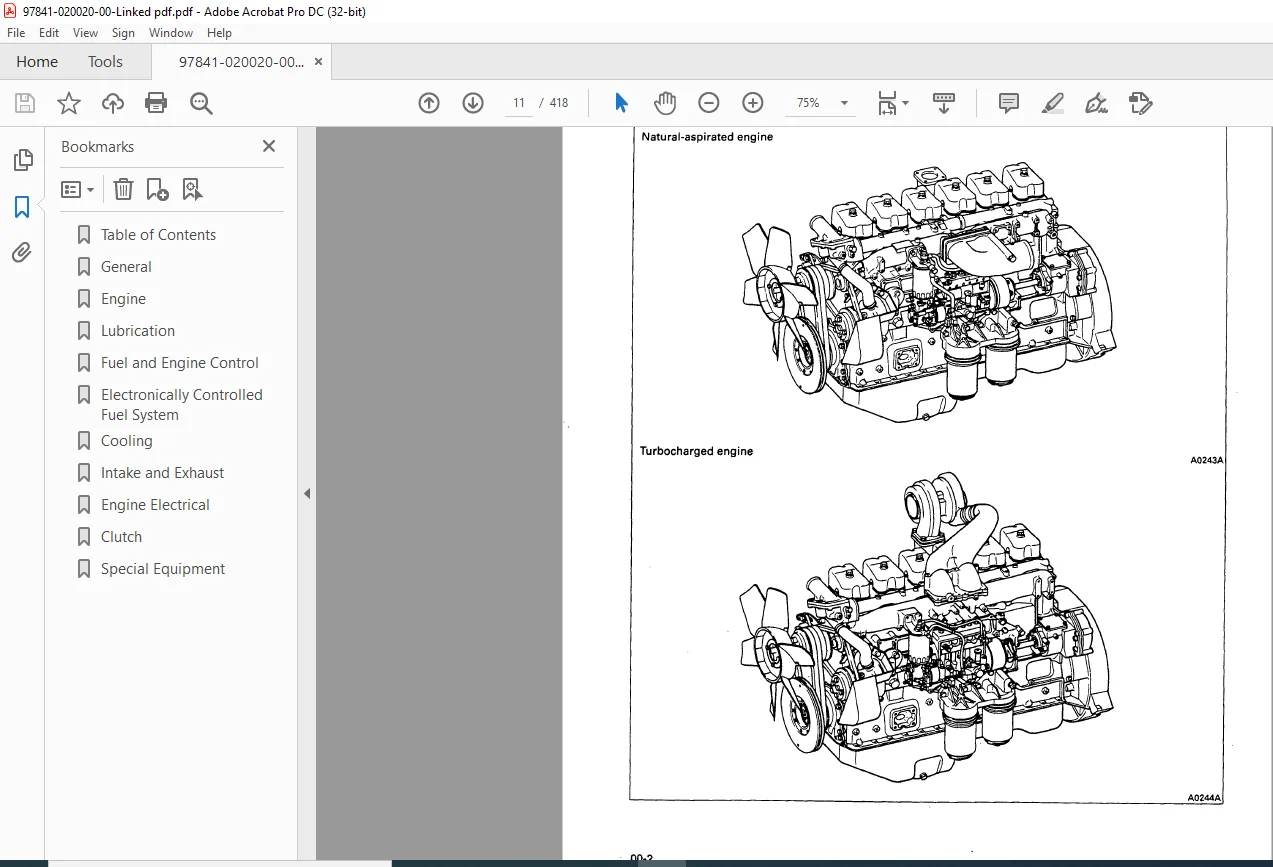

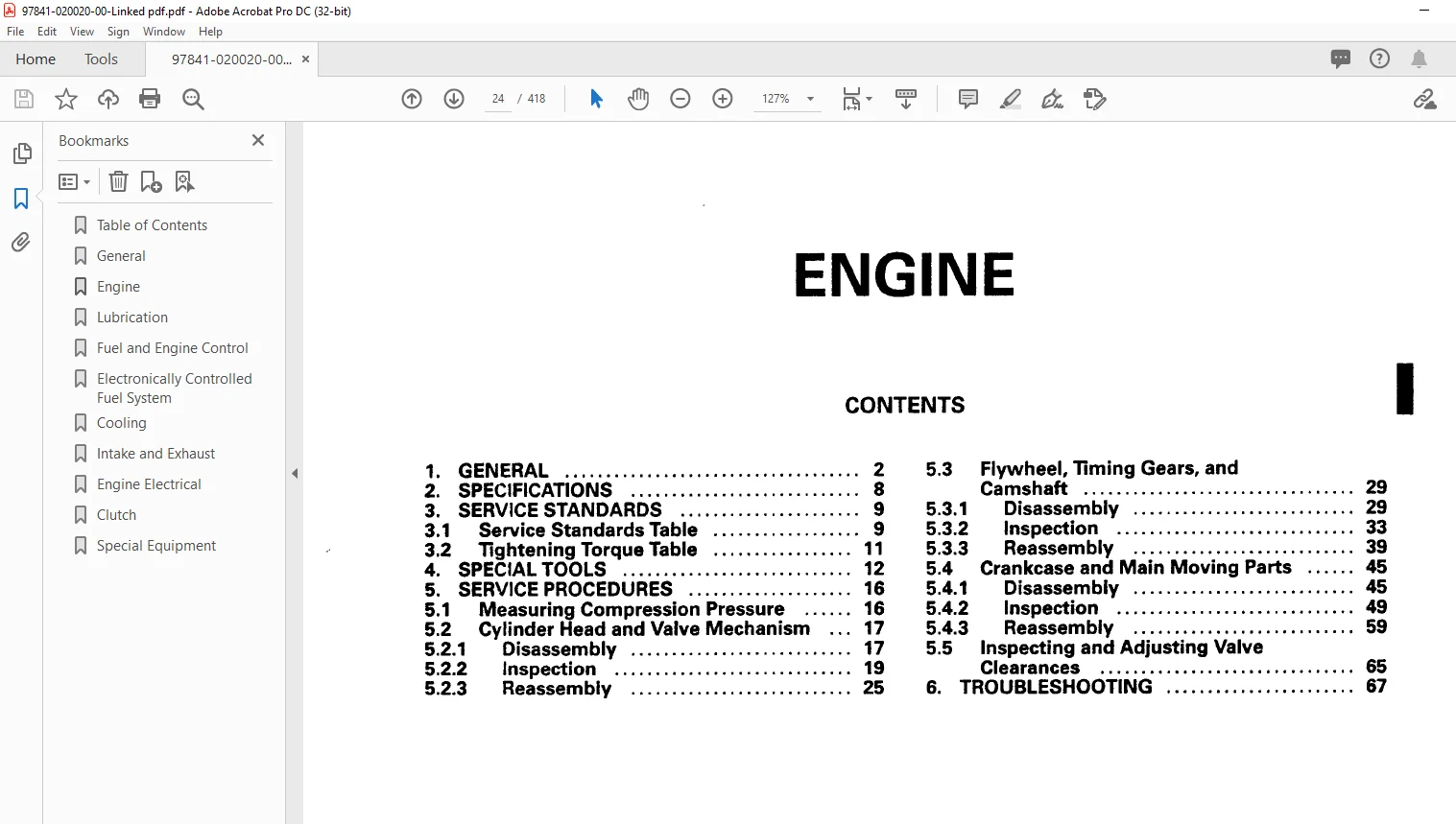

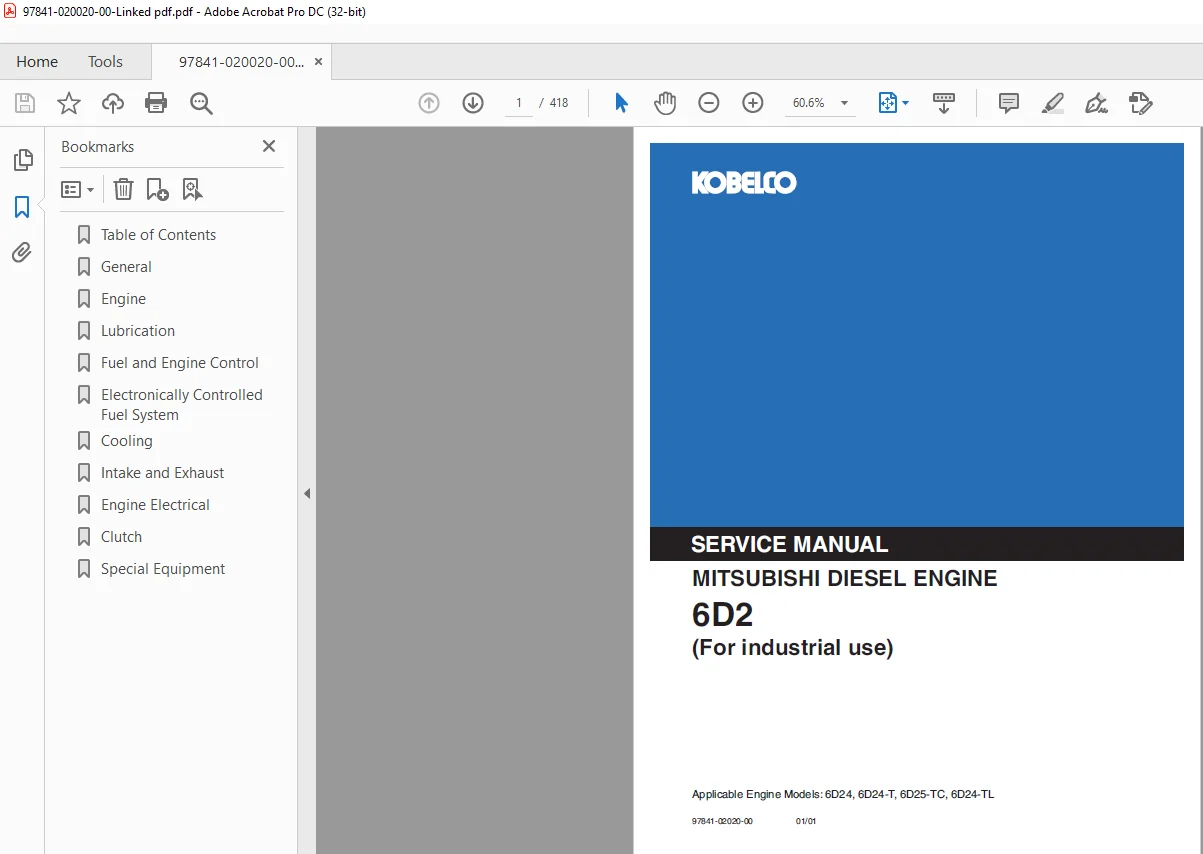

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
