Kobelco CK1600 CKE1350 Crawler Crane Shop Manual S5GN00003ZE08 – PDF DOWNLOAD

Description

Kobelco CK1600 CKE1350 Crawler Crane Shop Manual S5GN00003ZE08 – PDF DOWNLOAD

FILE DETAILS:

Kobelco CK1600 CKE1350 Crawler Crane Shop Manual S5GN00003ZE08 – PDF DOWNLOAD

Language : English
Pages : 584
Downloadable : Yes
File Type : PDF

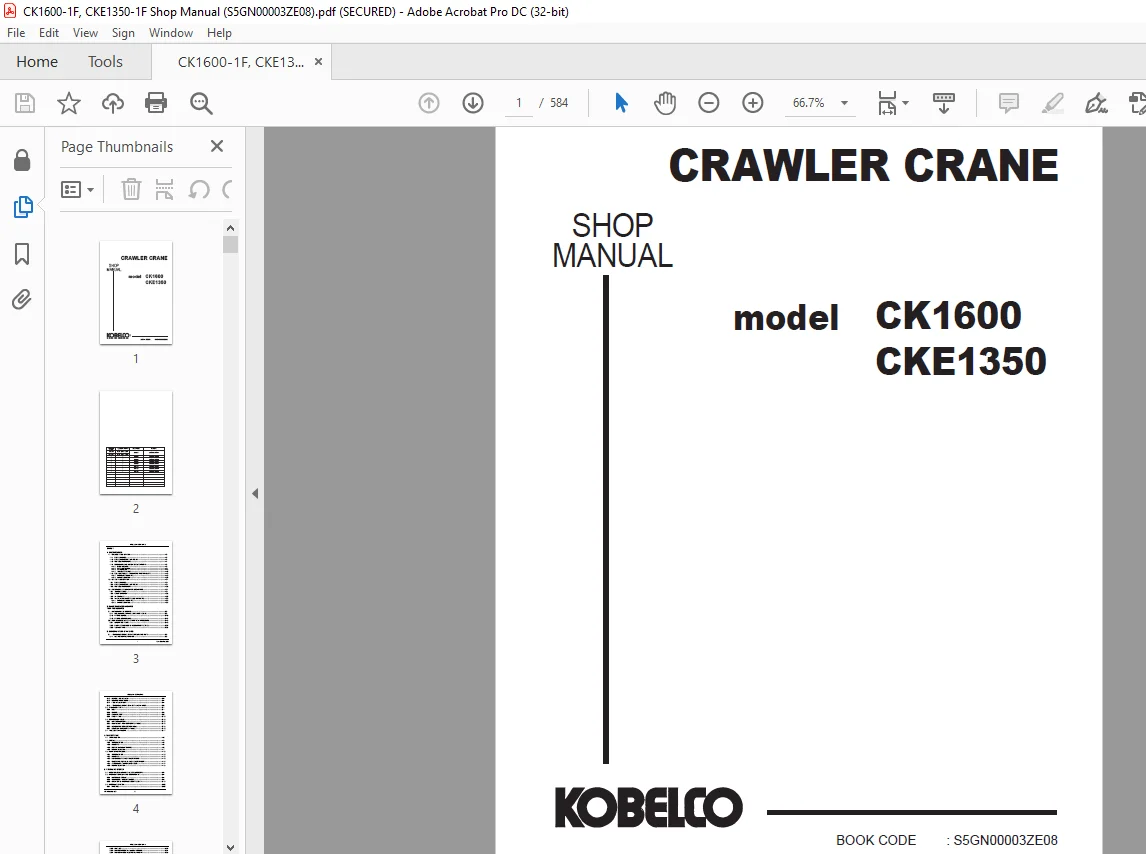

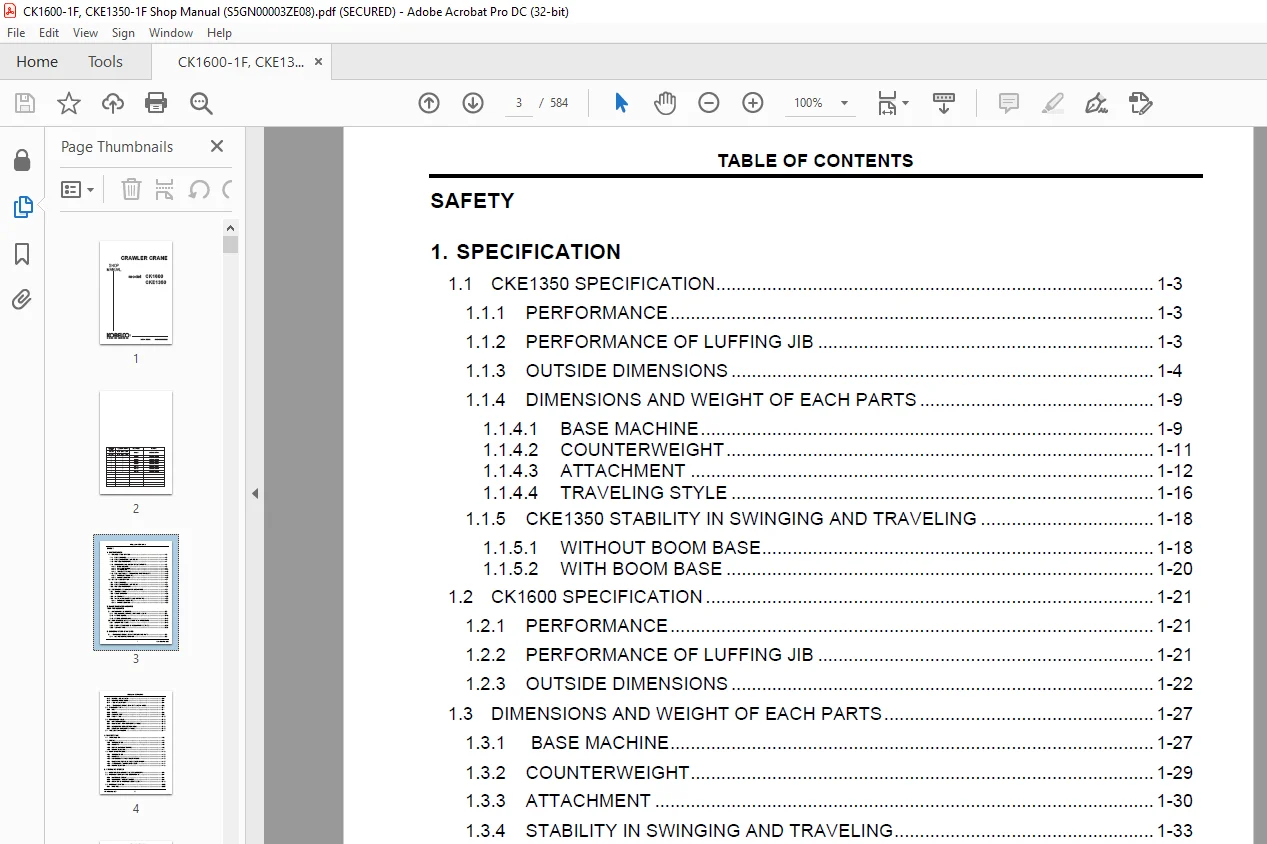

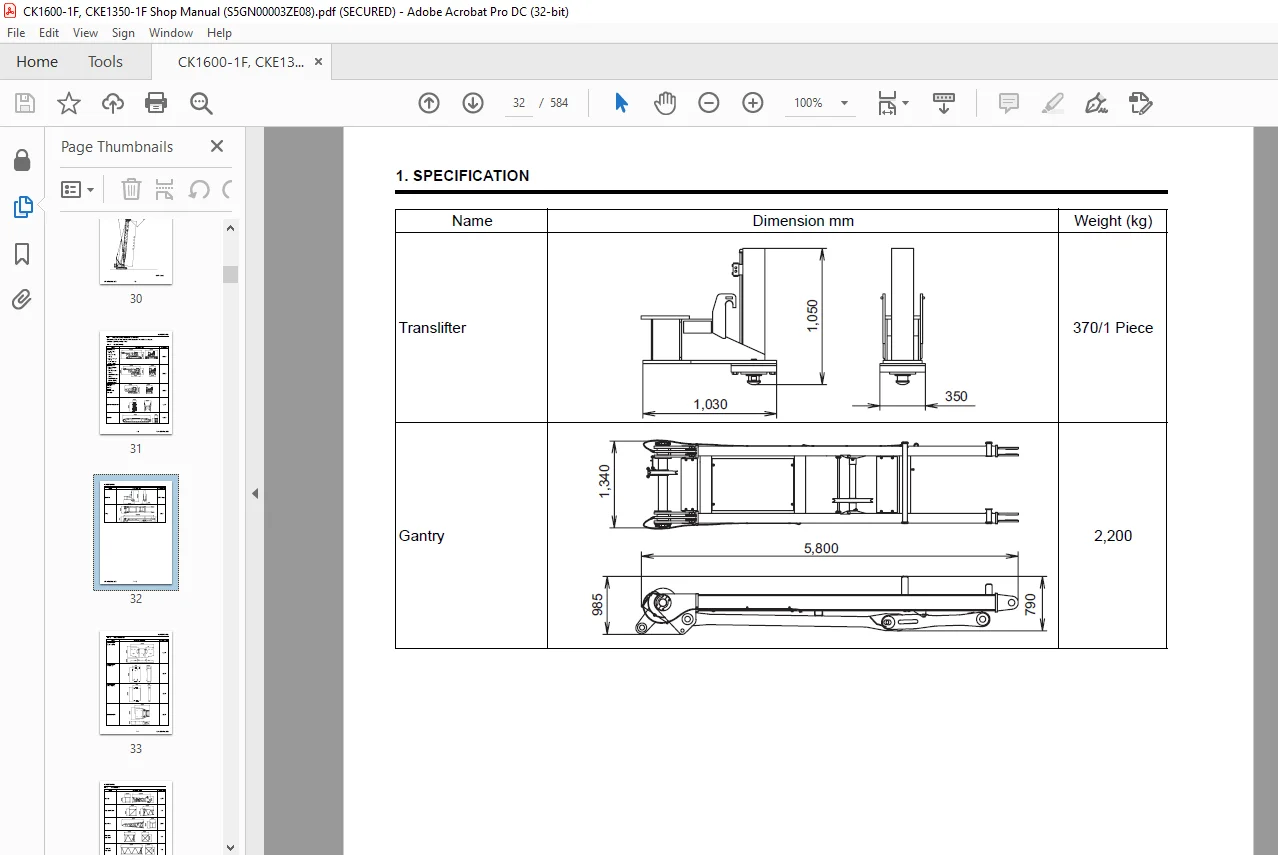

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kobelco CK1600 CKE1350 Crawler Crane Shop Manual S5GN00003ZE08 – PDF DOWNLOAD

SAFETY:
PRECAUTIONS FOR INSPECTION AND MAINTENANCE:
1. Service and maintenance must be performed only by authorized personnel who are qualified in
compliance with a relevant law or regulation.
2. Regular maintenance or inspection should be quickly performed after shutting down the machine
and ensuring safety to personnel and equipment.
Post an “INSPECTION IN PROGRESS. DO NOT START.” warning sign on a readily visible location.

GENERAL SAFETY PRECAUTIONS:
1. Wear safety shoes, helmets and clothing suitable for the job. Also use protective goggles,
mask, gloves, etc., as required.
2. To ensure safe and correct maintenance, carefully study this SHOP MANUAL and get fully
familiar with the in- structions in it.
3. Place the machine in a safe place. Always maintain safe clearance around the machine.
4. Before starting crane operation, hold a safety meeting. Also, make agreement on standardized
hand signals.
5. When inspecting or handling the battery or oil, do not use exposed flame nearby. To avoid fire
accident, only use explosion-proof lighting equipment.
6. Start an inspection or maintenance work only after shutting down the engine.
7. Certain machine components remain hot immediately after the engine is shut down. Do not touch
them.
8. Before removing the radiator cap, wait until the coolant water gets sufficiently cool. Next,
carefully loosen the cap and release radiator pressure, and them remove the cap.
9. Before inspecting or maintaining an electrical system on the machine, power off the machine
by, for example, disconnecting the battery cables.
10. When working at a high lift area, always wear a safety belt.
11. When leaving the operator’s cab for an inspection or maintenance work, post an “INSPECTION IN
PROGRESS. DO NOT START.” warning sign on a readily visible location. Also, lock the cab for
security.
12. Before starting a cleaning or lubrication work on the machine, always shut down the engine.
13. While adjusting tire pressure, be absolutely careful about rupture of a tire, flying of wheel
part.
14. Use genuine KOBELCO replacement parts and oils only.
15. Always keep the oil containers clean. Protect them against ingress of dust or moisture. Also,
fill clean, fresh oils only.
16. Once a maintenance work is complete, clean the machine.
Protect grease nipples, breathers, and oil level gages against ingress of dust.
17. Always keep the subjects of regular inspection clean to allow problems such as oil leakage,
crack, looseness, etc., to be readily detected.
18. During car washing, do not allow high pressure steam to be directly applied to electrical
components and con- nectors.
19. After removing O-rings, oil seals, gaskets, etc., clean the mounting seats. Then, install
fresh O-rings, oil seals, gaskets, etc. Also, remember to thinly apply oil to the seal faces of
these parts before installation.
20. Before disconnecting pressurized piping, release the inside pressure.
