KOBELCO Grand Beetle SK235SR-1E TRAINING TEXT MANUAL – PDF DOWNLOAD

Description

KOBELCO Grand Beetle SK235SR-1E TRAINING TEXT MANUAL – PDF DOWNLOAD

DESCRIPTION:

KOBELCO Grand Beetle SK235SR-1E TRAINING TEXT MANUAL – PDF DOWNLOAD

Book code No. S6YF00113ZE01

1.IMPROVEMENT OUTLINE OF MACHINES IN SK2355R-1 E

1. Regard for environment

1) Reduction of exhaust gas emission quality

Be equipped with engine confirming to the security regulation of exhaust gas in EU. (Complied with the draft for EU-EPA secondary regulation of exhaust gas emission.)

2) Low noise and sound quality improved

Comply with the EU secondary regulation of limiting noise emission. (The reference taking the unevenness from mass-production into consideration is clear.)

Reducing of ambient noise level and improvement of sound quality.

Noise level in CAB lowered / Sound quality improved: 69dB

3) Reduction of fuel consumption c:::) Fuel consumption improved. (lntercooler is equipped) 4) Prevention of soil contamination

Hydraulic oil: Biodegradable hydraulic oil

No Amine contained in coolant

2. Augmentation of variety I Variety purposes (Including reduction of lead time)

1) Making the modification easier

Welding is unnecessary when modifying the high-reach crane. (Only attaching parts can perform the modification without welding.)

Making the modification of travel alarm easier (Standardize harness / coupler)

2) Making main construction in common (Frame, attachment, etc.)

Making local modification easy

Making structural members in common. Incorporating block in option into standard level (Upper frame)

3. Fulfillment of complete function and performance (Including the removal of present claims and latent claims.)

1) Improvement of workability 1

Controllability in combined operation improved: Electronic positive control applied q Improvement of digging performance (Digging power up) 135kN to 145kN q Improvement of operability (Quick catch, when attaching large bucket) q Improvement of switch controllability (Switches grouped on gauge cluster)

2) Adding auxiliary functions

• Provide high-reach crane operations counter meter. (The function of controller is equipped.)
• Cup holder/ Box for small items are provided.

4. Improvement of further safety function when working and running

3) Improvement for safety and field of view (Improvement to full field of view)

•  Improvement of rear field of view: The rear view-improving device is provided. (Rear mirror equipped in standard, rear working light plus rearward monitor device in option, etc.)
•  Improvement of front field of view: The wiping area is expanded. (Approx. 11 % up

5. Keep long life (value) of machine

1) Improvement of durability/ weatherresistance q Improve of bucket play adjusting mechanism. (Construction of New Beetle Series) (Bolt push type with large shims)

•  Aluminum-made radiator installed
•  Number of lower roller increased (7pcs. to 8pcs) 2) Improvement of maintainability
•  Improvement of fueling capacity (Large strainer with float)
• Improvement of maintainability of fuel system (Draining without tools, flange for cleaning added, for water separator filter)
•  Make checking of engine oil level easier
• Make checking of hydraulic oil level easier
•  Extension of lubrication interval, standardizing (No lubrication for 500 hours (Around bucket: 250hours))

TABLE OF CONTENTS:

KOBELCO Grand Beetle SK235SR-1E TRAINING TEXT MANUAL – PDF DOWNLOAD

CONTENTS
1. IMPROVEMENT OUTLINE OF MACHINES IN SK235SR-1E …………………………………………………………………………….. 1
2. GAUGE CLUSTER AND SWITCH PANEL ………………………………………………………………………………………. 4
3. MECHATRO CONTROLLER …………………………………………………………………………………………………………. 5
4. IMPROVEMENT PORTION MODIFIED SECTION AND NEW FUNCTIONS OF MACHINE IS PERFORMED ….. 11
5. HYDRAULIC DIAGRAM ……………………………………………………………………………………………………………… 13
6. ELECTRIC DIAGRAM ………………………………………………………………………………………………………………… 17
7. SUMMARY OF MECHATRO CONTROL SYSTEM …………………………………………………………………………. 23
8. PERFORMANCE INSPECTION STANDARD ………………………………………………………………………………… 24
9. SPECIFICATIONS AND PERFORMANCE ……………………………………………………………………………………. 26
10. HYDRAULIC PUMP·REGULATOR ………………………………………………………………………………………………. 27
11. CONTROL VALVE ……………………………………………………………………………………………………………………… 32
12. SWING MOTOR UNIT ………………………………………………………………………………………………………………… 65
13. TRAVEL MOTOR ……………………………………………………………………………………………………………………….. 67
14. ENGINE SPECIFICATIONS ………………………………………………………………………………………………………… 68
15. INTERCHANGEABILITY OF COMPONENTS OTHER SERIES (GB-DA)AGAIST SK235SR-1E …………….. 69
16. OPTION LIST OF MACHINES IN GRAND BEETLE SERIES ………………………………………………………….. 70

KOBELCO GRAND BEETLE SK235SR-1E TRAINING TEXT MANUAL – PDF DOWNLOAD:

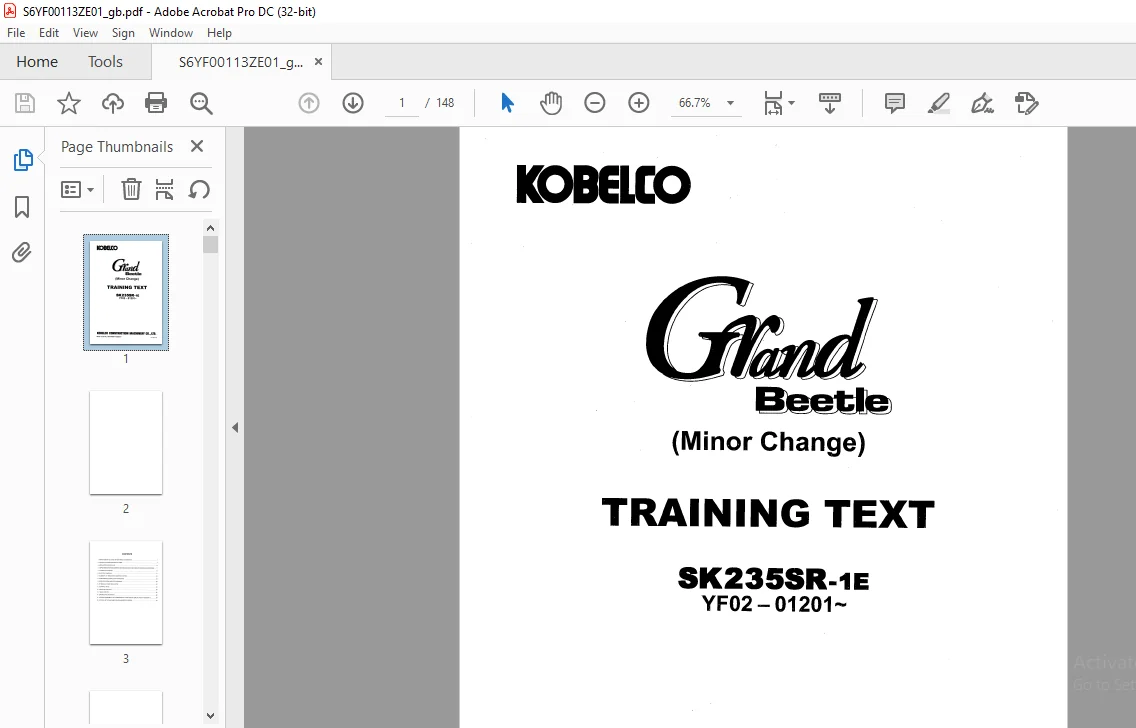

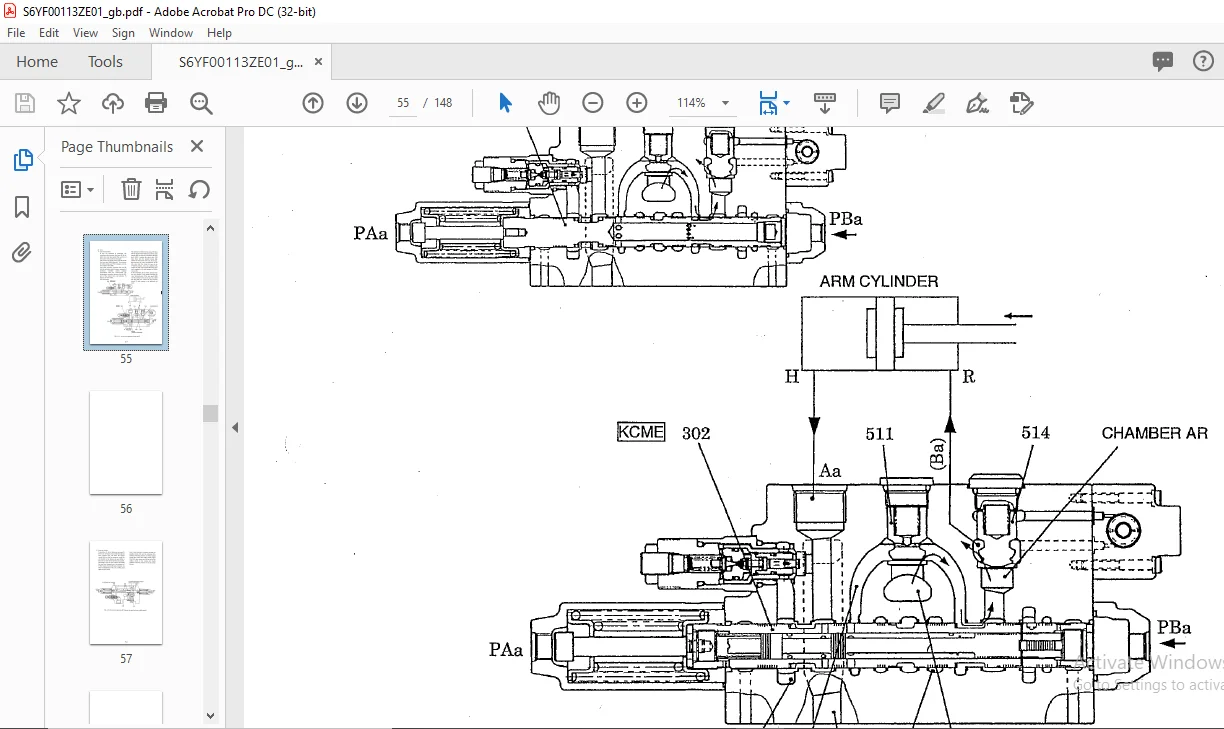

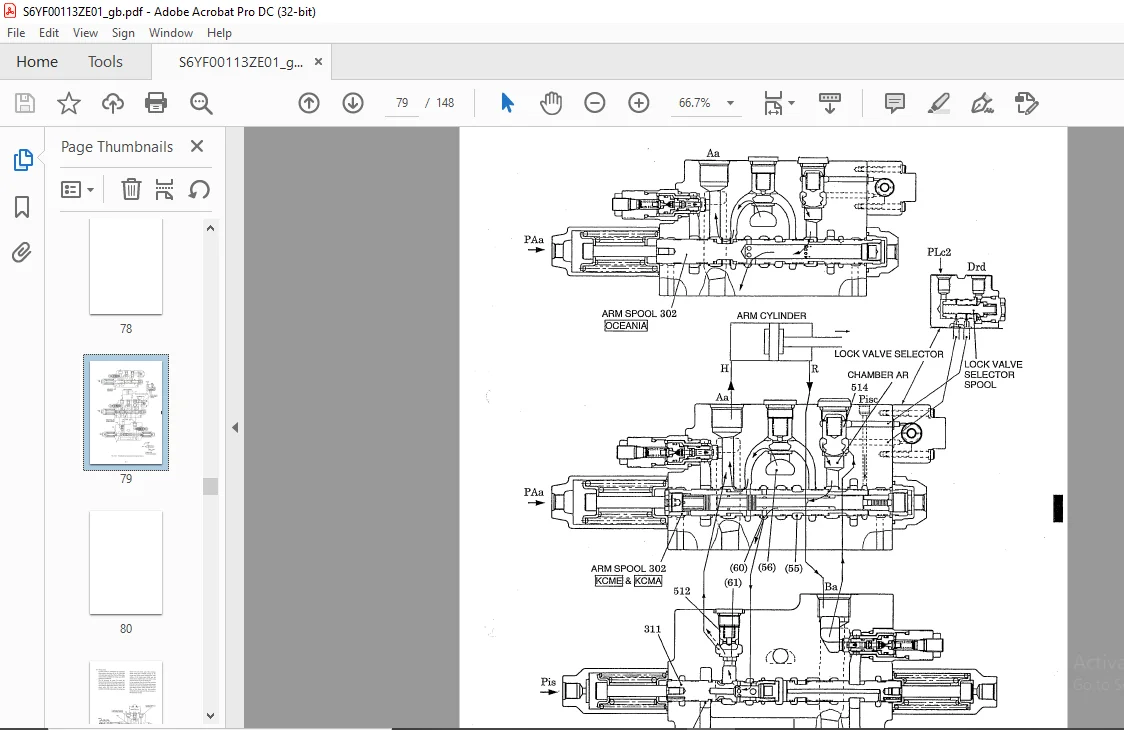

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
