FOREWORD

This Workshop Manual is designed to help you perform necessary maintenance, service, and repair procedures on applicable Isuzu industrial engines. Information contained in this Workshop Manual is the latest available at the time of publication. Isuzu reserves the right to make changes at any time without prior notice. The Table of Contents at the right hand side of this page shows you the general arrangement of the material in this Workshop Manual. A more detailed Table of Contents precedes each individual section. The black spot at the right hand side of some pages indicates the first page of a given section. This Workshop Manual is applicable to 1986 and later models.

GENERAL REPAIR INSTRUCTIONS

1. Before performing any service operation with the engine mounted, disconnect the grounding cable from the battery. This will reduce the chance of cable damage and burning due to short circuiting.

2. Always use the proper tool or tools for the job at hand. Where specified, use the specially designed tool or tools.

3. Use genuine ISUZU parts referring ISUZU PARTS CATALOG for the engines surely.

4. Never reuse cotter pins, gaskets, O-rings, lock washers, and self locking nuts. Discard them as you remove them. Replace them with new ones.

5. Always keep disassembled parts neatly in groups. This will ensure a smooth reassembly operation. It is especially important to keep fastening parts separate. These parts vary in hardness and design, depending on their installation position.

6. All parts should be carefully cleaned before inspection or reassembly. Oil ports and other openings should be cleaned with compressed air to make sure that they are completely free of obstructions.

7. Rotating and sliding part surfaces should be lubricated with oil or grease before reassembly.

8. If necessary, use a sealer on gaskets to prevent leakage.

9. Nut and bolt torque specifications should be carefully followed.

10. Always release the air pressure from any machine-mounted air tank(s) before dismounting the engine or disconnecting pipes and hoses. To not do so is extremely dangerous.

11. Always check and recheck your work. No service operation is complete until you have done this.

12. Information contained in the “Main Data and Specifications” of the Workshop Manual and the Instruction Book may differ. In this case, the information contained in the Instruction Book should be considered applicable.

NOTES ON THE FORMAT OF THIS MANUAL

This Workshop Manual is applicable to the 48B1, 4BD1, 4BD1T, 6BB1, 6BD1, 6BD1T, 6BG1, and 6BG1T family of industrial diesel engines. Unless otherwise specified, these engines have common parts and components as well as data and specifications. Illustrations used in this Workshop Manual are based on the 6BD1 and 6BD1T engines. The 4BD1T, 6BD1T and the 6BG1T engine are turbocharged.

1. Find the applicable section by referring to the Table of Contents at the beginning of the Manual.

2. Common technical data such as general maintenance items, service specifications, and tightening torques are included in the “General Information” section

. 3. Each section is divided into sub-sections dealing with disassembly, inspection and repair, and reassembly. The section ENGINE ASSEMBLY is an exception. This part is divided into three sections to facilitates quick indexing.

4. When the same servicing operation is applicable to several different units, the manual will direct you to the appropriate page

. 5. For the sake of brevity, self-explanatory removal and installation procedures are omitted. More complex procedures are covered in detail
TABLE OF CONTENTS:

KOBELCO K904 II K905LC II ISUZU INDUSTRIAL DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD

Table of Contents ………………………………….. 6
Section 1 – General Information …………………….. 8
Section 2 – Maintenance ………………………….. 34
Section 3 – Engine Assembly I (Disassembly) ………….. 54
Section 4 – Engine Assembly II (Inspection & Repair) …. 70
Section 5 – Engine Assembly III (Reassembly) …………102
Section 6 – Lubricating System ……………………….132
Section 7 – Cooling System ………………………….140
Section 8 – Fuel System ……………………………148
Section 9 – Turbocharger …………………………….160
Section 10 – Air Compressor ………………………….164
Section 11 – Engine Electricals ………………………172
Section 12 – Troubleshooting …………………………184
Section 13 – Special Tool List ……………………….208
Section 14 – Conversion Table ………………………..212

KOBELCO K904 II K905LC II ISUZU INDUSTRIAL DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD:

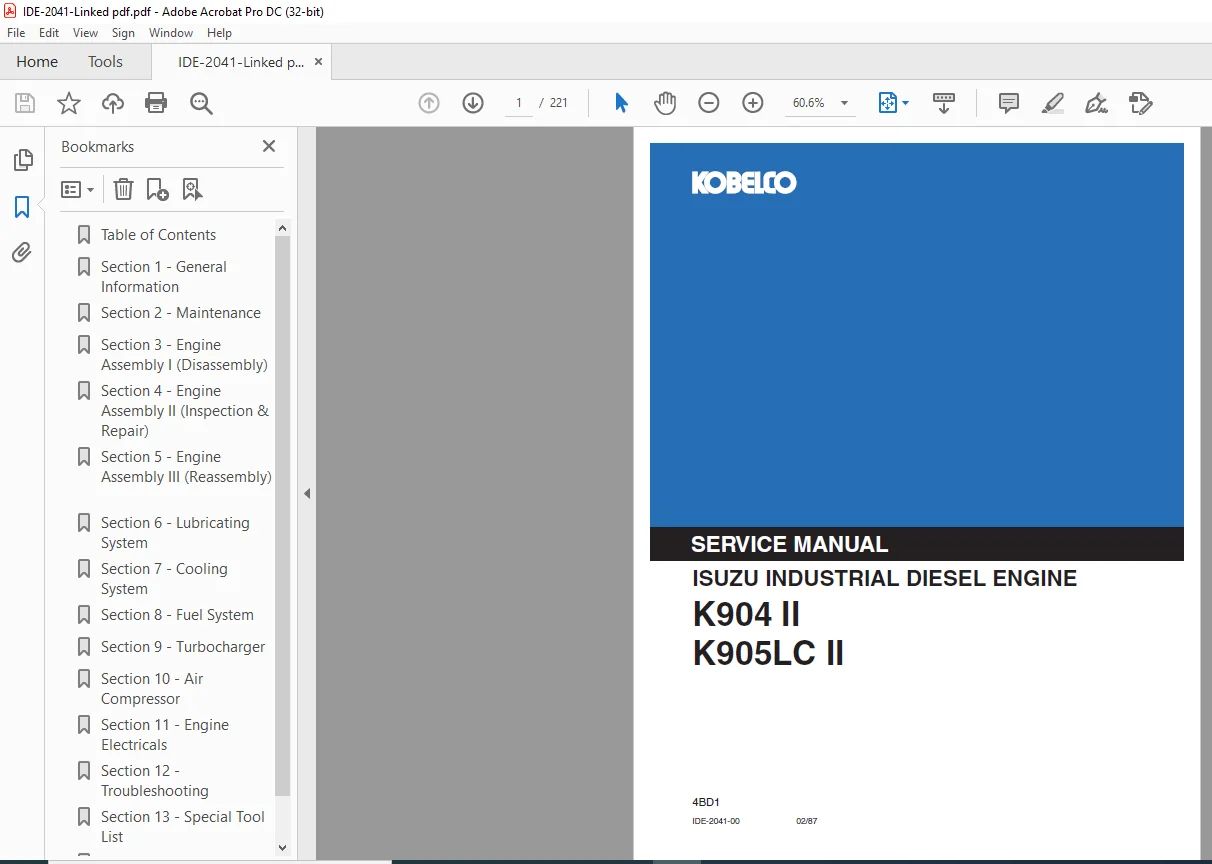

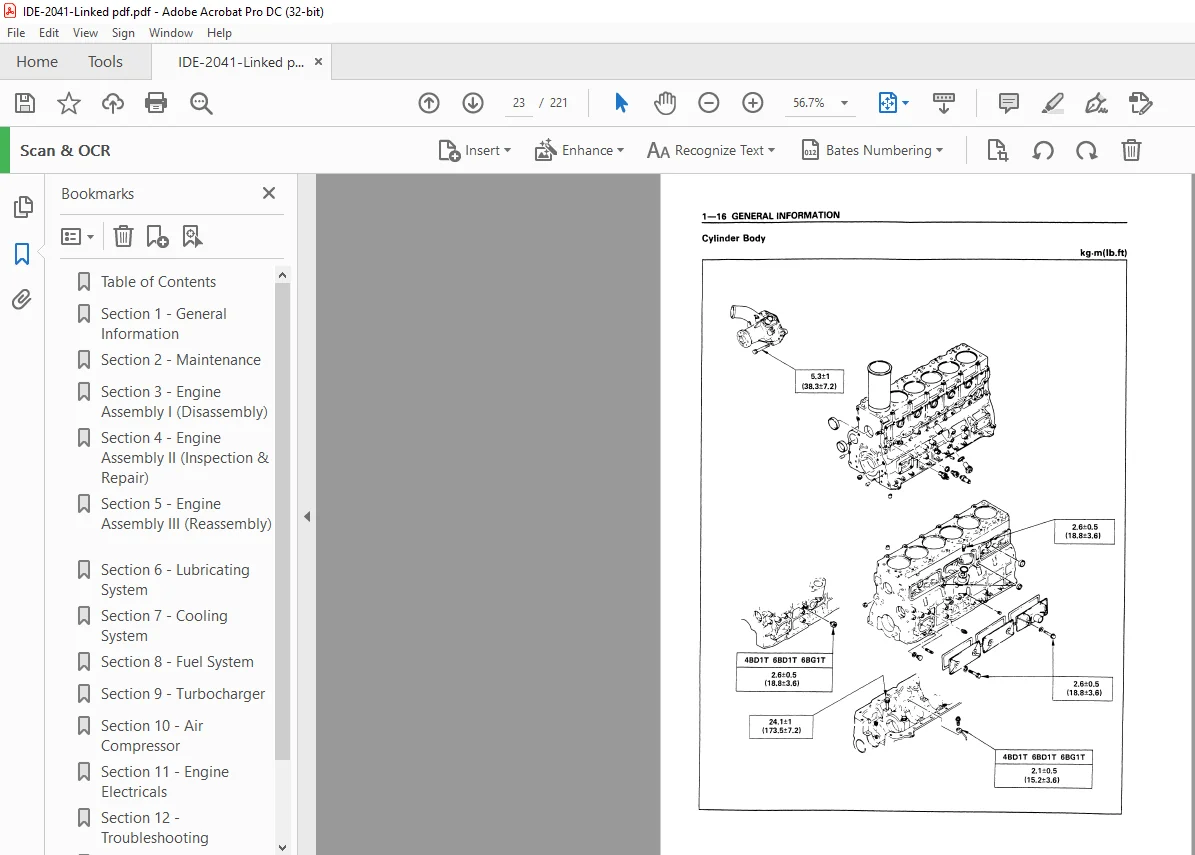

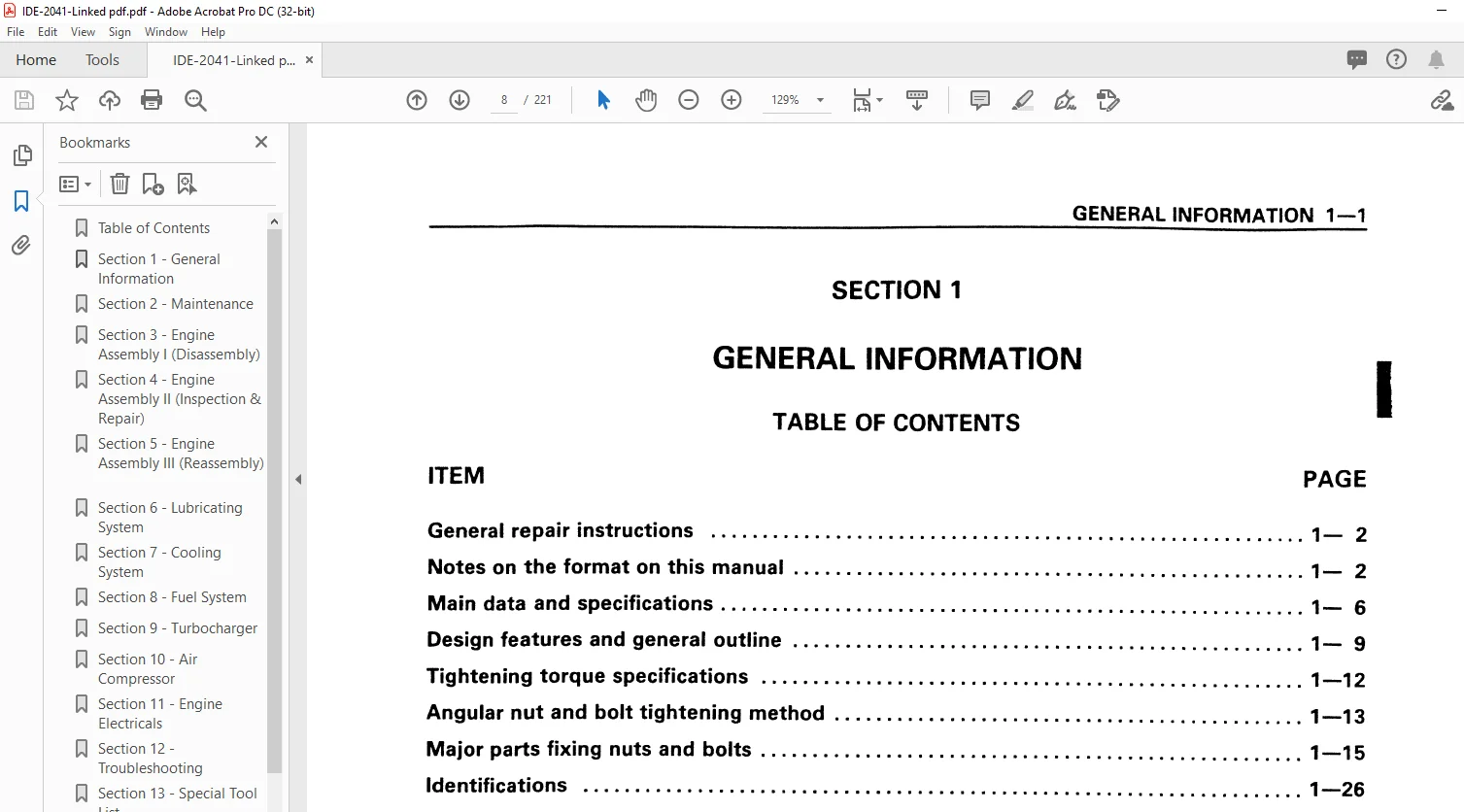

IMAGES PREVIEW OF THE MANUAL:
