KOBELCO PD6 and PD6T NISSAN DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD

Description

KOBELCO PD6 and PD6T NISSAN DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD

DESCRIPTION:

KOBELCO PD6 and PD6T NISSAN DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD

Applicable Machine: LK850 II~

Applicable Engine Numbers
PD6 070000-
PDGT 048000T

FOREWORD

This service manual covers repair procedure of the PD6 and PD6T diesel engines. In order for the engine displays 100% performance at all times, and to expand the life of each part, daily inspection and servicing must, of course, be performed according to a plan, but proper overhaul and repair in accordance with the maintenance standards is also vital. Keep this manual in the shop for everyone engaging in servicing of the engine. Nissan Diesel reserves the right to make changes for improvement at any time without notice. Accordingly, some of the descriptions contained in this manual may not be applicable to your particular vehicle.

GENERAL:

This chapter describes handling cautions of this manual and engine general. Therefore, when repairing the PD6 and PD6T engines by using this manual, first read this chapter

METHOD OF USING THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . 1-1
ENGINE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
LUBRICATION AND FUEL …………………. ,, … ,.· 1-4

METHOD OF USING THIS MANUAL:

MAINTENANCE STANDARD TERMS

Maintenance standard LEFT “Maintenance standard” indicates the standard clearance when parts are assembled or the standard performances of assembly parts.

Repair limit

“Repair limit” indicates that repair is necessary if the clearance between parts or the parts are to meet the values given in the repair limit are to be attained.

Wear limit

“Wear limit” indicates that the part has exceeded the given wear limit and must be replaced

UNITS

The units of measures used throughout this manual, are in accordance with the metric system. When conversion to the corresponding English units (Foot pound system) is necessary, utilize the following.

1 mm . . . . . . . . 0.0394 in.
1 kg . . . . . . . . . 2.205 lb.
1kgm ……… 7.23Ib.ft.
1 kg/cm2 •••••.• 14.223 psi.
1 liter …….. 0.220 Imp. gal.
1 liter …….. 0.264 U.S. gal.
9
t (° F) = 32 + 5 T (° C)
However, the unit of horsepower uses France horsepower
ABBREVIATION
In this manual, the following abbreviations
are used.
O.D ………. Outside Diameter
I.D ………. Inside Diameter
0.5 ………. Over Size
U.S ………. Under Size
B.T.D.C ……. Before Top Dead
Center
A.B.D.C …….. After Bottom
Dead Center
B.B.D.C ……. Before Bottom
Dead Center
A.T.D.C ……. After Top Dead
Center
P.T.O. . …… Power Take Off

USING THIS MANUAL

This manual consits of each chapter. When the trouble points are unclear, refer to chapter 2 “Disassembly judge· ment” and locate the trouble point .. Then, refer to chapter 3 “Engine disassembly and reassembly” an_d remount the trouble components, and repair by referring to the chapter for each components (chapter 4 to chapter 11 ). For check of the engine performance, refer to chapter 12 “Engine test procedures”. Moreover, maintenance standards and tightening torque are collected in the chapter 13 “Service data”.
TABLE OF CONTENTS:

KOBELCO PD6 and PD6T NISSAN DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD

Table of Contents ………………….. 4
1. General ………………………… 6
2. Disassembly Judgment …………….. 12
3. Engine Disassembly and Reassembly …. 30
4. Engine Proper …………………… 50
5. Cylinder Head and Valve Mechanism …. 64
6. Lubrication System ………………. 74
7. Cooling System ………………….. 82
8. Fuel System …………………….. 90
9. Air Intake and Exhaust System ……..132
10. Electrical System ……………….150
11. Auxiliary Equipment ……………..170
12. Engine Test Procedures …………..190
13. Service Data ……………………198
14. Tools ………………………….222
KOBELCO PD6 AND PD6T NISSAN DIESEL ENGINE SERVICE MANUAL – PDF DOWNLOAD:

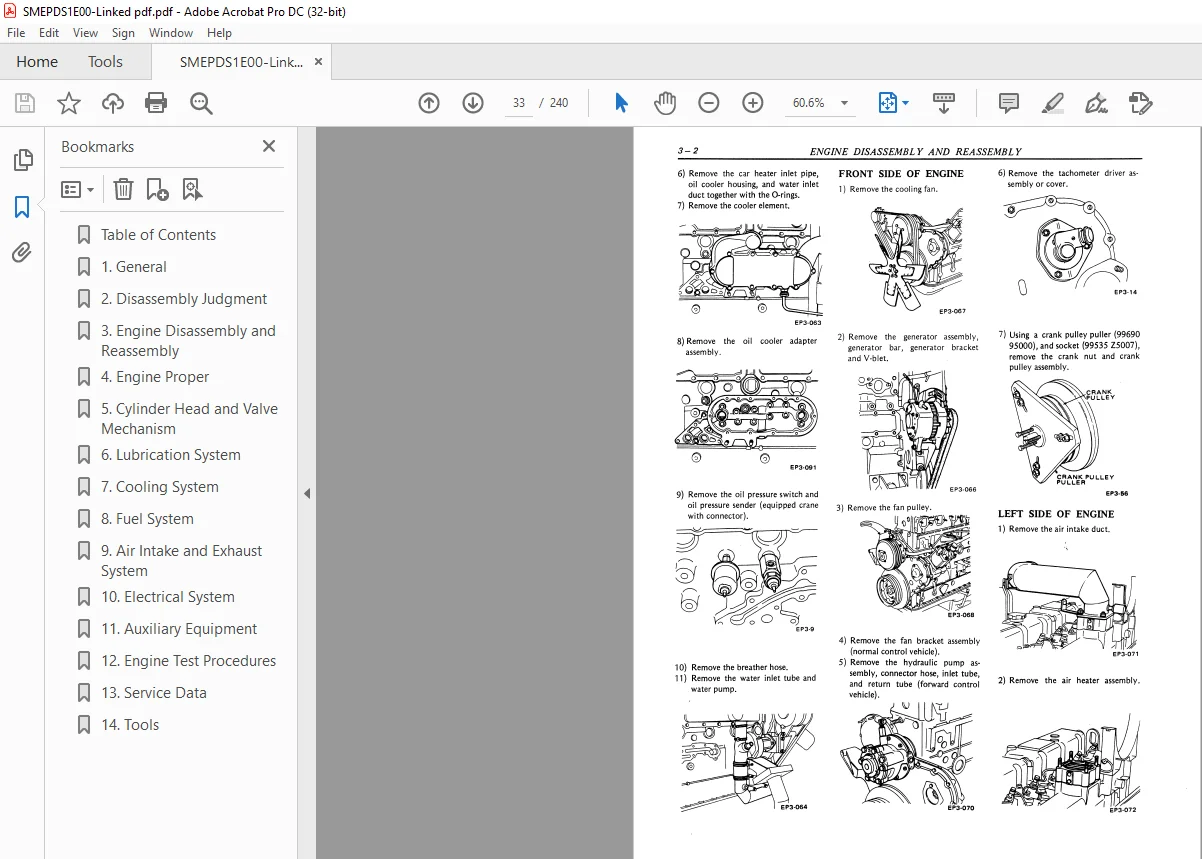

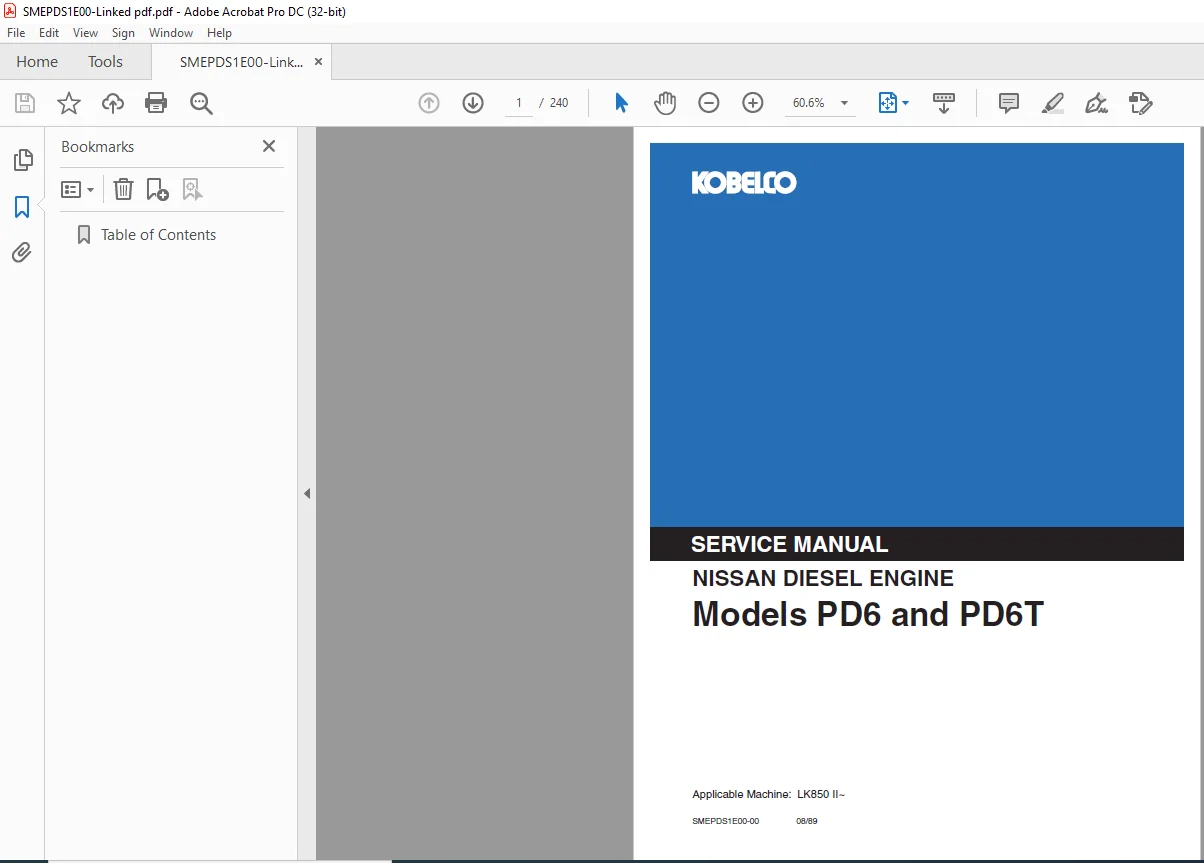

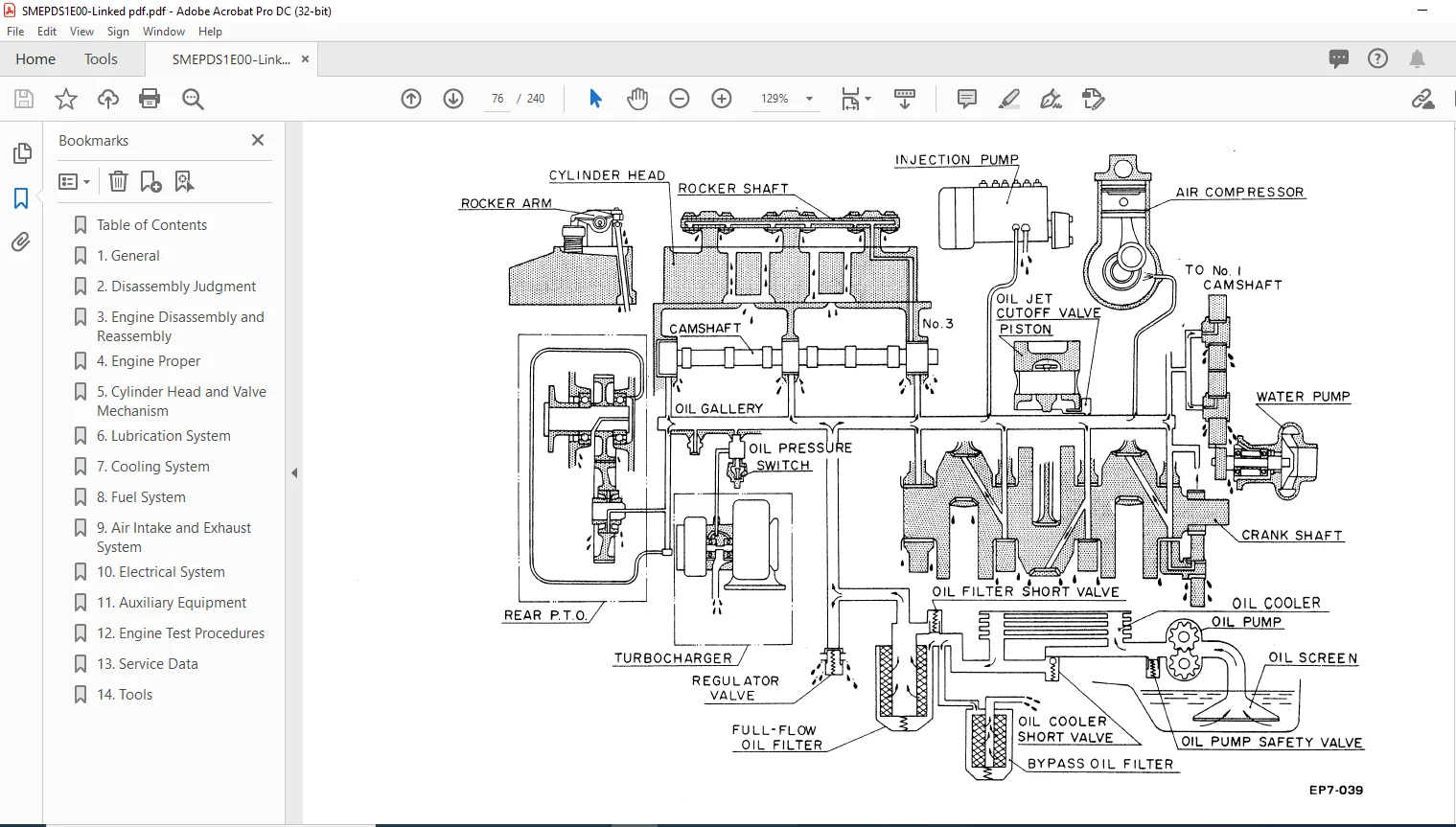

IMAGES PREVIEW OF THE MANUAL:
