Kobelco SK100 SK120LC Excavator Shop Manual – PDF DOWNLOAD
Original price was: $89.95.$31.95Current price is: $31.95.
Kobelco SK100 SK120LC Excavator Shop Manual – PDF DOWNLOAD
Description
Kobelco SK100 SK120LC Excavator Shop Manual – PDF DOWNLOAD
DESCRIPTION:
Kobelco SK100 SK120LC Excavator Shop Manual – PDF DOWNLOAD
The GENERAL Section deals with general specifications. operation and troubleshooting. etc. Further details regarding Systems, Components anti Procedure may be found in each respective section.
- The SYSTEMS Sutton includes descriptions specific to the mechanism of each system. each system’s relation to other systems. and procedures for repair. maintenance. removal and installation.
- Β In the COMPONENTS Section is information concerning the construction, functions, assemhly and assembly of this model. Maintenance standards for each component are also entered in detail.
- The PROCEDURE Section contains instructions regarding the installation of optimal parts and subsequent necessary modifications.’
When checking or repairing the machine we suggest that you refer to this manual carefully. We hope that reference to this manual will help to maintain it high level of working efficiency and reliability. For further dctafls on maintenance and checks refer to the “OPERATORS MANUAL” which has been supplied with the machine.
- Although all data was correct at the time of printing. due to continual design changes and improvements. some content: may not conform to the actual machine. Take special care to order parts only after confirming the validity of the parts number in the βPARTS MANUAL.”
- If you notice any explanatory discrepanCies. after consulting one of our representatives. please update your manual according to the latest data. However. in the event of any specification changes. we will issue revised edition.
TABLE OF CONTENTS:
Kobelco SK100 SK120LC Excavator Shop Manual – PDF DOWNLOAD
*GENERAL
YPU01. SPECIFICATION
OPERATION AND CONTROLS
Π£Π UΠΠ. LOCATION AND WEIGHT OF COMPONENTS
YPU04. MAINTENANCE STANDARD AND
TEST PROCEDURE
YPU0S. TROUBLE SHOOΠ’ING
PREVENTIVE ΠAINTENANCE
(Refer to Operators Manual)
YPU07. WORKING STANDARD
*SYSTEMS
YPU 11. DRIVE SYSΠ’EM
YPU12. HYDRAULIC SYSTEM
YPU 15. SWING SYSTEM
YPU18. TRAVEL SYSTEM
YPU21. ATTACHMENΠ’S
YPU22. CONTROL SYSTEM
YPU23. UPPER FRAME
YPU25. ELECΠ’RICAL SYSTEM
AIR-CONDITIONER SYSTEM
YPU50. ENGINE
*COMPONENTS
12. HYDRAULIC PUMP
13. CONTROL VALVE
14. OTHER VALVES
15. HYDRAULfC MOTOR
16. SWIVEL JOINT
17. HYDRAULIC CYLINDER
21. REDUCΠ’ION UNIT
*PROCEDURE
KOBELCO SK100 SK120LC EXCAVATOR SHOP MANUAL – PDF DOWNLOAD:

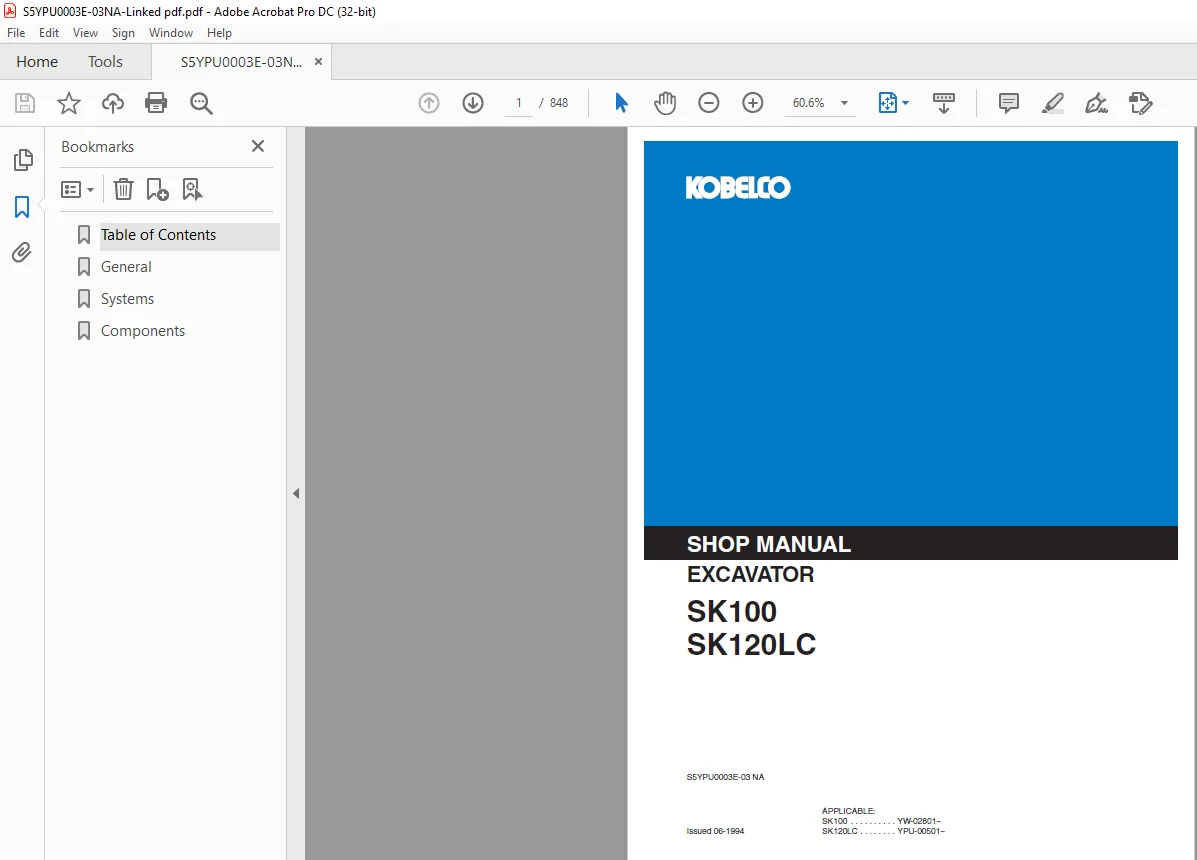

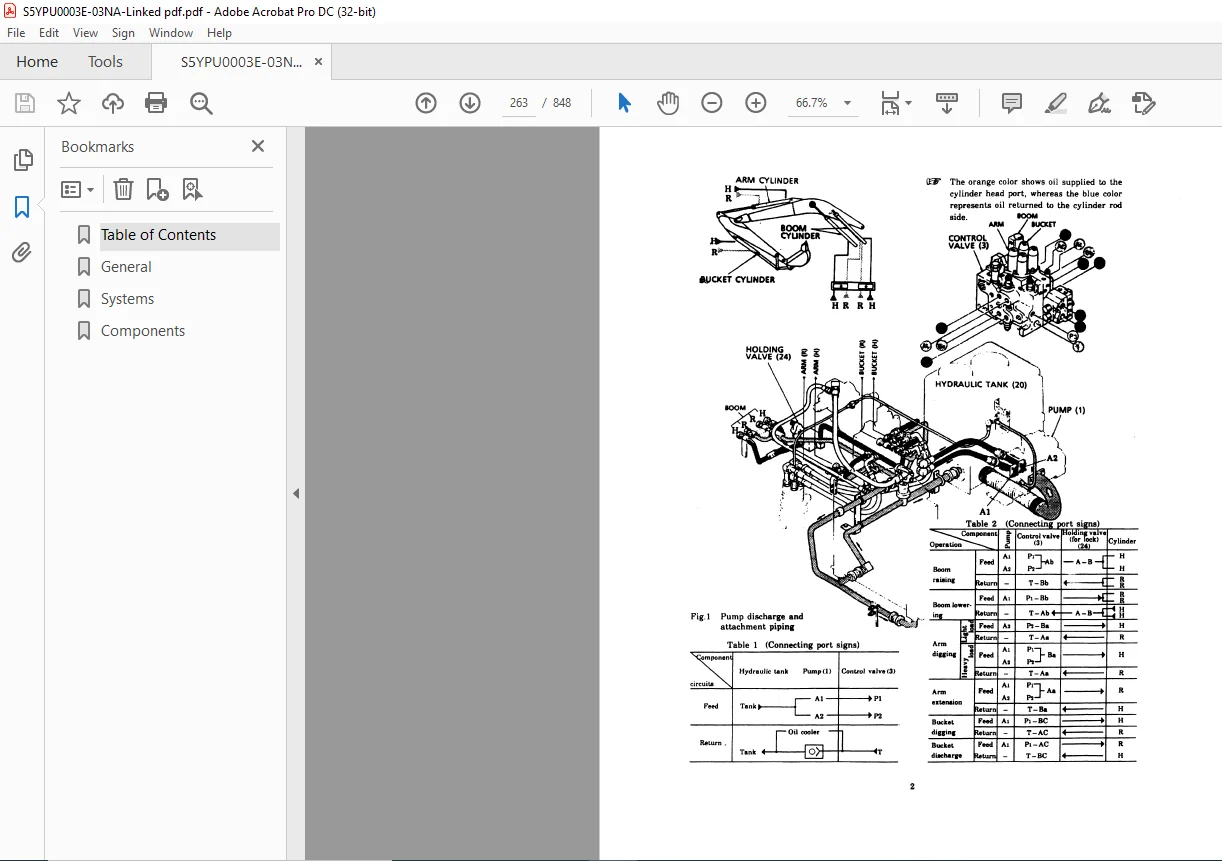

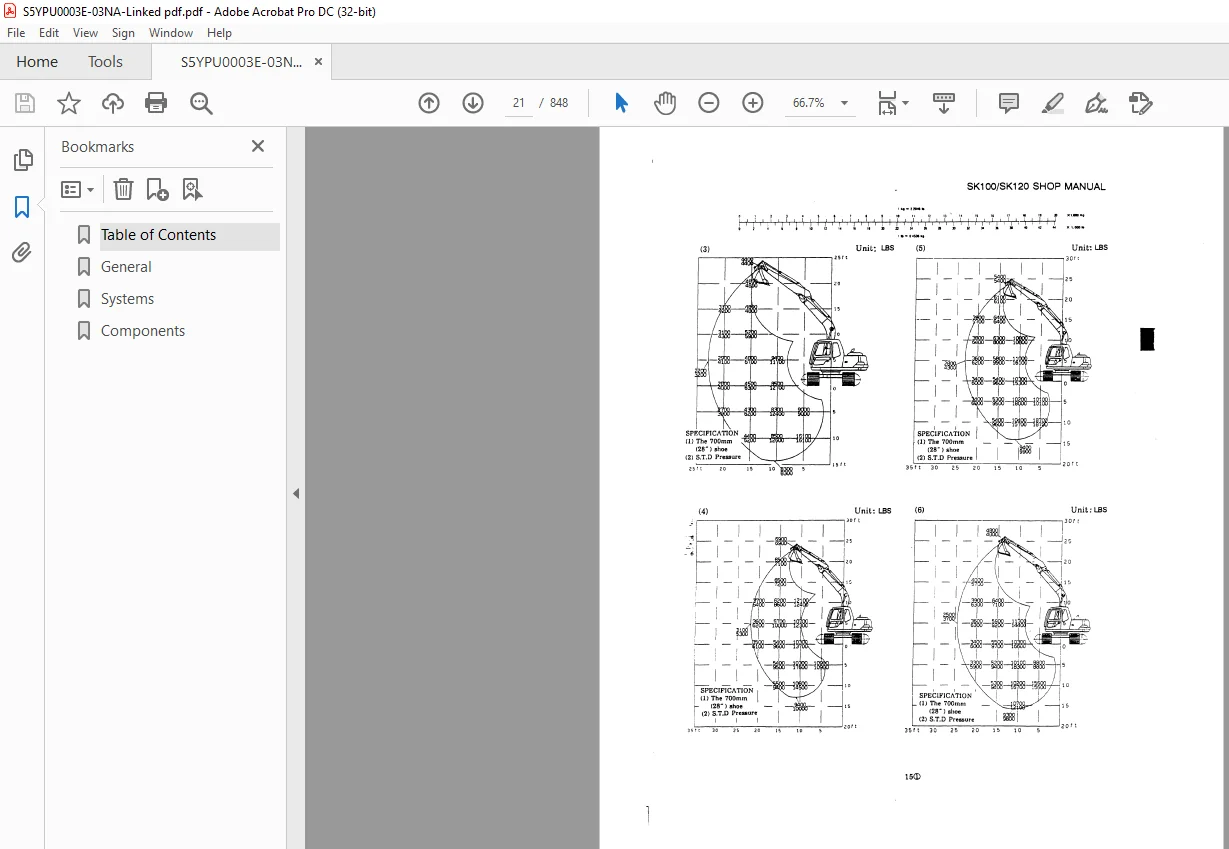

IMAGES PREVIEW OF THE MANUAL:
