Kobelco SK115SR-1ES SK135SR(LC)-1ES SK135SRL-1ES Excavator Shop Manual PDF
$35.95
Kobelco SK115SR-1ES SK135SR(LC)-1ES SK135SRL-1ES Hydraulic Excavator Shop Manual S5YY0007E – PDF DOWNLOAD
Description
Kobelco SK115SR-1ES SK135SR(LC)-1ES SK135SRL-1ES Hydraulic Excavator Shop Manual S5YY0007E – PDF DOWNLOAD
FILE DETAILS:
Kobelco SK115SR-1ES SK135SR(LC)-1ES SK135SRL-1ES Hydraulic Excavator Shop Manual S5YY0007E – PDF DOWNLOAD
Language : English
Pages : 1030
Downloadable : Yes
File Type : PDF

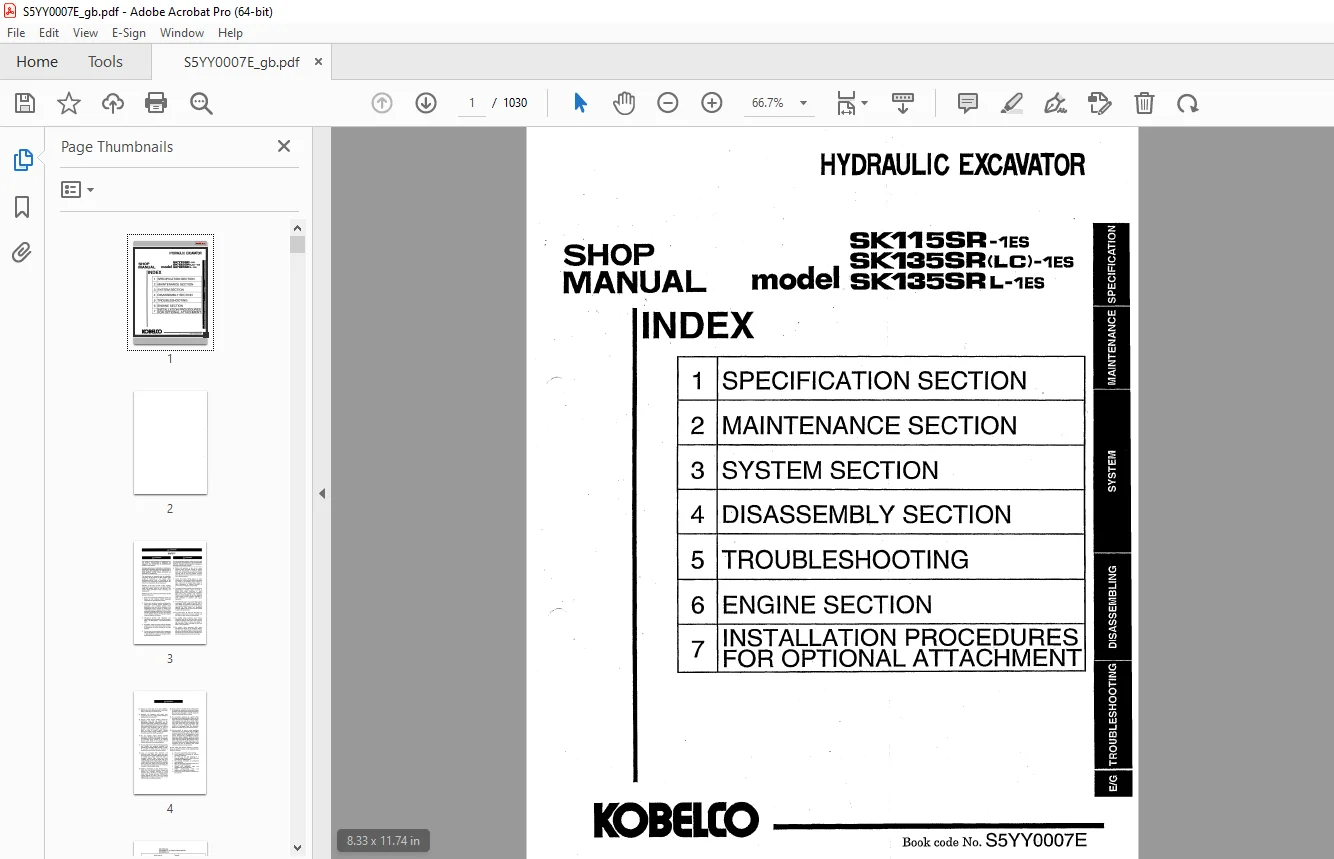

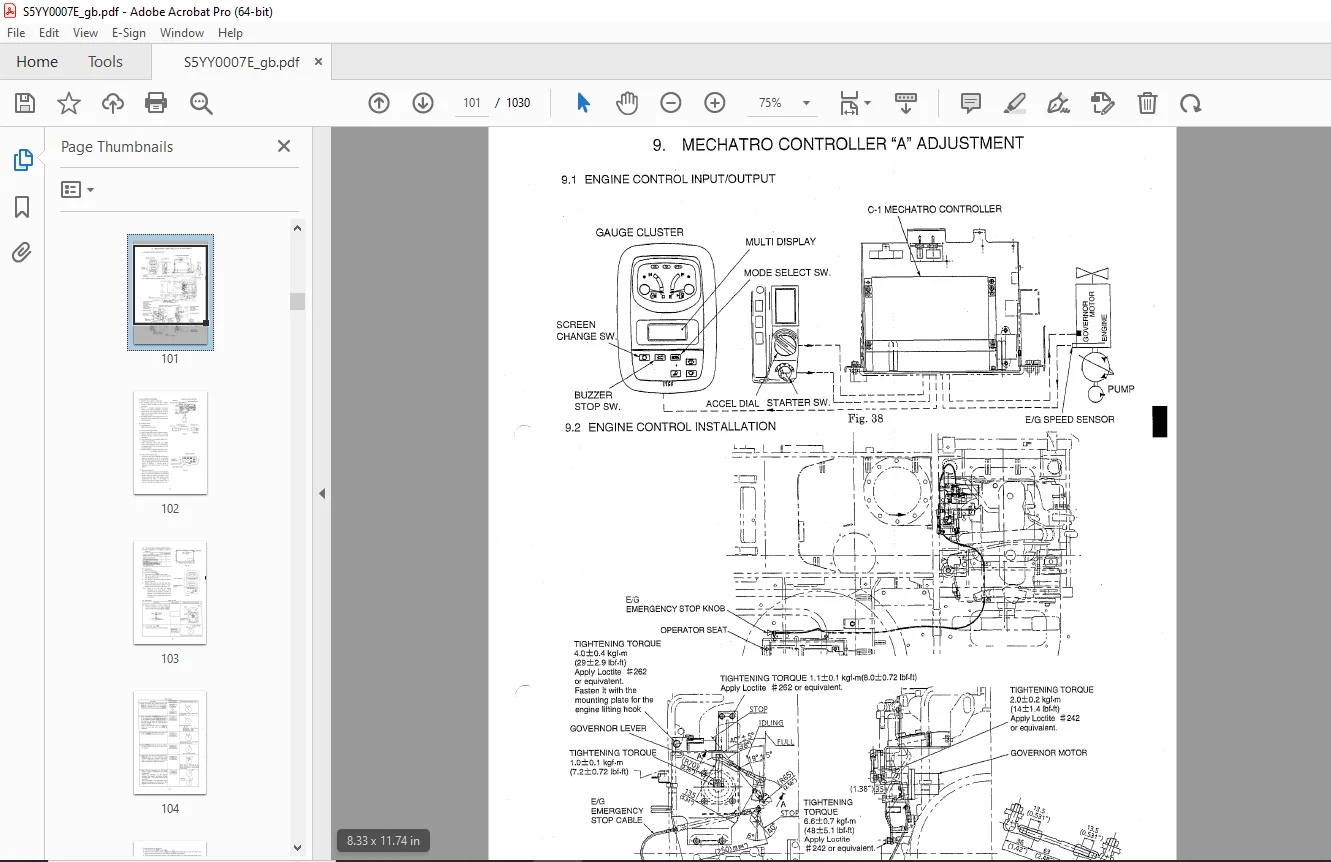

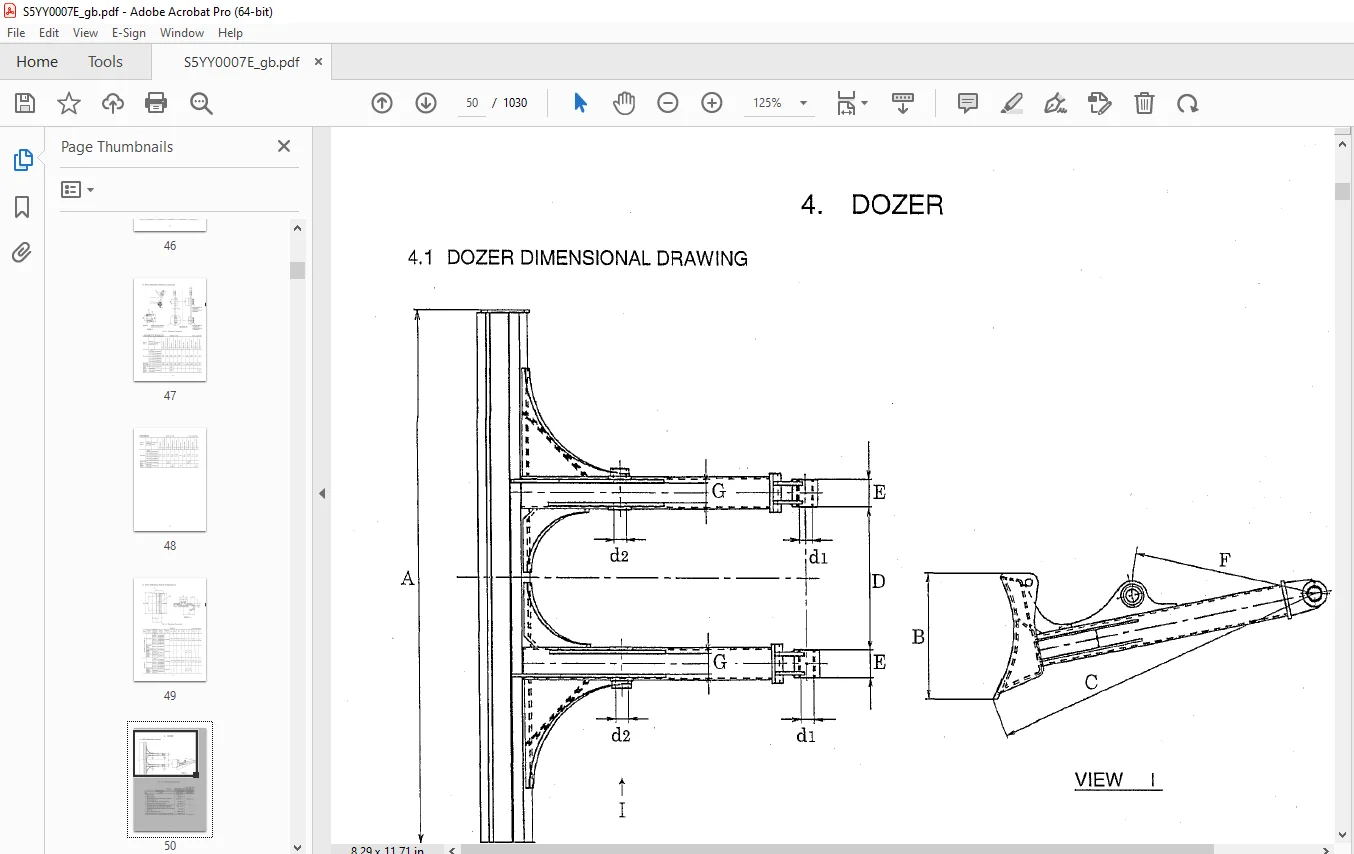

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kobelco SK115SR-1ES SK135SR(LC)-1ES SK135SRL-1ES Hydraulic Excavator Shop Manual S5YY0007E – PDF DOWNLOAD
OUTLINE
SPECIFICATION
ATTACHMENT DIMENSION
TOOLS
STANDARD MAINTENANCE TIME SCHEDULE
MAINTENANCE STANDARD AND TEST PROCEDURE
MECHATRO CONTROL
SYSTEM
HYDRAULIC SYSTEM
ELECTRICAL SYSTEM
COMPONENTS SYSTEM
AIR-CONDITIONER SYSTEM
DISASSEMBLING AND
ASSEMBLING
ATTACHMENT
UPPER STRUCTURE
TRAVEL SYSTEM
MECHATRO CONTROL
HYDRAULIC
ELECTRICAL
ENGINE
ENGINE
MOUNTING THE BREAKER AND NIBBLER & BREAKER
APPLICABLE MACHINES
DESCRIPTION:
Kobelco SK115SR-1ES SK135SR(LC)-1ES SK135SRL-1ES Hydraulic Excavator Shop Manual S5YY0007E – PDF DOWNLOAD
SAFETY:
1. Read and understand all Warning plates and decals on the machine before operating, lubricating or repairing this product.
2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when. pounding on any part of the machine or its attachments with a hammer or sledge. Use welders gloves, hood/goggles, apron and other protective clothing appropriate to the welding job being performed. Do not wear loose-fitting or torn clothing. Remove all rings from fingers when working on machinery.
3. Disconnect battery and discharge any capacitors before starting to work on machine. Hang “Do Not Operate” tag in the Operator’s Compartment.
4. If possible, make all repairs with the machine parked on a level, hard surface. Block machine so it does not roll while working on or under machine.
5. Do not work on any machine that is supported only by lift jacks or a hoist. Always use blocks or jack stands to support the machine before performing any disassembly.
DISASSEMBLING:
(1) Knowledge of operating procedure Read Operator’s Manual carefully understand the operating procedure. (2) Cleaning machines
Clean machines of soil, mud, and dust before carrying into the repair shop.
Carrying a soiled machine into the repair shop, causes making less efficient work and damage of parts, and interferes with rust prevention and dust protection while. reassembling.
(3) Inspecting machines
Confirm the disassembling section before starting work, determine the disassembly procedure taking the conditions in repair shop into account, and request to procure necessary parts in advance.
(4) Recording
Record the following items to keep contact and prevent malfunction from recurring.
1) Inspecting date, place
2) Model name, Applicable machine No., Records on hour meter
3) Trouble condition, place, cause
4) Visible oil leakage, water leakage and damage 5) Clogging of filters, etc., oil level, oil quality, oil contamination and looseness which can be inspected.
6) Examine the problems on the basis of operation rate with the last inspection date and records on hour meter.
(5) Arrangement and cleaning in repair shop 1) Tools required for repair work.
2) Specify places to put the disassembled parts on in advance.
3) Prepare oil pans for leaking oil, etc.
G.B 09/12/2024
