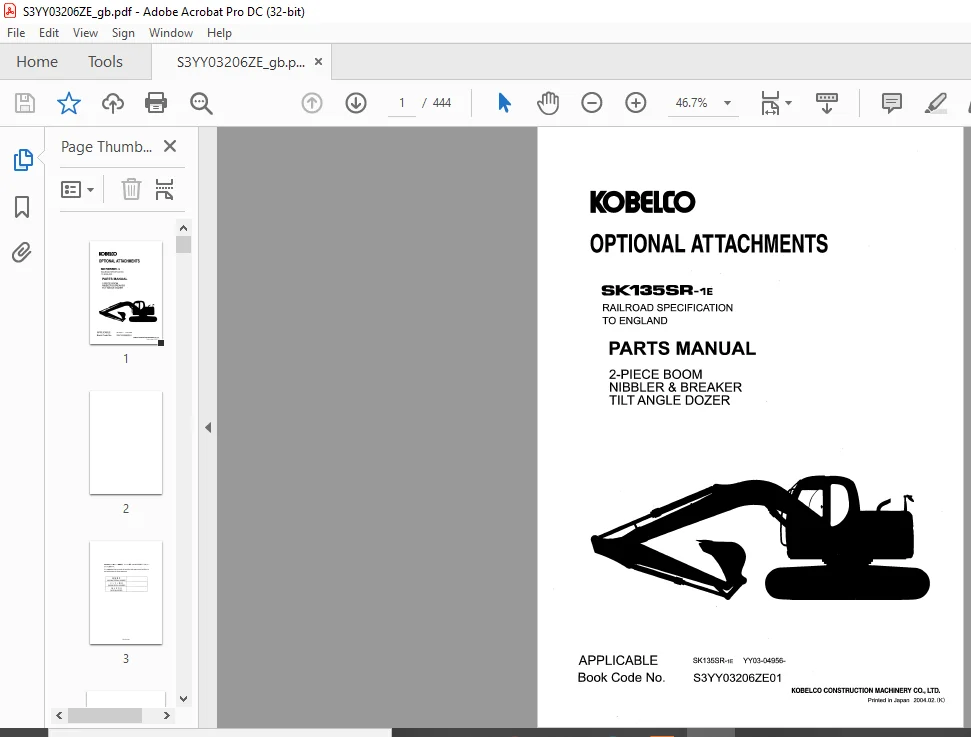

Kobelco SK135SR-1E Optional Attachments Parts Manual – PDF DOWNLOAD

APPLICABLE . SK135SR-1E YY03-04956-

Book Code NO. S3YY03206ZE01

Preface

This parts catalog contains parts used for all the machines having machine numbers following the numbers mentioned on the face. © Prior to placing orders, verify that part numbers used correspond with those on the specification for the actual machine, because this catalog also contains the part list corresponding to the specifications for machines other than those delivered. © For engine parts, refer to the Chapter “ENGINE” . © Since products are continually improved, changes could not be described on the part catalog. The revised revision describing those changes will be issued, as required. For farther information, please contact our nearby branch, or representative. © For the machine, the boom side is called the Front, Counterweight side is “Rear” , and the opposite · side is “Right” , and for the track part the travel motor side is called the “Rear”

1. Placing order
Part order should be placed to dealers after completing the following items.
(1) Machine type [Example] PM05-05001N
(2) Machine No. or•E/G No 219230
(3) Part No YR20M01020P1
(4) Part Name CONNECTOR
(5) Quantity required
(6) Address, Name and how to forward
