Kobelco SK200 SK200LC Super Mark V Excavator Operator’s Manual PDF

Description

Kobelco SK200 SK200LC Super Mark V Hydraulic Excavator Operator’s Manual – PDF DOWNLOAD

The Kobelco SK200 SK200LC Super Mark V Hydraulic Excavator Operator’s Manual is a comprehensive guide in PDF format. It covers controls, maintenance, and safety protocols, providing crucial insights for efficient and safe operation. Download for detailed operational instructions and maintenance guidance.

FILE DETAILS:

Kobelco SK200 SK200LC Super Mark V Hydraulic Excavator Operator’s Manual – PDF DOWNLOAD

Language : English
Pages : 163
Downloadable : Yes
File Type : PDF

Applicable: SK200 YN-23301~
Applicable: SK200LC YQ-02801~

                              APPLICABLE S/No.
MARK-V                   MARK-V Super
SK100          YW-06501~07746        YW-07901~
SK100L         LX-10101~10160          LX-10201~
SK120           LP-11001~13341          LP-13601~
SK120LC      YP-02301~02369          YP-02501~
SK200          YN-18001~22848          YN-23301
SK200LC     YQ-02301~02654           YQ-02801~
SK220         LQ-03301~03601            LQ-03701~
SK220LC     LL-02301~02396            LL 02501~

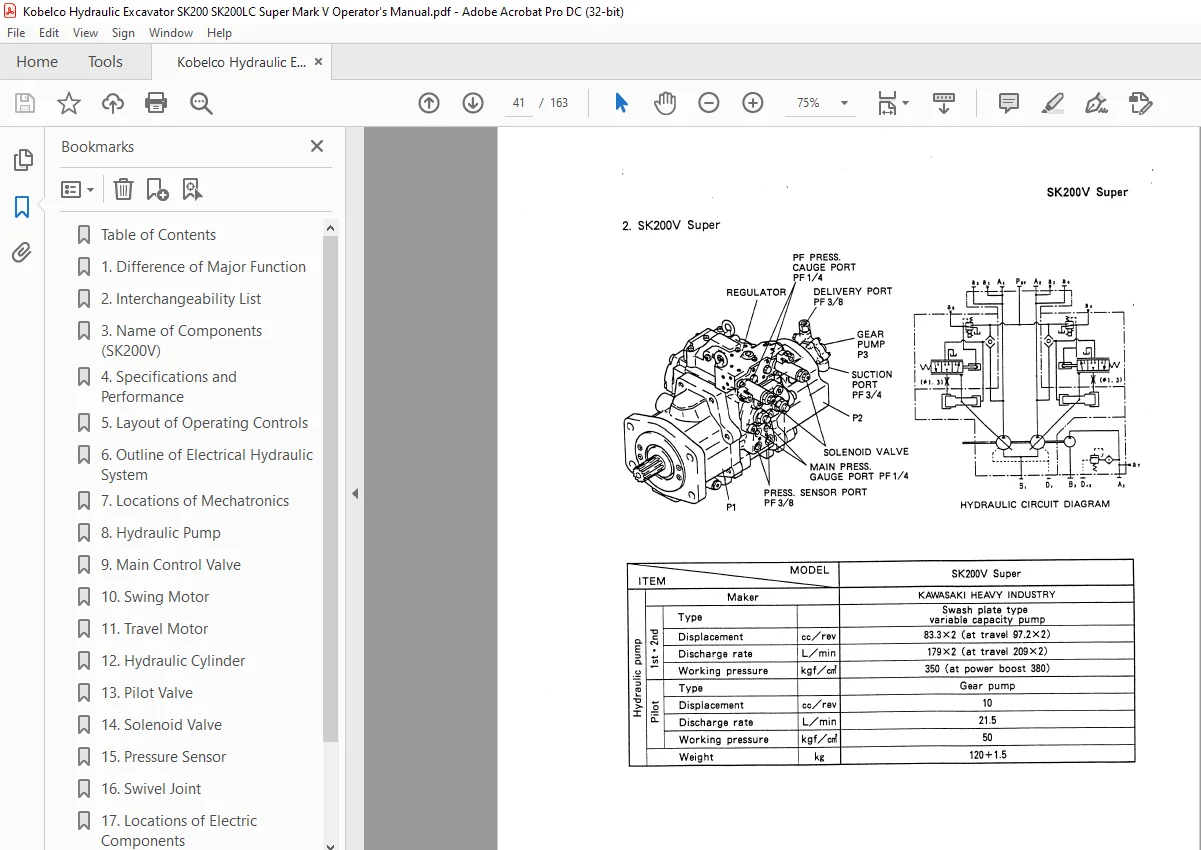

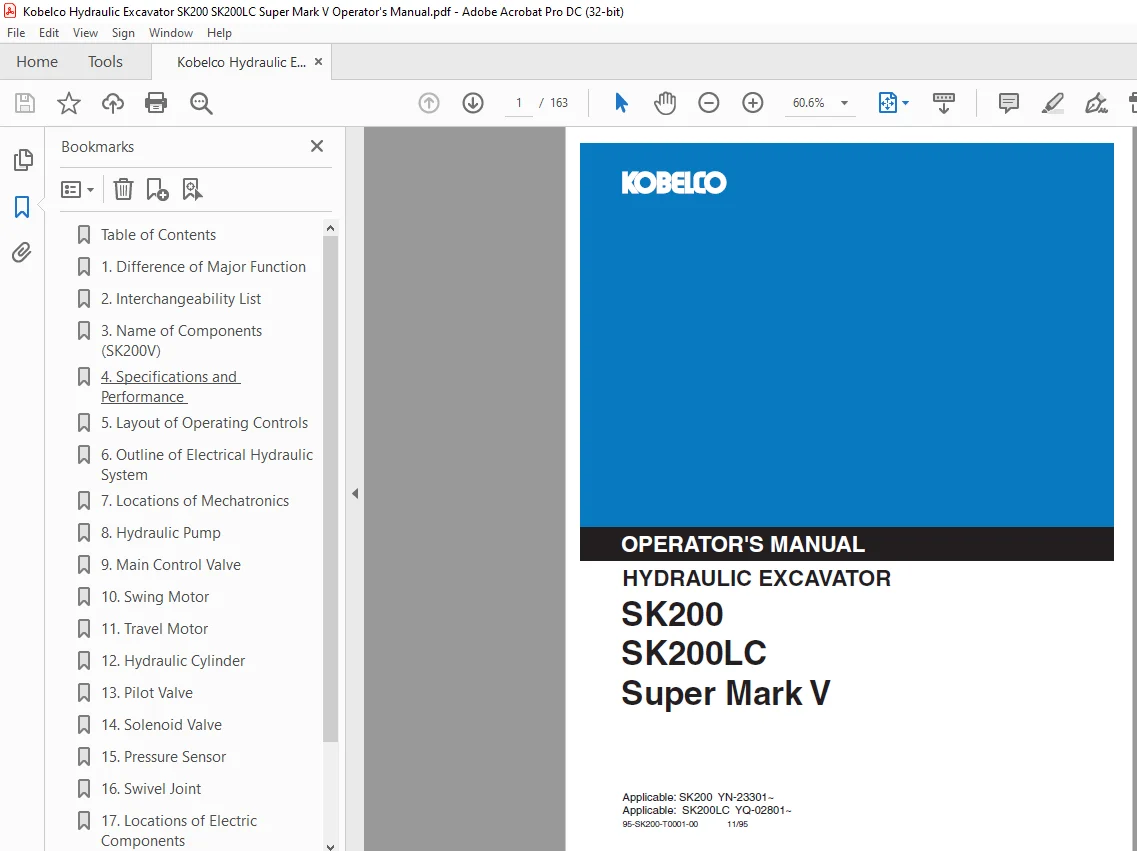

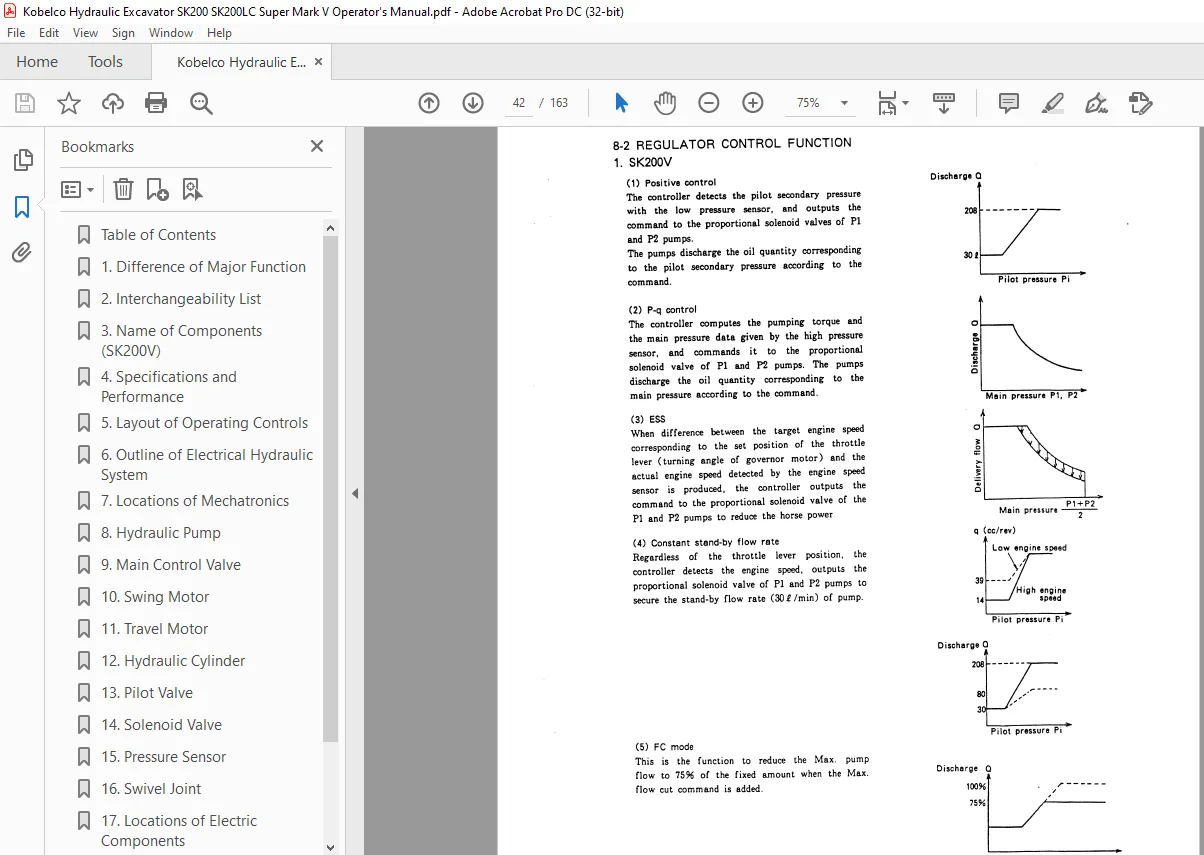

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kobelco SK200 SK200LC Super Mark V Hydraulic Excavator Operator’s Manual – PDF DOWNLOAD

Table of Contents 4
1 Difference of Major Function 6
2 Interchangeability List 7
3 Name of Components (SK200V) 11
4 Specifications and Performance 12
5 Layout of Operating Controls 15
6 Outline of Electrical Hydraulic System 37
7 Locations of Mechatronics 39
8 Hydraulic Pump 40
9 Main Control Valve 53
10 Swing Motor 62
11 Travel Motor 69
12 Hydraulic Cylinder 77
13 Pilot Valve 79
14 Solenoid Valve 81
15 Pressure Sensor 87
16 Swivel Joint 88
17 Locations of Electric Components 90
18 Hydraulic Circuit Diagram 95
19 Components Function List 97
20 Performance Inspection Reference Table 159
