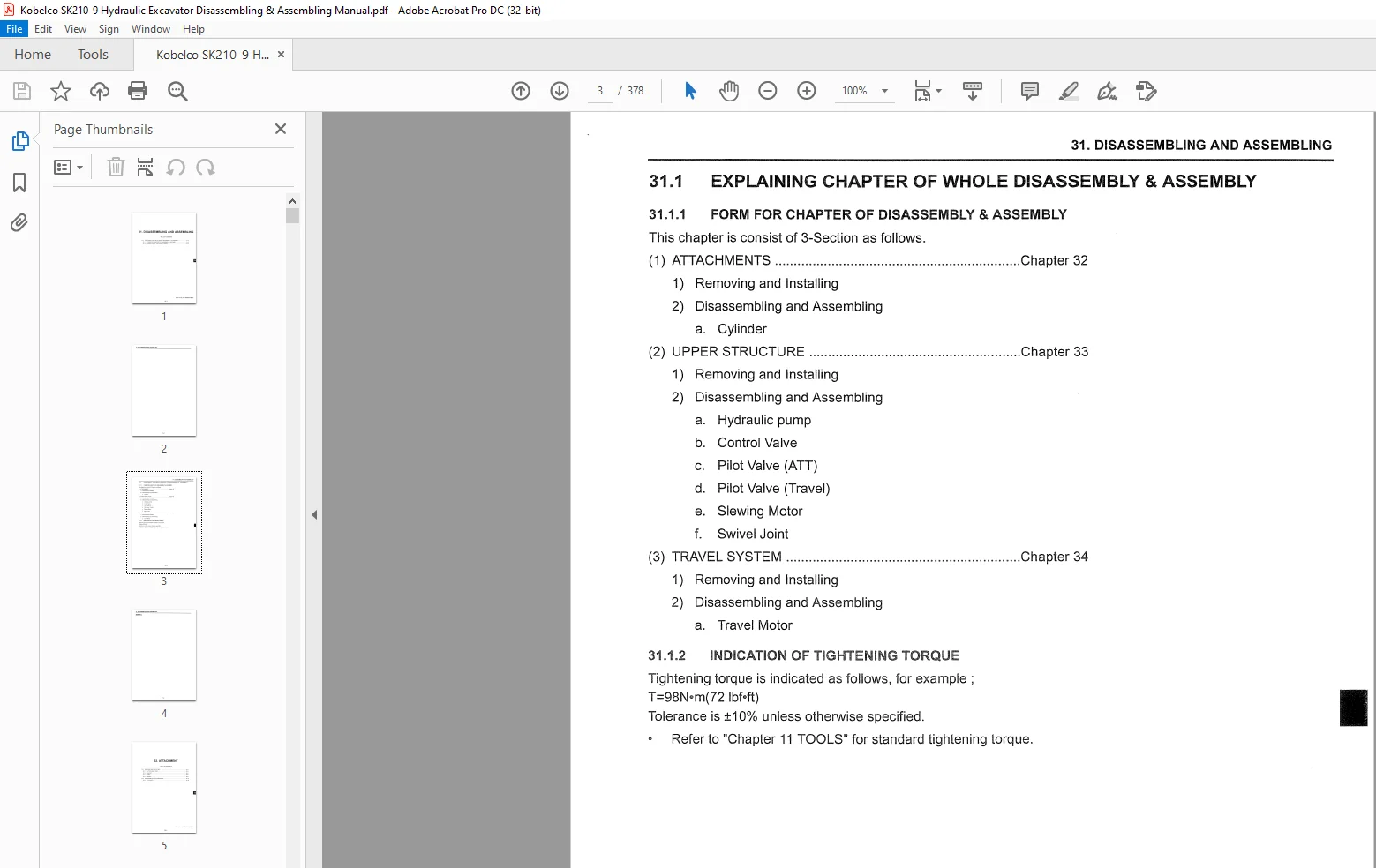

31.1.1 FORM FOR CHAPTER OF DISASSEMBLY & ASSEMBLY
This chapter is consist of 3-Section as follows.
(1) ATTACHMENTS ……………………………………………………….. Chapter 32
1) Removing and lnstalling
2) DisassemЫing and AssemЫing
а. Cylinder
(2) UPPER STRUCTURE ……………………………………………….. Chapter 33
1) Removing and lnstalling
2) DisassemЫing and AssemЫing
а. Hydraulic pump
Ь. Control Valve
с. Pilot Valve (АТТ)
d. Pilot Valve (Travel)
е. Slewing Motor
f. Swivel Joint
(3) TRAVEL SYSTEM …………………………………………………….. Chapter 34
1) Removing and lnstalling
2) DisassemЫing and AssemЫing
а. Travel Motor
31.1.2 INDICATION OF TIGHTENING TORQUE
Tightening torque is indicated as follows, for example ;
T=98N•m(72 IЬf•ft)
Tolerance is ±10% unless otherwise specified.
Refer to “Chapter 11 TOOLS” for standard tightening torque.

RELATED PUBLICATIONS:

Please refer to : Kobelco SK210-9 Hydraulic Excavator Shop Manual

for the following information : OUTLINE SPECIFICATIONS ATTACHMENT DIMENSIONS II TOOLS I STANDARD MAINTENANCE TIMETABLE MAINTENANCE STANDARD AND TEST PROCEDURE MECHATRO CONTROL SYSTEM HYDRAULIC SYSTEM ELECTRIC SYSTEM COMPONENTS SYSTEM AIR-CONDITIONER SYSTEM DISASSEMBLING AND ASSEMBLING ATTACHMENTS UPPER STRUCTURE TRAVEL SYSTEM BY ERROR CODES BY TROUBLE TROUBLE DIAGNOSIS MODE ENGINE

Please refer to: Kobelco SK210-9 Hydraulic Excavator Engine Manual for the engine manual
