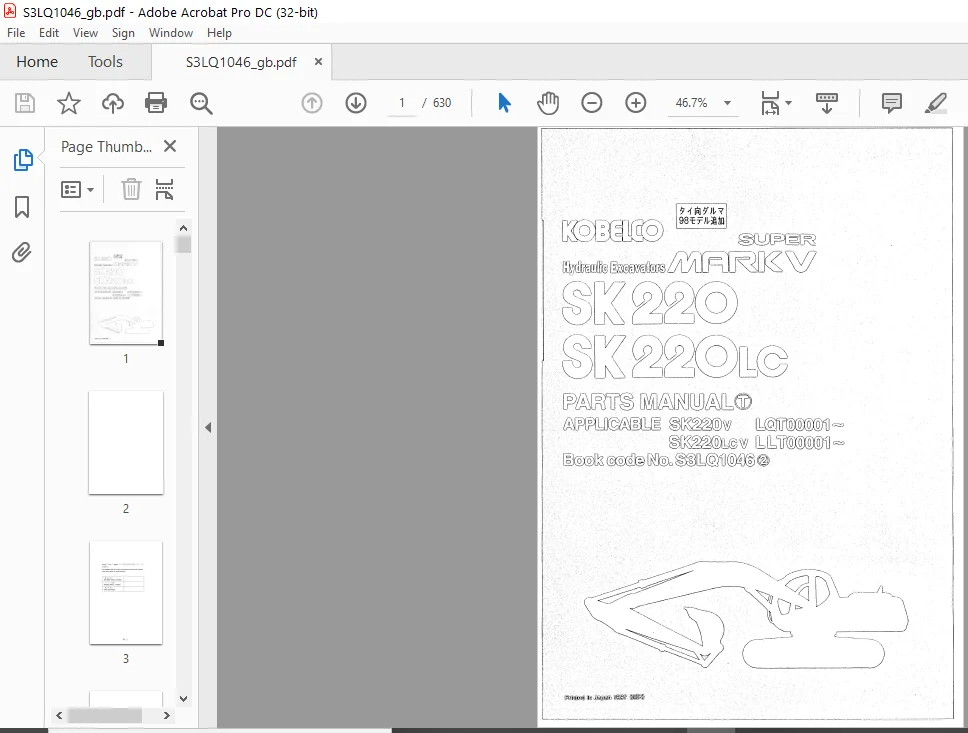

Kobelco SK220 SK220LC MARK V SUPER Hydraulic Excavators Parts Manual – PDF DOWNLOAD

PREFACE :

This parts catalog contains parts used for all the machines having machine numbers following the
numbers mentioned оп the face.
1) Prior to placing orders, verify that part numbers used correspond with those оп the specification for the actual machine, because this catalog also contains the part list corresponding to the specifications for machines other than those delivered.
2) For engine parts, refer to the Chapter “ENGINE” .
3)  Since products are continually improved, changes could not Ье described оп the part catalog. The revised revision describlng those changes will Ье issued, as required. For farther information, please contact our nearby branch, or representative.
4) For the machine, the boom side is called the Front, Counterweight side is “Rear” , and the opposite side is “Right” , and for the track part the travel motor side is called the “Rear” .

1. Placing order
Part order should Ье placed to dealers after completing the following items.
(1) Machine type                                [Example] YR000105
(2) Machine No. or E/G No.             219230
(3) Part No.                                          YR20M01020P1
(4) Part Name                                     CONNECTOR
(5) Quantity required                         2
(6) Address, Name and how to forward
