Kobelco SK310-2III SK310LC-2III Hydraulic Excavators & Mitsubishi Diesel Engine 6D22-T 6D22TC Parts Manual DOWNLOAD SLC1013

Description

Kobelco SK310-2III SK310LC-2III Hydraulic Excavators & Mitsubishi Diesel Engine 6D22-T 6D22TC Parts Manual SLC1013

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:836
DOWNLOADABLE:YES
FILE TYPE:PDF

KOBELCO SK310-2III SK310LC-2III HYDRAULIC EXCAVATORS & MITSUBISHI DIESEL ENGINE 6D22-T 6D22TC PARTS MANUAL DOWNLOAD SLC1013:

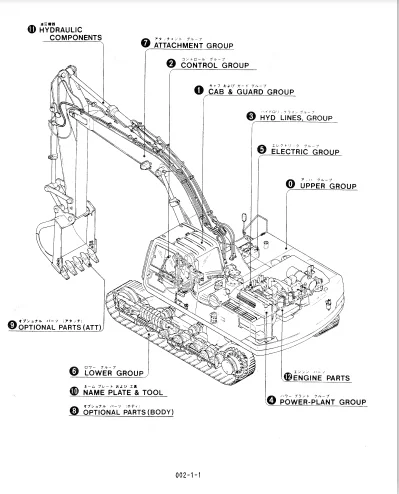

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kobelco SK310-2III SK310LC-2III Hydraulic Excavators & Mitsubishi Diesel Engine 6D22-T 6D22TC Parts Manual SLC1013

•  This PARTS MANUAL lists the parts used in machines including and subsequent to the applicable shown on the front cover.
• As this manual lists optional parts. (parts are listed not according to the specification of the machine delivered.) make sure of the specification of your own machine when ordering parts.

1.HOW TO ORDER PARTS

When you order parts.you are requested to mention clearly the following items when contacting our dealer.
1) Model of Machine
2) Machine Serial No.0r Engine No.
3) Part No.
4) Part Name .
5) Q’tv
6) Your Address and Shipping instructions

2.HOW TO IDENTIFY A PART (PARTS MANUAL):

The words in the left hand column below correspond to the headings on the parts list pages. ITPIEbd Part assemblies are printed at the top of a parts list. The individual part items composing that assembly are then listed as items I, 2. 3 and so on. If within an assembly.there are sub-assemblies.then the individual part items within the sub-assembly will take a rotation like . ‘l-l. 1-2, 1-3 and so on. if another sub~assembly is encountered. then its parts would be listed l-lA. l~lB. talc and so on.

• When service or repair kits are supplied as composite items.they are simply listed at the end of the parts list and the parts – they include are identified as follows: Consists of item it to it -°= This kit is composed of items bracketed by it to it.
• Consists of item 133A? & it This kit is composed of two . items. tilt and re. Consists of the following ‘-° This component is composed of the I parts (a list follows). following parts (a list follows).

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
