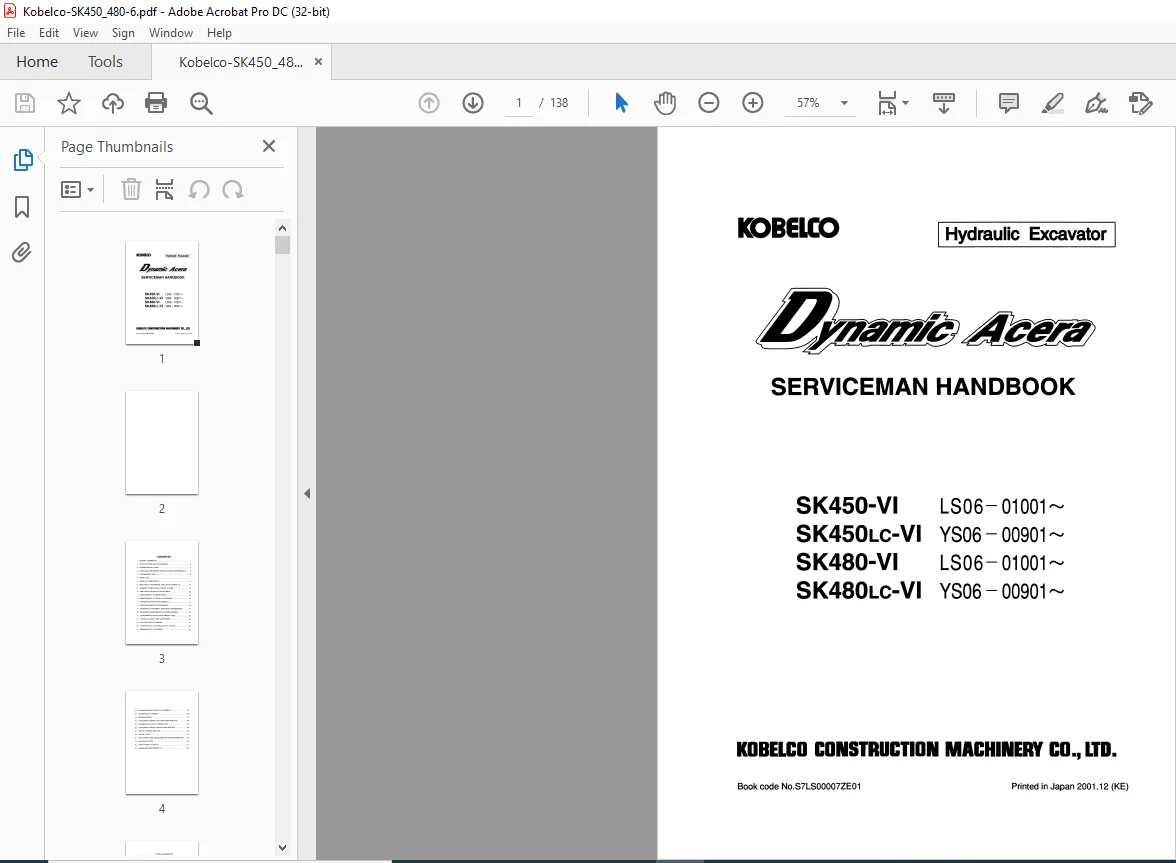

Kobelco SK450-VI SK450LC-VI SK480-VI SK480LC-VI Hydraulic Excavator Serviceman Handbook – DOWNLOAD

Language : English
Pages : 138
Downloadable : Yes
File Type : PDF
Size: 9.52

1 GENERAL DIMENSIONS 1
2 SPECIFICATIONS AND PERFORMANCE 3
3 ENGINE SPECIFICATIONS 4
4 HYDRAULIC COMPONENTS SPECIFICATIONS & PERFORMANCE 6
5 PERFORMANCE Т ABLE 1 О
6 NOISE LEVEL 11
7 WEIGHT OF COMPONENTS 12
8 SPECIFED OIL AND GREASE, AND FIL TER ELEMENT LST 13

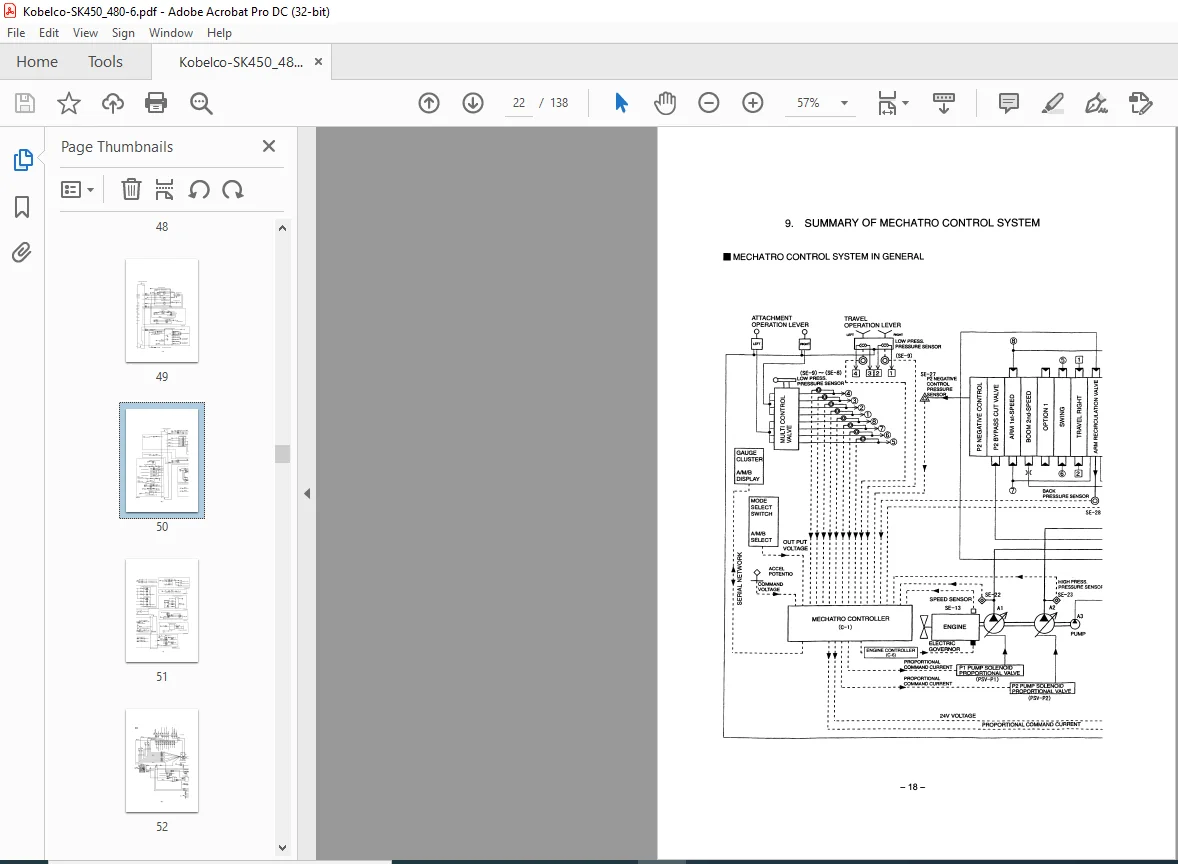

9 SUMMARY OF МЕСНА TRO CONTROL SYSTEM 18
10 MECHATRO CONTROLLER ADJUSTMENT 20
11 MEASUREMENT OF ENGINE SPEED 22

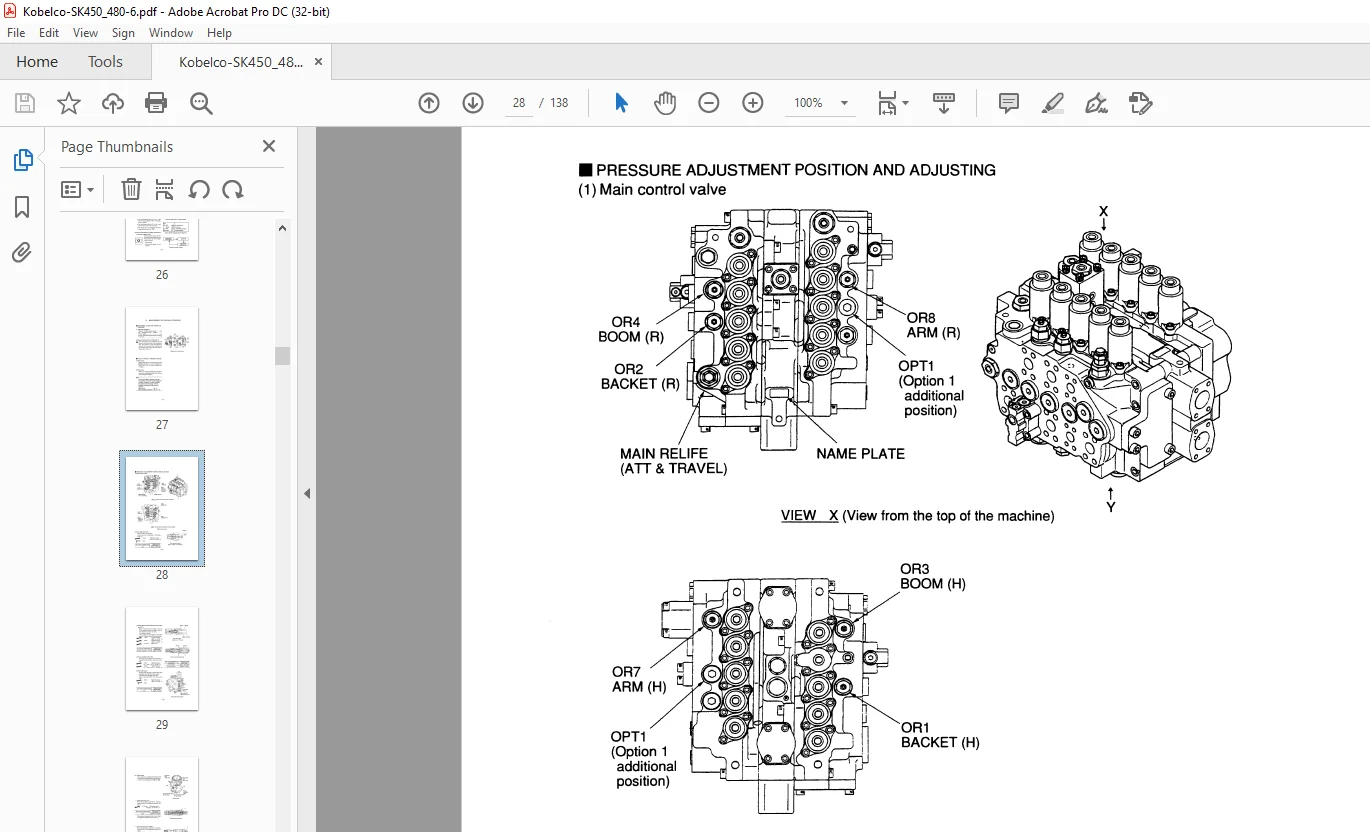

12 MEASUREMENT OF HYDRAULIC PRESSURE 23
13 MEASURING TRAVEL PERFORMANCES 27
14 MEASURING SWING PERFORMANCES 29
15 MEASURING АТТАСНМЕNТ OPERATING PERFORMANCES 31
16 MEASURING PERFORMANCES OF SWING BEARING 32
17 PERFORMANCE INSPECTION STANDARD TABLE 33
18 HYDRAULIC CIRCUIT AND COMPONENTS 36
19 ELECTRIC CIRCUIT DIAGRAM 40
20 ELECTRONICALLY CONTROLLED FUEL SYSTEM 56
21 DIMENSIONS OF АТТАСНМЕNТ 90
22 PIN AND BUSHING TABLE OF АТТАСНМЕNТ 99
23 MAINTENANCE STANDARD 105
24 WORKING RANGE 112
25 TIGHTENING TORQUES FOR CAPSCREWS AND NUTS 120
26 SCREW SIZE AND TOOLS NOMINAL SIZE 121
27 TIGHTENING TORQUES FOR NUTS AND SLEEVES 122
28 SPECIAL SPANNER FOR TUBE 126
29 SPECIAL TOOLS 127
30 APPLICATION OF SCREW L OCKING COMPOUND AND SEALING COMPOUND 129
31 SUCTION STOPPER 130
32 UPPER FRAME LIFTING JIG 131
33 ENGINE MOUNTING PEDESTAL 132
