Kobelco SK60 V Hydraulic Excavator S5LE0006E Shop Manual PDF
$32.95
Kobelco SK60 V Hydraulic Excavator S5LE0006E Shop Manual – PDF DOWNLOAD
Description
Kobelco SK60 V Hydraulic Excavator S5LE0006E Shop Manual – PDF DOWNLOAD
FILE DETAILS:
Kobelco SK60 V Hydraulic Excavator S5LE0006E Shop Manual – PDF DOWNLOAD
Language : English
Pages : 720
Downloadable : Yes
File Type : PDF

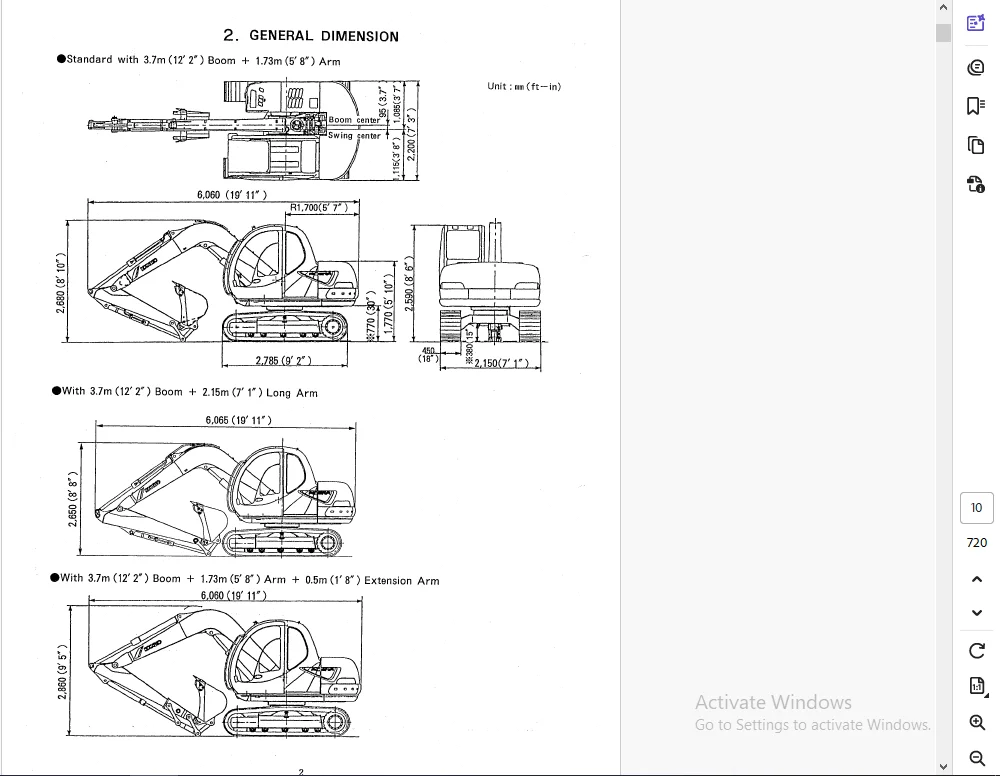

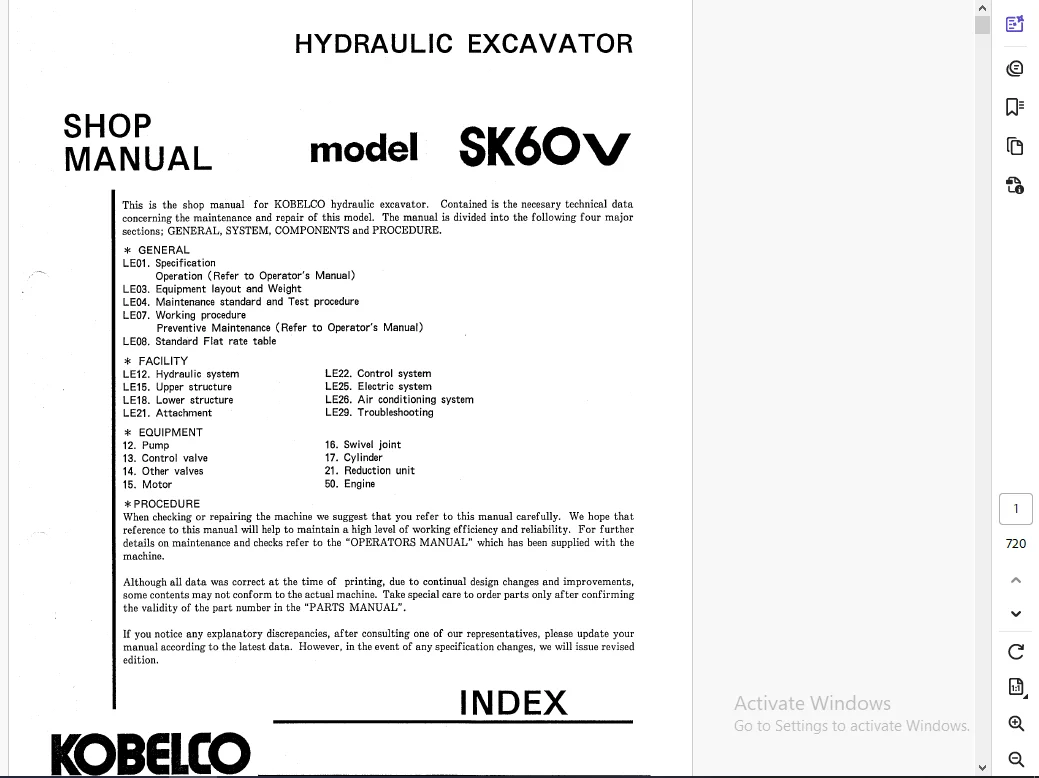

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Kobelco SK60 V Hydraulic Excavator S5LE0006E Shop Manual – PDF DOWNLOAD
1. SPECIFICATION
2. OPERATION (Refer to Operators Manual)
3. EQUIPMENT LAYOUT AND WEIGHT
4. MAINTENANCE STANDARDS AND TEST PROCEDURE
6. PREVENTIVE MAINTENANCE (Refer to Operators Manual)
7. WORK STANDARD
8. STANDARD FLAT RATE TABLE
DESCRIPTION:
Kobelco SK60 V Hydraulic Excavator S5LE0006E Shop Manual – PDF DOWNLOAD
1. Read and understand all Warning plates and labels on the machine before operating, lubricating or repairing this product.
2. Always wear protective glasses and protective shoes
when working around machines. In particular, wear protective glasses when pounding on any part of the machine or its attachments with a hammer or sledge. Use welders gloves, hood/goggles, apron and other protective clothing appropriate to the welding job being performed. Do not wear loose-fitting or torn clothing. Remove all rings from fingers when working on machinery.
3. Disconnect battery and discharge any capacitors before starting to work on machine. Hang “Do Not Operate” tag in the Operator’s Compartment.
4. If possible, make all repairs with the machine parked on a level, hard surface. Block machine so it does not roll while working on or under machine.
5. Do not work on any machine that is supported only by lift jacks or a hoist. Always use blocks or jack stands to support the machine before performing any disas- sembly.
(1) Application:
1) When the machine is new;
Confirm that performances are in accordance with standard specifications as compared to the perform ance standards.
2) At specific self inspection;
Use the data for criterion, for the purpose of repair, adjustment and replacement.
3) When performance are deteriorated;
Determine whether it is caused by a fault or end of service life after long hours of operation, to be used for safety and economical considerations.
4) When main components are replaced;
For example, use the data to restore performances of pumps and others.
(2) Terminology:
1) Standard values;
Values to be used to condition or assemble a new machine. Where special notes are not given, these values represent standard specifications (machine with standard attachments and standard shoes). Reference values for repair;
Values at which readjustment is required. Adjust immediately if the value is close to the service limit value.
3) Service limit value
This is the limit value at which reconditioning is impossible without replacing of parts. If the value is expected to exceed the service limit before next inspection and repair are performed, replace the parts immediately. If the part is used to beyond the limit, chances of trouble increase, ultimately resulting in a breakdown of the machine. Avoid operating the machine beyond this service limit.
KOBELCO SK60 V HYDRAULIC EXCAVATOR S5LE0006E SHOP MANUAL PDF:
G.B 05/12/24
