KOHLER ENGINE K361 SERVICE MANUAL

Description

KOHLER ENGINE K361 SERVICE MANUAL – PDF DOWNLOAD

Contact us: [email protected]

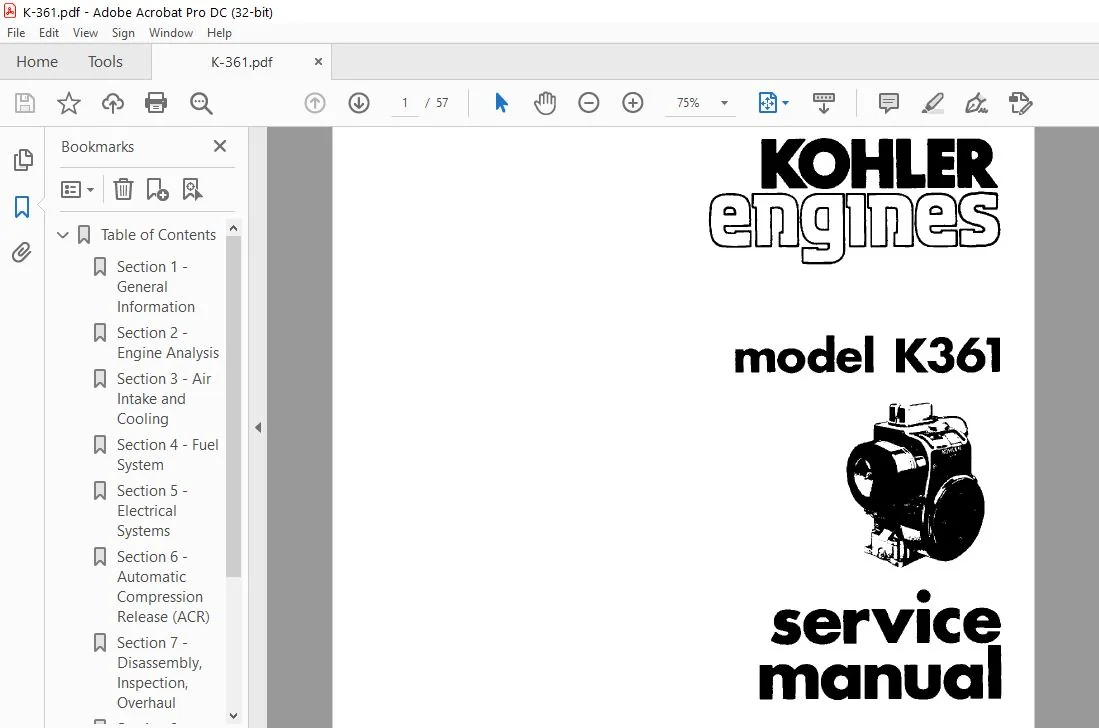

Image Preview:

Description:

KOHLER ENGINE K361 SERVICE MANUAL – PDF DOWNLOAD

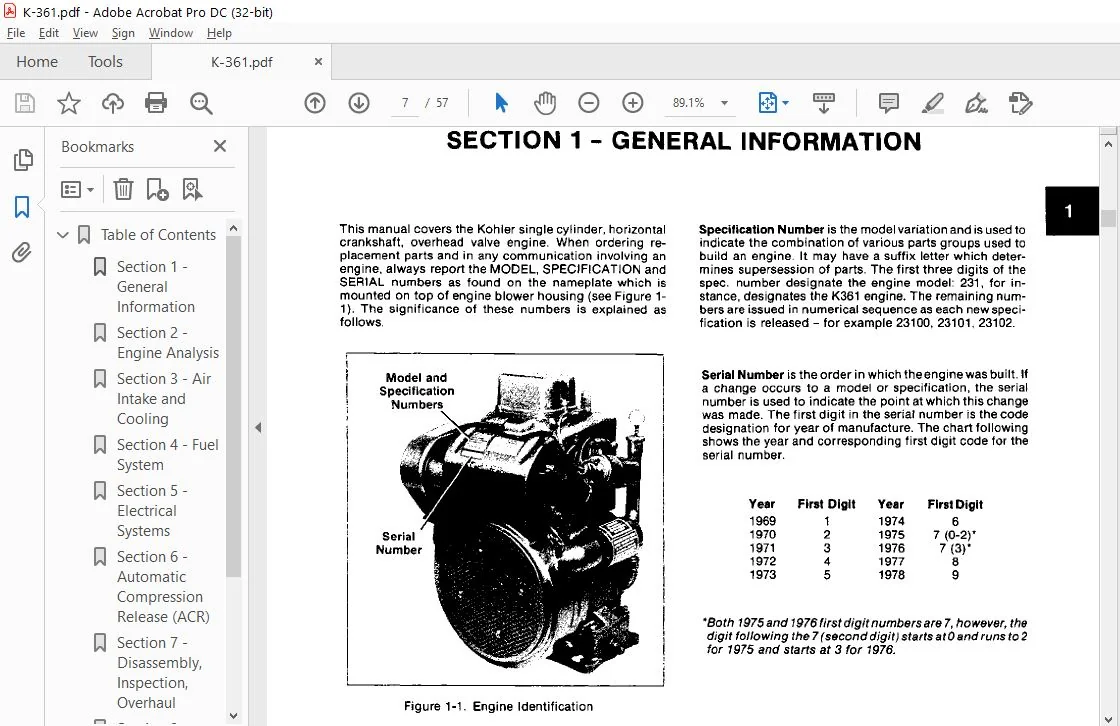

• This manual covers the Kohler single cylinder, horizontal crankshaft, overhead valve engine. When ordering replacement parts and in any communication involving an engine, always report the MODEL, SPECIFICATION and SERIAL numbers as found on the nameplate which is mounted on top of engine blower housing (see Figure 1- 1 ).
• The significance of these numbers is explained as follows. Model and Specification Numbers Serial Number Figure 1-1. Engine Identification Model Number is the model series within which the engine is built and indicates (a) the cubic inch displacement, and (b) number of cylinders. The model K361 denotes a 36 cubic inch displacement, single cylinder engine.
• Letter suffixes following the model number designate a specific version – the letter code is as follows: Suffix A C p Q s T Designates Oil Pan Type Clutch Model Pump Model Quiet Model Electric Start Retractable Start Model number without a letter suffix indicates a rope start version. Specification Number is the model variation and is used to indicate the combination of various parts groups used to build an engine.
• It may have a suffix letter which determines supersession of parts. The first three digits of the spec. number designate the engine model: 231, for instance, designates the K361 engine. The remaining numbers are issued in numerical sequence as each new specification is released – for example 23100, 23101, 23102. Serial Number is the order in which the engine was built.
• If a change occurs to a model or specification, the serial number is used to indicate the point at which this change was made. The first digit in the serial number is the code designation for year of manufacture. The chart following shows the year and corresponding first digit code for the serial number.

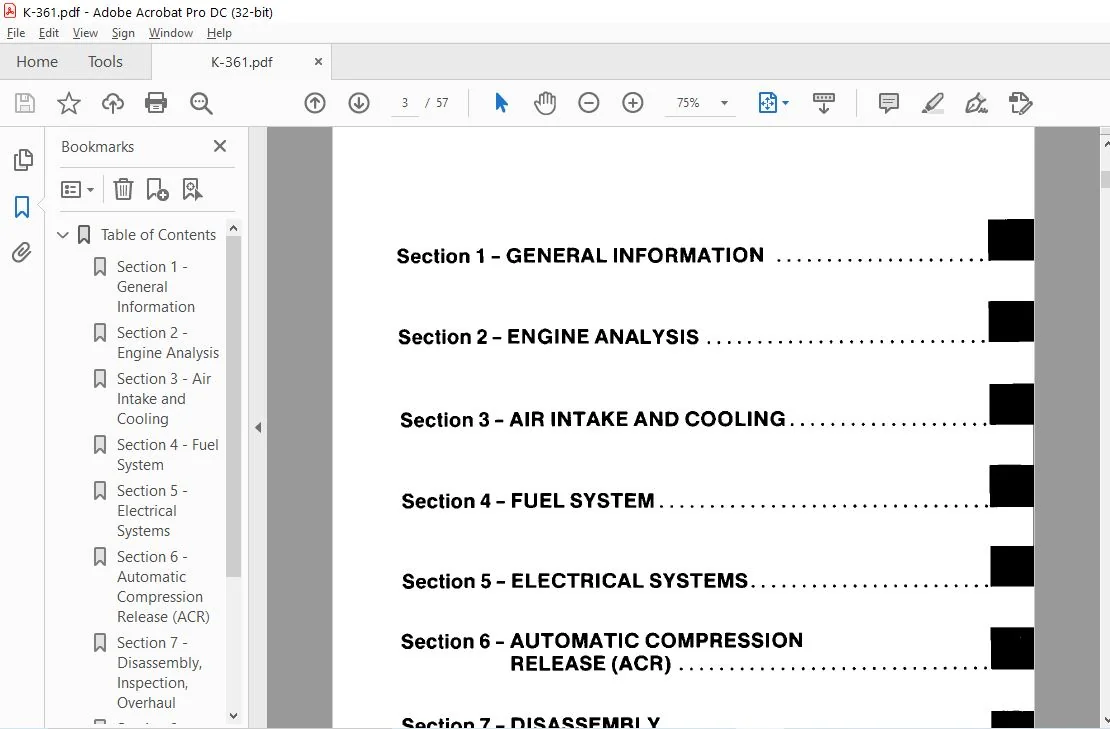

Table Of Contents:

KOHLER ENGINE K361 SERVICE MANUAL – PDF DOWNLOAD

Table of Contents............................................................. 3
	Section 1 - General Information........................................... 7
	Section 2 - Engine Analysis...............................................11
	Section 3 - Air Intake and Cooling........................................13
	Section 4 - Fuel System...................................................15
	Section 5 - Electrical Systems............................................20
	Section 6 - Automatic Compression Release (ACR)...........................30
	Section 7 - Disassembly, Inspection, Overhaul.............................31
	Section 8 - Assembly......................................................41
	Section 9 - Specifications, Wear Tolerances, Torques and Special Tools....50
	Section 10 - Service Bulletins............................................53

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
