KOHLER ENGINE MAGNUM TWIN CYLINDER ENGINE M18 M20 SERVICE MANUAL

Description

KOHLER ENGINE MAGNUM TWIN CYLINDER ENGINE M18 M20 SERVICE MANUAL – PDF DOWNLOAD

Need help? Contact: [email protected]

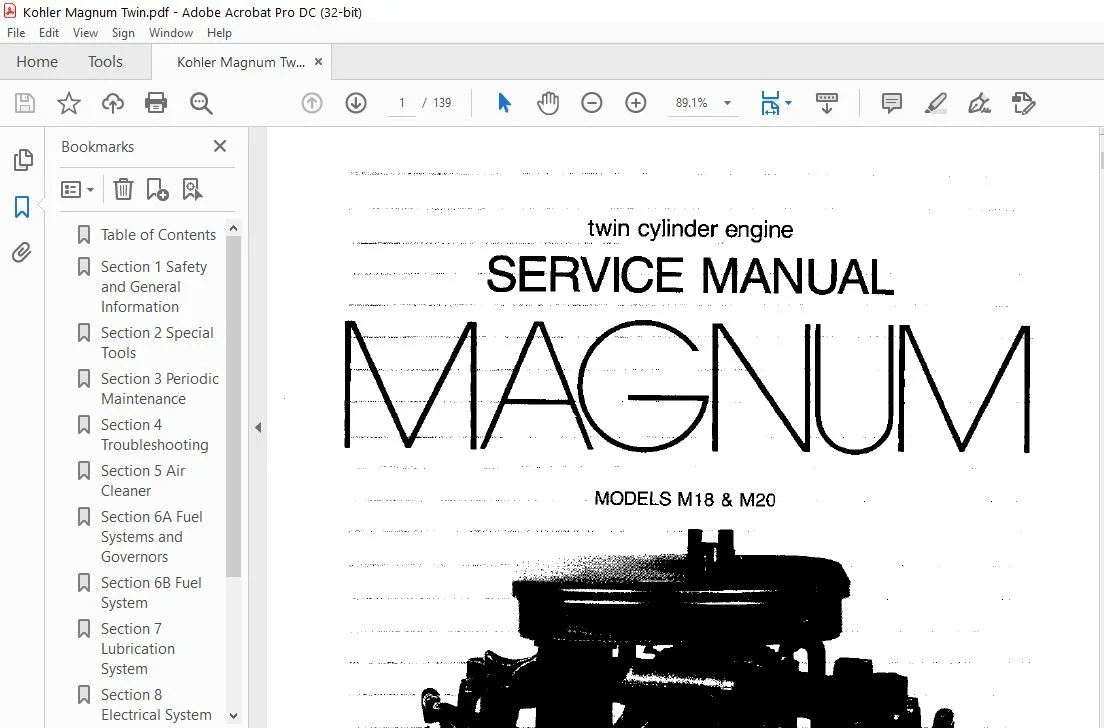

Image Preview:

Description:

KOHLER ENGINE MAGNUM TWIN CYLINDER ENGINE M18 M20 SERVICE MANUAL – PDF DOWNLOAD

• Oil FilterSome engines are equipped with an oil filter Replace the oil filter every other oil change, in accordance with the “Oil Change Intervals” table. Always use a genuine Kohler replacement oil lifter.Refer to the “Periodic Maintenance” Section for detailed oil checking and changing procedures.FUEL RECOMMENDATIONS

  AWARNING: Explosive Fuels,

  Gasoline Is extremely flammable, and its vapors can explode If Ignited. Store gasoline only In approved containers, In welFventlated, unoccupied buildings, away from sparks or flames. Do not fill fuel tank while the engine Is hot or running since spilled fuel could Ignite if it comes in contact with hot pails or sparks from ignition. Do not start engine near spilled fuel; wipe up spills immediately. Never use gasoline as a cleaning agent

  General Recommendations

  Purchase gasoline in small quantities and store in clean, approved containers. A container with a capacity of 2 gallons or less with a pairing spout is recorrrn ended. Such a container is easier to handle and helps eliminate spillage fitting refueling.

  Do not overfill the fuel tank. Leave room for the fuel to xpand.

  Do not use gasoline left over from the previous sea son, to mintnize gum deposits in your fuel system and to insure easy starting.

  Do not add oil to the gasoline.

  Fuel Type

  For best results, use only clean, fresh, unleaded gasoline with a pump sticker octane rating of 87 or higher. In counties using the Research method, it should be 90 octane minimurn.

  Unleaded gasoline is recommended, as It leaves less combustion chamber deposits. Leaded gasoline may be used in areas where unleaded is not available and exhaust emissions are not regulated. Be aware however, that the cylinder head will require more frequent service.

  Gasolhe/Alcohol blends

  Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline by volume) is approved as a fuel for Kohler engines. Other gasoline/alcohol blends are not approved.

  Gasoline/Ether blends

  Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline blends (up to maximum of 15% MTBE by volume) are approved as a fuel for Kohler engines. Other gasoline/ether blends are not approved.

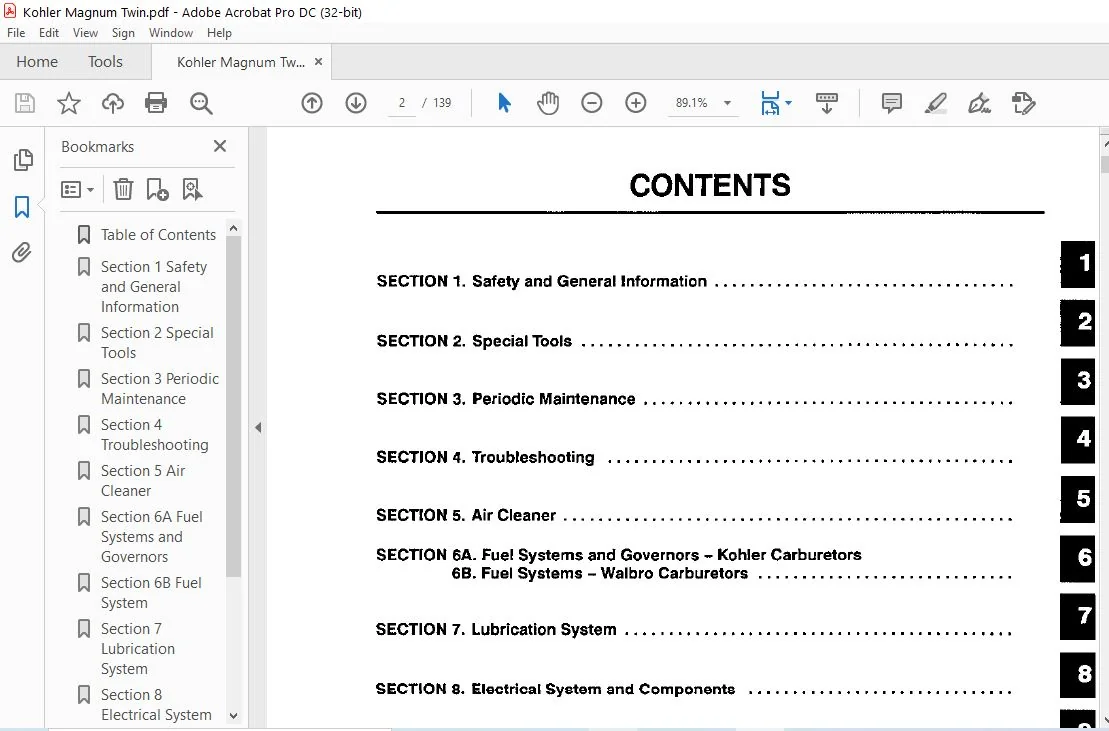

Table Of Contents:

KOHLER ENGINE MAGNUM TWIN CYLINDER ENGINE M18 M20 SERVICE MANUAL – PDF DOWNLOAD

Table of Contents.............................  2

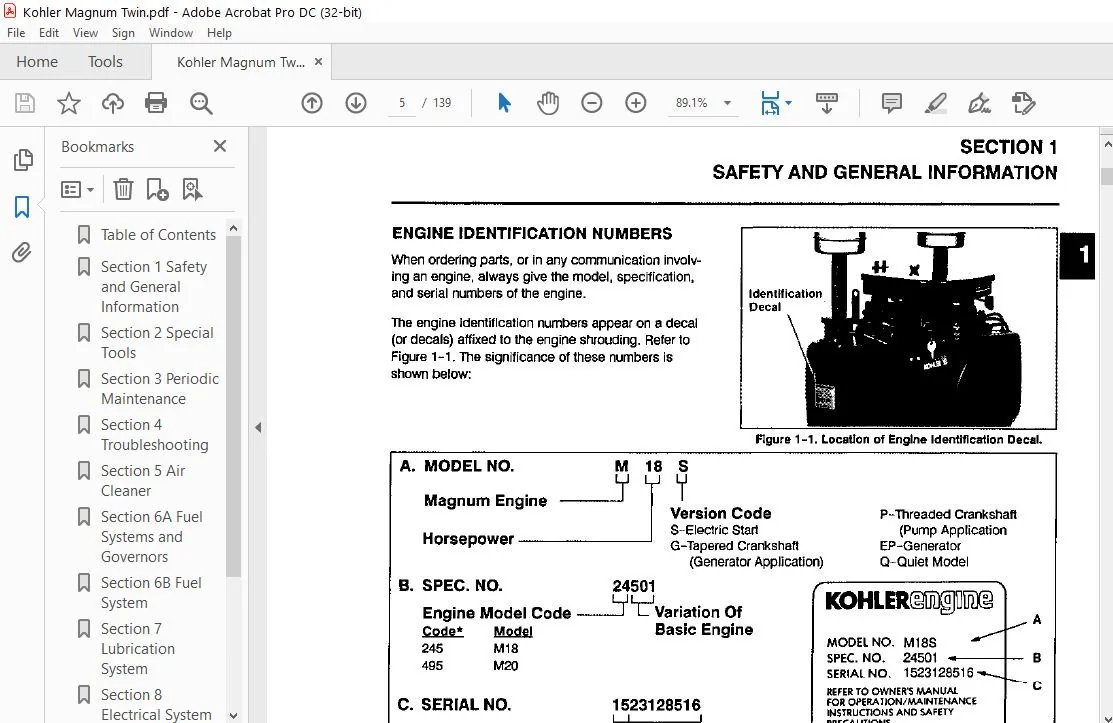

Section 1 Safety and General Information......  3
Section 2 Special Tools....................... 13
Section 3 Periodic Maintenance................ 20
Section 4 Troubleshooting..................... 28
Section 5 Air Cleaner......................... 33
Section 6A Fuel Systems and Governors......... 37
Section 6B Fuel System........................ 56
Section 7 Lubrication System.................. 68
Section 8 Electrical System and Components.... 72
Section 9 Disassembly......................... 93
Section 10 Inspection and Reconditioning......105
Section 11 Reassembly.........................120

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
