KOMATSU 4.2482, 4.248 T4.236, 4.236, 4.212 & T4.38 diesel engines WORKSHOP MANUAL 4799004M1- PDF DOWNLOAD
FILE DETAILS:
KOMATSU 4.2482, 4.248 T4.236, 4.236, 4.212 & T4.38 diesel engines WORKSHOP MANUAL 4799004M1- PDF DOWNLOAD
Language : English
Pages : 116
Downloadable : Yes
File Type : PDF

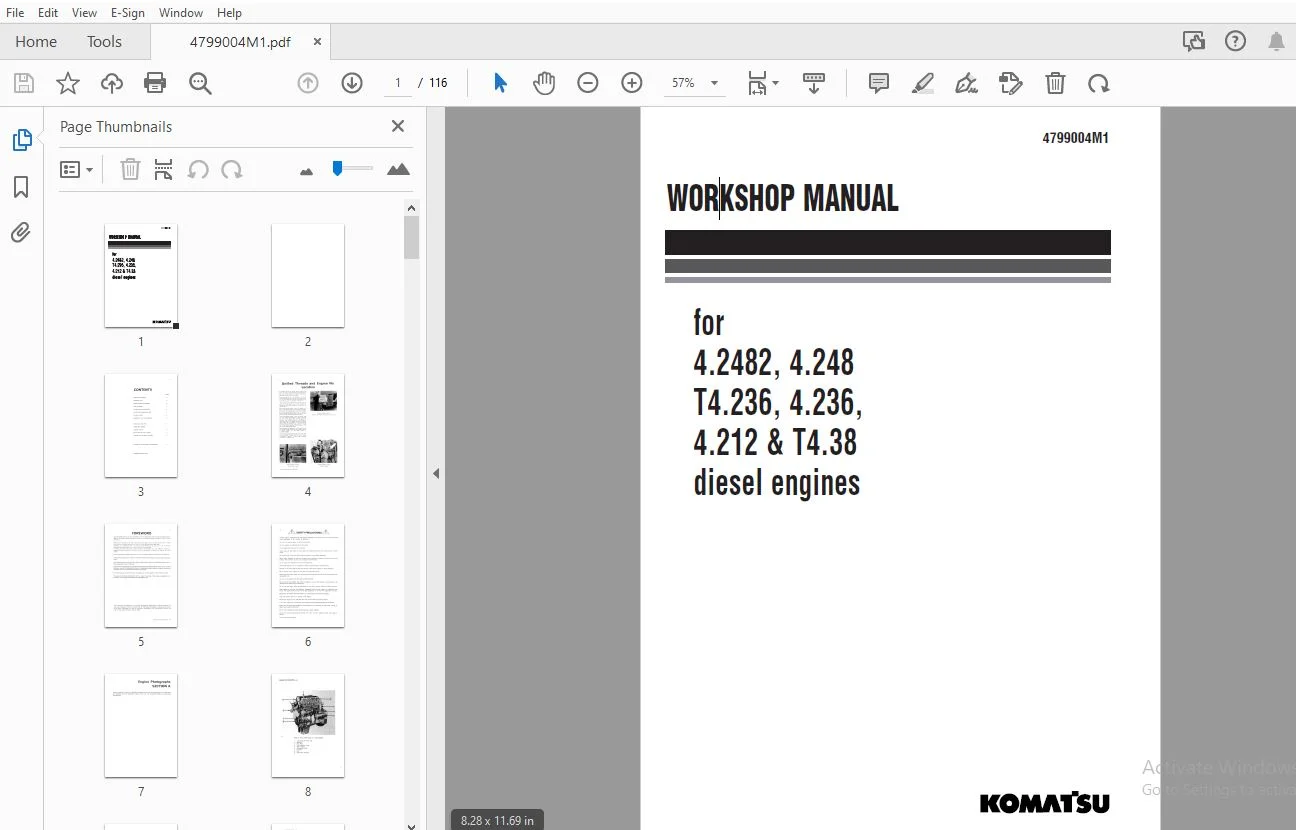

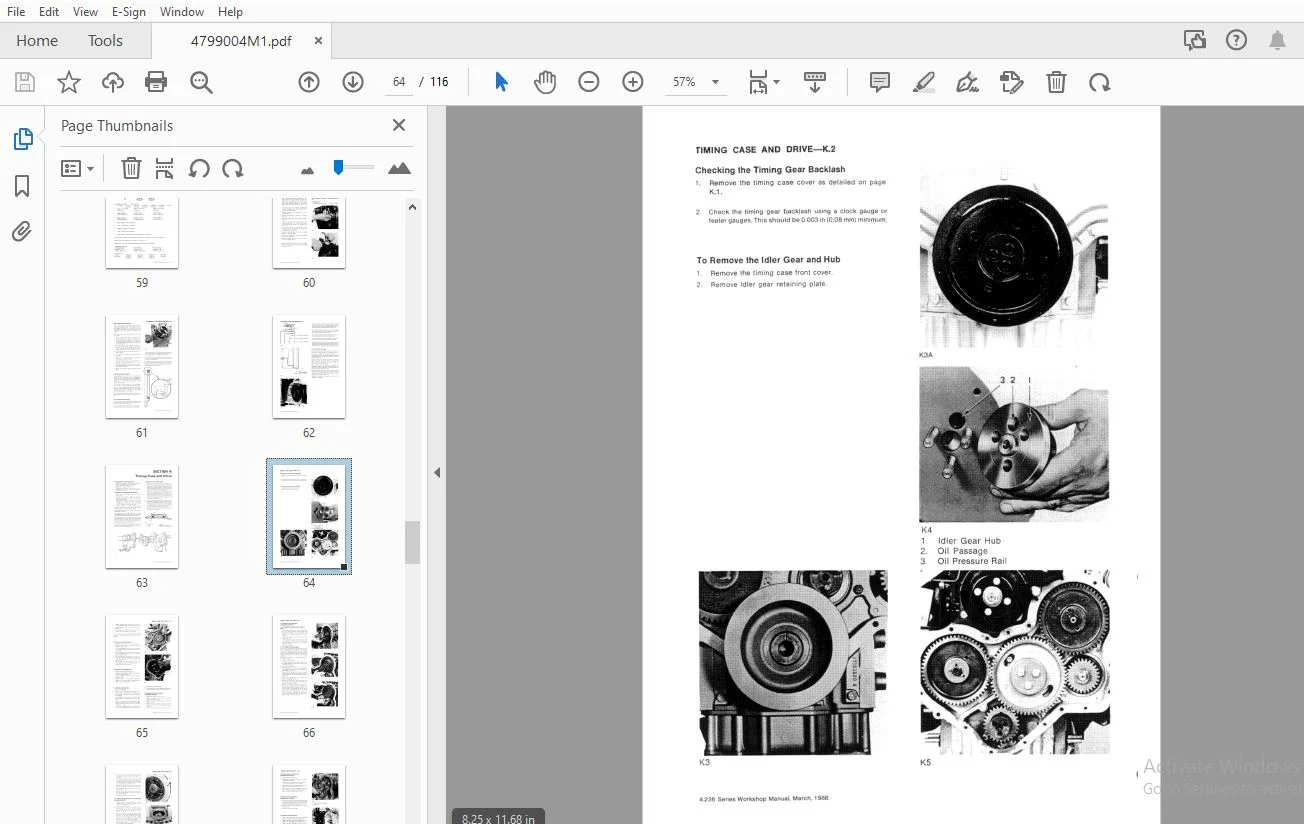

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KOMATSU 4.2482, 4.248 T4.236, 4.236, 4.212 & T4.38 diesel engines WORKSHOP MANUAL 4799004M1- PDF DOWNLOAD
ENGINE PHOTOGRAPHS
TECHNICAL DATA
OPERATING AND MAINTENANCE
FAULT DIAGNOSIS
CYLINDER HEAD MAINTENANCE
PISTONS AND CONNECTING RODS
CYLINDER LINERS
CRANKSHAFT AND MAIN BEARINGS
TIMING CASE AND DRIVE
LUBRICATING SYSTEM
COOLING SYSTEM
AIR FILTERS AND FUEL SYSTEM
FLYWHEEL AND FLYWHEEL HOUSING
ALTERNATOR, DYNAMO AND STARTER MOTOR
DESCRIPTION:
KOMATSU 4.2482, 4.248 T4.236, 4.236, 4.212 & T4.38 diesel engines WORKSHOP MANUAL 4799004M1- PDF DOWNLOAD
This Workshop Manual has been compiled for use in conjunction with normal workshop practice. Mention of certain accepted practices. therefore. has been purposely omitted in order to avoid repetition
Reference to renewing joints and cleaning off joint faces. has to a great extent been omitted from the text. it being understood that this will be carried out where applicable. Similarly. it is understood that in reassembly and inspection. all parts are to be thoroughly cleaned. and where present. burrs and scale are to be removed. it follows that any open ports of high precision components. e.g. fuel injection equipment. exposed by dismantling. will be blanked off until reassembled. to prevent the ingress of foreign matter. –
To give improved sealing, later engines are built with controlled swell type joints which are fitted dry. When fitting setscrews into “through” holes into the interior of the engine, a suitable sealant should be used.
Note; Some setscrews may already have sealant coated threads. These can be identified by the colour of the threads which will be red or blue etc.
Engines built for Massey Ferguson applications are designated A4248. A4236. AT4.236 and A4212. Where information specific to these engines is referred to, the appropriate engine designation is given. otherwise the information is the same as listed under standard engine types.
For T438 engines. the information given will apply as for T4236 engines. unless otherwise stated.
Throughout this manual. whenever the “left” or right” hand side of the engine is referred to, it is that side of the engine when viewed from the flywheel end.
