Komatsu 4D92E 4D94E 4D98E Diesel Engine Shop Manual 4D94E-BE2 – PDF DOWNLOAD
FILE DETAILS:
Komatsu 4D92E 4D94E 4D98E Diesel Engine Shop Manual 4D94E-BE2 – PDF DOWNLOADΒ
Language : English
Pages : 134
Downloadable : Yes
File Type : PDF

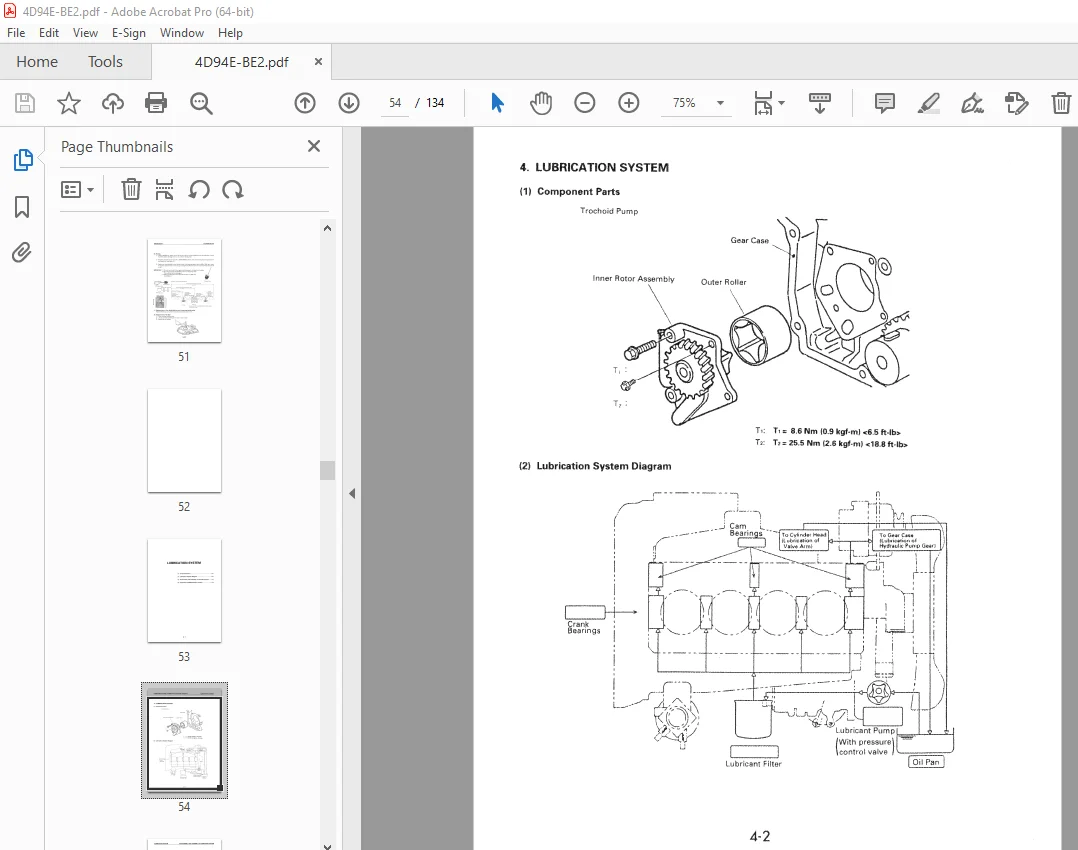

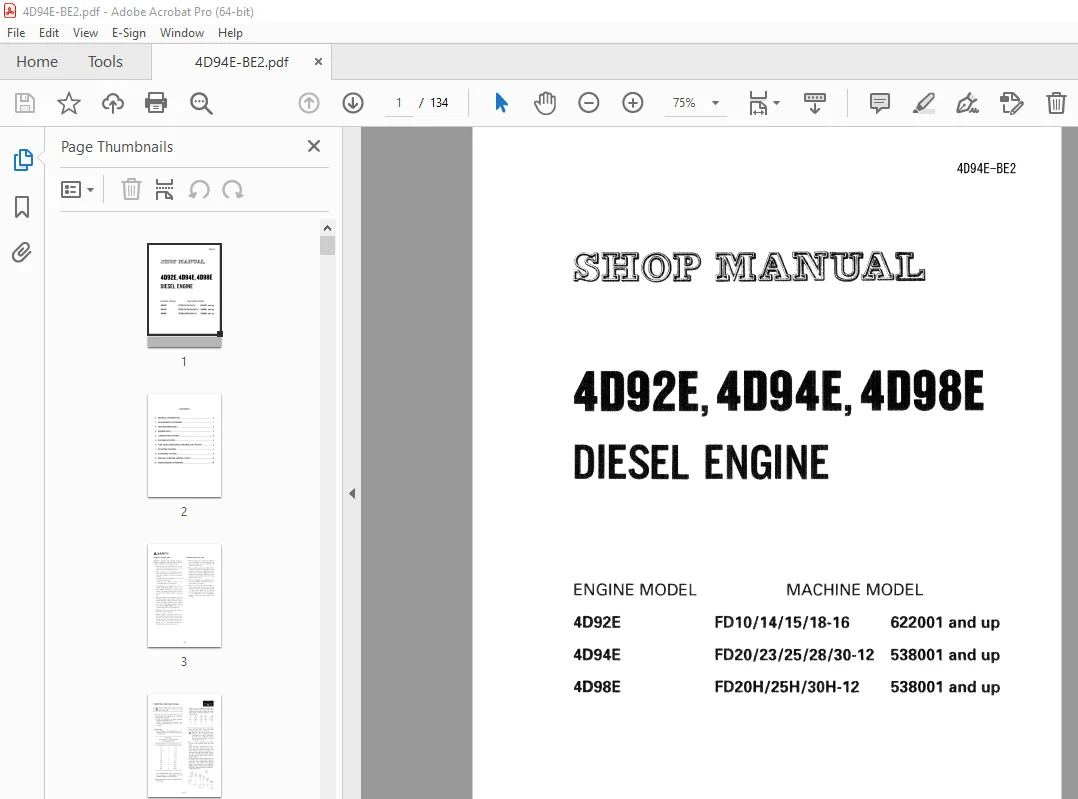

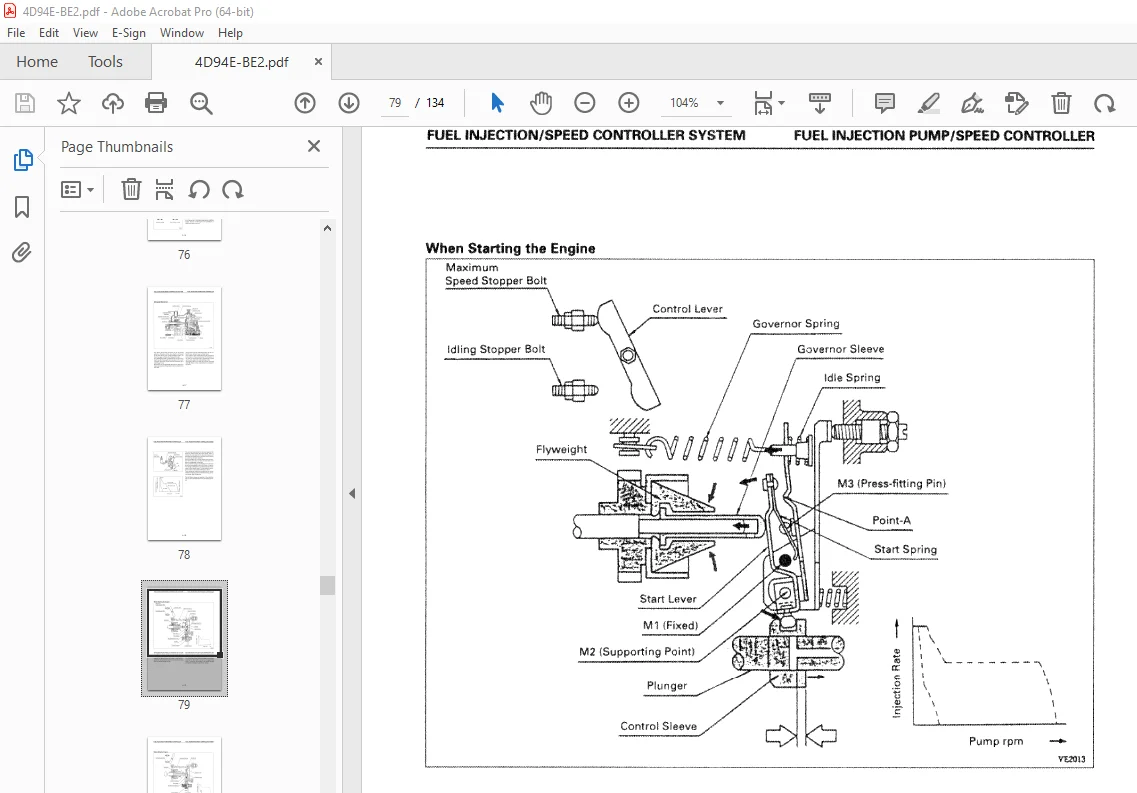

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Komatsu 4D92E 4D94E 4D98E Diesel Engine Shop Manual 4D94E-BE2 – PDF DOWNLOADΒ
ENGINE MODEL MACHINE MODEL
4D92E FD10/14/15/18″16 622001 and up
4D94E FD20/2Π/25/28/30″12 538001 and up
4D98E FD20H/25H/30H”12 538001 and up
GENERAL PRECAUTIONS :
Mistakes in operation are extremely dangerous. Read the OPERATION & MAINTENANCE MANUAL carefully BEFORE operating the machine.
1. Before carrying out any greasing or repairs, read all the precautions given on the decals which are fixed to the machine.
2. When carrying out any operation, always wear safety shoes and helmet. Do not wear loose work clothes, or clothes with buttons missing.
β Always wear safety glasses when hitting parts with a hammer.
β Always wear safety glasses when grinding parts with a grinder, etc.
3. If welding repairs are needed, always have a trained, experienced welder carry out the work. When carrying out welding work, always wear welding gloves, apron, glasses, cap and other clothes suited for welding work.
4. When carrying out any operation with two or more workers, always agree on the operating procedure before starting. Always inform your fellow workers before starting any step of the operation. Before starting work, hang UNDER REPAIR signs on the controls in the operator’s compartment.
5. Keep all tools in good condition and learn the correct way to use them.
6. Decide a place in the repair workshop to keep tools and removed parts. Always keep the tools and parts in their correct places. Always keep the work area clean and make sure that there is no dirt or oil on the floor. Smoke only in the areas provided for smoking. Never smoke while working.
PREPARATIONS FOR WORK:
7. Before adding oil or making repairs, park the machine on hard, level ground, and block the wheels or tracks to prevent the machine from moving.
8. Before starting work, lower blade, ripper, bucket or any other work equipment to the ground. If this is not possible, insert the safety pin or use blocks to prevent the work equipment from falling. In addition, be sure to lock all the control levers and hang warning signs on them.
9. When disassembling or assembling, support the machine with blocks, jacks or stands before starting work.
10. Remove all mud and oil from the steps or other places used to get on and off the machine. Always use the handrails, ladders or steps when getting on or off the machine. Never jump on or off the machine. If it is impossible to use the handrails, ladders or steps, use a stand to provide safe footing.
TABLE OF CONTENTS:
Komatsu 4D92E 4D94E 4D98E Diesel Engine Shop Manual 4D94E-BE2 – PDF DOWNLOADΒ
Π GENERAL DESCRIPTION Π
1 ADJUSTMENT OF ENGINE 1
2 TROUBLESHOOTING 2
3 ENGINE BODY Π
4 LUBRICA TION SYSTEM 4
5 COOLING SYSTEM 5
6 FUEL INJECTION/SPEED CONTROLLER SYSTEM 6
7 STARTING SVSTEM 7
8 CHARGING SVSTEM 8
9 SPECIAL PURPOSE SERVICE TOOLS 9
10 MAINTENANCE STANDARD 10
