Komatsu 830E Dump Truck Operator Handbook Manual(Serial Suffix AFE32-A-AFE32-BN) – PDF Download

Description

Komatsu 830E Dump Truck Operator Handbook Manual(Serial Suffix AFE32-A-AFE32-BN)

Description:

Komatsu 830E Dump Truck Operator Handbook Manual(Serial Suffix AFE32-A-AFE32-BN)

• This handbook is intended to provide the HAULPAK® operator with the necessary information to allow for safe and efficient truck operation.
• The HAULPAK® operator should be a qualified individual who has had proper training to achieve full production with the truck. An efficient, qualified operator can help insure long production life of the truck and avoid costly down time due to misuse of the unit and its systems. Training for both operators and maintenance personnel is recommended and is available upon request. Operator training is accomplished at the job site by qualified operator instructors. Maintenance training is provided both in the factory setting and in field schools. All requests for operator and/or maintenance training should be forwarded to the local HAULPAK® Distributor for action.
• This handbook shows dimensioning of U.S. standard and metric (SI) units, and all references to “Right”, “Left”, “Front”, or “Rear” are made with respect to the operator’s normal seated position, unless specifically stated otherwise. Illustrations used in this handbook are typically representative and may not necessarily depict a specific model.
• A Product Identification plate is normally located on the frame in front of the right side front wheel and designates the Truck Model Number, Product Identification Number (vehicle serial number), and Maximum G.V.W. (Gross Vehicle Weight) rating.
• The HAULPAK® Model designation consists of three numbers and one letter (i.e. 830E). The three numbers represent the basic truckmodel. The letter “M”designates aMechanical drive and the letter “E” designates an Electrical propulsion system.
• The Product Identification Number (vehicle serial number) contains information which will identify the original manufacturing bill of material for this unit. This complete number will be necessary for proper ordering of many service parts and/or warranty consideration.
• The Gross Vehicle Weight (GVW) is what determines the load on the drive train, frame, tires, and other components. The vehicle design and application guidelines are sensitive to the total maximum Gross Vehicle Weight (GVW) and this means the total weight: the Empty Vehicle Weight + the fuel/lubricants + the payload.
• To determine allowable payload:

Service all lubricants for proper level and fill fuel tank of empty truck (which includes all accessories, body liners, tailgates, etc.) and then weigh truck. Record this value and subtract from the GVW rating. The result is the allowable payload. NOTE: Accumulations ofmud, frozenmaterial, etc. become a part of theGVWand reduces allowable payload. To maximize payload and to keep from exceeding the GVW rating, these accumulations should be removed as often as practical

Table Of Contents:

Komatsu 830E Dump Truck Operator Handbook Manual(Serial Suffix AFE32-A-AFE32-BN)

MAJOR COMPONENT DESCRIPTION
GENERAL SAFETY
WARNINGS AND CAUTIONS
OPERATOR CONTROLS AND EQUIPMENT
INSTRUMENTS AND INDICATORS
OPERATING INSTRUCTIONS
LUBRICATION AND SERVICE
OPTIONAL EQUIPMENT INDEX

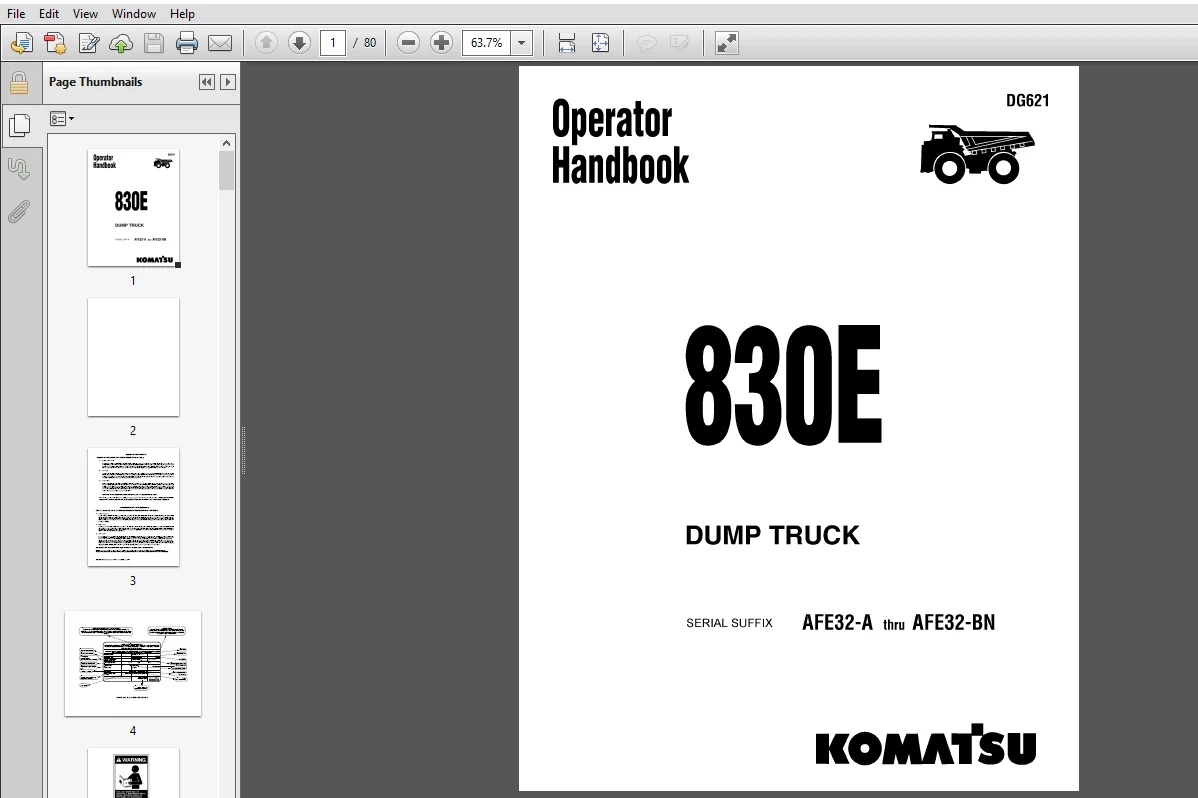

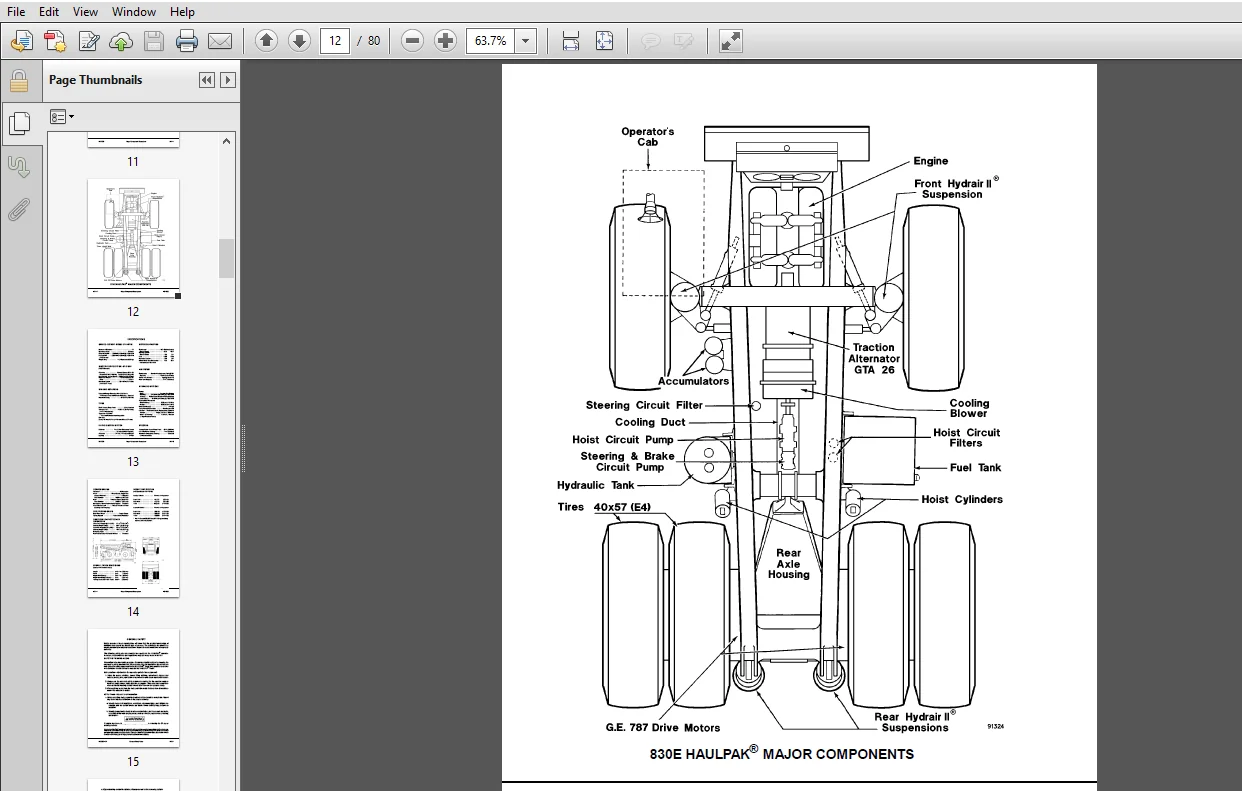

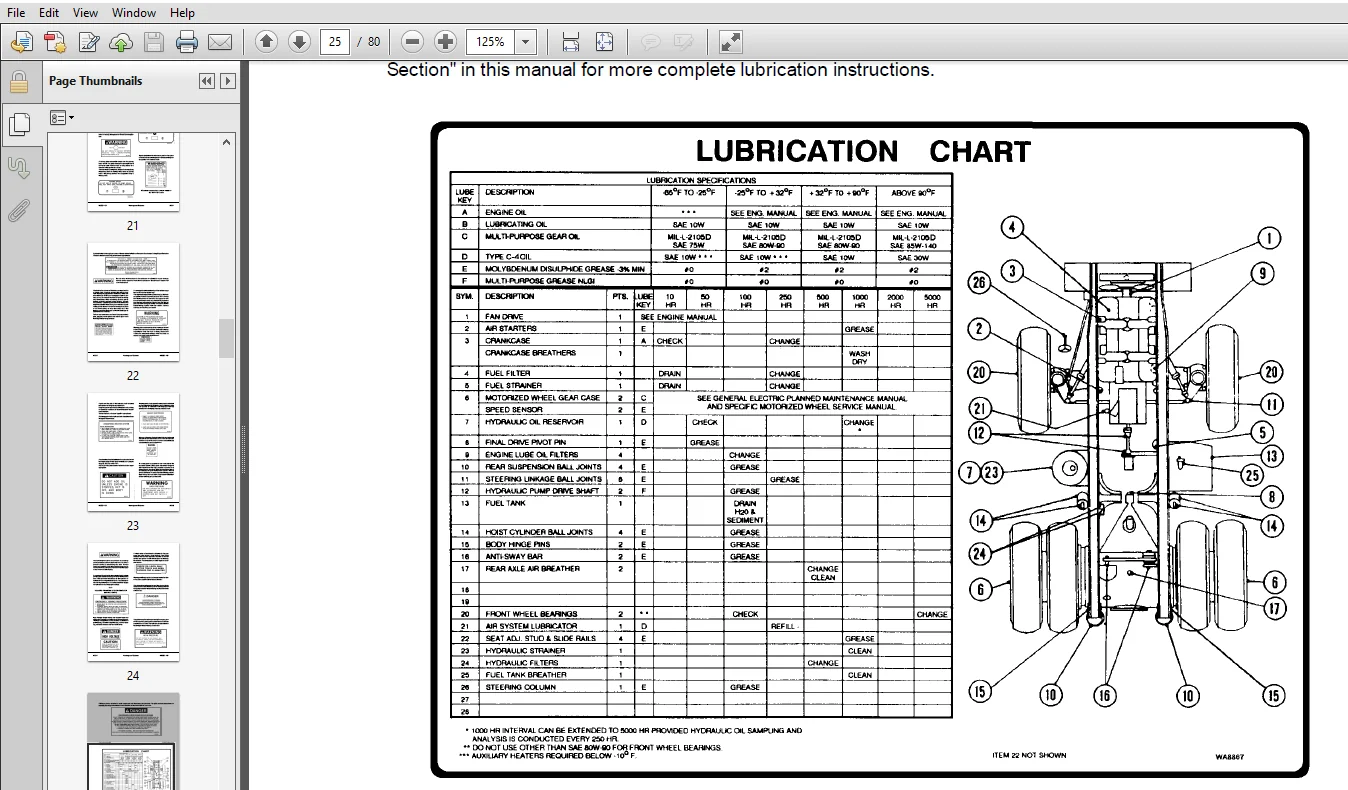

Screenshot Of the Manual:

KOMATSU 830E DUMP TRUCK OPERATOR HANDBOOK MANUAL(SERIAL SUFFIX AFE32-A-AFE32-BN) – PDF DOWNLOAD:
