Komatsu 930E-4SE Dump Truck Shop Manual CEBM030102 – PDF DOWNLOAD

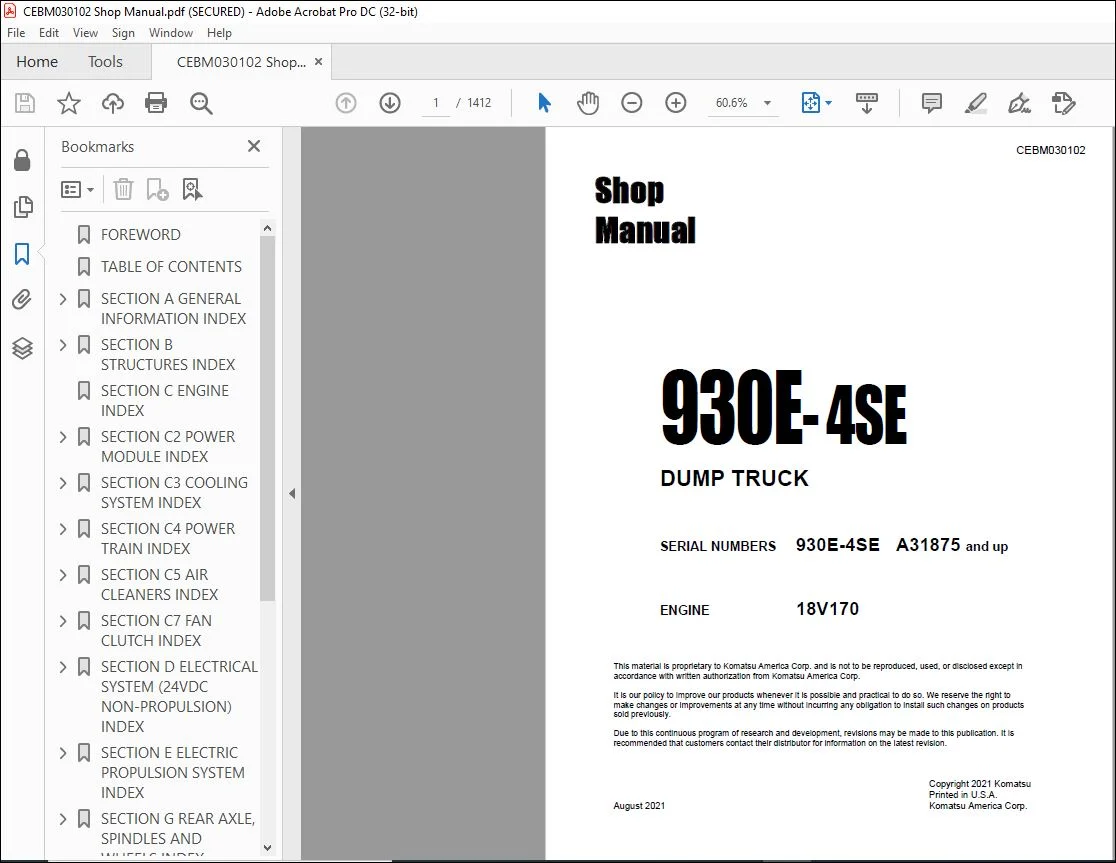

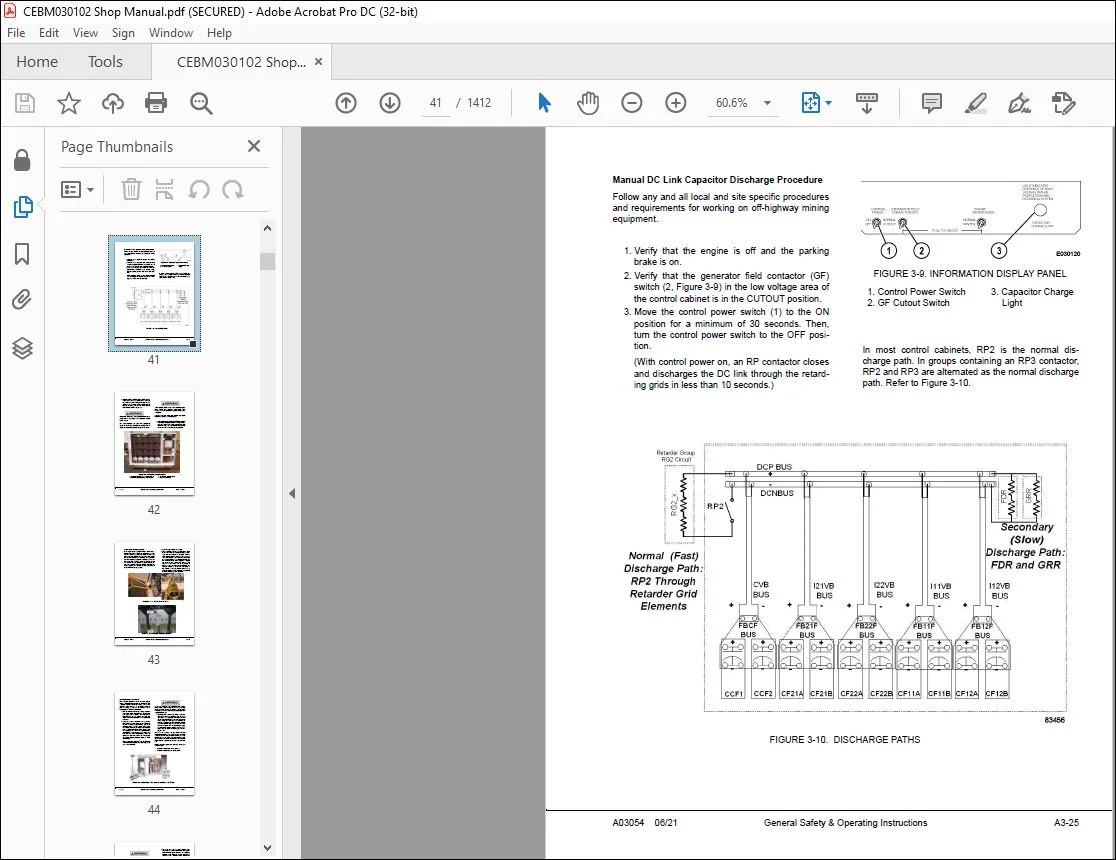

IMAGES PREVIEW OF THE MANUAL:

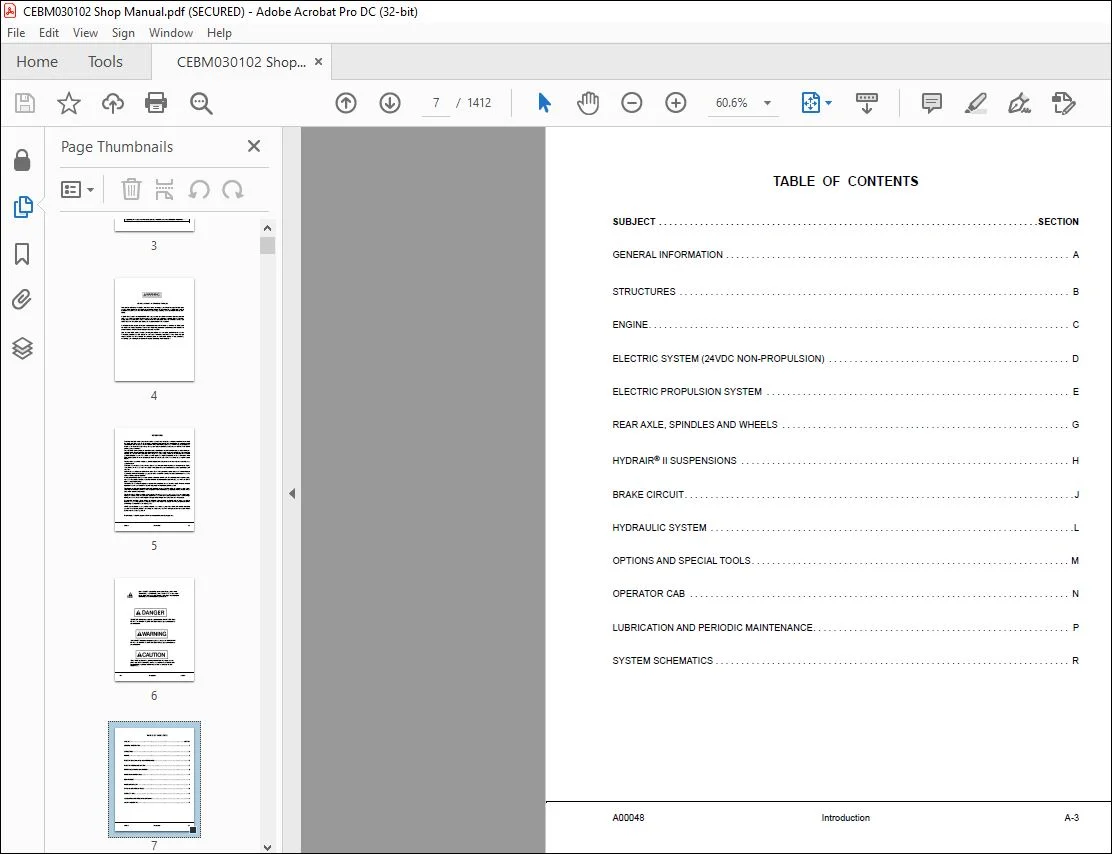

TABLE OF CONTENTS:

Komatsu 930E-4SE Dump Truck Shop Manual CEBM030102 – PDF DOWNLOAD

GENERAL INFORMATION A
STRUCTURES B
ENGINE C
ELECTRIC SYSTEM (24VDC NON-PROPULSION) D
ELECTRIC PROPULSION SYSTEM E
REAR AXLE, SPINDLES AND WHEELS G
HYDRAIR® II SUSPENSIONS H
BRAKE CIRCUIT J
HYDRAULIC SYSTEM L
OPTIONS AND SPECIAL TOOLS M
OPERATOR CAB N
LUBRICATION AND PERIODIC MAINTENANCE P
SYSTEM SCHEMATICS R

Customer Support: [email protected]

https://vimeo.com/742194455

DESCRIPTION:

Komatsu 930E-4SE Dump Truck Shop Manual CEBM030102 – PDF DOWNLOAD

SERIAL NUMBERS 930E-4SE A31875 and up
ENGINE 18V170

FOREWORD:

• This Shop Manual is written for use by the service technician and is designed to help the technician become fully
  knowledgeable of the truck and all its systems in order to keep it running and in production. All maintenance personnel should read and understand the materials in this manual before performing maintenance and/or operational checks on the truck. All safety notices, warnings and cautions should be understood and followed when accomplishing repairs on the truck.
• The first section covers component descriptions, truck specifications and safe work practices, as well as other general
  information. The major portion of the manual pertains to disassembly, service and reassembly. Each major serviceable
  area is dealt with individually. For example: The disassembly, service and reassembly of the radiator
  group is discussed as a unit. The same is true of the engine and engine accessories, and so on through the entire
  mechanical detail of the truck. Disassembly should be carried only as far as necessary to accomplish needed
  repairs.
• The illustrations used in this manual are, at times, typical of the component shown and may not necessarily depict
  a specific model.
• This manual shows dimensioning of metric (SI) and U.S. standard units throughout and all references to “Right”,
  “Left”, “Front”, or “Rear” are made with respect to the operator’s normal seated position, unless specifically stated
  otherwise.
• Standard torque requirements are shown in torque charts in the general information section and individual torques
  are provided in the text in bold face type, such as 135 N·m (100 ft lbs) torque. All torque specifications have ±10%
  tolerance unless otherwise specified.
• A Product Identification plate is normally located on the truck frame in front of the right side front wheel and designates
  the Truck Model Number, Product Identification Number (vehicle serial number), and Maximum G.V.W.
  (Gross Vehicle Weight) rating.
• The KOMATSU Truck Model designation consists of three numbers and one letter (i.e. 830E). The three numbers
  represent the basic truck model. The letter “E” designates an Electrical propulsion system.
• The Product Identification Number (vehicle serial number) contains information which will identify the original manufacturing
  bill of material for this unit. This complete number will be necessary for proper ordering of many service
  parts and/or warranty consideration.
