Komatsu BULLDOZER D65EX-18M0 Shop Manual SEN06966-01 – PDF DOWNLOAD
$33.95
Komatsu BULLDOZER D65EX-18M0 Shop Manual SEN06966-01 – PDF DOWNLOAD
SERIAL NUMBERS 96001 and up
Description
Komatsu BULLDOZER D65EX-18M0 Shop Manual SEN06966-01 – PDF DOWNLOAD
FILE DETAILS:
Komatsu BULLDOZER D65EX-18M0 Shop Manual SEN06966-01 – PDF DOWNLOAD
Language : English
Pages :2960
Downloadable : Yes
File Type : PDF

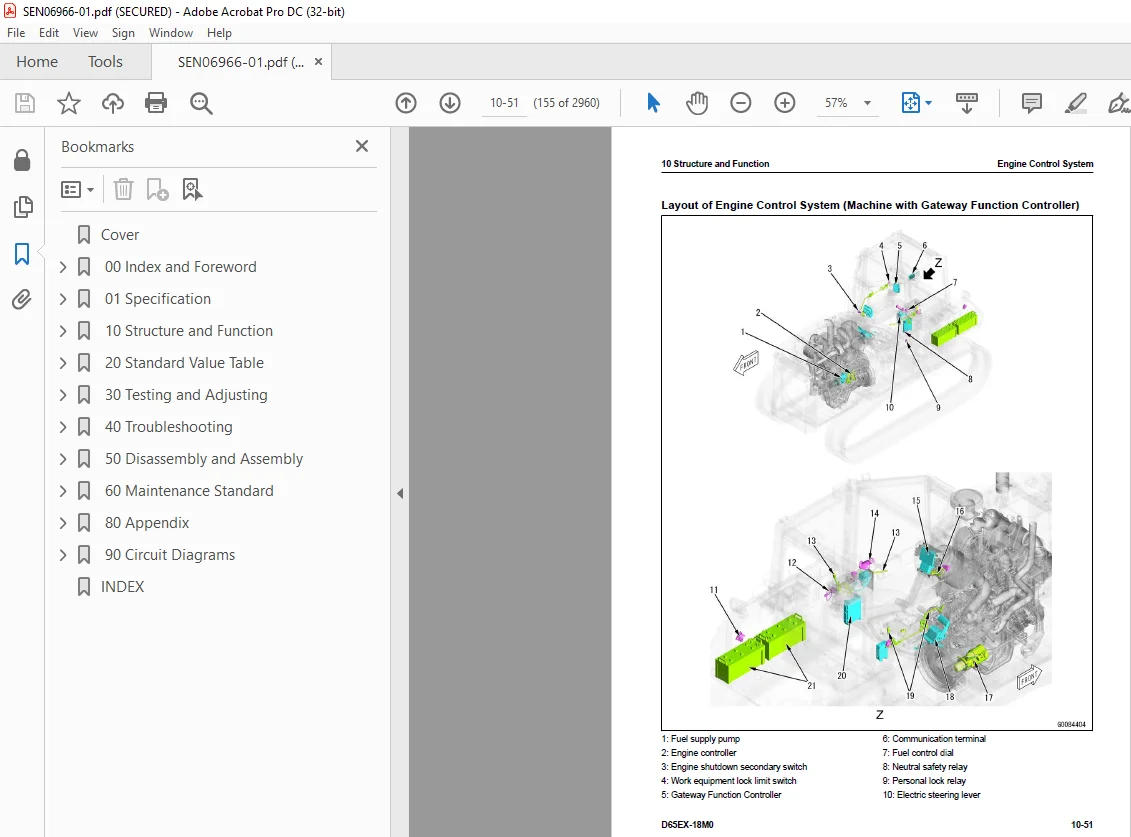

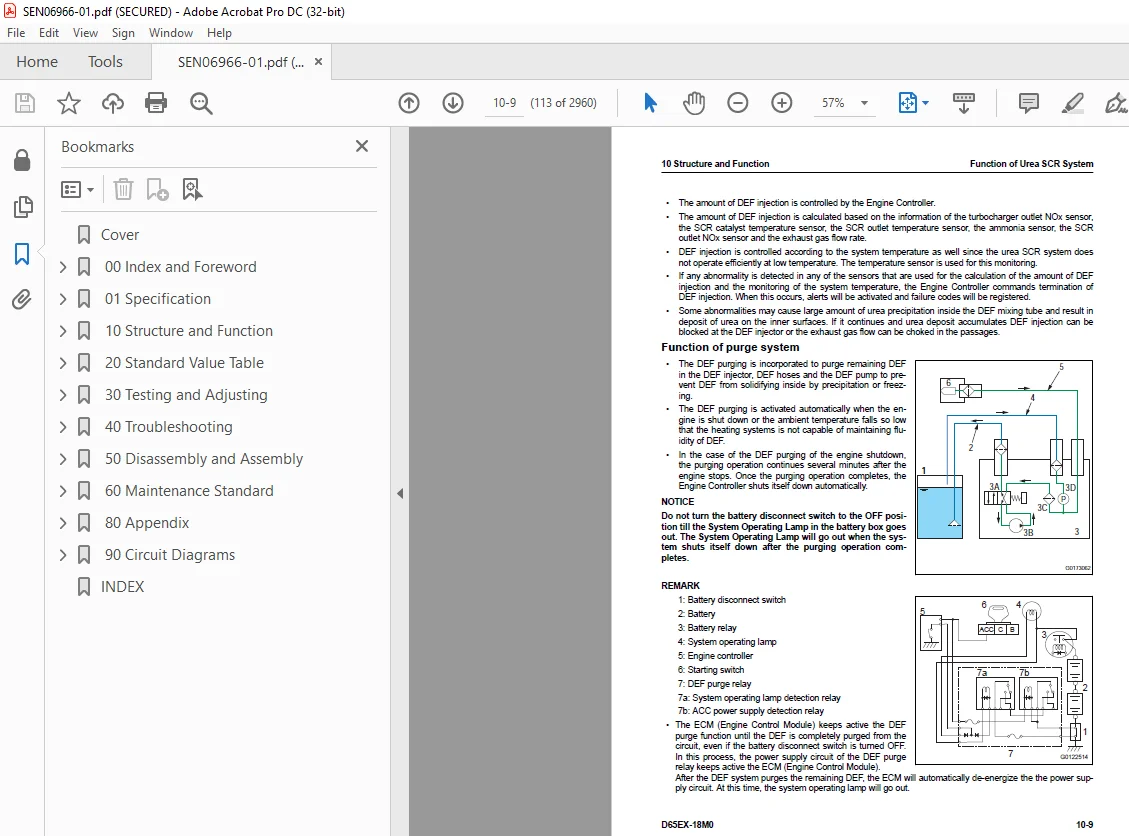

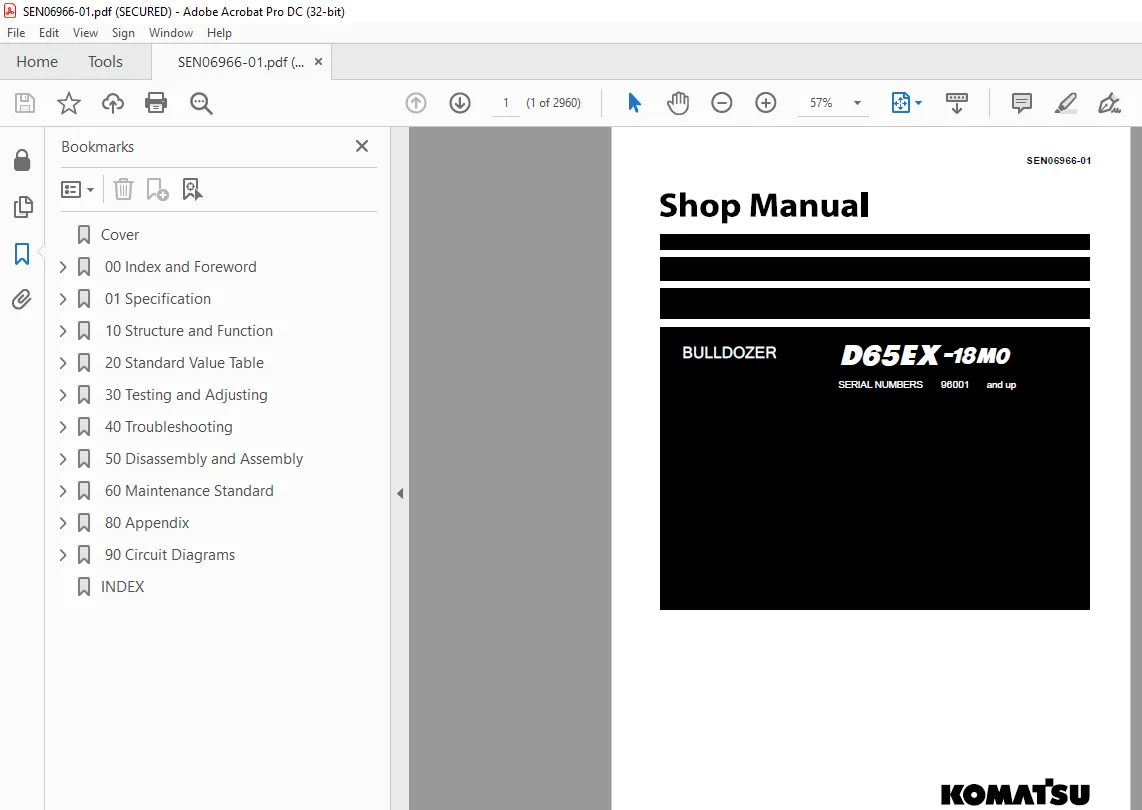

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:
Komatsu BULLDOZER D65EX-18M0 Shop Manual SEN06966-01 – PDF DOWNLOAD
SERIAL NUMBERS 90001 and up
How to Read the Shop Manual
โข Some of the attachments and options described in this shop manual may not be available in some areas. If
they are required, consult your Komatsu distributor.
โข The materials and specifications are subject to change without notice.
โข Shop Manuals are available for โmachine partโ and โengine partโ. For the engine unit, see the shop manual
for the machine which has the same engine model.
โข Actual machine may differ from the images which are contained in this manual. A typical model is shown in
the illustrations of this shop manual.
โข The caution lamps, pilot lamps, and symbols of the switches on the machine monitor can be different in
accordance with the machine.
โข For details of the symbols shown on the machine monitor, see Structure and Operation, โCaution
Lamps Shown on Machine Monitorโ and โPilot Lamps Shown on Machine Monitorโ.
โข For details of the switches of the machine monitor, see Testing and Adjusting, โSet and Operate Machine
Monitorโ.
โข For details of the switches, see the โOperation and Maintenance Manualโ.
โข All โAdBlue/DEFโ shown on the machine monitor is referred to as โDEFโ in the shop manual. Some machine
monitors installed to the product show โDEFโ as โAdBlue/DEFโ in the service mode. Thus, be sure to recognize
that โDEFโ and โAdBlue/DEFโ are the same when you read the shop manual.
REMARK
The illustrations in the shop manual reproduce the display of the machine monitor. They are not always the
same as the terminology in the shop manual.
Composition of the Shop Manual
This shop manual contains technical information necessary to perform services in workshops. It is divided into
the following chapters for the ease of use.
00 Index and Foreword
This section describes the index, foreword, safety, and basic information.
01 Specification
This section describes the specifications of the machine.
10 Structure and Function
This section describes the structure and operation of each component with respect to each system. โStructure
and Functionโ is helpful in not only understanding the structure of each component but performing troubleshooting.
20 Standard Value Table
This section describes the standard values for new machine and failure criteria for testing and adjusting, and
troubleshooting. Use the standard values table to check the standard values for testing and adjusting, and judge
troubles in troubleshooting.
30 Testing and Adjusting
This section describes the measuring tools and measuring methods for testing and adjusting as well as the adjusting
method of each part. The standard values and repair limit for TESTING AND ADJUSTING are described
in โStandard Value Tableโ.
40 Troubleshooting
This section describes troubleshooting of failure part and its remedy method on the occurrence of the failure.
Descriptions of troubleshooting are sorted by failure mode.
This section describes the special tools, work procedures, and safety precautions necessary for removal, installation,
disassembly, and assembly of the components and parts. In addition, tightening torques, quantity, and
weight of the coating materials, lubricants, and coolant necessary to these works are shown.
60 Maintenance Standard
This section describes the maintenance standard value of each component. The maintenance standard shows
the criteria and remedies for disassembly and assembly.
80 Others
This section describes the structure and function, testing and adjusting, and troubleshooting for all of the other
components or equipment which cannot be separately classified in the appendix.
90 Circuit Diagrams
This section describes hydraulic circuit diagrams and electrical circuit diagrams.
Symbols
Important safety and quality portions are marked with the following symbols so that shop manual is used effectively.
TABLE OF CONTENTS:
Komatsu BULLDOZER D65EX-18M0 Shop Manual SEN06966-01 – PDF DOWNLOAD
SERIAL NUMBERS 96001 and up
Cover 1
00 Index and Foreword 3
Index 4
Foreword, Safety, Basic Information 21
How to Read the Shop Manual 21
Safety Notice for Operation 23
Precautions to Prevent Fire 31
Procedures If Fire Occurs 33
Precautions When You Discard Waste Materials 34
Actions Taken to Meet Exhaust Gas Regulations 35
Precautions for DEF 36
General Character and Precautions for Handling 36
Precautions When You Add 36
Precautions for Storage 36
Precautions for Fire Hazard and Leakage 36
Other Precautions 36
Store DEF 37
Precautions When You Handle Hydraulic Equipment 38
Precautions When You Disconnect and Connect Pipings 41
Precautions When You Handle Electrical Equipment 48
Precautions When You Handle Fuel System Equipment 50
Precautions When You Handle Intake System Equipment 51
Practical Use of KOMTRAX 52
Disconnect and Connect Push-Pull Type Coupler 53
How to Disconnect and Connect Type 1 Push-Pull Type Coupler 53
How to Disconnect and Connect Type 2 Push-Pull Type Coupler 54
How to Disconnect and Connect Type 3 Push-Pull Type Coupler 55
Precautions for Disconnection and Connection of Connectors 57
Disconnect and Connect Deutsch Connector 61
How to Disconnect and Connect Slide Lock Type Connector 62
Disconnect and Connect Connector with Lock to Pull 64
Disconnect and Connect Connector with Lock to Push 65
Disconnect and Connect Connector with Housing to Rotate 67
How to Read the Codes for Electric Cable 68
Explanation of Terms for Maintenance Standard 72
Standard Tightening Torque Table 75
Conversion Table 82
Abbreviation List 87
