Komatsu D75S-2 Dozer Shovel Shop Manual SN 1004 and up – PDF DOWNLOAD

Description

Komatsu D75S-2 Dozer Shovel Shop Manual

FILE DETAILS:

Komatsu D75S-2 Dozer Shovel Shop Manual

Brands: Komatsu
Equipment Type: Dozer Shovel
Manuals Type: Shop Manual
Machine Model: D75S-2
Serial Number: 1004 and up
Language: English
Book Code: D75S2BE2
Pages: 224
File Format: Portable Document Format (PDF)

KOMATSU D75S-2 DOZER SHOVEL SHOP MANUAL SN 1004 AND UP – PDF DOWNLOAD:

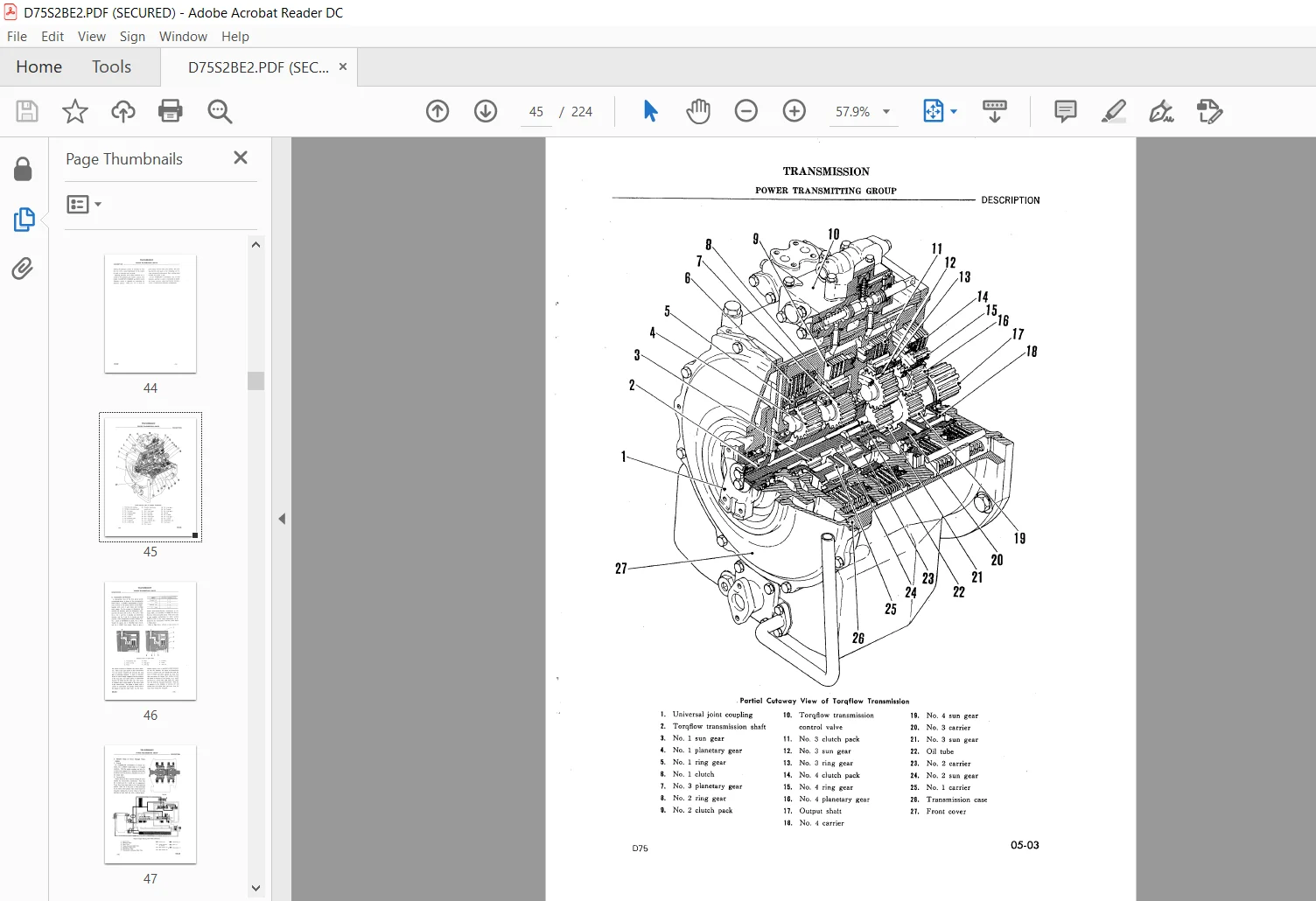

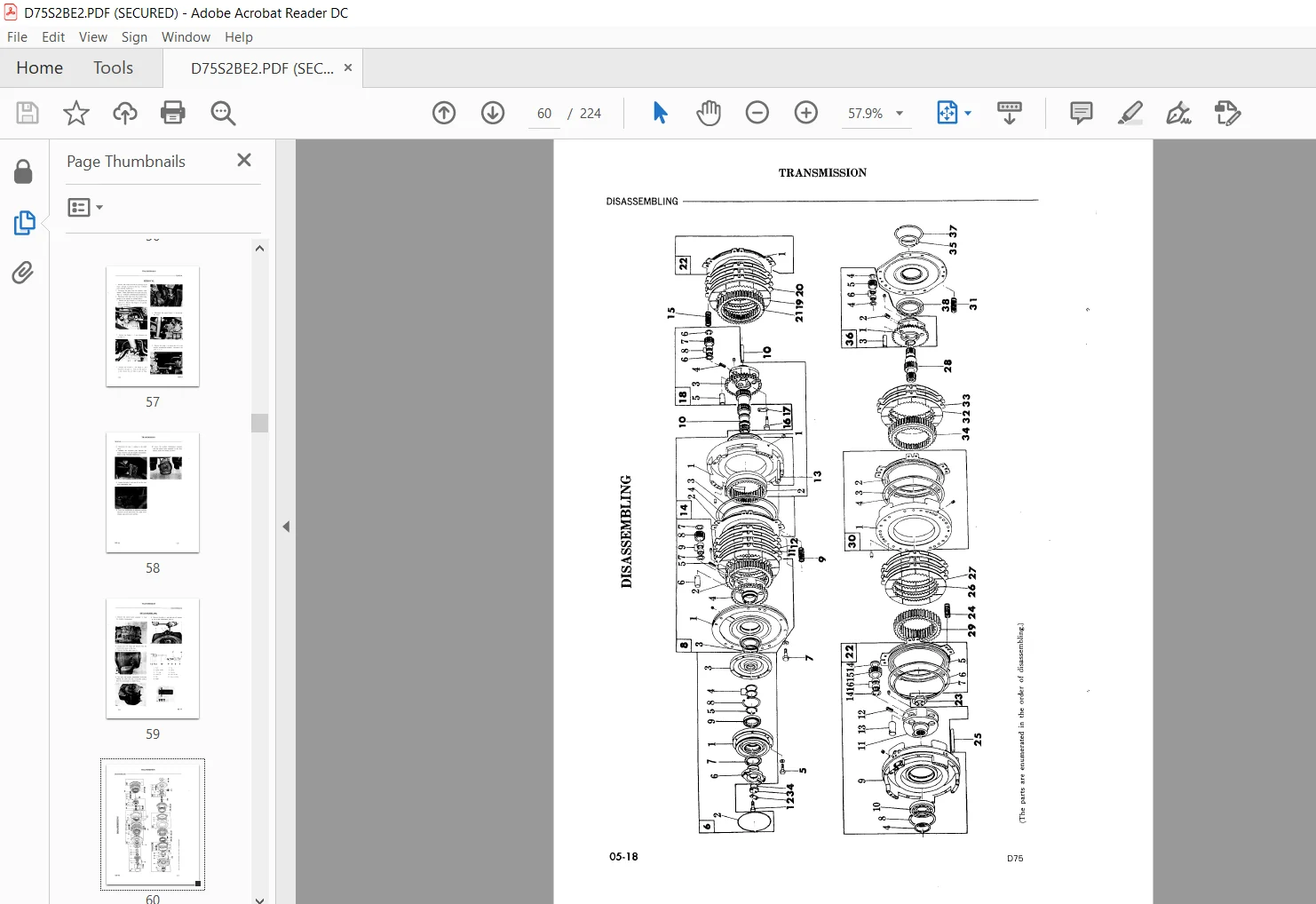

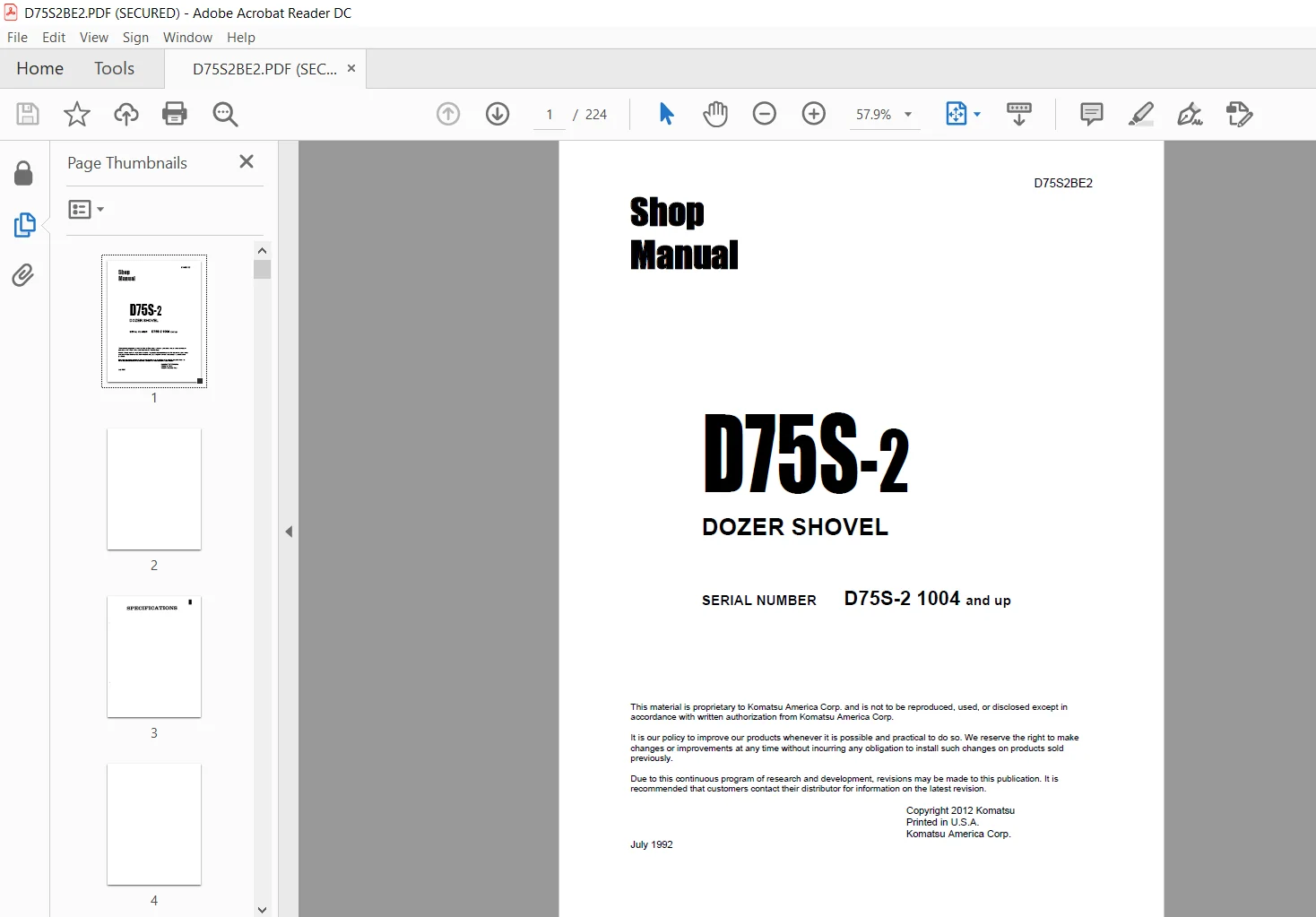

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu D75S-2 Dozer Shovel Shop Manual

FOREWORD:

This MANUAL is published for the information and guidance of shop personnel charged with the task of servicing the KOMATSU D7SS-2 Dozer Shovel, and provides instructions to be adhered to in disassembling and res-assembling machines of this model in the shop. The instructions are given mainly in the form of procedures, and, in each sec- tion of the MANUAL, are preceded by an outline description of each major component in respect to mechanical construction. function and other perti- uent items.

TERMINOLOGY Effort has been made in the preparation of this MANUAL to use the most common shop terms in order to avoid ambiguity and cquivocation. Some key terms used, however. require precise agreement in advance between the writer and the reader as to their meanings, as the clarity of what are aimed at in shop work depends largely on these terms. Throughout this MANUAL, the major key terms are used with the following meanings. ‘ tl‘; Clockwise <C.W.i and Connterclockwise (C.C.W.) A circular direction, C. W. or C.Q\V., is in the mind of the viewer standing in front and ahead of the machine. except when a driven component is discussed. Such a component as the oil pump, the component is considered singly and as viewed from its driving side. iZ‘I Terms of Servicing Criteria BASIC SIZE: This term is universally defined as the theoretical or nominal standard size (diameter, length, thickness, etc.) from which variations are made, and is used in this sense throughout ASSEMBLY STANDARD: This is a dimensional value or a range of dimensional values to be adhered to in assembling components. An assemblage is re- quired to satisfy the assembly standard specified for it.

STANDARD CLEARANCE: This refers to a clear ance range, within which a distance of separation occurring in a full assembly or snbassembly of re- placement parts must take its value. Such an as- sembly or sub-assembly is permitted to be installed or mounted in place only when this requirement is satisfied.

CLEARANCE LIMIT: (maximum allowable clear- ance): A running clearance between a shaft and its hole, for instance. will increase as the shaft or hole wears progressively. A clearance limit is pro- vided {or each critical or important clatrance and, if such a clearance is found to have increased upon disassembling beyond the clearance limit specified for it, the parts associated with that clearance must be corrected to take a value within the limit.

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
