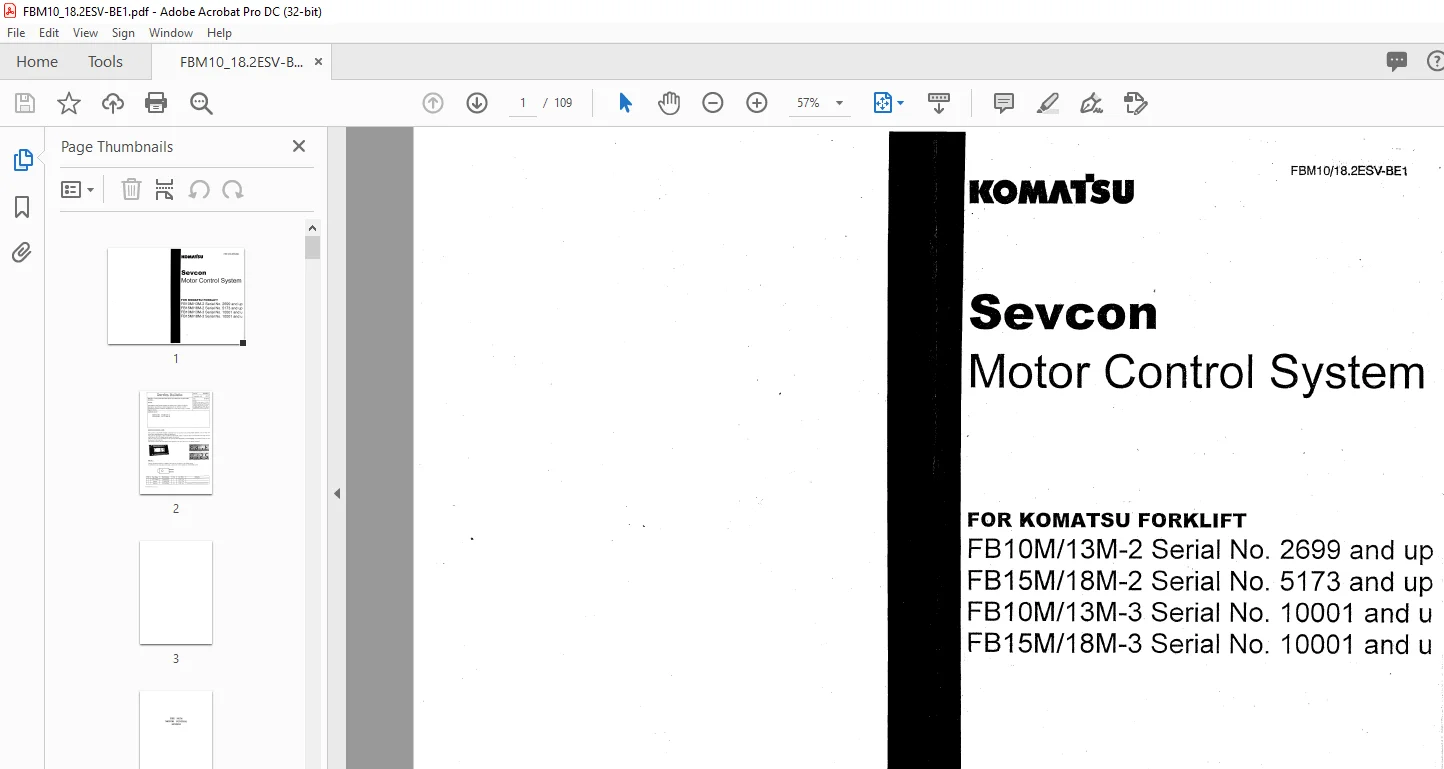

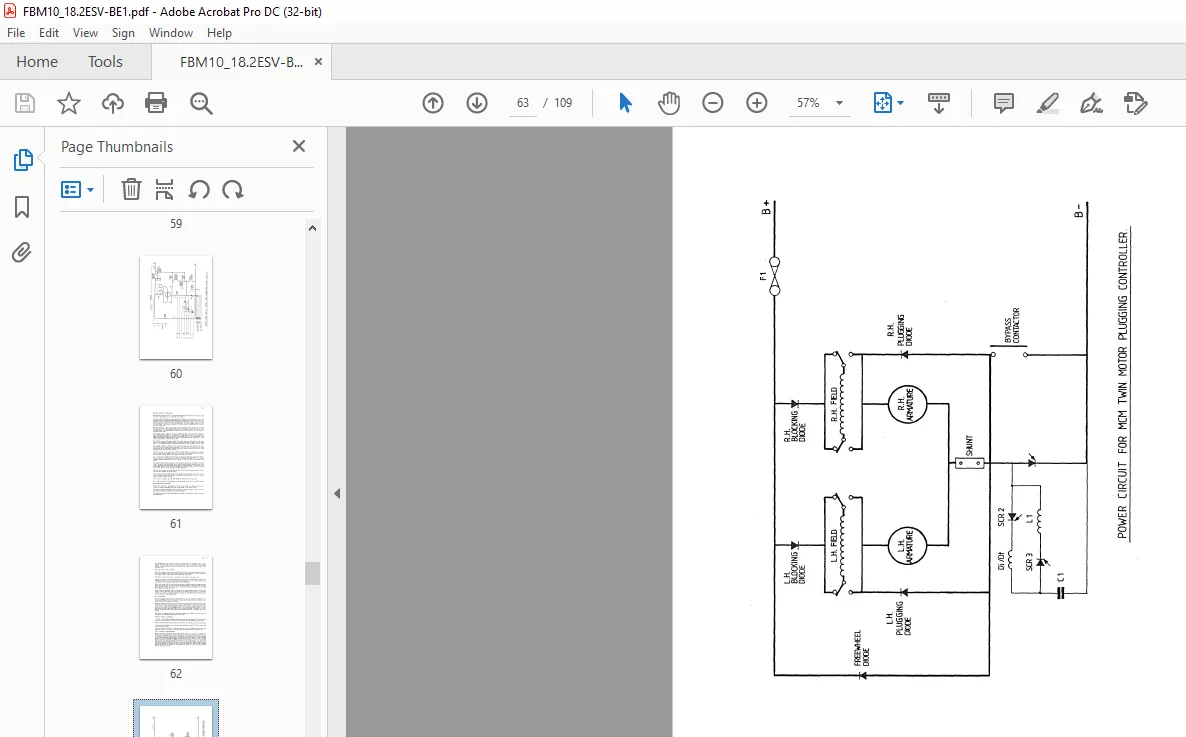

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/745323234

DESCRIPTION:

Komatsu FB10M-2 FB13M-2 FB15M-2 FB18M-2 FB10M-3 FB13M-3 FB15M-3 FB18M-3 Sevcon Motor Control System Service Bulletin Manual – PDF DOWNLOAD

FB 10M/13M-2 Serial No. 2699 and up
FB15M/18M-2 Serial No. 5173 and up
FB 10M/13M-3 Serial No. 10001 and up
FB15M/18M-3 Serial No. 10001 and up

INТRODUCГION:

• Тhе МСМ range of thyristor controllers use adv~ced microprocessor technology, combined with
  Sevcon’s leadership in power electronics, to provide the most advanced D.C. traction controller family
  availaЫe.
• The use of microprocessor and digital techniques gives improved accuracy and drift free performance,
  which together with Sevcon’s revolutionary Personality Editor replaces а11 setting up potentiometers
  and allows а11 adjustments to Ье made Ьу the operator from the normal driving position.
• Тhе МСМ has many extra features in addition to those found on the standard range of controllers;
  the optional Display Head with the МСМ functions as а Battery Discharge Indicator (BDI), an Hours
  Counter and а Fault Indicator. Тhis unit is also used when adjusting the controller settings and as
  an indicator for the powerful fault diagnostics.
• А complete traction system controller is provided in one package.
  Operator safety has been of paramount importance in the design of the МСМ. Powerful fault diagnostics
  have Ьееn incorporated which, upon detecting а serious fault, cause the controller to shutdown in а safe and orderly manner. Тhе Display Unit assists diagnosis of faults.
• Тhе МСМ may Ье configured as either а regen or а plugging controller. The plugging version of
  the controller is availaЫe in Ьoth single and parallel twin motor versions.

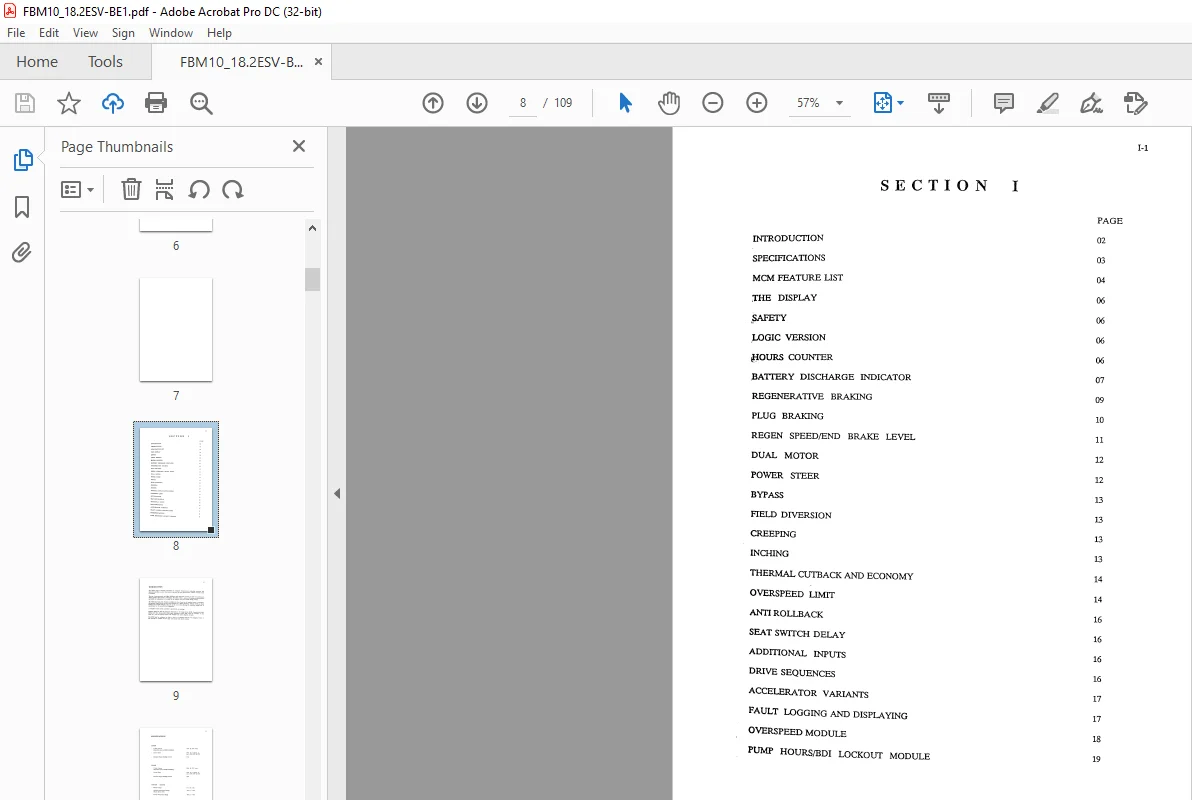

TABLE OF CONTENTS:

Komatsu FB10M-2 FB13M-2 FB15M-2 FB18M-2 FB10M-3 FB13M-3 FB15M-3 FB18M-3 Sevcon Motor Control System Service Bulletin Manual – PDF DOWNLOAD
INТRODUCПON
SPECIFICA11ONS
МСМ FEAТURE LIST
ТНЕ DISPLAY
§АFЕТУ
,LOGIC VERSION
~OURS COUNТER
SECTION 1
.ВАТГЕRУ DISCНARGE INDICATOR
REGENERA11VE BRAКING
PLUG BRAКING
REGEN SPEED/END ВRАКЕ LEVEL
DUAL MOTOR
POWER SТEER
BYPASS
FIELD DIVERSION
CREEPING
INCНING
ТНЕRМАL СUТВАСК AND ЕСОNОМУ
OVERSPEED LIМIТ
ANТI ROLLБACK
SEAT SWIТCH DELAY
ADDmONAL INPUТS
DRIVE SEQUENCES
ACCELERATOR VARlANТS
FAULT LOGGING AND DISPLA YING
OVERSPEED MODULE
РUМР HOURS/ВDI LOCKOUТ MODULE
