Komatsu FORKLIFT TRUCK FG-20/25/30-12 20H/25H/30H-12 FD20/25/30-12 20J/25J/30J-12 20H/25H/30H-2 Parts Manual
$29.95
Komatsu FORKLIFT TRUCK FG-20/25/30-12 20H/25H/30H-12 FD20/25/30-12 20J/25J/30J-12 20H/25H/30H-2 Parts Manual – PDF DOWNLOAD
Description
Komatsu FORKLIFT TRUCK FG-20/25/30-12 20H/25H/30H-12 FD20/25/30-12 20J/25J/30J-12 20H/25H/30H-2 Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Komatsu FORKLIFT TRUCK FG-20/25/30-12 20H/25H/30H-12 FD20/25/30-12 20J/25J/30J-12 20H/25H/30H-2 Parts Manual – PDF DOWNLOAD
Language :English
Pages :444
Downloadable : Yes
File Type : PDF

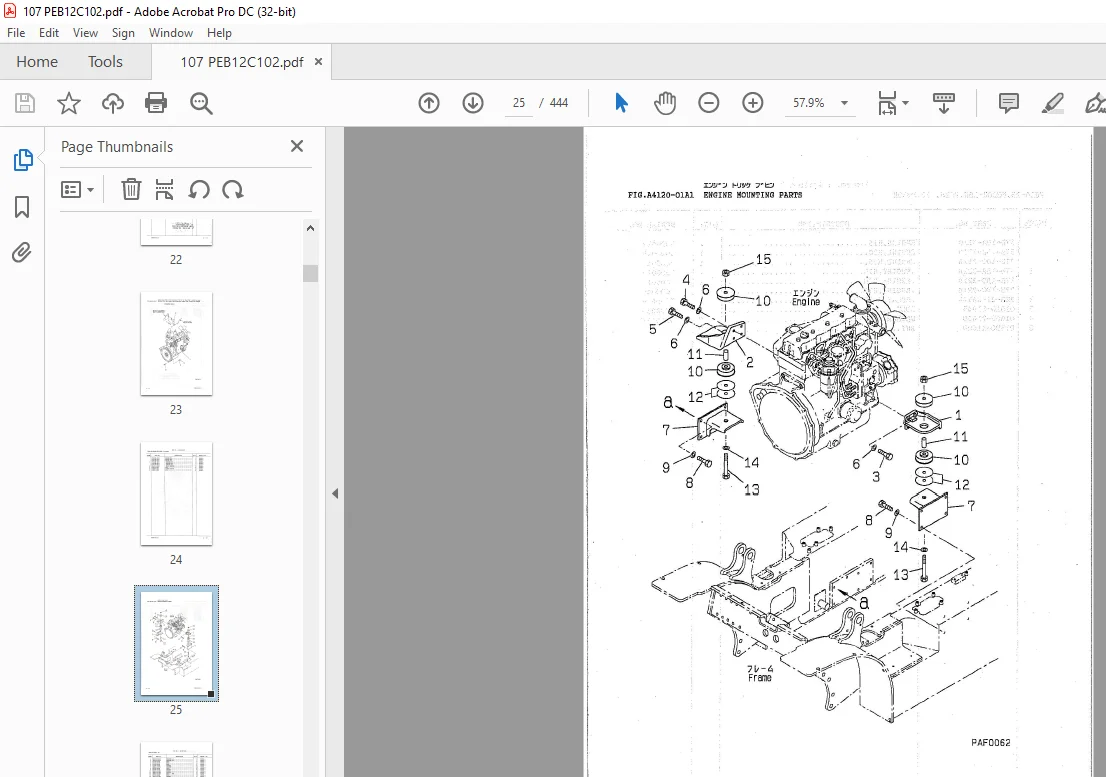

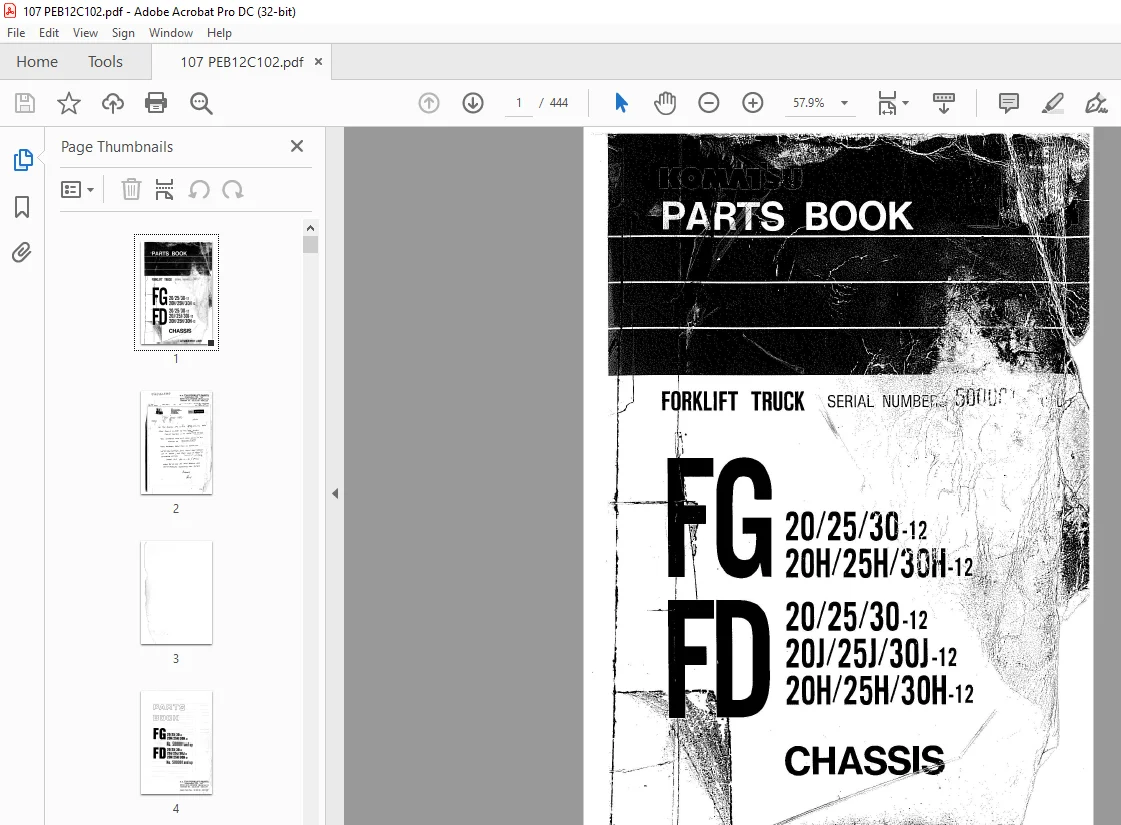

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Komatsu FORKLIFT TRUCK FG-20/25/30-12 20H/25H/30H-12 FD20/25/30-12 20J/25J/30J-12 20H/25H/30H-2 Parts Manual – PDF DOWNLOAD
FOREWORD
When ordering a part, please specify the model number, the engine serial number and the reading of the service meter. For complete understanding, the parts list is written as follows:…Β·
TABLE OF CONTENTS:
Komatsu FORKLIFT TRUCK FG-20/25/30-12 20H/25H/30H-12 FD20/25/30-12 20J/25J/30J-12 20H/25H/30H-2 Parts Manual – PDF DOWNLOAD
CONTENTS
GROUP ASSEMBLY PARTS LIST
AO ENGINE RELATED PARTS
ENGINE UNIT AND POWER TRAIN RELATED PARTS (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1, D2)
ENGINE UNIT AND POWER TRAIN RELATED PARTS (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1, D2H)
ENGINE UNIT AND POWER TRAIN RELATED PARTS (D1, D2J)
ENGINE UNIT AND POWER TRAIN RELATED PARTS (DRY CLUTCH AND TORQUE CONVERTER SPEC) (G1,018,G2,028)
ENGINE MOUNTING PARTS (D1, D2)
ENGINE MOUNTING PARTS (DAH, D2Π½)
ENGINE MOUNTING PARTS (01J,023)
ENGINE MOUNTING PARTS (G1,018,02,G2H)
AIR INTAKE CONNECTION (D1,02)
AIR INTAKE CONNECTION (DIH,D28)
AIR INTAKE CONNECTION (D13,D23)
AIR INTAKE CONNECTION (1,018,02,2H)
BO EXHAUST FARTS
MUFFLER AND EXHAUST CONNECTION (D1, D2)
MUFFLER AND EXHAUST CONNECTION (DAH, D28)
MUFFLER AND EXHAUST CONNECTION (DAJ,DRJ)
MUFFLER AND EXHAUST CONNECTION (1,618, G2, G2H)
CO COOLING SYSTEM
BADIATOR (CLUTCH SPEC) (D1, D1H, DJ,D2,D2H,D2J)
RADIATOR (TORQUE CONVERTER SPEC) (01, D1H, DIJ,D2,D2,DZJ)
RADIATOR (CLUTCH SPEC) (G1,018,02,62H)
RADIATOR (TORQUE CONVERTER SPEC) (G1,01,02,02H)
RADIATOR PIPING (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1, D2)
RADIATOR PIPING (DRY CLUTCH AND TORQUE CONVERTER SPEC) (DLK, D2H)
RADIATOR PIPING (D1, D2J)
RADIATOR PIPING (DRY CLUTCH AND TORQUE CONVERTER SPEC) (a1,018, G2,G2H)
TORQUE CONVERTER COOLER PIPING
RESERVOIR TANK (D1, D1J,D2,D2J)
RESERVOIR TANK (D1, D2H,GL,GLH,02,02H)
RADIATOR COVER
DO FUEL TANK AND RELATED PARTS
FUEL SYSTEM (D1, D2)
FUEL SYSTEM (D1, D2H)
FUEL SYSTEM (D1, D2J)
FUEL SYSTEM (31,61,62,02H)
FO POMER TRAIN AND FRONT AXLE
DRIVE AXLE
DRY CLUTCH
TORQUE CONVERTER
DIRECT DRIVE TRANSMISSION (1/2)
DIRECT DRIVE TRANSMISSION (2/2)
TORQUE FLOW DRIVE TRANSMISSION (1/6)
TORQUE FLOW DRIVE TRANSMISSION (2/6)
TORQUE FLOW DRIVE TRANSMISSION (3/6)
TORQUE FLOW DRIVE TRANSMISSION (4/6)
TORQUE FLOW DRIVE TRANSMISSION (5/6)
TORQUE FLOW DRIVE TRANSMISSION (6/6)
DIFFERENTIAL GEAR AND HYPOID GEAR (D1, D18, DJ,01, 1H)
DIFFERENTIAL GEAR AND HYPOID GEAR (D2, D2H,D2J,G202H)
CLUTCH RELEASE CYLINDER
HO STEERING SYSTEM AND REAR AXLE
STEERING AXLE (1/2)
STEERING AXLE (2/2)
JO FRONT AND REAR WHEELS
FRONT WHEEL (700-12-12PR) (D1, D1H,D1J,1,G1)
FRONT WHEEL (28×9-15-12PR) (D2, D2H,D2J,2,2)
FRONT WHEEL (700-12-12PR) (ELESTIC CUSHION) (D1, D1H, D13,01,01)
FRONT WHEEL (28X9-15-12PR) (ELASTIC CUSHION) (D2,D2H, D2J,2,2)
FRONT WHEEL (WIDE TREAD RIM)
FRONT WHEEL (WIDE TREAD RIM) (ELASTIC CUSHION)
FRONT WHEEL (DOUBLE TIRE)
FRONT WHEEL (DOUBLE TIRE) (ELASTIC CUSHION)
REAR WHEEL (BEKI WIDE)
REAR WHEEL (SEMI WIDE) (ELASTIC CUSHION) (D1, D1H, DJ, 01, 01)
REAR WHEEL (BENI WIDE) (ELASTIC CUSHION) (D2, D2H, D2J, G2,G2H)
FRONT WHEEL HUB NUT (FOR SINGLE TIRS)
FRONT WHEEL HUB NUT (FOR DOUBLE TIRE)
FENDER (FOR SINGLE TIRE) (D2,D2H,D2J, G2,028)
XFENDER (FOR DOUBLE TIRE)
–
KO BRAKE SYSTEM
WHEEL BRAKE
PARKING BRAKE LEVER
CBRAKE PIPING
LO TRAVEL CONTROLSOS
STEERING COLUMN
STEERING GEAR BOX
PGD20-3012
STEERING WHEEL
STEERING LINKAGE
TRANSMISSION SHIFT LEVER (A-TYPE)
BRAKE AND CLUTCH PEDAL (DRY CLUTCH SPEC)
BRAKE AND INCHING PEDAL (TORQUE CONVERTER SPEC)
MASTER CYLINDER (FOR BRAKE)
MASTER CYLINDER (FOR CLUTCH)
ACCELERATOR PEDAL (D1, D1J,D2,D2J)
ACCELERATOR PEDAL (D1, D2H)
ACCELERATOR PEDAL (G1,G1, G2, G2H)
MO FRAME RELATED PARTS
FRAME*****
COUNTER WEIGHT
COUNTER WEIGHT CAP (D1, D1H, D2, D2H,G1,018,02,021)
PO GUARD AND OPERATOR’S COMPARTMENT
OPERATOR’S SENT
DASHBOARD
DASHBOARD (WITH SPEEDOMETER) –
STEP AND TILT CYLINDER COVER
FLOOR MAT
FLOOR PLATE (CLUTCH SPEC)
FLOOR PLATE (TORQUE CONVERTER SPEC)
DASHBOARD COVER
BONNET
SUB BONNET
HEAD GUARD
LAMP GUARD
MONITOR PANEL
HEAD GUARD MOUNTING PARTS
QO ELECTRICAL SYSTEMA SEDEMION s T 1:00 2:
ELECTRICAL SYSTEM (DASHBOARD WIRING)
ELECTRICAL SYSTEM (HEAD LAMP)
ELECTRICAL SYSTEM (BATTERY) (D1, D1J, D2,023)
02 !
ELECTRICAL SYSTEM (BATTERY) (D1H, D2H)
ELECTRICAL SYSTEM (BATTERY) (G1, G1H,02,028)
ELECTRICAL SYSTEM (COMBINATION SWITCH) (CLUTCH SPEC)
ELECTRICAL SYSTEM (COMBINATION SWITCH) (TORQUE CONVERTER SPEC)- (LH SIDE P-R SWITCH)
ELECTRICAL SYSTEM (COMBINATION SWITCH) (TORQUE CONVERTER SPEC)- (RH SIDE F-R SWITCH)
ELECTRICAL SYSTEM (SPEEDOMETER)
SARA 1024 L
CANAL CAFA W
ELECTRICAL SYSTEM (ENGINE WIRING) (D1, D2)
ELECTRICAL SYSTEM (ENGINE WIRING) (D1H,D2)
ELECTRICAL SYSTEM (ENGINE WIRING) (D1J,023)
ELECTRICAL SYSTEM (ENGINE VIRING) (G1, 01H, 02, 02)
ELECTRICAL SYSTEM (FUEL SENDING UNIT)
ELECTRICAL SYSTEM (COMBINATION LAMP)
RO HYDRAULIC SYSTEM
LAS
311
HYDRAULIC PUMP AND MOUNTING PARTS (DRY CLUTCH AND TORQUE
CONVERTER SPEC) (D1, D2)
HYDRAULIC PUMP AND MOUNTING PARTS (DRY CLUTCH AND TORQUE
CONVERTER SPEC) (D1, D2H)
HYDRAULIC PUMP AND MOUNTING PARTS (D1J,DZJ)
HYDRAULIC PUMP AND MOUNTING PARTS (DRY CLUTCH AND TORQUE CONVERTER SPEC) (G1,G1H,G2,02H)
HYDRAULIC PUMP (INNER PARTS) (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1, D1H,D2,D2H, G1,01H,G2,G2H)
HYDRAULIC PUND (INKER PARTS) (D13,123)
2-SPOOL CONTROL VALVE AND MOUNTING PARTS
3-SPOOL CONTROL VALVE AND MOUNTING PARTS
4-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE AND SHUT OFF VALVE) AND MOUNTING PARTS
2-SPOOL CONTROL VALVE (INNNER PARTS) (1/2)
2-SPOOL CONTROL VALVE (INNNER PARTS) (2/2) 3-SPOOL CONTROL VALVE (INNER PARTS) (1/2)
3-SPOOL CONTROL VALVE (INNNER PARTS) (2/2)
3-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE) (INNNER PARTS)
3-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE) (INNNER PARTS)
(2/2)
4-SPOOL CONTROL VALVE (INNER PARTS) (1/2)
4-SPOOL CONTROL VALVE (INNNER PARTS) (2/2)
4-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE) (INNNER PARTS)
(1/2)
4-SPOOL CONTROL VALVE (WITH FORT RELIEF VALVE) (INNNER PARTS)
(2/2)
4-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE) (FOR PUSH POOL) (INNER PARTS) (1/2)
4-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE) (FOR PUSH POOL) (INNER PARTS) (2/2)
4-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE AND SHUT OFF VALVE) (INNER PARTS) (1/2)
4-SPOOL CONTROL VALVE (WITH PORT RELIEF VALVE AND SHUT OFF VALVE) [INNER PARTS) (2/2)
2-SPOOL CONTROL VALVE LEVER
3-SPOOL CONTROL VALVE LEVER
4-BPOOL CONTROL VALVE LEVER
TILE CYLINDER (TILT ANGLE 6/12)
TILT CYLINDER (TILT ANGLE 6/6)
POWER STEERING CYLINDER
TANK COVER (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D13,123,G1,
HYDRAULIC PIPING (PUMP TO CONTROL VALVE) (D1, D2)
HYDRAULIC PIPING (PUMP TO CONTROL VALVE) (D18,028)
HYDRAULIC PIPING (PUMP TO CONTROL VALVE) (D1J,D2J)
HYDRAULIC PIPING (PUMP TO CONTROL VALVE) (DRY CLUTCH AND TORQUE CONVERTER SPEC) (G1, G1H, G2, G28)
HYDRAULIC PIPING (TILT CYLINDER LINE)
HYDRAULIC PIPING (POWER STEERING LINE) (1/2)
HYDRAULIC PIPING (POWER STEERING LINE) (2/2)
HYDRAULIC PIPING (RETURN LINE) (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1,DLJ,D2,D2J,G1,01H, 02, 02H)
HYDRAULIC PIPING (RETURN LINE) (DRY CLUTCH AND TORQUE CONVERTER SPEC) (DLH, D2H)
HYDRAULIC PIPING (LIFT CYLINDER LINE)
HYDRAULIC PIPING (POWER STEERING RETURN LINE)
HYDRAULIC PIPING (CONTROL VALVE SUCTION TUBE)
HYDRAULIC PIPING (OIL COOLER LINE) (DRY CLUTCH AND TORQUE CONVERTER SPEC) (D1, D2)
SO MAST AND BOOM
MAST (1/2) (NAST AND LIFT CYLINDER) (D1, D1H, DJ, G1, 1H)
MAST (2/2) (NAST ATTACHING PARTS) (D1, D1H,D13,G1,G1) MAST (1/2)
(MAST AND LIFT CYLINDER) (D2,D2H, D2J, G2, G2H) MAST (2/2) (KAST ATTACHING PARTS) (D2, D2H, D23,02,02Π½) LIFT CYLINDER (FOR 30M TO 37M
MAST) (D1, D1, D1J,G1, G1H)- LIFT CYLINDER (YOR 30M TO 37K MAST) (D2,D2,D23,02,028)
LIFT CYLINDER (FOR 40M TO 50M
MAST) (D1, D1, D13,01,018)
LIFT CYLINDER (FOR 40M TO 50M HAST) (D2,D2H,D2JG2, G2H)
LIFT CYLINDER (FOR 55M AND 60M MAST)
HAST PIPING (RETURN LINE) (DRY CLUTCH AND TORQUE CONVERTER SPEC)
FORK CARRIAGE(D2, D2H, D2J, G2, G2H)
BACK REST
FORK (D1, DiH, DIJ,01,01Π½)
FORK (D2, D2H, D2J, G2,021)
HINGED FORK
VO MARKS AND PLATES
MARKS AND PLATES
NO MISCELLANEOUS
TOOL
ACCESSORY
XO SERVICE KIT
KIT (1/2)
KIT (2/2)
99 NUMERICAL INDEX
