Komatsu Hydraulic Excavator PC750SE-7K PC750LC-7K Shop Manual UEBM002400 PDF

Description

Komatsu Hydraulic Excavator PC750SE-7K PC750LC-7K Shop Manual UEBM002400 – PDF DOWNLOAD

FILE DETAILS:

Komatsu Hydraulic Excavator PC750SE-7K PC750LC-7K Shop Manual UEBM002400 – PDF DOWNLOAD

Language : English
Pages :812
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Komatsu Hydraulic Excavator PC750SE-7K PC750LC-7K Shop Manual UEBM002400 – PDF DOWNLOAD

MACHINE MODEL SERIAL NUMBER
PC750SE-7K 00 K40001 AND UP
PC750LC-7K 00 K40001 AND UP

FOREWORD
GENERAL
This shop manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an
accurate understanding of the product and by showing him the correct way to perform repairs and make judgements.
Make sure you understand the contents of this manual and use it to full effect at every opportunity.
This shop manual mainly contains the necessary technical information for operations performed in a service
workshop. For ease of understanding, the manual is divided into the following chapters; these chapters are further
divided into the each main group of components.
STRUCTURE AND FUNCTION
This section explains the structure and function of each component. It serves not only to give an understanding
of the structure, but also serves as reference material for troubleshooting.
In addition, this section may contain hydraulic circuit diagrams, electric circuit diagrams, and maintenance
standards.
TESTING AND ADJUSTING
This section explains checks to be made before and after performing repairs, as well as adjustments to
be made at completion of the checks and repairs.
Troubleshooting charts correlating “Problems” with “Causes” are also included in this section.
DISASSEMBLY AND ASSEMBLY
This section explains the procedures for removing, installing, disassembling and assembling each component,
as well as precautions for them.
MAINTENANCE STANDARD
This section gives the judgment standards for inspection of disassembled parts.
The contents of this section may be described in STRUCTURE AND FUNCTION.
OTHERS
This section mainly gives hydraulic circuit diagrams and electric circuit diagrams.
In addition, this section may give the specifications of attachments and options together.

TABLE OF CONTENTS:

Komatsu Hydraulic Excavator PC750SE-7K PC750LC-7K Shop Manual UEBM002400 – PDF DOWNLOAD

MACHINE MODEL SERIAL NUMBER
PC750SE-7K 00 K40001 AND UP
PC750LC-7K 00 K40001 AND UP

Forewordpdf 0
SAFETY 3
SAFETY NOTICE 3
IMPORTANT SAFETY NOTICE 3
GENERAL PRECAUTIONS 3
PREPARATIONS FOR WORK 3
PRECAUTIONS DURING WORK 4
FOREWORD 5
GENERAL 5
STRUCTURE AND FUNCTION 5
TESTING AND ADJUSTING 5
DISASSEMBLY AND ASSEMBLY 5
MAINTENANCE STANDARD 5
OTHERS 5
HOW TO READ THE SHOP MANUAL 6
VOLUMES 6
DISTRIBUTION AND UPDATING 6
FILING METHOD 6
REVISED EDITION MARK 6
REVISIONS 6
SYMBOLS 6
HOISTING INSTRUCTIONS 7
HOISTING 7
WIRE ROPES 7
METHOD OF DISASSEMBLING, CONNECTING PUSH-PULL TYPE COUPLER 8
Disconnection 8
Connection 8
COATING MATERIALS 10
STANDARD TIGHTENING TORQUE 12
STANDARD TIGHTENING TORQUE TABLE (WHEN USING TORQUE WRENCH) 12
TABLE OF TIGHTENING TORQUES FOR FLARED NUTS 12
TABLE OF TIGHTENING TORQUES FOR SPLIT FLANGE BOLTS 13
TABLE OF TIGHTENING TORQUES FOR O-RING BOSS PIPING JOINTS 13
TABLE OF TIGHTENING TORQUES FOR O-RING BOSS PLUGS 13
TIGHTENING TORQUE FOR 102 ENGINE SERIES (BOLT AND NUTS) 14
TIGHTENING TORQUE FOR 102 ENGINE SERIES (EYE JOINTS) 14
TIGHTENING TORQUE FOR 102 ENGINE SERIES (TAPERED SCREWS) 14
ELECTRIC WIRE CODE 15
CLASSIFICATION BY THICKNESS 15
CLASSIFICATION BY COLOR AND CODE 15
CONVERSION TABLE 16
METHOD OF USING THE CONVERSION TABLE 16
EXAMPLE 16
Millimeters to inches 16
Millimeters to Inches 17
Kilogram to Pound 17
Liter to US Gallon 18
Liter to UK Gallon 18
kgm to ft lb 19
kg/cm2 to lb/in2 20
Temperature 21
UNITS 22
Example: 22
01pdf 0
01 GENERAL 23
SPECIFICATION DRAWINGS 24
SPECIFICATIONS 26
WEIGHT TABLE 31
FUEL, COOLANT AND LUBRICANTS 33
10pdf 0
10 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD 35
PTO 36
PTO LUBRICATION SYSTEM 37
POWER TRAIN 38
SWING MACHINERY 40
SWING CIRCLE 42
FINAL DRIVE 44
TRACK FRAME AND RECOIL SPRING 46
IDLER 48
CARRIER ROLLER 50
TRACK ROLLER 51
TRACK SHOE 52
MOTOR GREASE PUMP 57
HYDRAULIC TANK 58
HYDRAULIC PUMP 60
RETURN OIL FILTER 90
LINE OIL FILTER 91
PILOT OIL FILTER 91
DRAIN OIL FILTER 92
LH 5-SPOOL CONTROL VALVE 94
RH 4-SPOOL CONTROL VALVE100
STRAIGHT-TRAVEL VALVE106
SWING MOTOR109
CENTER SWIVEL JOINT114
TRAVEL MOTOR115
PPC CONTROL RELIEF VALVE125
PPC ACCUMULATOR126
VALVE CONTROL127
WORK EQUIPMENT, SWING PPC VALVE128
TRAVEL PPC VALVE134
SOLENOID VALVE138
HYDRAULIC CYLINDER144
WORK EQUIPMENT146
DIMENSIONS OF WORK EQUIPMENT148
AIR CONDITIONER150
ENGINE CONTROL151
MACHINE CONTROL SYSTEM157
MONITOR SYSTEM186
SENSORS201
20pdf 0
20 TESTING AND ADJUSTING205
STANDARD VALUE TABLE FOR ENGINE204
STANDARD VALUE TABLE FOR CHASSIS207
20_101pdf 0
TESTING AND ADJUSTING217
TOOLS FOR TESTING, ADJUSTING AND TROUBLESHOOTING 36
MEASURING ENGINE SPEED220
MEASURING INTAKE AIR PRESSURE (BOOST PRESSURE)221
MEASUREMENT OF EXHAUST GAS TEMPERATURE222
MEASUREMENT OF EXHAUST GAS COLOR223
ADJUSTING VALVE CLEARANCE224
MEASURING COMPRESSION PRESSURE204
MEASURING BLOW-BY PRESSURE227
MEASURING ENGINE OIL PRESSURE228
HANDLING OF FUEL SYSTEM EQUIPMENT229
REMAINING PRESSURE RELIEF FROM FUEL SYSTEM EQUIPMENT229
MEASUREMENT OF FUEL PRESSURE230
AIR BLEEDING FROM FUEL CIRCUIT231
INSPECTION OF LEAKAGE FROM FUEL SYSTEM233
ADJUSTING ENGINE SPEED SENSOR214
TESTING AND ADJUSTING FAN BELT TENSION235
TESTING AND ADJUSTING ALTERNATOR BELT TENSION236
TESTING AND ADJUSTING AIR CONDITIONER COMPRESSOR BELT237
INSPECTION OF SWING CIRCLE BEARING CLEARANCE238
TESTING AND ADJUSTING TRACK SHOE TENSION239
TESTING AND ADJUSTING WORK EQUIPMENT, SWING, AND TRAVEL CIRCUIT OIL PRESSURES240
TESTING AND ADJUSTING CONTROL CIRCUIT OIL PRESSURE245
TESTING AND ADJUSTING PISTON PUMP CONTROL PRESSURE213
INSPECTION OF SERVO PISTON STROKE252
MEASUREMENT OF PPC VALVE OUTPUT PRESSURE253
MEASURING OUTLET PRESSURES OF SOLENOID VALVE, SWING PPC SHUTTLE VALVE, AND SWING PRIORITY SELECTO256
ADJUSTING WORK EQUIPMENT, SWING PPC VALVE261
TESTING AND ADJUSTING TRAVEL DEVIATION262
INSPECTION OF LOCATIONS OF HYDRAULIC DRIFT OF WORK EQUIPMENT264
MEASURING OIL LEAKAGE265
RELEASE OF RESIDUAL PRESSURE FROM HYDRAULIC CIRCUIT269
BLEEDING AIR FROM EACH PART270
INSPECTION PROCEDURES FOR DIODE273
SPECIAL FUNCTION OF MONITOR PANEL274
HANDLING ENGINE CONTROLLER HIGH VOLTAGE CIRCUIT301
PREPARATION WORK302
20_101Apdf 0
Pm-CLINIC SERVICE304
Positions to install measuring devices (Related to engine and PTO)218
Positions to install measuring devices (Related to relief pressure and OLSS oil pressure)307
Pm-CLINIC SERVICE PC750 (LC, SE)310
Arm310
1 Arm cylinder bracket310
2 Arm foot310
3 Arm top boss310
Boom310
4 Boom top bracket310
5 Boom cylinder bracket310
6 Arm cylinder bracket310
7 Boom lower plate310
8 Boom foot310
Revolving frame310
9 Boom bracket310
Track frame310
10 Circle bracket310
11 Track frame mounting section310
Visual check of welded structures (For PC750SE-7)311
Arm311
1 Arm cylinder bracket311
2 Arm foot311
3 Arm top boss311
Boom311
4 Boom top bracket311
5 Boom cylinder bracket311
6 Arm cylinder bracket311
7 Boom lower plate311
8 Boom foot311
Revolving frame311
9 Boom bracket311
Track frame311
10 Circle bracket311
11 Track frame mounting section311
UNDERCARRIAGE INSPECTION312
(Program form No: ***************)312
20_201pdf 0
TROUBLESHOOTING217
POINTS TO REMEMBER WHEN TROUBLESHOOTING314
SEQUENCE OF EVENTS IN TROUBLESHOOTING310
POINTS TO REMEMBER WHEN CARRYING OUT MAINTENANCE316
CHECKS BEFORE TROUBLESHOOTING324
CLASSIFICATION AND STEPS FOR TROUBLESHOOTING325
Classification of troubleshooting281
Steps for troubleshooting281
Failure-looking Phenomenon and Troubleshooting No326
CONNECTOR LOCATION CHART AND ELECTRICAL CIRCUIT DIAGRAM BY SYSTEM329
Connector table329
Connector Location Stereogram334
Monitor Panel System Circuit Diagram (M Circuit)340
Engine Control System Circuit Diagram (E Ciruit)342
Pump Controller System Circuit Diagram (P Circuit)344
CONNECTION TABLE FOR CONNECTOR PIN NUMBERS346
T-BRANCH BOX AND T-BRANCH TABLE368
20_301pdf 0
TROUBLESHOOTING WHEN ERROR CODE “ELECTRICAL SYSTEM” AND FAILURE CODE “MECHANICAL SYSTEM” ARE DISP371
BEFORE CARRYING OUT TROUBLESHOOTING OF DISPLAYED CODE287
INFORMATION CONTAINED IN TROUBLESHOOTING TABLE376
Error Code in Electrical System E112 (Wiper Drive (For) S/C)378
Error Code in Electrical System E113 (Wiper Drive (Rev) S/C)382
Error Code in Electrical System E114 (Washer Drive S/C)384
Error Code in Electrical System E115 (Wiper Working Abnormality)386
Error Code in Electrical System E116 (Wiper Parking Abnormality)388
Error Code in Electrical System E117 (Eng Controller S-NET Comm Err)392
Error Code in Electrical System E118 (Pump Controller S-NET Comm Err)394
Error Code in Electrical System E128 (Monitor Comm Abnormality)396
Error Code in Electrical System E201 (CO Cancel Sol S/C)398
Error Code in Electrical System E202 (Travel Junction Sol S/C)400
Error Code in Electrical System E203 (Swing Brake Sol S/C)402
Error Code in Electrical System E204 (2-stage Relief Sol S/C)404
Error Code in Electrical System E205 (Swing Priority Sol S/C)406
Error Code in Electrical System E206 (Travel Speed Sol S/C)408
Error Code in Electrical System E207 (Flash Light Relay S/C)410
Error Code in Electrical System E211 (CO Cancel Sol Disc)412
Error Code in Electrical System E212 (Travel Junction Sol Disc)414
Error Code in Electrical System E213 (Swing Brake Sol Disc)416
Error Code in Electrical System E214 (2-stage Relief Sol Disc)418
Error Code in Electrical System E215 (Swing Priority Sol Disc)420
Error Code in Electrical System E216 (Travel Speed Sol Disc)422
Error Code in Electrical System E217 (Model selection Abnormality)424
Error Code in Electrical System E218 (S-Net Comm Disc)426
Error Code in Electrical System E221 (Travel Alarm S/C)428
Error Code in Electrical System E224 (F Pump P Sensor Abnormality)430
Error Code in Electrical System E225 (R Pump P Sensor Abnormality)432
Error Code in Electrical System E226 (Press Sensor Power Abnormality)434
Error Code in Electrical System E227 (Engine Speed Sensor Abnormality)436
Error Code in Electrical System E232 (TVC Sol S/C)438
Error Code in Electrical System E233 (TVC Sol Disc)440
Error Code in Electrical System E257 (Pump Comm Abnormality)442
Error Code in Electrical System E302 (Step Light Relay S/C)444
Error Code in Electrical System E304 (Step Light Power Hold Relay S/C)446
Error Code in Electrical System E315 (Battery Relay Drive S/C)448
Error Code in Electrical System E91B (Engine Ne sensor problem)450
Error Code in Electrical System E91C (Engine G sensor problem)451
Error Code in Electrical System E920 (Engine type selection error)452
Error Code in Electrical System E921 (Engine type mismatch)454
Error Code in Electrical System E931 (Fuel dial sys error)456
Error Code in Electrical System E934 (Engine coolant sensor Hi error)458
Error Code in Electrical System E936 (Engine oil press sw error)460
Error Code in Electrical System E93C (Engine boost sensor error)462
Error Code in Electrical System E93D (Engine fuel temp sensor error)464
Error Code in Electrical System E953 (Engine Comm Abnormality)466
Error Code in Electrical System E954 (Short engine starter sw)468
Error Code in Electrical System E955 (Engine S-NET error)470
Error Code in Electrical System E956 (Engine power failure (1))472
Error Code in Electrical System E957 (Engine power failure (2))474
Error Code in Electrical System E95A (Engine Q-adj sw signal error)476
Error Code in Electrical System E96A (Engine coolant sensor Lo error)478
Error Code in Electrical System E970 (PCV1 over current)480
Error Code in Electrical System E971 (PCV2 over current)482
Error Code in Electrical System E974 (PCV1 line cut)484
Error Code in Electrical System E975 (PCV2 line cut)486
Error Code in Electrical System E977 (Rail press sensor error)488
Error Code in Electrical System E979 (Rail press high)490
Error Code in Electrical System E97A (Rail press abnormal)490
Error Code in Electrical System E97B (Rail press low)491
Error Code in Electrical System E97C (Rail press too low)493
Error Code in Electrical System E97D (Rail press out of control)493
Error Code in Electrical System E980 (Eng Controller Abnormality)494
Error Code in Electrical System E981 (Fuel Injector 1 Disc)496
Error Code in Electrical System E982 (Fuel Injector 2 Disc)497
Error Code in Electrical System E983 (Fuel Injector 3 Disc)498
Error Code in Electrical System E984 (Fuel Injector 4 Disc)499
Error Code in Electrical System E985 (Fuel Injector 5 Disc)500
Error Code in Electrical System E986 (Fuel Injector 6 Disc)501
Error Code in Electrical System E98A (Fuel Injector 1 – 3 S/C)502
Error Code in Electrical System E98B (Fuel Injector 4 – 6 S/C)504
Failure Code in Mechanical System A000N1 (Eng Hi Out of Std)507
Failure Code in Mechanical System AA10NX (Aircleaner Clogging)508
Failure Code in Mechanical System AB00KE (Charge Voltage Low)510
Failure Code in Mechanical System B@BAZG (Eng Oil Press Low)512
Failure Code in Mechanical System B@BAZK (Eng Oil Level Low)514
Failure Code in Mechanical System B@BCNS (Eng Water Overheat)515
Failure Code in Mechanical System B@BCZK (Eng Water Lvl Low)516
Failure Code in Mechanical System B@HANS (Hydr Oil Overheat)518
Failure Code in Mechanical System DA80MA (Auto Lub Abnormal)520
20_501pdf 0
TROUBLESHOOTING OF ELECTRICAL SYSTEM (E MODE)371
BEFORE CARRYING OUT TROUBLESHOOTING (E-MODE)287
INFORMATION CONTAINED IN TROUBLESHOOTING TABLE524
E-1 Engine does not start (Engine does not rotate)378
E-2 Preheater does not operate528
E-3 Auto engine warm-up device does not work530
E-4 Auto-decelerator does not operate531
E-5 All work equipment, swing and travel do not move532
E-6 Machine push-up function does not operate normally534
E-7 Boom shockless function does not operate normally536
E-8 Any item is not displayed on monitor panel538
E-9 Part of display on monitor panel is missing539
E-10 Monitor panel displays contents irrelevant to the model539
E-11 Fuel level monitor red lamp lights up while engine is running540
E-12 Engine water thermometer does not display normally542
E-13 Hydraulic oil temperature gauge does not display correctly544
E-14 Fuel gauge does not display correctly545
E-15 Swing lock monitor does not display correctly546
E-16 When monitor switch is operated, nothing is displayed548
E-17 Windshield wiper and window washer do not work550
E-18 Alarming buzzer cannot be cancelled558
E-19 “Boom RAISE” is not correctly displayed in monitor function559
E-20 “Boom LOWER” is not correctly displayed in monitor function560
E-21 “Arm IN” is not correctly displayed in monitor function561
E-22 “Arm OUT” is not correctly displayed in monitor function562
E-23 “Bucket CURL” is not correctly displayed in monitor function563
E-24 “Bucket DUMP” is not correctly displayed in monitor function564
E-25 “SWING” is not correctly displayed in monitor function566
E-26 “Left travel” is not displayed normally in monitoring function568
E-27 “Right travel” is not displayed normally in monitoring function570
E-28 “Service” is not correctly displayed in monitor function572
E-29 Air conditioner does not work574
E-30 Step light does not light up or go off575
E-31 Electric grease gun does not operate580
E-32 Travel alarm does not sound or does not stop sounding582
20_601pdf 0
TROUBLESHOOTING OF HYDRAULIC AND MECHANICAL SYSTEM (H MODE)371
BEFORE TROUBLESHOOTING FOR HYDRAULIC AND MECHANICAL SYSTEMS (H MODE)586
INFORMATION IN TROUBLESHOOTING TABLE591
H-1 Speed or power of all work equipment, travel, and swing is low378
H-2 Engine speed lowers remarkably or engine stalls594
H-3 All work equipment, travel, and swing systems do not work530
H-4 Abnormal sound is heard from around pump596
H-5 Boom speed or power is low531
H-6 Speed or power of arm is low599
H-7 Speed or power of bucket is low600
H-8 Boom does not move601
H-9 Arm does not move601
H-10 Bucket does not move601
H-11 Hydraulic drift of work equipment is large602
H-12 Time lag of work equipment is large604
H-13 Heavy lift function does not operate or stop605
H-14 Machine push-up function does not operate or stop605
H-15 Boom shockless function cannot be turned ON or OFF605
H-16 Machine deviates in one direction606
H-17 Machine deviates largely at start608
H-18 Machine deviates largely during compound operation609
H-19 Travel speed or power is low609
H-20 Machine does not travel (only one track)610
H-21 Travel speed does not change611
H-22 Upper structure does not swing612
H-23 Swing speed or acceleration is low613
H-24 Swing speed or acceleration is low during compound operation of swing and work equipment614
H-25 Upper structure overruns excessively when it stops swinging616
H-26 Large shock is made when upper structure stops swinging617
H-27 Large abnormal sound is made when upper structure stops swinging618
H-28 Hydraulic drift of swing is large619
20_701pdf 0
TROUBLESHOOTING OF ENGINE (S MODE)371
POINTS TO REMEMBER WHEN TROUBLESHOOTING622
METHOD OF USING TROUBLESHOOTING CHARTS623
S-1 Starting performance is poor (starting always takes time)626
S-2 Engine does not start627
S-3 Engine does not pick up smoothly (follow-up is poor)630
S-4 Engine stops during operations631
S-5 Engine does not rotate smoothly (hunting)632
S-6 Engine lacks output (or lacks power)633
S-7 Exhaust smoke is black (incomplete combustion)634
S-8 Oil consumption is excessive (or exhaust smoke is blue)635
S-9 Oil becomes contaminated quickly636
S-10 Fuel consumption is excessive637
S-11 Oil is in cooling water (or water spurts back, or water level goes down)638
S-12 Oil pressure caution lamp lights up (drop in oil pressure)639
S-13 Oil level rises (water, fuel in oil)640
S-14 Water temperature becomes too high (overheating)641
S-15 Abnormal noise is made642
S-16 Vibration is excessive643
30pdf 0
30 DISASSEMBLY AND ASSEMBLY645
METHOD OF USING MANUAL647
PRECAUTIONS WHEN CARRYING OUT OPERATION649
SPECIAL TOOL LIST651
REMOVAL AND INSTALLATION OF AFTERCOOLER CORE658
REMOVAL AND INSTALLATION OF FAN GUARD, RADIATOR AND HYDRAULIC OIL COOLER ASSEMBLY659
REMOVAL AND INSTALLATION OF FUEL COOLER AND AIR CONDITIONER CONDENSER ASSEMBLY662
REMOVAL AND INSTALLATION OF FUEL TANK ASSEMBLY663
REMOVAL AND INSTALLATION OF ENGINE, PTO AND HYDRAULIC PUMP ASSEMBLY664
REMOVAL AND INSTALLATION OF PTO ASSEMBLY668
DISASSEMBLY AND ASSEMBLY OF PTO ASSEMBLY670
DISASSEMBLY AND ASSEMBLY OF FINAL DRIVE ASSEMBLY673
REMOVAL AND INSTALLATION OF REVOLVING FRAME ASSEMBLY684
REMOVAL AND INSTALLATION OF SWING MACHINERY ASSEMBLY685
DISASSEMBLY AND ASSEMBLY OF SWING MACHINERY ASSEMBLY686
REMOVAL AND INSTALLATION OF SWING CIRCLE ASSEMBLY693
REMOVAL AND INSTALLATION OF TRACK SHOE ASSEMBLY694
DISASSEMBLY AND ASSEMBLY OF ONE LINK IN FIELD696
REMOVAL AND INSTALLATION OF IDLER ASSEMBLY700
DISASSEMBLY AND ASSEMBLY OF IDLER ASSEMBLY701
DISASSEMBLY AND ASSEMBLY OF IDLER ADJUSTMENT CYLINDER ASSEMBLY704
REMOVAL AND INSTALLATION OF RECOIL SPRING ASSEMBLY705
DISASSEMBLY AND ASSEMBLY OF RECOIL SPRING ASSEMBLY707
REMOVAL AND INSTALLATION OF CARRIER ROLLER ASSEMBLY709
DISASSEMBLY AND ASSEMBLY OF CARRIER ROLLER ASSEMBLY710
REMOVAL AND INSTALLATION OF TRACK ROLLER ASSEMBLY713
DISASSEMBLY AND ASSEMBLY OF TRACK ROLLER ASSEMBLY714
REMOVAL AND INSTALLATION OF HYDRAULIC TANK ASSEMBLY717
REMOVAL AND INSTALLATION OF MAIN PUMP (NO 1 PUMP) ASSEMBLY719
REMOVAL AND INSTALLATION OF MAIN PUMP (NO 2 PUMP)721
REMOVAL AND INSTALLATION OF MAIN PUMP INPUT SHAFT OIL SEAL723
REMOVAL AND INSTALLATION OF CONTROL AND PTO LUBRICATION PUMP ASSEMBLY724
DISASSEMBLY AND ASSEMBLY OF MAIN RELIEF VALVE ASSEMBLY725
REMOVAL AND INSTALLATION OF CONTROL VALVE ASSEMBLY726
DISASSEMBLY AND ASSEMBLY OF CONTROL VALVE ASSEMBLY (WORK EQUIPMENT)729
REMOVAL AND INSTALLATION OF SOLENOID VALVE ASSEMBLY732
REMOVAL AND INSTALLATION OF BOOM DAMPING VALVE ASSEMBLY734
REMOVAL AND INSTALLATION OF SWING MOTOR ASSEMBLY735
REMOVAL AND INSTALLATION OF CENTER SWIVEL JOINT737
DISASSEMBLY AND ASSEMBLY OF CENTER SWIVEL JOINT ASSEMBLY738
REMOVAL AND INSTALLATION OF TRAVEL MOTOR ASSEMBLY740
DISASSEMBLY AND ASSEMBLY OF WORK EQUIPMENT PPC VALVE ASSEMBLY741
DISASSEMBLY AND ASSEMBLY OF TRAVEL PPC VALVE ASSEMBLY743
REMOVAL AND INSTALLATION OF BUCKET CYLINDER ASSEMBLY745
REMOVAL AND INSTALLATION OF BUCKET CYLINDER ASSEMBLY747
REMOVAL AND INSTALLATION OF ARM CYLINDER ASSEMBLY749
REMOVAL AND INSTALLATION OF ARM CYLINDER ASSEMBLY751
REMOVAL AND INSTALLATION OF BOOM CYLINDER ASSEMBLY753
REMOVAL AND INSTALLATION OF BOOM CYLINDER ASSEMBLY755
REMOVAL AND INSTALLATION OF BOTTOM DUMP CYLINDER ASSEMBLY757
DISASSEMBLY AND ASSEMBLY OF HYDRAULIC CYLINDER ASSEMBLY758
REMOVAL AND INSTALLATION OF BUCKET ASSEMBLY764
REMOVAL AND INSTALLATION OF BUCKET ASSEMBLY765
REMOVAL AND INSTALLATION OF ARM ASSEMBLY766
REMOVAL AND INSTALLATION OF ARM ASSEMBLY768
REMOVAL AND INSTALLATION OF BOOM ASSEMBLY770
REMOVAL AND INSTALLATION OF BOOM ASSEMBLY772
REMOVAL AND INSTALLATION OF WORK EQUIPMENT774
REMOVAL AND INSTALLATION OF WORK EQUIPMENT776
REMOVAL AND INSTALLATION OF OPERATOR’S CAB ASSEMBLY778
REMOVAL AND INSTALLATION OF OPERATOR’S CAB GLASS (STUCK GLASS)780
REMOVAL AND INSTALLATION OF FRONT WINDOW ASSEMBLY790
REMOVAL AND INSTALLATION OF COUNTERWEIGHT ASSEMBLY796
HYDRAULIC CIRCUIT DIAGRAM801
ELECTRICAL CIRCUIT DIAGRAM (1/5)803
ELECTRICAL CIRCUIT DIAGRAM (2/5)805
ELECTRICAL CIRCUIT DIAGRAM (3/5)807
ELECTRICAL CIRCUIT DIAGRAM (4/5)809
ELECTRICAL CIRCUIT DIAGRAM (5/5)811

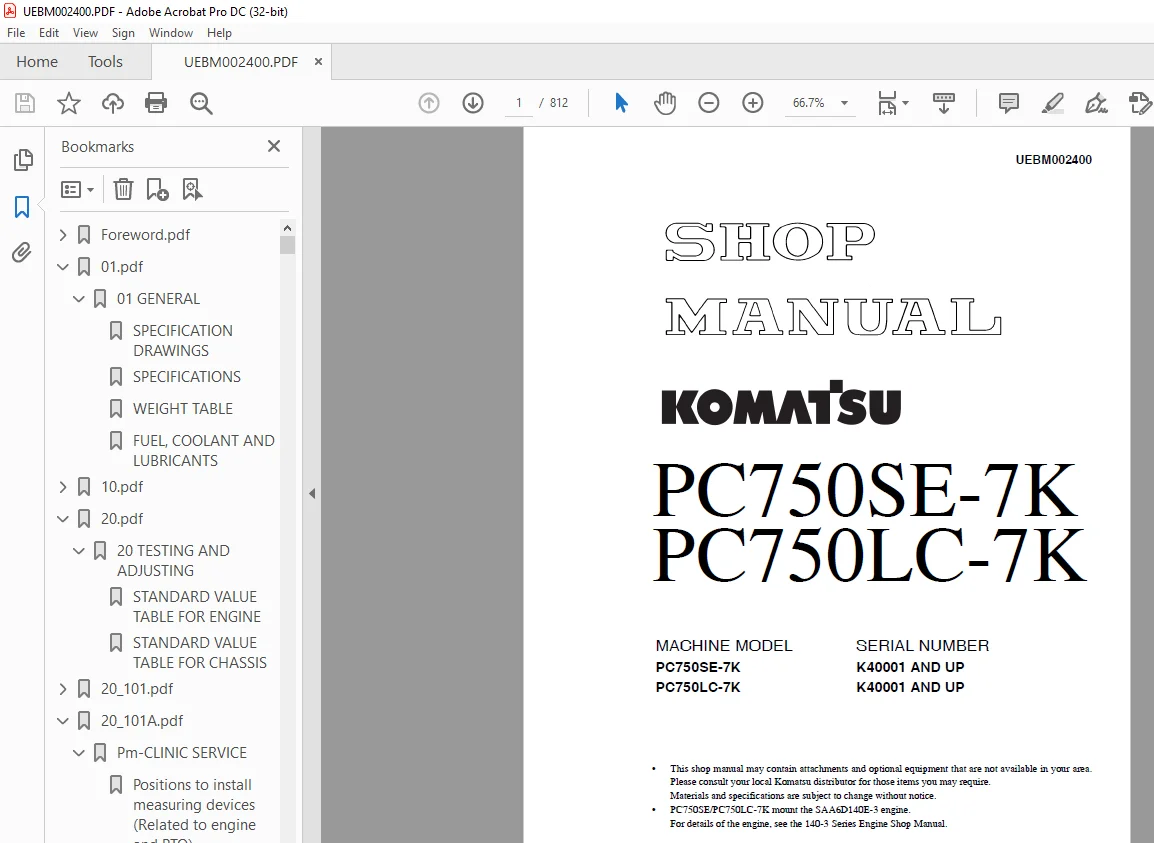

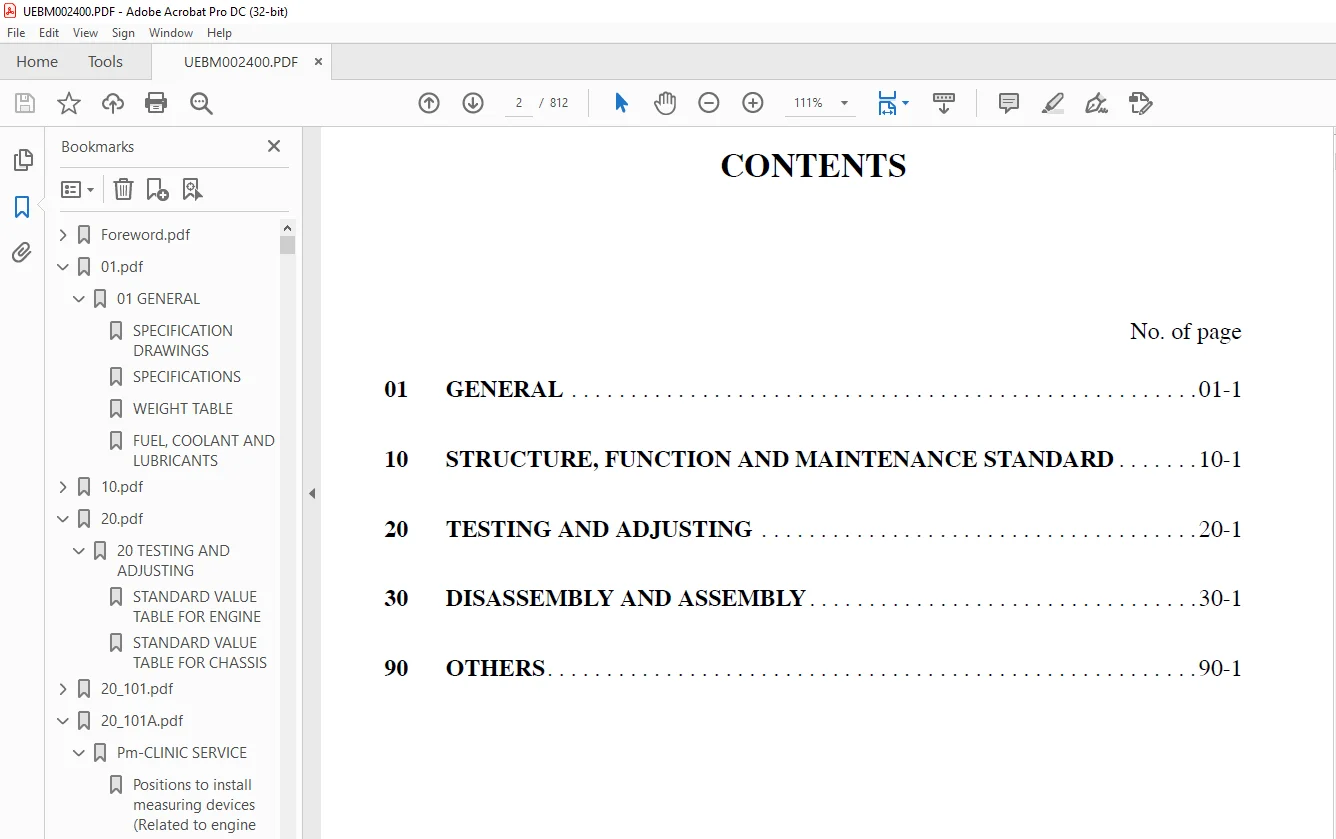

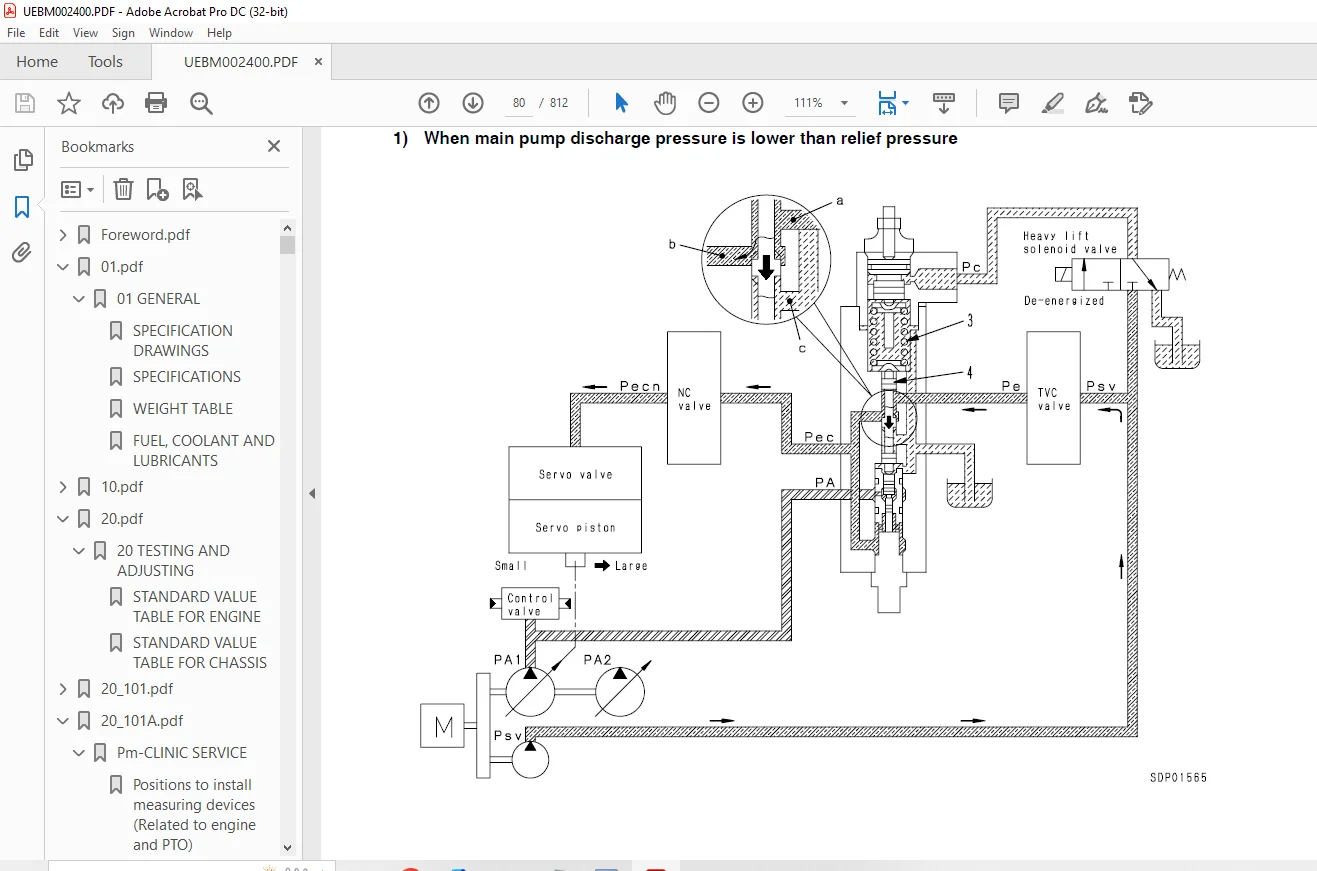

IMAGES PREVIEW OF THE MANUAL:

S.M 27/12/24
