KOMATSU JMHB360H-1 HYDRAULIC BREAKER SHOP MANUAL SEN06677-00 – PDF DOWNLOAD

Description

KOMATSU JMHB360H-1 HYDRAULIC BREAKER SHOP MANUAL SEN06677-00 – PDF DOWNLOAD

FILE DETAILS:

KOMATSU JMHB360H-1 HYDRAULIC BREAKER SHOP MANUAL SEN06677-00 – PDF DOWNLOAD

Language : English
Pages : 152
Downloadable : Yes
File Type : PDF

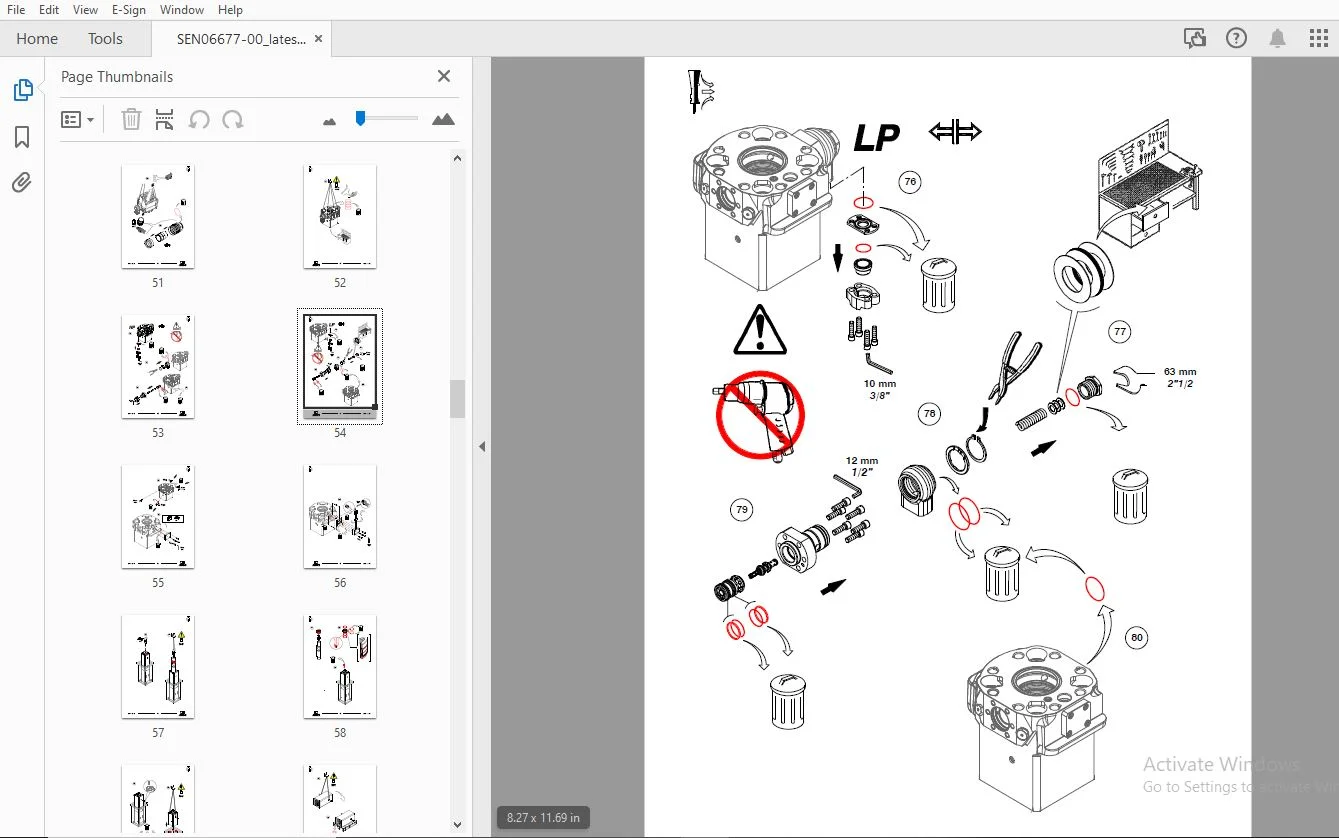

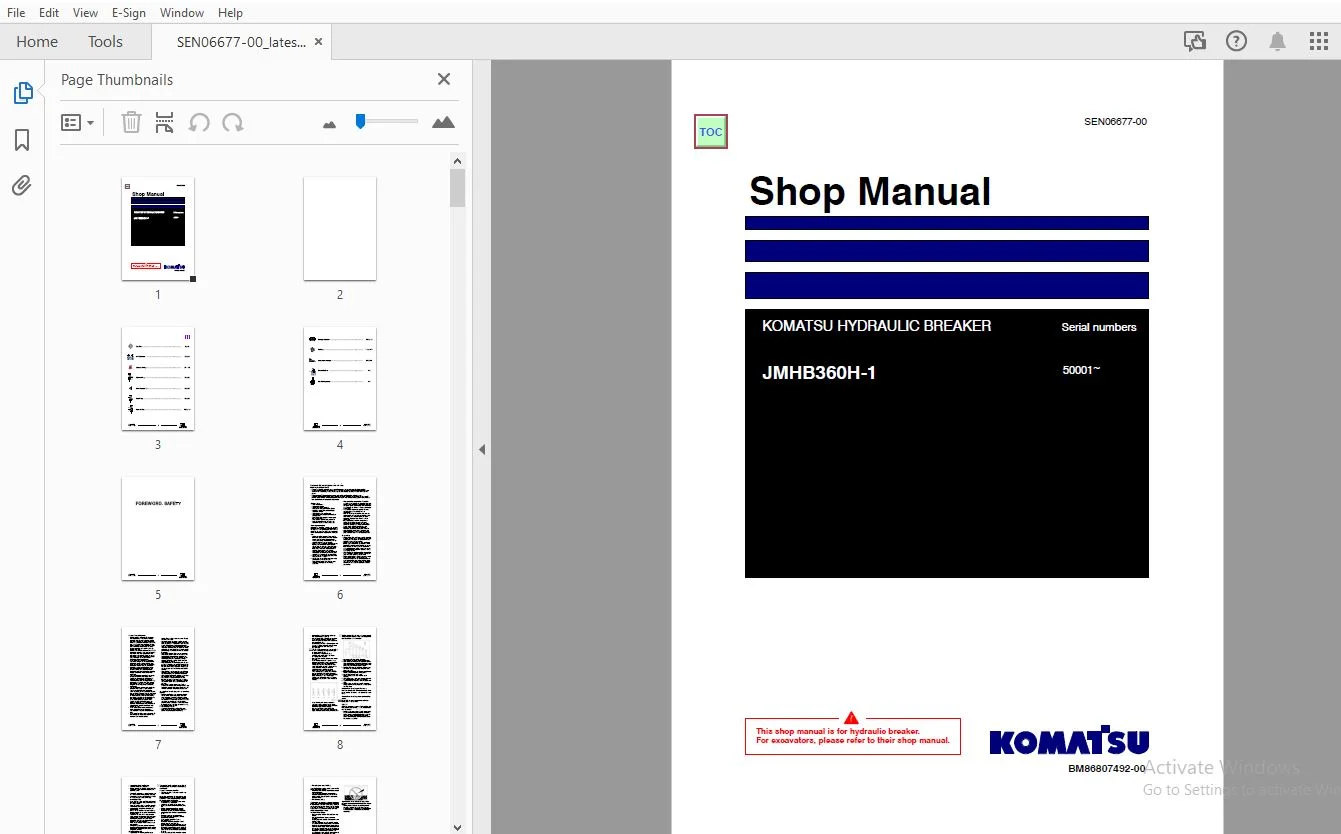

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

KOMATSU JMHB360H-1 HYDRAULIC BREAKER SHOP MANUAL SEN06677-00 – PDF DOWNLOAD

Shop manual JMHB360H-1......  1
	Print...................  0
TOC Shop Manual.............  3
Foreword, Safety............  5
ISO Symbols................. 23
Seals package BM86802717.... 25
Dismantling................. 27
Parts Inspections........... 66
Repairing................... 80
Assembling..................100
Energy chamber..............136
Tooling.....................140
Long term storage...........145
Pressurization..............148
Lubricating pump............149

DESCRIPTION:

KOMATSU JMHB360H-1 HYDRAULIC BREAKER SHOP MANUAL SEN06677-00 – PDF DOWNLOAD

General precautions
Inappropriate handling causes an extreme danger. Read and understand what is described in the operation and maintenance manual before operating the machine. Read and understand what is described in this manual before starting the work.
• Before performing any greasing or repairs, read all the safety labels stuck to the machine. For the locations of the safety labels and detailed explanation of precautions, see the operation and maintenance manual.
• Locate a place in the repair workshop to keep the tools and parts in their correct places. Always keep the work area clean and make sure that there is no dirt, water or oil on the floor. Smoke only in the areas provided for smoking. Never smoke while working.
• When performing any work, always wear the safety shoes and helmet. Do not wear loose work cloths, or clothes with buttons missing.
1. Always wear the protective eyeglasses when hitting parts with a hammer.
2. Always wear the protective eyeglasses when grinding parts with a grinder, etc.
• When performing any work with 2 or more workers, always agree on the working procedure.
• When performing any operation with multiple workers, always agree on the operating procedure before starting. Be clear in verbal communication, and observe hand signals. Hang “UNDER REPAIR” warning tag in the operator’s compartment before starting work.
• Only qualified workers must perform the work and operation which require license or qualification.
• Keep the tools in good condition. And learn the correct way to use the tools, and use the proper ones among them. Before starting the work, thoroughly check the tools, lift truck, service vehicle, etc.
• If welding repairs is required, always have a trained and experienced welder with good knowledge of welding perform the work. When performing welding work, always wear welding gloves, apron, shielding goggles, cap, etc.
• before starting work, warm up your body thoroughly to start work under good condition.
• Avoid continuing work for long hours and take rests with proper intervals to keep your body in good condition. Take a rest in a specified place.

S.S 20/12/24
