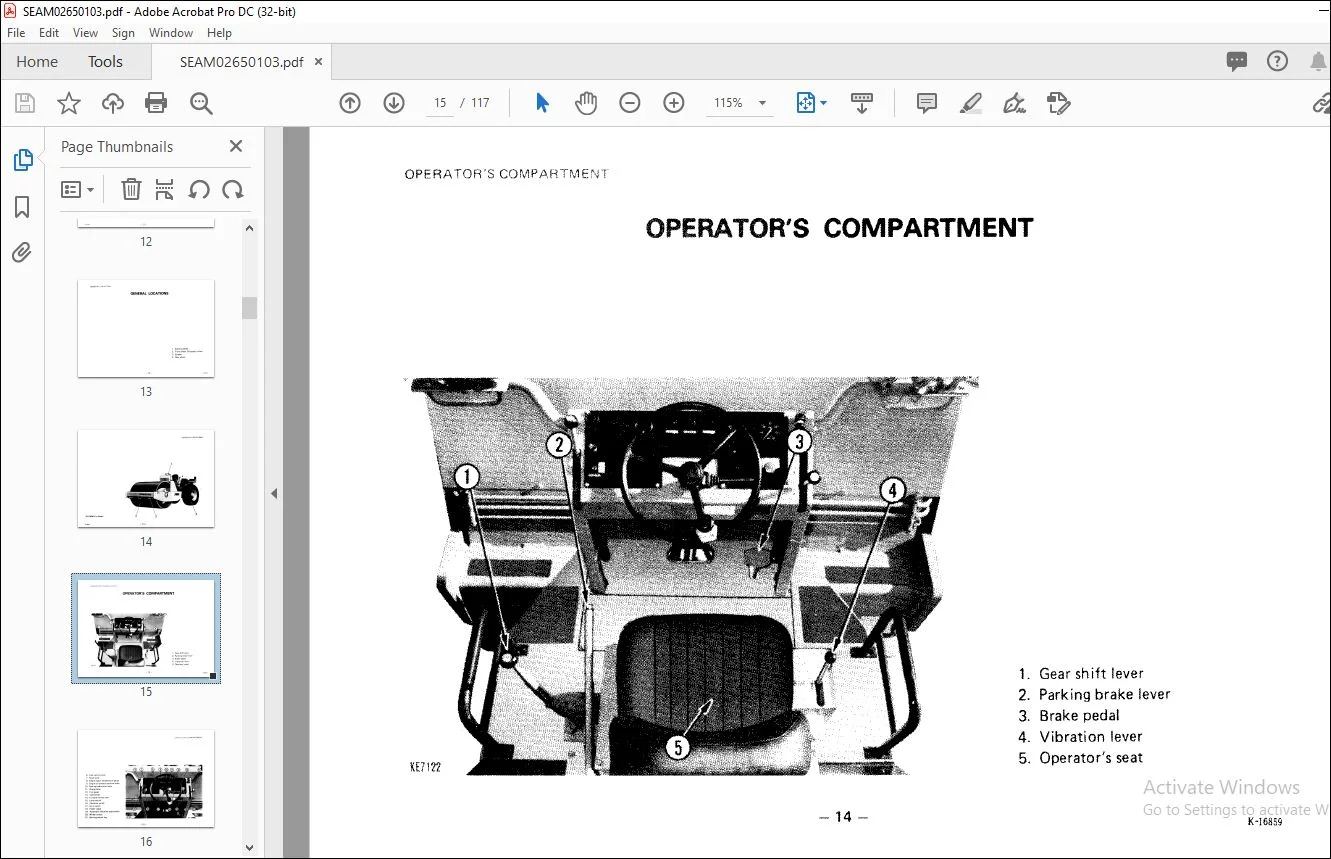

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

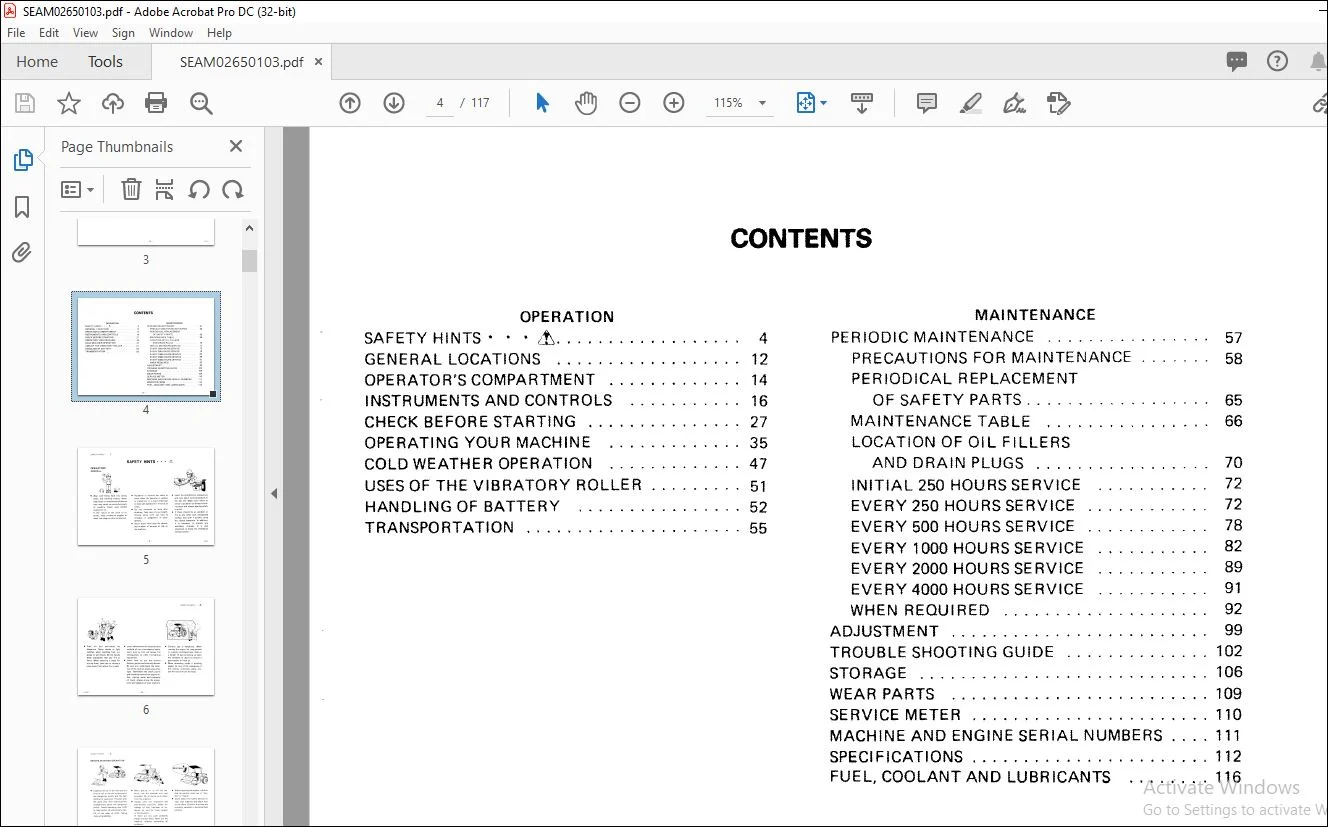

TABLE OF CONTENTS:

Komatsu JV100A 100WA-1 JV100WP-1 VIBRATORY ROLLER 1 Operation & Maintenance Manual SEAM02650103 – PDF DOWNLOAD

COVER 1
FOREWORD 2
BREAKING IN YOUR NEW MACHINE 3
CONTENTS 4
SAFETY HINTS 5
GENERAL LOCATIONS 13
OPERATOR’S COMPARTMENT 15
INSTRUMENTS AND CONTROLS 17
CHECK BEFORE STARTING 28
OPERATING YOUR MACHINE 36
COLD WEATHER OPERATION 47
USES OF THE VIBRATORY ROLLER 51
HANDLING OF BATTERY 52
TRANSPORTATION 55
PERIODIC MAINTENANCE 57
PRECAUTIONS FOR MAINTENANCE 58
PERIODICAL REPLACEMENT OF SAFETY PARTS 65
MAINTENANCE TABLE 66
LOCATION OF OIL FILLERS AND DRAIN PLUGS 69
INITIAL 250 HOURS SERVICE 71
EVERY 250 HOURS SERVICE 71
EVERY 500 HOURS SERVICE 77
EVERY 1000 HOURS SERVICE 81
EVERY 2000 HOURS SERVICE 88
EVERY 4000 HOURS SERVICE 90
WHEN REQUIRED 91
ADJUSTMENT 98
TROUBLE SHOOTING GUIDE 101
STORAGE 105
WEAR PARTS 107
SERVICE METER 108
MACHINE AND ENGINE SERIAL NUMBERS 109
SPECIFICATIONS 110
FUEL,COOLANT AND LUBRICANTS 114

DESCRIPTION:

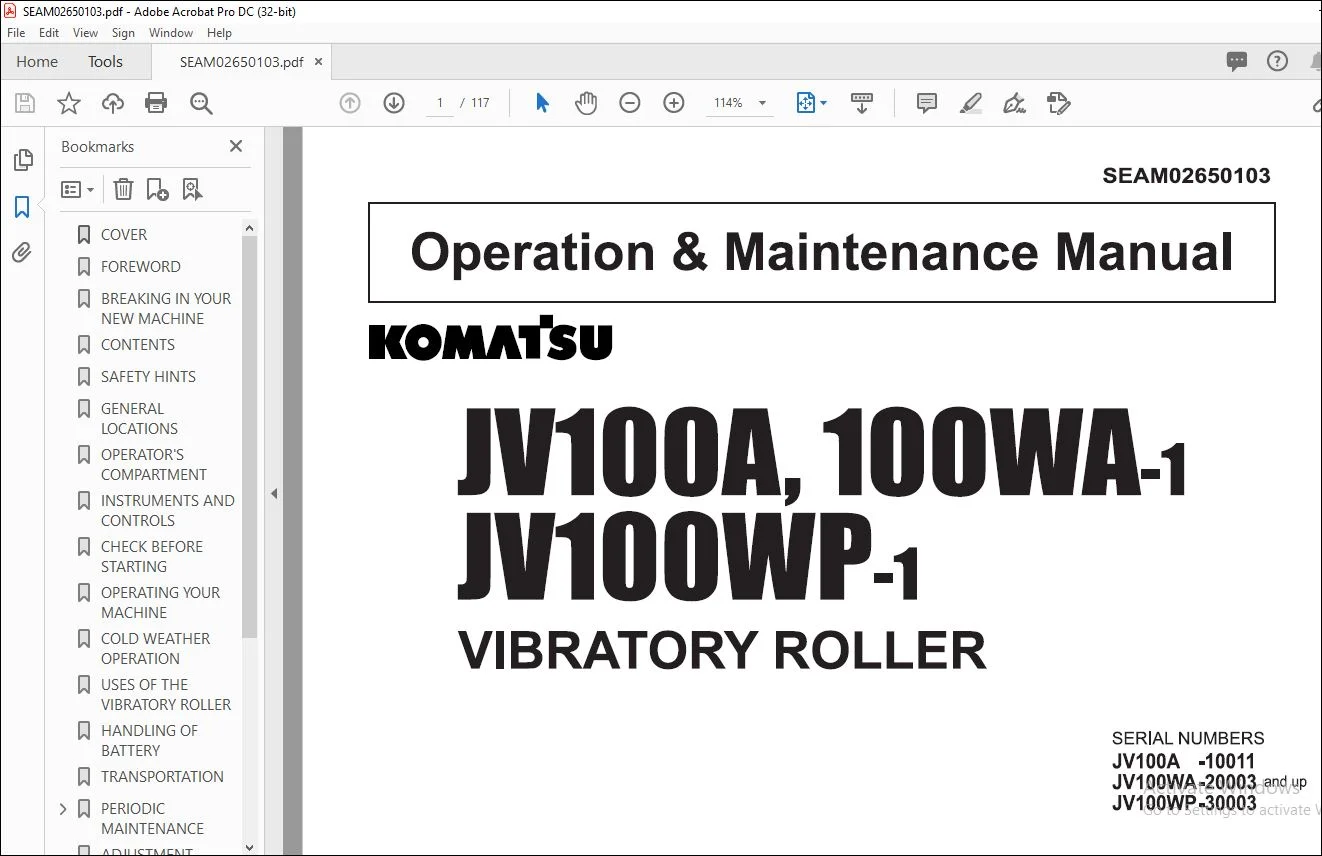

Komatsu JV100A 100WA-1 JV100WP-1 VIBRATORY ROLLER 1 Operation & Maintenance Manual SEAM02650103 – PDF DOWNLOAD

SERIAL NUMBERS
JV100A -10011 and up
JV100WA-20003 and up
JV1 00WP-30003 and up

FOREWORD:
This manual describes procedures for operation, handling, lubrication, main·
tenance, checking, and adjustment. lt will help the operator or anyone realize
peak performance through effective, economical and safe machine operation and
maintenance.
• Please read this manual carefully BEFORE operating the machine.
• Please continue studying this manual until proper operation is completely
reinforced into persona! habit.
• This manual describes the basic techniques. Skill is performed as the operator
or anyone get the correct knowledge and performance of the machine.
• Operation, inspection, and maintenance should be caretully carried out, and
the safety must be given the first priority. Safety precautions are indicated
with ~ marks and technical precautions with * marks in this manual.
The safety information contained in this manual is intended only to supple·
ment safety codes, insurance requirements, local laws, rules and regulations.
• Sorne photographs and illustration pictures are different from your machine as
technical improvement is continuously reflected on it. Revision to up-to-date
manual ‘s content is performed in later editions.
• This operation & maintenance manual may contain attachments and optional
equipment that are not available in your area. Please consult your local
Komatsu distributor for those items you may require.
Materials and specifications are subject to change without notice.
