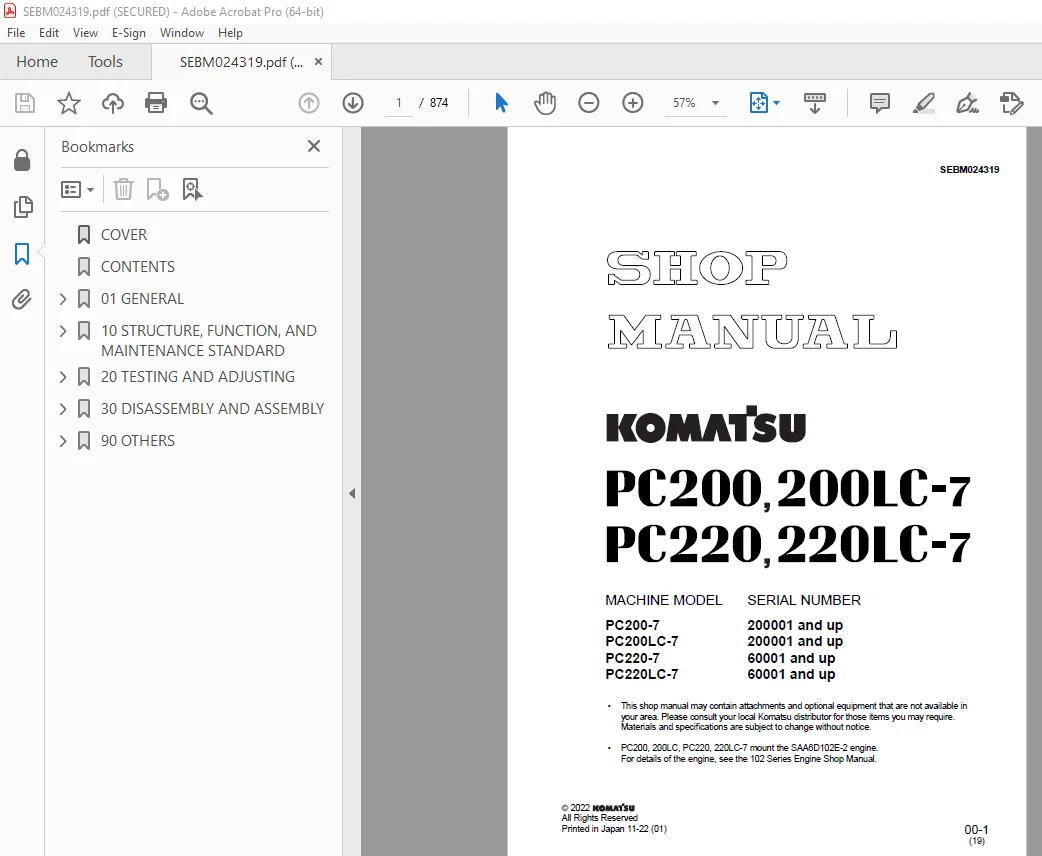

Komatsu PC200-7 PC200LC-7 PC220-7 PC220LC-7 Excavator Shop Manual SEBM024319 PDF

Description

Komatsu PC200-7 PC200LC-7 PC220-7 PC220LC-7 Excavator Shop Manual SEBM024319 – PDF DOWNLOAD

FILE DETAILS:

Komatsu PC200-7 PC200LC-7 PC220-7 PC220LC-7 Excavator Shop Manual SEBM024319 – PDF DOWNLOAD

Language : English
Pages : 874
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Komatsu PC200-7 PC200LC-7 PC220-7 PC220LC-7 Excavator Shop Manual SEBM024319 – PDF DOWNLOAD

MACHINE MODEL       SERIAL NUMBER
PC200-7                            200001 and up
PC200LC-7                       200001 and up
PC220-7                           60001 and up
PC220LC-7                      60001 and up

HOW TO READ THE SHOP MANUAL
1. Composition of shop manual
This shop manual contains the necessary technical information for services performed in a workshop. For
ease of understanding, the manual is divided into the following sections.
00. FOREWORD
This section explains the safety and basic information.
01. GENERAL
This section explains the specifications of the machine.
10. STRUCTURE AND FUNCTION, MAINTENANCE STANDARD
This section explains the structure, function, and maintenance standard values of each component.
The structure and function sub-section explains the structure and function of each component. It
serves not only to give an understanding of the structure, but also serves as reference material for
troubleshooting. The maintenance standard sub-section explains the criteria and remedies for disassembly
and service.
20. TESTING AND ADJUSTING
Standard value table
This section explains the standard values for new machine and judgement criteria for testing, adjusting,
and troubleshooting. This standard value table is used to check the standard values in testing and
adjusting and to judge parts in troubleshooting.
Testing and adjusting
This section explains measuring instruments and measuring methods for testing and adjusting, and
method of adjusting each part. The standard values and judgement criteria for testing and adjusting
are explained in Testing and adjusting.
Troubleshooting
This section explains how to find out failed parts and how to repair them. The troubleshooting is divided
by failure modes. The “S mode” of the troubleshooting related to the engine may be also explained in
the Chassis volume and Engine volume. In this case, see the Chassis volume.

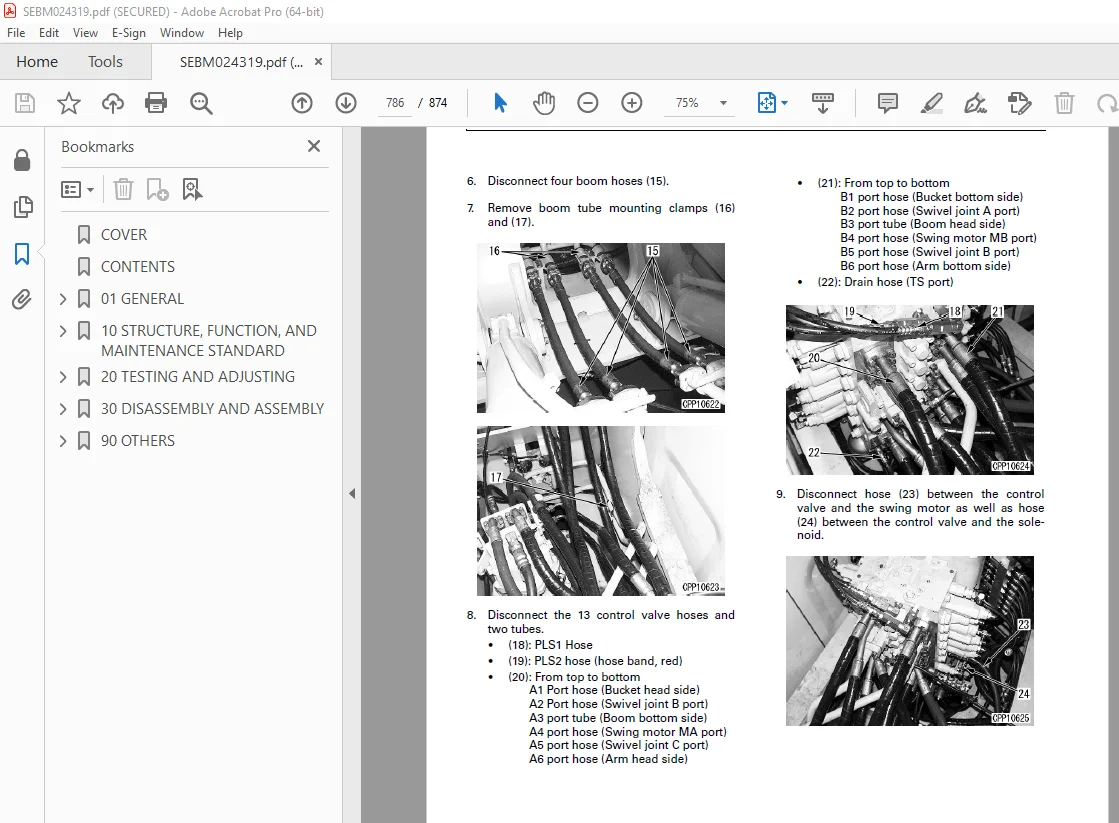

30. DISASSEMBLY AND ASSEMBLY
This section explains the special tools and procedures for removing, installing, disassembling, and
assembling each component, as well as precautions for them. In addition, tightening torque and quantity
and weight of coating material, oil, grease, and coolant necessary for the work are also explained.
90. OTHERS (chassis volume)/Repair and replacement of parts (engine volume)
• Chassis volume
This section gives hydraulic circuit diagrams and electrical circuit diagrams.
• Engine volume
This section explains the method of reproducing, repairing, and replacing parts.

TABLE OF CONTENTS:

Komatsu PC200-7 PC200LC-7 PC220-7 PC220LC-7 Excavator Shop Manual SEBM024319 – PDF DOWNLOAD

MACHINE MODEL       SERIAL NUMBER
PC200-7                            200001 and up
PC200LC-7                       200001 and up
PC220-7                           60001 and up
PC220LC-7                      60001 and up

COVER 1
CONTENTS 2
01 GENERAL 31
SPECIFICATION DIMENSION DRAWINGS 32
PC200-7, PC200LC-7 32
PC220-7, PC220LC-7 34
SPECIFICATIONS 36
PC200-7, PC200LC-7 36
PC220-7, PC220LC-7 38
WEIGHT TABLE 40
PC200-7, PC200LC-7 40
PC220-7, PC220LC-7 42
FUEL, COOLANT, AND LUBRICANTS 44
10 STRUCTURE, FUNCTION, AND MAINTENANCE STANDARD 45
ENGINE RELATED PARTS 46
RADIATOR • OIL COOLER • AFTERCOOLER 47
POWER TRAIN 48
FINAL DRIVE 50
SWING MACHINERY 52
PC200-7, PC200LC-7 52
PC220-7, PC220LC-7 54
SWING CIRCLE 56
PC200-7, PC200LC-7 56
PC220-7, PC220LC-7 57
TRACK FRAME • RECOIL SPRING 58
IDLER 60
CARRIER ROLLER 62
TRACK ROLLER 63
TRACK SHOE 64
HYDRAULIC EQUIPMENT LAYOUT DRAWING 68
HYDRAULIC TANK 70
HYDRAULIC PUMP 72
CONTROL VALVE 94
PC200-7, PC200LC-7 94
PC220-7, PC220LC-7 108
CLSS 126
SELF PRESSURE REDUCING VALVE 129
SWING MOTOR 132
REVERSE PREVENTION VALVE 137
CENTER SWIVEL JOINT 139
TRAVEL MOTOR 140
TRAVEL JUNCTION VALVE 149
STROKE REGULATION WHEN TRAVELLING 151
VALVE CONTROL 153
WORK EQUIPMENT • SWING PPC VALVE 154
TRAVEL PPC VALVE 158
SERVICE PPC VALVE 167
SOLENOID VALVE 170
PPC ACCUMULATOR 172
RETURN OIL FILTER 173
BOOM HYDRAULIC DRIFT PREVENTION VALVE 174
LIFT CHECK VALVE 177
ATTACHMENT CIRCUIT SELECTOR VALVE 178
HYDRAULIC CYLINDER 180
PC200-7, PC200LC-7 180
PC220-7, PC220LC-7 182
WORK EQUIPMENT 184
PC200-7, PC200LC-7 185
PC220-7, PC220LC-7 186

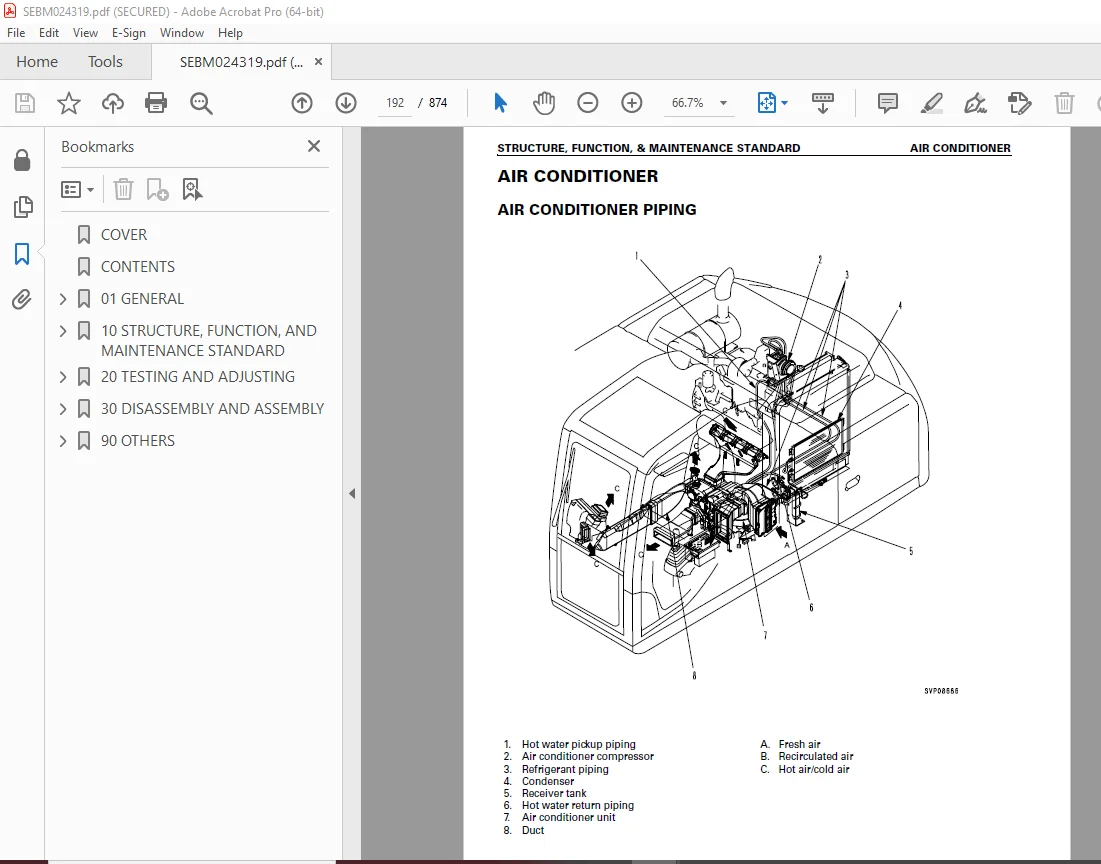

AIR CONDITIONER 192
ENGINE CONTROL 193
ELECTRONIC CONTROL SYSTEM 201
MULTI MONITOR SYSTEM 226
7-SEGMENT MONITOR SYSTEM 246
SENSOR 253
20 TESTING AND ADJUSTING 257
STANDARD VALUE TABLE FOR ENGINE RELATED PARTS 258
STANDARD VALUE TABLE FOR CHASSIS RELATED PARTS 260
TESTING AND ADJUSTING 275
TOOLS FOR TESTING, ADJUSTING AND TROUBLESHOOTING 276
INSPECTION AND ADJUSTMENT OF ENGINE SPEED 278
MEASUREMENT OF EXHAUST GAS COLOR 280
ADJUSTMENT OF VALVE CLEARANCE 281
MEASUREMENT OF COMPRESSION PRESSURE 283
MEASUREMENT OF BLOW-BY PRESSURE 284
INSPECTION AND ADJUSTMENT OF FUEL INJECTION TIMING 285
MEASUREMENT OF ENGINE OIL PRESSURE 287
ADJUSTMENT OF ENGINE SPEED SENSOR 288
INSPECTION AND ADJUSTMENT OF AIR COMPRESSOR BELT TENSION 288
EMERGENT ESCAPE FROM FAILURE IN ENGINE CONTROL SYSTEM 289
MEASUREMENT OF CLEARANCE IN SWING CIRCLE BEARINGS 290
INSPECTION AND ADJUSTMENT OF TRACK SHOE TENSION 291
INSPECTION AND ADJUSTMENT OF HYDRAULIC OIL PRESSURE IN HYDRAULIC CIRCUIT FOR WORK EQUIPMENT, SWING AND TRAVEL 292
INSPECTION AND ADJUSTMENT OF CONTROL CIRCUIT OIL PRESSURE 296
INSPECTION AND ADJUSTMENT OF PUMP PC CONTROL CIRCUIT OIL PRESSURE 297
INSPECTION AND ADJUSTMENT OF PUMP LS CONTROL CIRCUIT OIL PRESSURE 300
MEASUREMENT OF SOLENOID VALVE OUTPUT PRESSURE 306
MEASUREMENT OF PPC VALVE OUTPUT PRESSURE 309
ADJUSTMENT OF WORK EQUIPMENT AND SWING PPC VALVE 310
INSPECTION OF LOCATIONS OF HYDRAULIC DRIFT OF WORK EQUIPMENT 311
RELEASE OF REMAINING PRESSURE IN HYDRAULIC CIRCUIT 312
MEASUREMENT OF OIL LEAKAGE AMOUNT 313
AIR BLEEDING OF VARIOUS PARTS 315
INSPECTION PROCEDURES FOR DIODE 317
SPECIAL FUNCTION OF MULTI-MONITOR PANEL 318
SPECIAL FUNCTIONS OF 7-SEGMENTS MONITOR PANEL 344
PREPARATIONS FOR TROUBLESHOOTING ELECTRICAL SYSTEM 361
TROUBLESHOOTING 373
POINTS TO REMEMBER WHEN TROUBLESHOOTING 374
SEQUENCE OF EVENTS IN TROUBLESHOOTING 375
POINTS TO REMEMBER WHEN CARRYING OUT MAINTENANCE 376
CHECKS BEFORE TROUBLESHOOTING 384
CLASSIFICATION AND STEPS FOR TROUBLESHOOTING 385
CONNECTOR LOCATION CHART AND ELECTRICAL CIRCUIT DIAGRAM BY SYSTEM 390
CONNECTION TABLE FOR CONNECTOR PIN NUMBERS 426
T-BRANCH BOX AND T-BRANCH ADAPTER TABLE 463
BEFORE TROUBLESHOOTING FOR DISPLAYED CODE 466
TROUBLESHOOTING WHEN SERVICE CODE “ELECTRICAL SYSTEM” AND FAILURE CODE “MECHANICAL SYSTEM” ARE INDICATED 467
INFORMATION CONTAINED IN TROUBLESHOOTING TABLE 470
Service Code in Electrical System E101 (Abnormal data in Error History) 472
Service Code in Electrical System E112 (Short-circuiting in normal rotation system of windshield wiper motor drive) 474
Service Code in Electrical System E113 (Short-circuiting in reverse rotation system of windshield wiper motor drive) 476
Service Code in Electrical System E114 (Short-circuiting in window washer drive system) 478
Service Code in Electrical System E115 (Abnormal windshield wiper motion) 482
Service Code in Electrical System E116 (Abnormality in retracting windshield wiper) 484
Service Code in Electrical System E201 (Short-circuiting in travel interlocking solenoid) 486
Service Code in Electrical System E203 (Short-circuiting in swing holding brake solenoid) 490
Service Code in Electrical System E204 (Short-circuiting in merge/divide solenoid) 494
Service Code in Electrical System E205 (Short-circuiting in 2-stage relief solenoid) 498
Service Code in Electrical System E206 (Short-circuiting in travel speed shifting solenoid) 502
Service Code in Electrical System E211 (Disconnection in travel interlocking solenoid) 506
Service Code in Electrical System E213 (Disconnection in swing holding brake solenoid) 510
Service Code in Electrical System E214 (Disconnection of merge/divide solenoid) 514
Service Code in Electrical System E215 (Disconnection in 2-stage relief solenoid) 518
Service Code in Electrical System E216 (Disconnection in travel speed shifting solenoid) 522
Service Code in Electrical System E217 (Abnormality in inputting model code) 526
Service Code in Electrical System E218 (Disconnection of S-NET signal) 530
Service Code in Electrical System E222 (Short-circuiting in LS-EPC solenoid) 532
Service Code in Electrical System E223 (Disconnection in LS-EPC solenoid system) 533
Service Code in Electrical System E224 (Abnormality in F pump pressure sensor) 534
Service Code in Electrical System E225 (Abnormality in R pump pressure sensor) 536
Service Code in Electrical System E226 (Abnormality in pressure sensor power source) 538
Service Code in Electrical System E227(Abnormality in engine rotation sensor) 540
Service Code in Electrical System E228 (Short-circuiting in attachment return switching relay) 541
Service Code in Electrical System E232 (Short-circuiting in PC-EPC solenoid) 542
Service Code in Electrical System E233 (Disconnection in PC-EPC solenoid system) 544
Service Code in Electrical System E238 (Disconnection in attachment return switching relay) 546
Service Code in Electrical Equipment E245 (Short-circuiting in attachment oil flow rate adjusting EPC) 548
Service Code in Electrical System E246 (Disconnection in attachment oil flow rate adjusting EPC) (Multi-monitor only) 549
Service Code in Electrical System E256 (Incorrect nonvolatile memory data) 550
Service Code in Electrical System E306 (Abnormality in governor potentiometer) 552
Service Code in Electrical System E308 (Abnormality in fuel dial) 554
Service Code in Electrical System E315 (Short-circuiting in battery relay) 556
Service Code in Electrical System E316 (Step-out in governor motor) 558
Service Code in Electrical System E317 (Disconnection in governor motor Phase A and B) 560
Service Code in Electrical System E318 (Short-circuiting in governor motor Phase A and Phase B) 562
Service Code in Electrical System E501 (“Model Selection” function not provided yet) 564
Service Mode in Electrical System E502 (Model selecting signal fault) 565
Failure Code in Mechanical System A000N1 (Out-of-rate engine rotation at high idle) 566
Failure Code in Mechanical System A000N2 (Out-of-rate engine rotation at low idle) 566
Failure Code in Mechanical System AA10NX (Air cleaner clogging) 567
Failure Code in Mechanical System AB00KE (Abnormally lowered charging voltage) 568
Failure Code in Mechanical System B@BAZG (Abnormally lowered engine oil pressure) 572
Failure Code in Mechanical System B@BAZK (Abnormally lowered engine oil level) 573
Failure Code in Mechanical System B@BCNS (Engine coolant overheating) 574
Failure Code in Mechanical System B@BCZK (Abnormally lowered radiator coolant level) 575
Failure Code in Mechanical System B@HANS (Hydraulic oil overheating) 576
TROUBLESHOOTING OF ELECTRICAL SYSTEM (E-MODE) 577
INFORMATION CONTAINED IN TROUBLESHOOTING TABLE 578
BEFORE CARRYING OUT TROUBLESHOOTING OF E MODE 579
E-1 Engine does not start (Engine does not rotate) 581
E-2 Engine stops while in operation 585
E-3 Engine speed is irregular, or there is hunting 586
E-4 Engine does not stop 590
E-5 Auto-decelerator does not work 594
E-6 Auto engine warm-up device does not work 595
E-7 Preheater does not work 596
E-8 All work equipment, swing and travel do not move 598
E-9 One-touch power maximizing function does not work 600
E-10 No display in monitor panel at all 601
E-11 Part of display on monitor panel is missing 602
E-12 Monitor panel displays contents irrelevant to the model 602
E-13 Fuel level monitor red lamp lights up while engine is running 603
E-14 Engine coolant temperature gauge does not indicate correctly 604
E-15 Hydraulic oil temperature gauge does not display correctly 605
E-16 Fuel gauge does not display correctly 606
E-17 Swing lock monitor does not display correctly 608
E-18 When the monitor switch is operated, no display appears 610
E-19 Windshield wiper does not work 612
E-20 Alarming buzzer cannot be cancelled 614
E-21 “Boom RAISE” is not correctly displayed in monitor function 615
E-22 “Boom LOWER” is not correctly displayed in monitor function 616
E-23 “Arm DIGGING” is not correctly displayed in monitor function 617
E-24 “Arm DUMPING” is not correctly displayed in monitor function 618
E-25 “Bucket DIGGING” is not correctly displayed in monitor function 619
E-26 “Bucket DUMPING” is not correctly displayed in monitor function 620
E-27 “SWING” is not correctly displayed in monitor function 622
E-28 “TRAVEL” is not correctly displayed in monitor function 624
E-29 “Travel Differential Pressure” is not correctly displayed in monitor function 626
E-30 “Service” is not correctly displayed in monitor function 628
E-31 Troubleshooting for air conditioner system 630
E-32 Travel alarm does not sound 642
TROUBLESHOOTING OF HYDRAULIC AND MECHANICAL SYSTEM (H-MODE) 643
SYSTEM CHART FOR HYDRAULIC AND MECHANICAL SYSTEMS 644
INFORMATION CONTAINED IN TROUBLESHOOTING TABLE 646
H-1 All work equipment lack power, or travel and swing speeds are slow 647
H-2 Engine speed sharply drops or engine stalls 648
H-3 No work equipment, travel or swing move 649
H-4 Abnormal noise is heard from around hydraulic pump 649
H-5 Auto-decelerator does not work 650
H-6 Fine control mode does not function 650
H-7 Boom moves slowly or lacks power 651
H-8 Arm moves slowly or lacks power 652
H-9 Bucket moves slowly or lacks power 653
H-10 Work equipment does not move in its single operation 653
H-11 Work equipment has a bit too fast hydraulic drift 654
H-12 Work equipment has big time lag 655
H-13 Other work equipment moves when relieving single circuit 655
H-14 One-touch power max switch does not operate 655
H-15 In compound operation, work equipment with larger load moves slowly 656
H-16 In swing + boom RAISE operation, boom moves slowly 656
H-17 In swing + travel, travel speed drops sharply 656
H-18 Machine swerves in travel 657
H-19 Machine travels slowly 658
H-20 Machine cannot be easily steered or lacks power 659
H-21 Travel speed does not shift, or it is too slow or fast 660
H-22 Track shoe does not turn (on one side only) 661
H-23 Machine does not swing 662
H-24 Swing acceleration is poor, or swing speed is slow 663
H-25 Excessive overrun when stopping swing 664
H-26 There is big shock when stopping swing 665
H-27 There is big abnormal noise caused when stopping swing 665
H-28 Swing natural drift is too big 666
TROUBLESHOOTING OF ENGINE (S-MODE) 667
METHOD OF USING TROUBLESHOOTING CHARTS 668
S-1 Starting performance is poor (Starting always takes time) 672
S-2 Engine does not start 674
(1) Engine does not turn 674
(2) Engine turns but no exhaust smoke comes out (Fuel is not being injected) 675
(3) Exhaust smoke comes out but engine does not start (Fuel is being injected) 676
S-3 Engine does not pick up smoothly (Follow-up is poor) 677
S-4 Engine stops during operations 678
S-5 Engine does not rotate smoothly (Hunting) 679
S-6 Engine lacks output (or lacks power) 680
S-7 Exhaust smoke is black (Incomplete combustion) 681
S-8 Oil consumption is excessive (or exhaust smoke is blue) 682
S-9 Oil becomes contaminated quickly 683
S-10 Fuel consumption is excessive 684
S-11 Oil is in coolant, or coolant spurts back, or coolant level goes down 685
S-12 Oil pressure monitor lights up (Drop in oil pressure) 686
S-13 Oil level rises (Coolant, fuel in oil) 687
S-14 Coolant temperature becomes too high (Overheating) 688
S-15 Abnormal noise is made 689
S-16 Vibration is excessive 690
30 DISASSEMBLY AND ASSEMBLY 691
HOW TO READ THIS MANUAL 693
COATING MATERIALS LIST 695
SPECIAL TOOL LIST 698
SKETCHES OF SPECIAL TOOLS 702
REMOVAL AND INSTALLATION OF STARTING MOTOR ASSEMBLY 707
REMOVAL 707
INSTALLATION 707
REMOVAL AND INSTALLATION OF FUEL INJECTION PUMP ASSEMBLY 708
SPECIAL TOOLS 708
REMOVAL 708
INSTALLATION 710
REMOVAL AND INSTALLATION OF ENGINE FRONT SEAL 712
SPECIAL TOOLS 712
REMOVAL 712
INSTALLATION 712
REMOVAL AND INSTALLATION OF ENGINE REAR SEAL 714
REMOVAL 714
INSTALLATION 715
REMOVAL AND INSTALLATION OF CYLINDER HEAD ASSEMBLY 716
SPECIAL TOOLS 716
REMOVAL 716
INSTALLATION 719
REMOVAL AND INSTALLATION OF RADIATOR ASSEMBLY 722
REMOVAL 722
INSTALLATION 723
REMOVAL AND INSTALLATION OF HYDRAULIC OIL COOLER ASSEMBLY 724
REMOVAL 724
INSTALLATION 725
REMOVAL AND INSTALLATION OF ENGINE AND HYDRAULIC PUMP ASSEMBLIES 726
SPECIAL TOOLS 726
REMOVAL 726
INSTALLATION 730
REMOVAL AND INSTALLATION OF FINAL DRIVE ASSEMBLY 732
REMOVAL 732
INSTALLATION 732
DISASSEMBLY AND ASSEMBLY OF FINAL DRIVE ASSMBLY 733
SPECIAL TOOLS 733
DISASSEMBLY 733
ASSEMBLY 735
REMOVAL AND INSTALLATION OF SWING MOTOR AND SWING MACHINERY ASSEMBLY 741
PREPARATION WORK 741
REMOVAL 742
INSTALLATION 742
DISASSEMBLY AND ASSEMBLY OF SWING MOTOR AND SWING MACHINERY ASSEMBLY 744
PC200-7 Serial No : 200001 – 203890/PC220-7 Serial No : 60001 – 60353 744
SPECIAL TOOLS 744
PREPARATION WORK 744
DISASSEMBLY 746
ASSEMBLY 748
PC200-7 Serial No : 203891 and up/PC220-7 Serial No : 60354 and up 755
SPECIAL TOOLS 755
DISASSEMBLY 755
ASSEMBLY 758
DISASSEMBLY AND ASSEMBLY OF CARRIER ROLLER ASSEMBLY 765
SPECIAL TOOLS 765
ASSEMBLY 765
DISASSEMBLY AND ASSEMBLY OF TRACK ROLLER ASSEMBLY 766
SPECIAL TOOLS 766
ASSEMBLY 766
DISASSEMBLY AND ASSEMBLY OF IDLER ASSEMBLY 767
SPECIAL TOOLS 767
DISASSEMBLY 767
ASSEMBLY 768
DISASSEMBLY AND ASSEMBLY OF RECOIL SPRING ASSEMBLY 770
SPECIAL TOOLS 770
DISASSEMBLY 770
ASSEMBLY 771
REMOVAL AND INSTALLATION OF SPROCKET 772
REMOVAL 772
INSTALLATION 772
REMOVAL AND INSTALLATION OF TRACK SHOE ASSEMBLY 773
SPECIAL TOOLS 773
REMOVAL AND EXPANSION OF TRACK SHOE ASSEMBLY (IRON) 773
INSTALLATION 774
REMOVAL AND EXPANSION OF ROAD LINERS 775
INSTALLATION OF ROAD LINERS 776
REMOVAL AND INSTALLATION OF SWING CIRCLE ASSEMBLY 777
REMOVAL 777
INSTALLATION 777
REMOVAL AND INSTALLATION OF REVOLVING FRAME ASSEMBLY 778
REMOVAL 778
INSTALLATION 779
REMOVAL AND INSTALLATION OF CENTER SWIVEL JOINT ASSEMBLY 780
REMOVAL 780
INSTALLATION 781
DISASSEMBLY AND ASSEMBLY OF CENTER SWIVEL JOINT ASSEMBLY 782
SPECIAL TOOLS 782
DISASSEMBLY 782
ASSEMBLY 782
REMOVAL AND INSTALLATION OF HYDRAULIC TANK ASSEMBLY 783
REMOVAL 783
INSTALLATION 784
REMOVAL AND INSTALLATION OF CONTROL VALVE ASSEMBLY 785
REMOVAL 785
INSTALLATION 787
DISASSEMBLY AND ASSEMBLY OF CONTROL VALVE ASSEMBLY 788
SPECIAL TOOLS 788
ASSEMBLY 789
REMOVAL AND INSTALLATION OF HYDRAULIC PUMP ASSEMBLY 791
SPECIAL TOOLS 791
REMOVAL 791
INSTALLATION 793
REMOVAL AND INSTALLATION OF OIL SEAL IN HYDRAULIC PUMP INPUT SHAFT 794
REMOVAL 794
INSTALLATION 794
DISASSEMBLY AND ASSEMBLY OF WORK EQUIPMENT PPC VALVE ASSEMBLY 795
PC200, 200LC-7 Serial No 200001 – 202418/PC220, 220LC-7 Serial No 60001 – 60239 795
DISASSEMBLY 795
ASSEMBLY 795
PC200, 200LC-7 Serial No 202419 and up/PC220, 220LC-7 Serial No 60240 and up 797
DISASSEMBLY 797
ASSEMBLY 797
DISASSEMBLY AND ASSEMBLY OF TRAVEL PPC VALVE ASSEMBLY 799
PC200, 200LC-7 Serial No 200001 – 252873/PC220, 220LC-7 Serial No 60001 – 65436 799
SPECIAL TOOLS 799
ASSEMBLY 799
PC200, 200LC-7 Serial No 252874 and up/PC220, 220LC-7 Serial No 65437 and up 801
SPECIAL TOOLS 801
ASSEMBLY 801
DISASSEMBLY AND ASSEMBLY OF HYDRAULIC CYLINDER ASSEMBLY 803
SPECIAL TOOLS 803
DISASSEMBLY 803
ASSEMBLY 805
REMOVAL AND INSTALLATION OF WORK EQUIPMENT ASSEMBLY 809
SPECIAL TOOLS 809
REMOVAL 809
INSTALLATION 810
REMOVAL AND INSTALLATION OF AIR CONDITIONER UNIT ASSEMBLY 812
PC200, 200LC-7 Serial No 200001 – 250000/PC220, 220LC-7 Serial No 60001 and up 812
REMOVAL 812
INSTALLATION 814
PC200, 200LC-7 Serial No 250001 and up 815
REMOVAL 815
INSTALLATION 816
REMOVAL AND INSTALLATION OF COUNTERWEIGHT ASSEMBLY 817
REMOVAL 817
INSTALLATION 817
REMOVAL AND INSTALLATION OF OPERATOR’S CAB ASSEMBLY 818
PC200, 200LC-7 Serial No 200001 – 250000/PC220, 220LC-7 Serial No 60001 and up 818
REMOVAL 818
INSTALLATION 819
PC200, 200LC-7 Serial No 250001 and up 820
REMOVAL 820
INSTALLATION 822
REMOVAL AND INSTALLATION OF OPERATOR’S CAB GLASS (STUCK GLASS) 823
SPECIAL TOOLS 824
REMOVAL 824
INSTALLATION 825
REMOVAL AND INSTALLATION OF FRONT WINDOW ASSEMBLY 833
REMOVAL 833
INSTALLATION 835
REMOVAL AND INSTALLATION OF MONITOR ASSEMBLY 838
REMOVAL 838
INSTALLATION 838
REMOVAL AND INSTALLATION OF GOVERNOR, PUMP CONTROLLER ASSEMBLY 839
PC200, 200LC-7 Serial No 200001 – 250000/PC220, 220LC-7 Serial No 60001 and up 839
REMOVAL 839
INSTALLATION 839
PC200, 200LC-7 Serial No 250001 and up 839
REMOVAL 839
INSTALLATION 839
90 OTHERS 841
HYDRAULIC CIRCUIT DIAGRAM 843
PC200-7, PC200LC-7 843
PC220-7, PC220LC-7 845
ELECTRICAL CIRCUIT DIAGRAM 847
PC200-7, PC200LC-7 (Serial No 200001 – 250000)/PC220-7, PC220LC-7 (Serial No 60001 – 65000)(FOR MULTI MONITOR) 847
PC200-7, PC200LC-7 (Serial No 200001 – 250000)/PC220-7, PC220LC-7 (Serial No 60001 – 65000)(FOR 7-SEGMENT MONITOR) 855
PC200-7, PC200LC-7 (Serial No 250001 and up)/PC220-7, PC220LC-7 (Serial No 65001 and up) 863
ELECTRICAL CIRCUIT DIAGRAM FOR AIR CONDITIONER 871

IMAGES PREVIEW OF THE MANUAL:

S.V 27/12/24
