Komatsu PC5500 Mining Germany Service Manual SN 15046 – PDF DOWNLOAD

Description

Komatsu PC5500 Mining Germany Service Manual

FILE DETAILS:

Komatsu PC5500 Mining Germany Service Manual

Brands: Komatsu
Equipment Type: Mining Germany
Manuals Type: Shop Manual
Machine Model: PC5500
Serial Number: 15046 and up
Language: English
Pages: 670
File Format: Portable Document Format (PDF)

KOMATSU PC5500 MINING GERMANY SERVICE MANUAL SN 15046 – PDF DOWNLOAD:

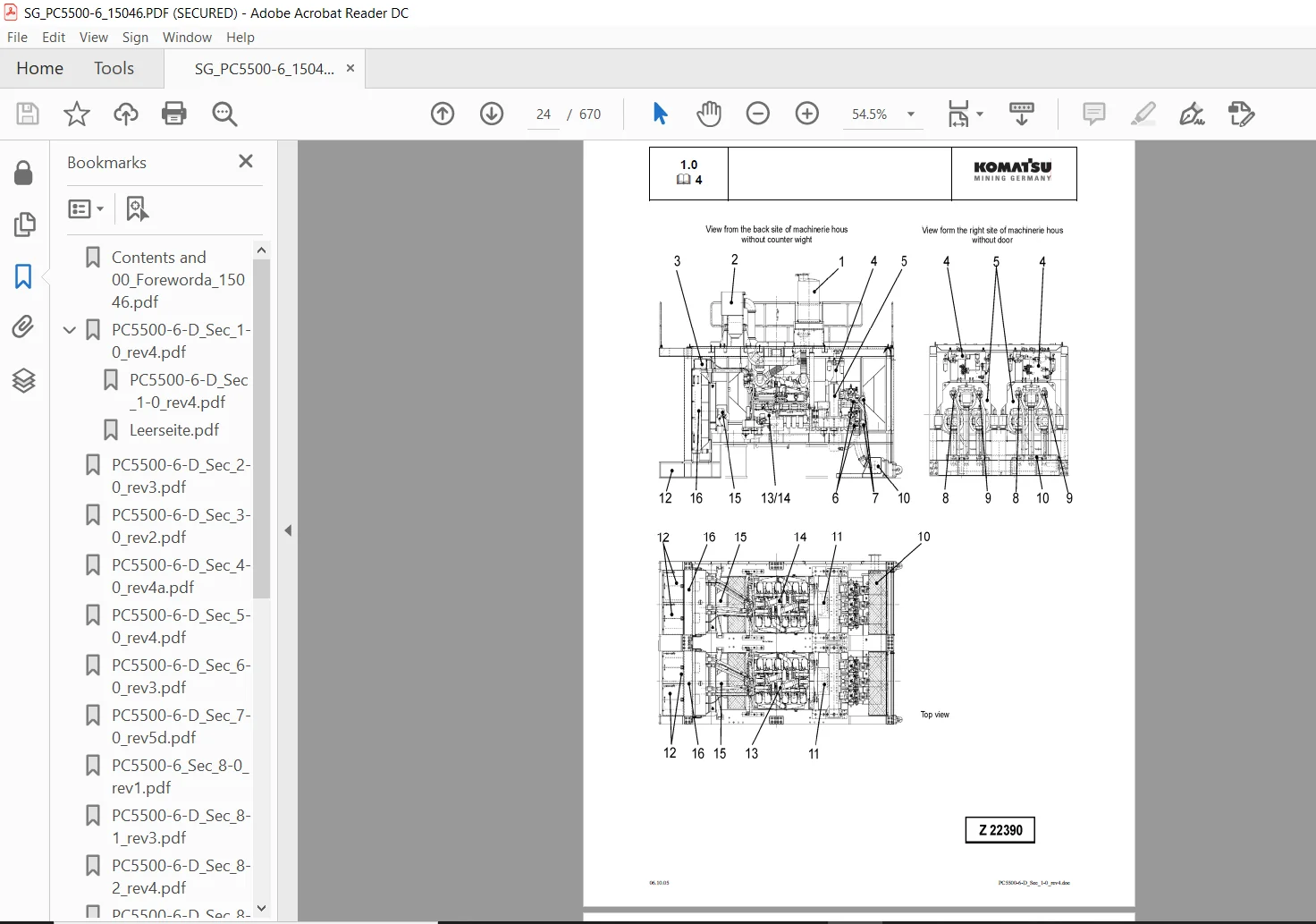

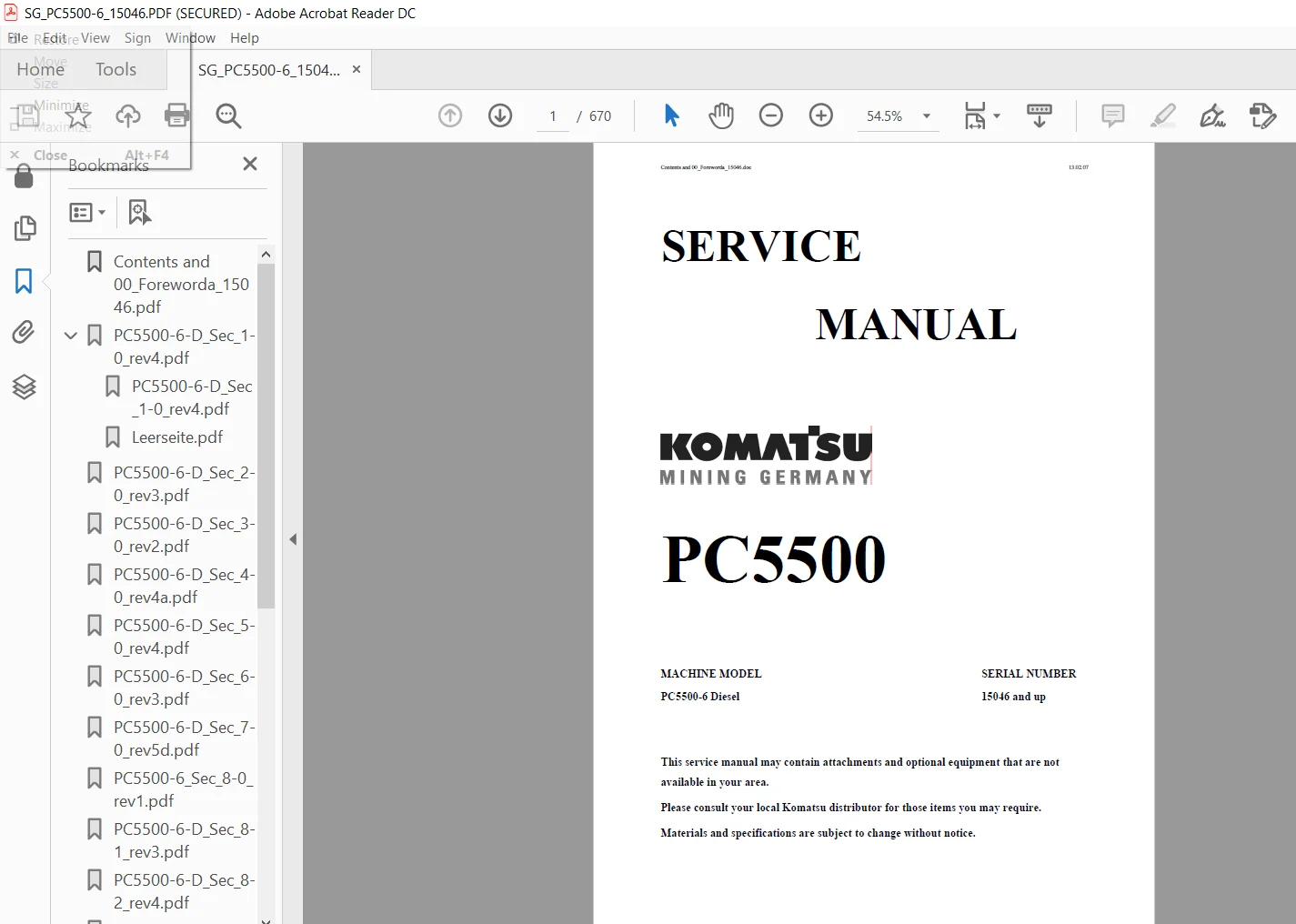

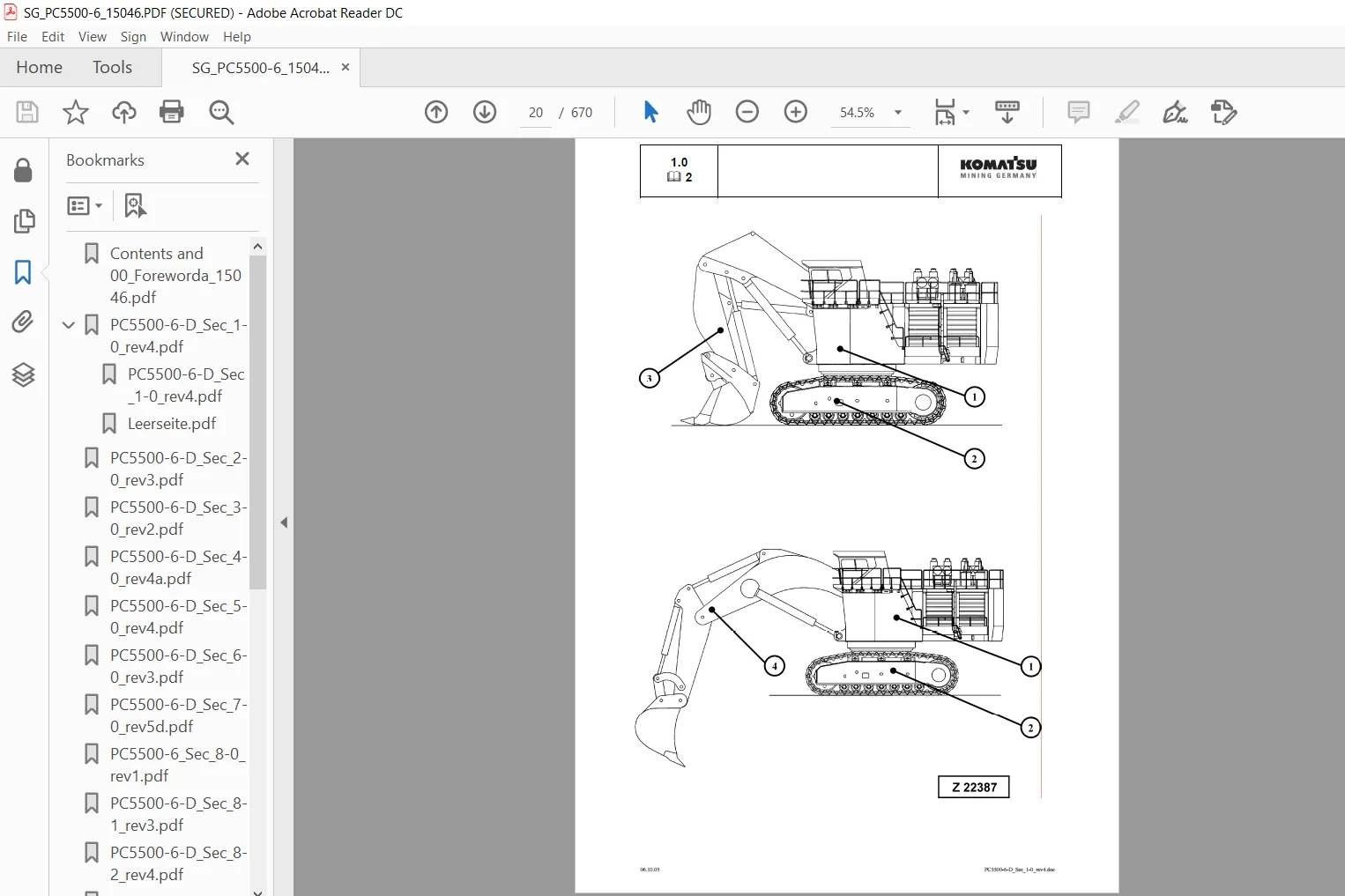

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu PC5500 Mining Germany Service Manual

FOREWORD:
GENERAL:
With this SERVICE MANUAL KOMATSU provides you with the description of the construction and the function of the major systems of the Hydraulic Excavator PC5500-E.
We describe for you all functions and how to carry out the inspections and
adjustments.
How do you find “your” desired information?
In the table of CONTENT all the functions and components are shown in
their sequence of the description.

GENERAL PRECAUTIONS:
Mistakes in operation are extremely dangerous. Read the OPERATION & MAINTENANCE
MANUAL carefully BEFORE operating the machine.
1. Before carrying out any greasing or repairs, read all the precautions given on the decals
which are fixed to the machine.
2. When carrying out any operation, always wear safety shoes and helmet. Do not wear
loose work clothes, or clothes with buttons missing.
• Always wear safety glasses when hitting parts with a hammer.
• Always wear safety glasses when grinding parts with a grinder, etc.

TABLE OF CONTENTS:

Komatsu PC5500 Mining Germany Service Manual

00 Safety – Foreword
01 Technical DATA (Leaflet)
02 Assembly PROCEDURE (Brochure)
Section
1. Main assembly groups
2. Drive.
3. Hydraulic oil tank.
4. Hydraulic oil cooling.
5. Controlling.
6. Components
7. Main hydraulic pumps and pump regulation.
8. Operating hydraulic.
9. Hydraulic track tensioning system.
10. Hydraulic operated access ladder
11.
12. Hints for the hydraulic circuit diagram
13. Hints for the electric circuit diagram
14. ECS-T
15. Lubrication Systems
APPENDIX

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
