Komatsu PC600LC-6 Hydraulic Excavator Shop Manual Supplement SEBM027100K – PDF DOWNLOAD
Original price was: $62.95.$30.95Current price is: $30.95.
Komatsu PC600LC-6 Hydraulic Excavator Shop Manual Supplement
SERIAL NUMBERS PC600LC-6 – 11064 and up
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Komatsu PC600LC-6 Hydraulic Excavator Shop Manual Supplement
FILE DETAILS:
Komatsu PC600LC-6 Hydraulic Excavator Shop Manual Supplement
Brands: Komatsu
Equipment Type: Hydraulic Excavator
Manuals Type: Shop Manual
Machine Model: PC600LC-6
Serial Number: 11064 and up
Book Code: SEBM027100K
Language: English
Pages:766
File Format: Portable Document Format (PDF)
DESCRIPTION:
Komatsu PC600LC-6 Hydraulic Excavator Shop Manual Supplement
FOREWORD:
GENERAL:
- This shop manual has been prepared as an aid to improve the quality of repairs by giving the serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgements. Make sure you understand the contents of this manual and use it to full effect at every opportunity.
- This shop manual mainly contains the necessary technical information for operations performed in a service workshop. For ease of understanding, the manual is divided into the following chapters; these chapters are further divided into the each main group of components.
STRUCTURE AND FUNCTION:
This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. In addition, this section may contain hydraulic circuit diagrams, electric circuit diagrams, and maintenance standards.
TESTING AND ADJUSTING:
This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating “Problems” with “Causes” are also included in this section.
DISASSEMBLY AND ASSEMBLY:
This section explains the procedures for removing, installing, disassembling and assembling each component,
as well as precautions for them.
MAINTENANCE STANDARD:
This section gives the judgment standards for inspection of disassembled parts. The contents of this section may be described in STRUCTURE AND FUNCTION.
OTHERS:
This section mainly gives hydraulic circuit diagrams and electric circuit diagrams. In addition, this section may give the specifications of attachments and options together.
TABLE OF CONTENTS:
Komatsu PC600LC-6 Hydraulic Excavator Shop Manual Supplement
MAIN MENU......................................................................................................................... 0
COVER............................................................................................................................. 1
CONTENTS.......................................................................................................................... 2
FOREWORD.......................................................................................................................... 3
SAFETY........................................................................................................................ 3
SAFETY NOTICE............................................................................................................. 3
FOREWORD...................................................................................................................... 5
HOW TO READ THE SHOP MANUAL................................................................................................... 6
HOISTING INSTRUCTIONS......................................................................................................... 7
METHOD OF DISASSEMBLING, CONNECTING PUSH-PULL TYPE COUPLER.................................................................... 8
COATING MATERIALS............................................................................................................. 10
STANDARD TIGHTENING TORQUE.................................................................................................... 12
ELECTRIC WIRE CODE............................................................................................................ 15
CONVERSION TABLE.............................................................................................................. 16
UNITS......................................................................................................................... 22
01 GENERAL........................................................................................................................ 23
SPECIFICATION DRAWINGS........................................................................................................ 24
SPECIFICATIONS................................................................................................................ 26
WEIGHT TABLE.................................................................................................................. 30
FUEL, COOLANT AND LUBRICANTS.................................................................................................. 34
10 STRUCTURE AND FUNCTION......................................................................................................... 35
PARTS RELATED TO ENGINE....................................................................................................... 36
PTO........................................................................................................................... 38
RADIATOR, OIL COOLER.......................................................................................................... 39
POWER TRAIN................................................................................................................... 40
FINAL DRIVE................................................................................................................... 42
SWING CIRCLE.................................................................................................................. 43
SWING MACHINERY............................................................................................................... 44
TRACK FRAME, RECOIL SPRING.................................................................................................... 45
TRACK SHOE.................................................................................................................... 46
HYDRAULIC PIPING DRAWING...................................................................................................... 48
HYDRAULIC TANK, HYDRAULIC FILTER.............................................................................................. 50
HYDRAULIC PUMP (PISTON PUMP).................................................................................................. 53
LINE OIL FILTER............................................................................................................... 81
CONTROL VALVE................................................................................................................. 82
SWING MOTOR................................................................................................................... 97
CENTER SWIVEL JOINT...........................................................................................................107
TRAVEL MOTOR..................................................................................................................108
VALVE CONTROL.................................................................................................................118
WORK EQUIPMENT - SWING PPC VALVE..............................................................................................120
TRAVEL PPC VALVE..............................................................................................................124
SERVICE PPC VALVE.............................................................................................................128
PPC SAFETY LOCK VALVE.........................................................................................................131
PPC ACCUMULATOR...............................................................................................................131
PPC SHUTTLE VALVE.............................................................................................................132
SOLENOID VALVE................................................................................................................133
BOOM HOLDING VALVE............................................................................................................136
BOOM LOWER REGENERATION VALVE.................................................................................................140
AIR CONDITIONER...............................................................................................................143
ACTUAL ELECTRIC WIRING DIAGRAM................................................................................................144
ENGINE CONTROL................................................................................................................148
MACHINE CONTROL SYSTEM........................................................................................................155
MONITOR SYSTEM................................................................................................................189
20 TESTING AND ADJUSTING..........................................................................................................201
STANDARD VALVE TABLE..........................................................................................................202
STANDARD VALVE TABLE FOR ENGINE...........................................................................................202
STANDARD VALVE TABLE FOR CHASSIS..........................................................................................203
STANDARD VALVE TABLE FOR ELECTRICAL PARTS.................................................................................211
TESTING AND ADJUSTING.........................................................................................................221
TOOLS FOR TESTING, ADJUSTING, TROUBLESHOOTING.............................................................................222
MEASURING INTAKE AIR PRESSURE (BOOST PRESSURE)............................................................................223
MEASURING EXHAUST TEMPERATURE.............................................................................................224
MEASURING EXHAUST COLOR...................................................................................................225
ADJUSTING VALVE CLEARENCE.................................................................................................226
MEASURING COMPRESSION PRESSURE............................................................................................227
MEASURING BLOW-BY PRESSURE................................................................................................227
MEASURING ENGINE OIL PRESSURE.............................................................................................228
HANDLING EQUIPMENT IN FUEL CIRCUIT........................................................................................229
RELEASING REMAINING PRESSURE IN FUEL SYSTEM...............................................................................229
MEASURING FUEL PRESSURE...................................................................................................230
REDUCED CYLINDER MODE OPERATION FOR ENGINE................................................................................231
BLEEDING AIR FROM FUEL SYSTEM............................................................................................233
CHECK FOR LEAKEAGE IN FUEL SYSTEM.........................................................................................234
ADJUSTING ENGINE SPEED SENSOR.............................................................................................235
TESTING AND ADJUSTING ALTERNATOR BELT TENSION.............................................................................236
TESTING AND ADJUSTING FAN BELT TENSION....................................................................................237
HANDLING ENGINE CONTROLLER HIGH VOLTAGE CIRCUIT...........................................................................238
TESTING WEAR OF SPROCKET..................................................................................................239
INSPECTION AND ADJUSTMENT OF TRACK SHOE TENSION...........................................................................240
TESTING CLEARANCEOF SWING CIRCLE BEARING..................................................................................241
TESTING AND ADJUSTING HYDRAULIC PRESSURE IN WORK, EQUIPMENT, SWING, TRAVEL CIRCUIT........................................242
TESTING AND ADJUSTING CONTROL PUMP CIRCUIT OIL PRESSURE...................................................................245
TESTING AND ADJUSTING PISTON PUMP CONTROL OIL PRESSURE....................................................................247
MEASURING PPC VALVE OUTPUT PRESSURE.......................................................................................253
TESTING SOLENOID VALVE OUITPUT PRESSURE...................................................................................254
ADJUSTING WORK EQUIPMENT, SWING PPC VALVE.................................................................................255
TESTING TRAVEL DEVIATION..................................................................................................256
TESTING LOCATIONS CAUSING HYDRAULIC DRIFT OF WORK EQUIPMENT...............................................................257
MEASURING OIL LEAKAGE.....................................................................................................258
BLEEDING AIR..............................................................................................................261
RELEASING REMAINING PRESSURE IN HYDRAULIC CIRCUIT.........................................................................263
PROCEDURE FOR CHECKING DIODE..............................................................................................264
TROUBLESHOOTING...............................................................................................................265
POINTS TO REMEMBER WHEN TROUBLESHOOTING...................................................................................266
SEQUENCE OF EVENTS IN TROUBLESHOOTING.....................................................................................267
POINTS TO REMEMBER WHEN CARRING OUT MAINTENANCE...........................................................................268
CHECKS BEFORE TROUBLESHOOTING.............................................................................................276
CONNECTOR TYPES AND MOUNTING LOCATIONS....................................................................................278
CONNECTION TABLE FOR CONNECTOR PIN NUMBERS................................................................................286
EXPLANATION OF CONTROL MECHANISM FOR ELECTRICAL SYSTEM....................................................................309
DISPLAY METHOD AND SPECIAL FUNCTIONS OF MONITOR PANEL.....................................................................311
METHOD OF USING JUDGEMENT TABLE...........................................................................................325
METHOD OF USING TROUBLESHOOTING CHARTS....................................................................................327
DETAILS OF TROUBLESHOOTING AND TROUBLESHOOTING PROCEDURE..................................................................332
TROUBLESHOOTING OF COMMUNICATION ABNORMALITY SYSTEM (N MODE)..............................................................337
ACTION TAKEN BY CONTROLLER WHEN ABNORMALITY OCCURS AND PROBLEMS ON MACHINE............................................338
ELECTRICAL CIRCUIT DIAGRAM OF MODE SYSTEM.............................................................................340
N-1 [E117, 118 OCCUR AT SAME TIME] MONITOR PANEL COMMUNICATION ABNORMALITY............................................341
N-2 [E117, 218 OCCUR AT SAME TIME] ENGINE CONTROLLER COMMUNICATION ABNORMALITY........................................343
N-3 [E118, E955 OCCUR AT SAME TIME] PUMP CONTROLLER COMMUNICATION ABNORMALITY.........................................345
TROUBLESHOOTING OF ENGINE CONTROLLER SYSTEM (E MODE)......................................................................347
ACTION TAKEN BY CONTROLLER AND CONDITION OF MACHINE WHEN ERROR CODE IS DISPLAYED......................................348
JUDGEMENT TABLE FOR ENGINE CONTROLLER AND ENGINE RELATED PARTS........................................................356
ELECTRICAL CIRCUIT DIAGRAM OF E MODE SYSTEM...........................................................................358
E-1 [E91B] (ABNORMALITY IN ENGINE SPEED NE SENSOR SYSTEM) IS DISPLAYED................................................360
E-2 [E91C] (ABNORMALITY IN ENGINE G ROTATION SENSOR SYSTEM) IS DISPLAYED..............................................361
E-3 [E920] (ABNORMALITY IN MODEL SELECTION SYSTEM) IS DISPLAYED.......................................................362
E-4 [E922] (ENGINE OVERRUN) IS DISPLAYED..............................................................................363
E-5 [E924] (DROP IN ENGINE OIL PRESSURE) IS DISPLAYED.................................................................364
E-6 [E931] (ABNORMALITY IN FUEL CONTROL DIAL SENSOR SYSTEM) IS DISPLAYED..............................................365
E-7 [E934] (ABNORMALITY IN ENGINE WATER TEMPERATURE (HIGH) SENSOR SYSTEM) IS DISPLAYED................................366
E-8 [E936] (ABNORMALITY IN ENGINE OIL PRESSURE SWITCH SYSTEM) IS DISPLAYED............................................367
E-9 [E93C] (ABNORMALITY IN BOOST PRESSURE SENSOR SYSTEM) IS DISPLAYED.................................................368
E-10 [E93D] (ABNORMALITY IN FUEL TEMPERATURE SENSOR SYSTEM) IS DISPLAYED..............................................369
E-11 [E954] (SHORT CIRCUIT IN STARTING SWITCH C SYSTEM) IS DISPLAYED..................................................370
E-12 [E955] (ABNORMALITY IN NETWORK SYSTEM) IS DISPLAYED..............................................................370
E-13 [E956] (POWER SOURCE SYSTEM ABORMALITY 1) IS DISPLAYED...........................................................371
E-14 [E957] (POWER SOURCE SYSTEM ABNORMALITY 2) IS DISPLAYED..........................................................372
E-15 [E95A] (ABNORMALITY IN FUEL INJECTION QUANITY CONTROL SWITCH SIGNAL) IS DISPLAYED................................373
E-16 [E96A] (ABNORMALITY IN ENGINE WATER TEMPERATURE (LOW) SENSOR SYSTEM) IS DISPLAYED................................374
E-17 [E970] (EXCESS CURRENT IN FUEL SUPPLY PUMP PCV1 SYSTEM) IS DISPLAYED.............................................375
E-18 [E971] (EXCESS CURRENT IN FUEL SUPPLY PUMP PCV2 SYSTEM) IS DISPLAYED.............................................376
E-19 [E974] (DISCONNECTION IN FUEL SUPPLY PUMP PCV1 SYSTEM) IS DISPLAYED..............................................377
E-20 [E975] (DISCONNECTION IN FUEL SUPPLY PUMP PCV2 SYSTEM) IS DISPLAYED..............................................378
E-21 [E977] (ABNORMALITY IHN COMMON RAIL FUEL PRESSURE SENSOR SYSTEM) IS DISPLAYED....................................379
E-22 [E979] (COMMON RAIL FUEL HIGH PRESSURE ABNORMALITY 1 ) IS DISPLAYED..............................................380
[E97A] (COMMON RAIL FUEL HIGH PRESSURE ABNORMALITY 2) IS DISPLAYED..........................................380
E-23 [E97B] (FUEL SUPPLY PUMP NON-FORCE FEED 1) IS DISPLAYED..........................................................381
[E97A] (FUEL SUPPLY PUMP NON-FORCE FEED 2) IS DISPLAYED.....................................................381
E-24 [E97D] (ADNORMALITY IN COMMON RAIL FUEL PRESSURE) IS DISPLAYED...................................................383
E-25 [E980] (DEFECTIVE ENGINE CONTROLLER) IS DISPLAYED................................................................383
E-26 [E981] (DISCONNECTION IN NO. 1 FUEL INJECTOR SYSTEM) IS DISPLAYED................................................384
E-27 [E982] (DISCONNECTION IN NO. 2 FUEL INJECTOR SYSTEM) IS DISPLAYED................................................385
E-28 [E983] (DISCONNECTION IN NO. 3 FUEL INJECTOR SYSTEM) IS DISPLAYED................................................386
E-29 [E984] (DISCONNECTION IN NO. 4 FUEL INJECTOR SYSTEM) IS DISPLAYED................................................387
E-30 [E985] (DISCONNECTION IN NO. 5 FUEL INJECTOR SYSTEM) IS DISPLAYED................................................388
E-31 [E986] (DISCONNECTION IN NO. 6 FUEL INJECTOR SYSTEM) IS DISPLAYED................................................389
E-32 [E98A] (SHORT CIRCUIT IN NO. 1, NO. 2, NO. 3 FUEL INJECTOR SYSTEM) IS DISPLAYED..................................390
A) DETERMINING LOCATION OF PROBLEM................................................................................390
B) TROUBLESHOOTING NO. 1 FUEL INJECTOR SYSTEM.....................................................................390
C) TROUBLESHOOTING NO. 2 FUEL INJECTOR SYSTEM.....................................................................391
D) TROUBLESHOOTING NO. 3 FUEL INJECTOR SYSTEM.....................................................................391
E-33 [E98B] (SHORT CIRCUIT IN NO. 3, NO. 4, NO. 5 FUEL INJECTOR SYSTEM) IS DISPLAYED..................................393
A) DETERMINING LOCATION OF PROBLEM................................................................................393
B) TROUBLESHOOTING NO. 4 FUEL INJECTOR SYSTEM.....................................................................393
C) TROUBLESHOOTING NO. 5 FUEL INJECTOR SYSTEM.....................................................................394
TROUBLESHOOTING OF PUMP CONTROLLER SYSTEM (C MODE)........................................................................397
POINTS TO REMEMBER WHEN CARRYING OUT TROUBLESHOOTING OF PUMP CONTROLLER SYSTEM........................................398
ACTION TAKEN BY CONTROLLER WHEN ABNORMALITY OCCURS AND PROBLEMS ON MACHINE............................................400
JUDGEMENT TABLE FOR PUMP CONTROLLER AND HYDRAULIC RELATED PARTS.......................................................408
ELECTRICAL CIRCUIT DIAGRAM OF C MODE SYSTEM...........................................................................410
TROUBLESHOOTING FLOW CHARTS FOR EACH FALIURE MODE.....................................................................412
C-1 ABNORMALITY IN CONTROLLER POWER SOURCE (CONTROLLER LED IS OFF) ...............................................412
C-2 [E232] (SHORT CIRCUIT IN PUMP TVC SOLENOID SYSTEM) IS DISPLAYED...............................................413
C-3 [E233] (DISCONNECTION IN PUMP TVC SOLENOID SYSTEM) IS DISPLAYED...............................................415
C-4 [E203] (SHORT CIRCUIT IN SWING HOLDING BRAKE SOLENOID SYSTEM) IS DISPLAYED....................................417
C-5 [E213] (DISCONNECTION IN SWING HOLDING BRAKE SOLENOID SYSTEM) IS DISPLAYED....................................419
C-6 [E201] (SHORT CIRCUIT IN CO CANCEL SOLENIOD SYSTEM) IS DISPLAYED..............................................421
C-7 [E211] (DISCONNECTION IN CO CANCEL SOLENOID SYSTEM) IS DISPLAYED..............................................422
C-8 [E204] (SHORT CIRCUIT IN 2-STAGE RELIEF SOLENOID SYSTEM) IS DISPLAYED.........................................423
C-9 [E214] (DISCONNECTION IN 2-STAGE RELIEF SOLENOID SYSTEM) IS DISPLAYED.........................................424
C-10 [E206] (SHORT CIRCUIT IN TRAVEL SPEED SOLENOID SYSTEM) IS DISPLAYED..........................................425
C-11 [E216] (DISCONNECTION IN TRAVEL SPEED SOLENOID SYSTEM) IS DISPLAYED..........................................426
C-12 [E311] (SHORT CIRCUIT IN BUCKET CURL HI CANCEL SOLENOID SYSTEM) IS DISPLAYED.................................427
C-13 [E312] (DISCONNECTION IN BUCKET CURL HI CANCEL SOLENOID SYSTEM) IS DISPLAYED.................................428
C-14 [E217] (MODEL SELECTION INPUT ERROR) IS DISPLAYED............................................................429
C-15 [E224] (ABNORMALITY IN FRONT PUMP PRESSURE SENSOR SYSTEM) IS DISPLAYED.......................................431
C-16 [E225] (ABNORMALITY IN REAR PUMP PRESSURE SENSOR SYSTEM) IS DISPLAYED........................................432
C-17 [E226] (ABNORMALITY IN PRESSURE SENSOR POWER SOURCE SYSTEM) IS DISPLAYED.....................................433
C-18 [E227] (ABNORMALITY IN ENGINE SPEED SENSOR SYSTEM) IS DISPLAYED..............................................434
C-19 ABNORMALITY IN MACHINE PUSH-UP SOLENOID SYSTEM (NO SERVICE CODE DISPLAYED)...................................435
C-20 [E207] SHORT CIRCUIT IN FLASHING LIGHT RELAY DRIVE SYSTEM IS DISPLAYED ......................................437
C-21 FLASHING LIGHT REALY DOES NOT WORK...........................................................................438
C-22 [E231] ABNORMALITY (SHORT CIRCUIT) IN STEP LIGHT POWER SOURCE RETENTION RELAY OUTPUT SYSTEM IS DISPLAYED ....439
C-23 STEP LIGHT SWITCH DOES NOT WORK..............................................................................440
C-24 [E302] SHORT CIRCUIT IN STEP LIGHT RELAY DRIVE SYSTEM IS DISPALYED...........................................441
C-25 STEP LIGHT DOES NOT LIGHT UP.................................................................................442
C-26 [E228] ABNORMALITY IN AUTO DECELERATION OUTPUT SYSTEM IS DISPLAYED...........................................443
TROUBLESHOOTING OF PUMP CONTROLLER {INPUT SIGNAL SYSTEM] (F MODE).........................................................445
ELECTRICAL CIRCUIT DIAGRAM OF F MODE SYSTEM...........................................................................446
F-1 BIT PATTERN 20-(1) (SWING OIL PRESSURE SWITCH) DOES NOT LIGHT UP..................................................448
F-2 BIT PATTERN 20-(1) (SWING OIL PRESSURE SWITCH) DOES NOT LIGHT UP..................................................449
F-3 BIT PATTERN 20-(3) (BOOM LOWER OIL PRESSURE SWITCH) DOES NOT LIGHT UP.............................................450
F-4 BIT PATTERN 20-(4) (BOOM RAISE OIL PRESSURE SWITCH) DOES NOT LIGHT UP.............................................451
F-5 BIT PATTERN 20-(5) (ARM IN OIL PRESSURE SWITCH) DOES NOT LIGHT UP.................................................452
F-6 BIT PATTERN 20-(6) (ARM OUT OIL PRESSURE SWITCH) DOES NOT LIGHT UP................................................453
F-7 BIT PATTERN 21-(1) (BUCKET CURL OIL PRESSURE SWITCH) DOES NOT LIGHT UP............................................454
F-8 BIT PATTERN 21-(2) (BUCKET DUMP OIL PRESSURE SWITCH) DOES NOT LIGHT UP............................................455
F-9 BIT PATTERN 22-(4) (SERVICE VALVE OIL PRESSURE SWITCH) DOES NOT LIGHT UP..........................................456
F-10 BIT PATTERN 21-(3) (SWING LOCK SWITCH) DOES NOT LIGHT UP.........................................................457
F-11 BIT PATTERN 21-(6) (L.H. KNOB SWITCH) DOES NOT LIGHT UP..........................................................458
F-12 WHEN STEP LIGHT SWITCH IS ON, BIT PATTERN 24-(1) DOES NOT GO OUT.................................................459
F-13 WHEN HORN SWITCH IS ON, BIT PATTERN 24-(2) DOES NOT GO OUT.......................................................460
TROUBLESHOOTING OF HYDRAULIC, MECHANICAL SYSTEM (H MODE)..................................................................461
TABLE OF FALIURE MODES AND CAUSES.....................................................................................462
BEFORE CARRYING OU TROUBLESHOOTING OF HYDRAULIC SYSTEM (H MODE).......................................................464
TROUBLESHOOTING FLOW CHARTS FOR EACH FAILURE MODE.....................................................................467
ALL WORK EQUIPMENT, TRAVEL, SWING.....................................................................................467
H-1 SPEEDS OF ALL WORK EQIPMENT, SWING, TRAVEL ARE SLOW OR LACK POWER.............................................467
H-2 THERE IS EXCESSIVE DROP IN ENGINE SPEED, OR ENGINE STALLS.....................................................468
H-3 NO WORK EQUIPMENT, TRAVEL, SWING MOVE.........................................................................470
H-4 ABNORMAL NOISE GENERATED (GROUND PUMP)........................................................................471
H-5 AUTO-DECELERATION DOES NOT WORK...............................................................................471
WORK EQUIPMENT SYSTEM.................................................................................................472
H-6 WORK EQUIPMENT (BOOM, ARM, BUCKET) IS SLOW OR LACKS POWER.....................................................472
H-7 WORK EQUIPMENT (BOOM, ARM, BUCKET) DOES NOT MOVE (BUT TRAVEL AND SWING ARE NORMAL)............................473
H-8 EXCESSIVE HYDRAULIC HYDRAULIC ................................................................................473
H-9 EXCESSIVE TIME LAG............................................................................................474
H-10 DEFECTIVE ACTUATION OF MACHINE PUSH-UP FUNCTION..............................................................474
H-11 IN COMPOUND OPERATIONS WITH-11 IN COMPOUND OPERATIONS WITH SWING, WORK EQUIPMENT SPEED IS SLOW...............475
H-12 IN COMPOUND OPERATIONS WITH BUCKET CURL, SWING AND OTHER WORK EQUIPMENT SPEEDS ARE SLOW......................475
TRAVEL SYSTEM.........................................................................................................475
H-13 TRAVEL DEVIATION IS EXCESSIVE DURING COMPOUND OPERATIONS.....................................................475
H-14 MACHINE DEVIATES NATURALLY TO ONE SIDE DURING TRAVEL OPERATIONS..............................................476
H-15 DEVIATION IS ECESSIVE WHEN STARTING..........................................................................480
H-16 TRAVEL SPEED IS SLOW.........................................................................................482
H-17 TRAVEL SPEED DOES NOT SWITCH.................................................................................483
H-18 TRAVEL DOES NOT MOVE (ONE SIDE ONLY).........................................................................483
SWING SYSTEM .........................................................................................................484
H-19 DOES NOT SWING...............................................................................................484
H-20 SWING SPEED IS SLOW OR SWING ACCELERATION IS POOR............................................................485
H-21 EXCESSIVE OVERRUN WHEN STOPPING SWING........................................................................486
H-22 EXCESSIVE SHOCK WHEN STOPPING SWING..........................................................................487
E-23 EXCESSIVE ABNORMAL NOISE WHEN STOPPING SWING.................................................................487
E-24 EXCESSIVE HYDRAULIC DRIFT OF SWING...........................................................................488
TROUBLESHOOTING OF MACHINE MONITOR SYSTEM (M MODE)........................................................................489
ACTION TAKEN BY MONITOR PANEL WHEN ABNORMALITY OCCURS AND PROLBEMS ON MACHINE.........................................492
ELECTRICAL CIRCUIT DIAGRAM FOR M MODE SYSTEM..........................................................................494
M-1 [E101] ABNORMALITY IN ERROR DATA) IS DISPLAYED....................................................................496
[E102] (ABNORMALITY IN CLOCK DATA) IS DISPLAYED...............................................................496
M-2 [E103] (SHORT CIRCUIT IN BUZZER OUTPUT SYSTEM) IS DISPLAYED.......................................................497
M-3 [E104] (AIR CLEANER CLOGGING DETECTION) IS DISPLAYED..............................................................498
M-4 [E108 (ENGINE WATER TEMPERATURE 105 C) IS DISPLAYED...............................................................498
M-5 WHEN STARTING SWITCH IS TURNED ON, NONE OF LAMPS ON MONITOR PANEL LIGHT UP FOR 3 SECONDS..........................499
M-6 WHEN STARTING SWITCH IS TURNED ON, MONITOR PANEL LAMPS ALL STAY LIGHTED UP AND DO NOT GO OUT......................501
M-7 WHEN STARTING SWITCH IS TURNED ON, ITEMS LIGHTED UP ON MONITOR PANEL ARE DIFFERENT FROM ACTUAL MACHINE............501
M-8 WHEN STARTING SWITCH IS TURNED ON, (ENGINE STOPPED), BASIC CHECK ITEMS FLASH......................................502
A) ENGINE OIL LEVEL CAUTION LAMP FLASHES..........................................................................502
B) HYDRAULIC OIL LEVEL CAUTION LAMP FLASHES.......................................................................503
M-9 PREHEATING IS NOT BEING USED BUT PREHEATING DISPLAY MONITOR LAMP LIGHTS UP........................................504
M-10 WHEN ENGINE IS STARTED, BASIC CHECK ITEMS FLASH..................................................................505
M-11 WHEN STARTING SWITCH IS TURNED ON (ENGINE STOPPED), CAUTION ITEMS AND EMERGENCY STOP ITEMS FLASH.................506
M-12 WHEN ENGINE IS STARTED, CAUTION ITEMS AND EMERGENCY STOP ITEMS FLASH.............................................507
A) ENGINE OIL PRESSURE CAUTION LAMP FLASHES.......................................................................507
B) CHARGE CAUTION LAMP FLASHES....................................................................................507
C) ENGINE WATER TEMPERATURE CAUTION LAMP FLASHES..................................................................508
D) FUEL LEVEL CAUTION LAMP FLASHES................................................................................508
E) AIR CLEANER CLOGGING CAUTION LAMP FLASHES......................................................................509
F) HYDRAULIC OIL TEMPERATURE CAUTION LAMP FLASHES.................................................................510
M-13 OPERATION OF ALARM BUZZER IS NOT NORMAL..........................................................................512
A) WHEN STARTING SWITCH IS TURNED ON (ENGINE STOPPED), BUZZER DOES NOT SOUND FOR 1 SECOND.........................512
B) NO ABNORMALITY IS DISPLAYED ON MONITOR BUT BUZZER SOUNDS ......................................................512
M-14 NIGHT LIGHTING ON MONITOR PANEL DOES NOT LIGHT UP................................................................514
M-15 ENGINE WATER TEMPERATURE DISPLAY IS NORMAL.......................................................................515
A) GAUGE DOES NOT GO..............................................................................................515
B) GAUGES DO NOT GIVE DISPLAY (NO STAGE IS DISPLAYED).............................................................515
M-16 FUEL LEVEL GAUGE DISPLAY IS NOT NORMAL...........................................................................516
A) FUEL LEVEL GAUGE ALWAYS DISPLAYS FULL..........................................................................516
B) FUEL LEVEL GAUGE DOES NOT GIVE DISPLAY (NO STAGE IS DISPLAYED).................................................516
M-17 SWING LOCK SWITCH IS TURNED ON BUT SWING LOCK MONITOR LAMP DOES NOT LIGHT UP.....................................518
M-18 WHEN SWING BRAKE CANCEL SWITCH IS SET TO CANCEL (EMERGENCY), SWING LOCK MONITOR LAMP DOES NOT FLASH .............519
M-19 SERVICE METER DOES NOT GIVE NORMAL DISPLAY.......................................................................520
A) SERVICE METER DOES NOT ADVANCE WHEN ENGINE IS RUNNING..........................................................520
B) WHEN STARTING SWITCH IS OFF, SERVICE METER DOES NOT GIVE DISPLAY WHEN TIME SWITCH IS PRESSED...................520
M-20 DEFECTIVE FUEL LEVEL SENSOR SYSTEM...............................................................................521
M-21 DEFECTIVE ENGINE OIL LEVEL SENSOR SYSTEM.........................................................................522
M-22 DEFECTIVE HYDRAULIC OIL LEVEL SENSOR SYSTEM......................................................................523
M-23 WIPER IS NOT ACTUATED WHEN WIPER SWITCH IS OPERATED OR WIPER IS ACTUATED WHEN WIPER SWITCH IS NOT OPERATED.......524
A) WIPER IS NOT ACTUATED WHEN SWITCH IS OPERATED (INCLUDING WHEN SERVICE CODE [E122], [E113] ARE DISPLAYED).......524
B) WIPER SWITCH IS NOT BEING OPERATED, BUT WIPER IS ACTUATED......................................................526
M-24 ELECTRIC GREASE GUN DOES NOT WORK (MACHINES EQUIPPED WITH ELECTRIC GREASE GUN)...................................529
30 DISASSEMBLY AND ASSEMBLY.......................................................................................................531
METHOD OF USING MANUAL........................................................................................................532
PRECAUTIONS WHEN CARRYING OUT OPERATION.......................................................................................535
SPECIAL TOOL LIST.............................................................................................................537
SKETCHES OF SPECIAL TOOLS.....................................................................................................544
RADIATOR, HYDRAULIC COOLER ASSEMBLY...........................................................................................552
REMOVAL AND INSTALLATION..................................................................................................552
ENGINE, PTO, HYDRAULIC PUMP ASSEMBLY..........................................................................................555
REMOVAL AND INSTALLATION..................................................................................................555
PTO ASSEMBLY..................................................................................................................559
REMOVAL AND INSTALLATION..................................................................................................559
DISASSEMBLY AND ASSEMBLY..................................................................................................560
FUEL TANK ASSEMBLY............................................................................................................564
REMOVAL AND INSTALLATION..................................................................................................564
FINAL DRIVE ASSEMBLY..........................................................................................................565
DISASSEMBLY AND ASSEMBLY..................................................................................................565
TRAVEL MOTOR ASSEMBLY.........................................................................................................578
DISASSEMBLY AND ASSEMBLY..................................................................................................578
REVOLVING FRAME ASSEMBLY......................................................................................................594
REMOVAL AND INSTALLATION..................................................................................................594
SWING MOTOR ASSEMBLY..........................................................................................................596
REMOVAL AND INSTALLATION..................................................................................................596
DISASSEMBLY AND ASSEMBLY..................................................................................................597
SWING MACHINERY ASSEMBLY......................................................................................................608
REMOVAL AND INSTALLATION..................................................................................................608
DISASSEMBLY AND ASSEMBLY..................................................................................................609
SWING CIRCLE ASSEMBLY.........................................................................................................618
REMOVAL AND INSTALLATION..................................................................................................618
TRACK SHOE ASSEMBLY...........................................................................................................619
REMOVAL AND INSTALLATION..................................................................................................619
ONE LINK IN FIELD.............................................................................................................621
DISASSEMBLY AND ASSEMBLY..................................................................................................621
IDLER, RECOIL SPRING ASSEMBLY.................................................................................................625
REMOVAL AND INSTALLATION..................................................................................................625
IDLER.........................................................................................................................626
DISASSEMBLY AND ASSEMBLY..................................................................................................626
RECOIL SPRING ASSEMBLY........................................................................................................630
DISASSEMBLY AND ASSEMBLY..................................................................................................630
TRACK ROLLER ASSEMBLY.........................................................................................................632
REMOVAL AND INSTALLATION..................................................................................................632
DISASSEMBLY AND ASSEMBLY..................................................................................................633
CARRIER ROLLER ASSEMBLY.......................................................................................................636
REMOVAL AND INSTALLATION..................................................................................................636
DISASSEMBLY AND ASSEMBLY..................................................................................................637
HYDRAULIC TANK ASSEMBLY.......................................................................................................640
REMOVAL AND INSTALLATION..................................................................................................640
MAIN RELIEF VALVE ASSEMBLY....................................................................................................642
DISASSEMBLY AND ASSEMBLY..................................................................................................642
MAIN RELIEF VALVE ASSEMBLY....................................................................................................644
DISASSEMBLY AND ASSEMBLY..................................................................................................644
MAIN CONTROL VALVE,SOLENOID VALVE ASSEMBLY....................................................................................644
REMOVAL AND INSTALLATION..................................................................................................644
MAIN CONTROL VALVE ASSEMBLY...................................................................................................646
DISASSEMBLY AND ASSEMBLY..................................................................................................646
NO. 1 AND NO. 2 PUMP ASSEMBLY.................................................................................................650
REMOVAL AND INSTALLATION..................................................................................................650
HYDRAULIC PUMP ASSEMBLY.......................................................................................................652
DISASSEMBLY AND ASSEMBLY..................................................................................................652
CONTROL, PTO LUBIRCATION PUMP.................................................................................................678
REMOVAL AND INSTALLATION..................................................................................................678
CENTER SWIVEL JOINT ASSEMBLY..................................................................................................679
REMOVAL AND INSTALLATION..................................................................................................679
DISASSEMBLY AND ASSEMBLY..................................................................................................680
WORK EQUIPMENT, PPC VALVE ASSEMBLY............................................................................................681
DISASSEMBLY AND ASSEMVBLY.................................................................................................681
TRAVEL PPC VALVE ASSEMBLY.....................................................................................................683
DISASSEMBLY AND ASSEMVBLY.................................................................................................683
BUCKET CYLINDER ASSEMBLY......................................................................................................685
REMOVAL AND INSTALLATION..................................................................................................685
ARM CYLINDER ASSEMBLY.........................................................................................................687
REMOVAL AND INSTALLATION..................................................................................................687
BOOM CYLINDER ASSEMBLY........................................................................................................689
REMOVAL AND INSTALLATION..................................................................................................689
HYDRAULIC CYLINDER ASSEMBLY...................................................................................................691
DISASSEMBLY AND ASSEMVBLY.................................................................................................691
BUCKET ASSEMBLY...............................................................................................................698
REMOVAL AND INSTALLATION..................................................................................................699
ARM ASSEMBLY..................................................................................................................700
REMOVAL AND INSTALLATION..................................................................................................700
BOOM ASSEMBLY.................................................................................................................702
REMOVAL AND INSTALLATION..................................................................................................702
OPERATOR'S CAB ASSEMBLY.......................................................................................................704
REMOVAL AND INSTALLATION..................................................................................................704
COUNTERWEIGHT ASSEMBLY........................................................................................................706
REMOVAL AND INSTALLATION..................................................................................................706
40 MAINTENANCE STANDARD...........................................................................................................707
ENGINE MOUNT..................................................................................................................708
PTO...........................................................................................................................709
SWING MACHINERY...............................................................................................................710
SWING CIRCLE..................................................................................................................712
FINAL DRIVE...................................................................................................................714
TRACK FRAME AND RECOIL SPRING.................................................................................................716
IDLER.........................................................................................................................718
CARRIER ROLLER................................................................................................................720
TRACK ROLLER..................................................................................................................721
TRACK SHOE....................................................................................................................722
HYDRAULIC PUMP................................................................................................................727
CONTROL AND PTO LUBRICATION PUMP..............................................................................................729
CONTROL VALVE.................................................................................................................730
SWING MOTOR...................................................................................................................737
TRAVEL MOTOR..................................................................................................................738
WORK EQUIPMENT SWING PPC VALVE................................................................................................739
TRAVEL PPC VALVE..............................................................................................................740
SERVICE PPC VALVE.............................................................................................................741
SOLENOID VALVE................................................................................................................742
CENTER SWIVEL JOINT...........................................................................................................743
BOOM HOLDING VALVE............................................................................................................744
BOOM LOWER REGENERATION VALVE.................................................................................................745
HYDRAULIC CYLINDER............................................................................................................746
WORK EQUIPMENT................................................................................................................748
DIMENSIONS OF WORK EQUIPMENT..................................................................................................750
90 OTHERS.........................................................................................................................755
HYDRAULIC CIRCUIT DIAGRAM.....................................................................................................757
ELECTRIC CIRCUIT DIAGRAM (1/4)................................................................................................759
ELECTRIC CIRCUIT DIAGRAM (2/4)................................................................................................761
ELECTRIC CIRCUIT DIAGRAM (3/4)................................................................................................763
ELECTRIC CIRCUIT DIAGRAM (4/4)................................................................................................765

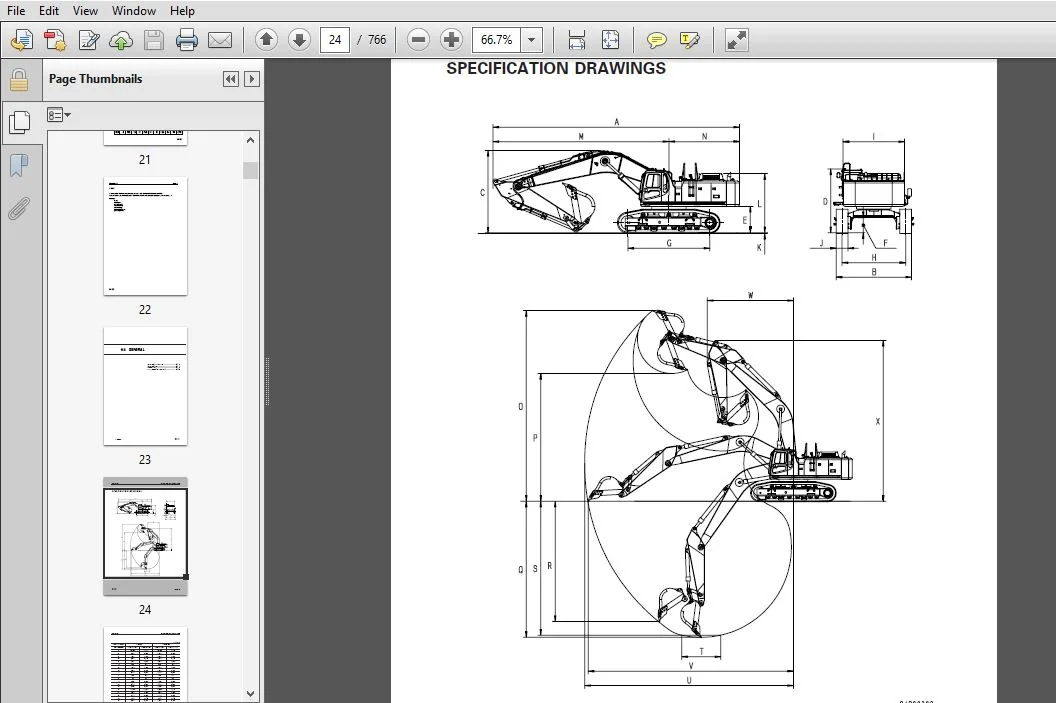

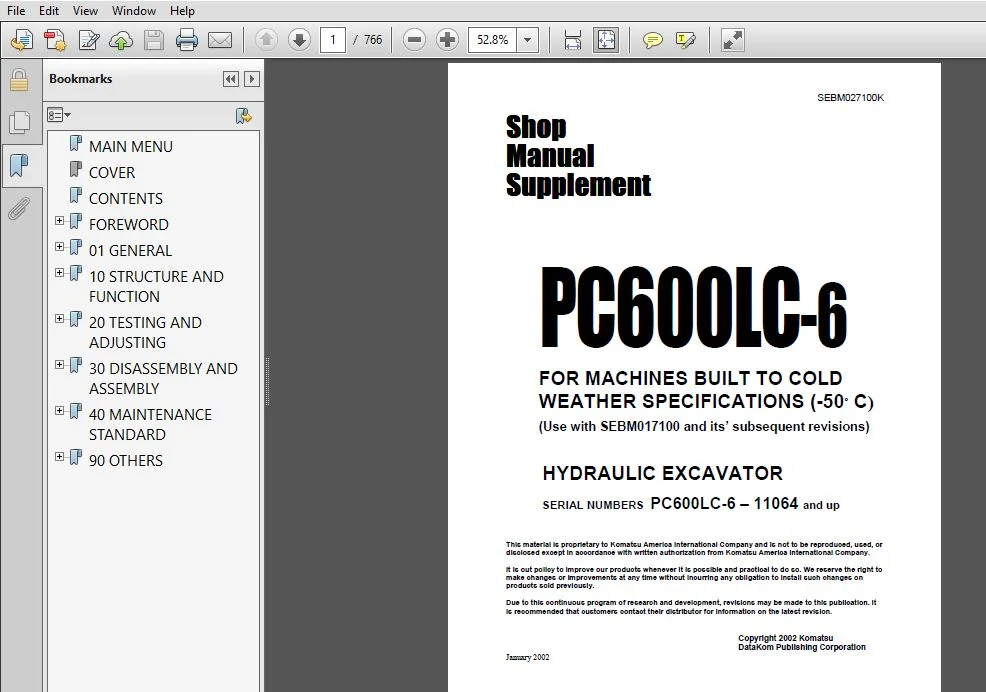

KOMATSU PC600LC-6 HYDRAULIC EXCAVATOR SHOP MANUAL SUPPLEMENT SEBM027100K – PDF DOWNLOAD:

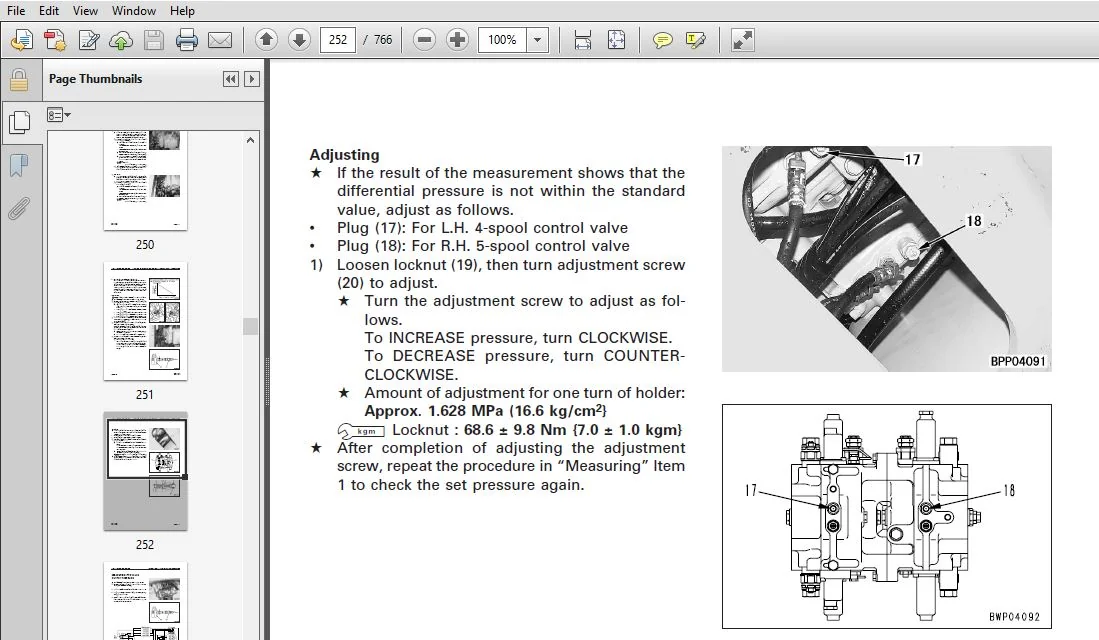

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
