Komatsu Pc750-6, Pc750Se-6, Pc750Lc-6, Pc800-6, Pc800Se-6 Hydraulic Excavator Field Assembly Manual – PDF DOWNLOAD

Description

Komatsu Pc750-6, Pc750Se-6, Pc750Lc-6, Pc800-6, Pc800Se-6 Hydraulic Excavator Field Assembly Manual

FILE DETAILS:

Komatsu Pc750-6, Pc750Se-6, Pc750Lc-6, Pc800-6, Pc800Se-6 Hydraulic Excavator Field Assembly Manual

Model Specification: KOMATSU PC750-6, PC750SE-6, PC750LC-6, PC800-6, PC800SE-6 HYDRAULIC EXCAVATOR
Language: English
File Format: PDF
Total Pages: 165
Requirements: Adobe PDF Reader
ZOOM IN/OUT: YES
Downloadable: YES

KOMATSU PC750-6, PC750SE-6, PC750LC-6, PC800-6, PC800SE-6 HYDRAULIC EXCAVATOR FIELD ASSEMBLY MANUAL – PDF DOWNLOAD:

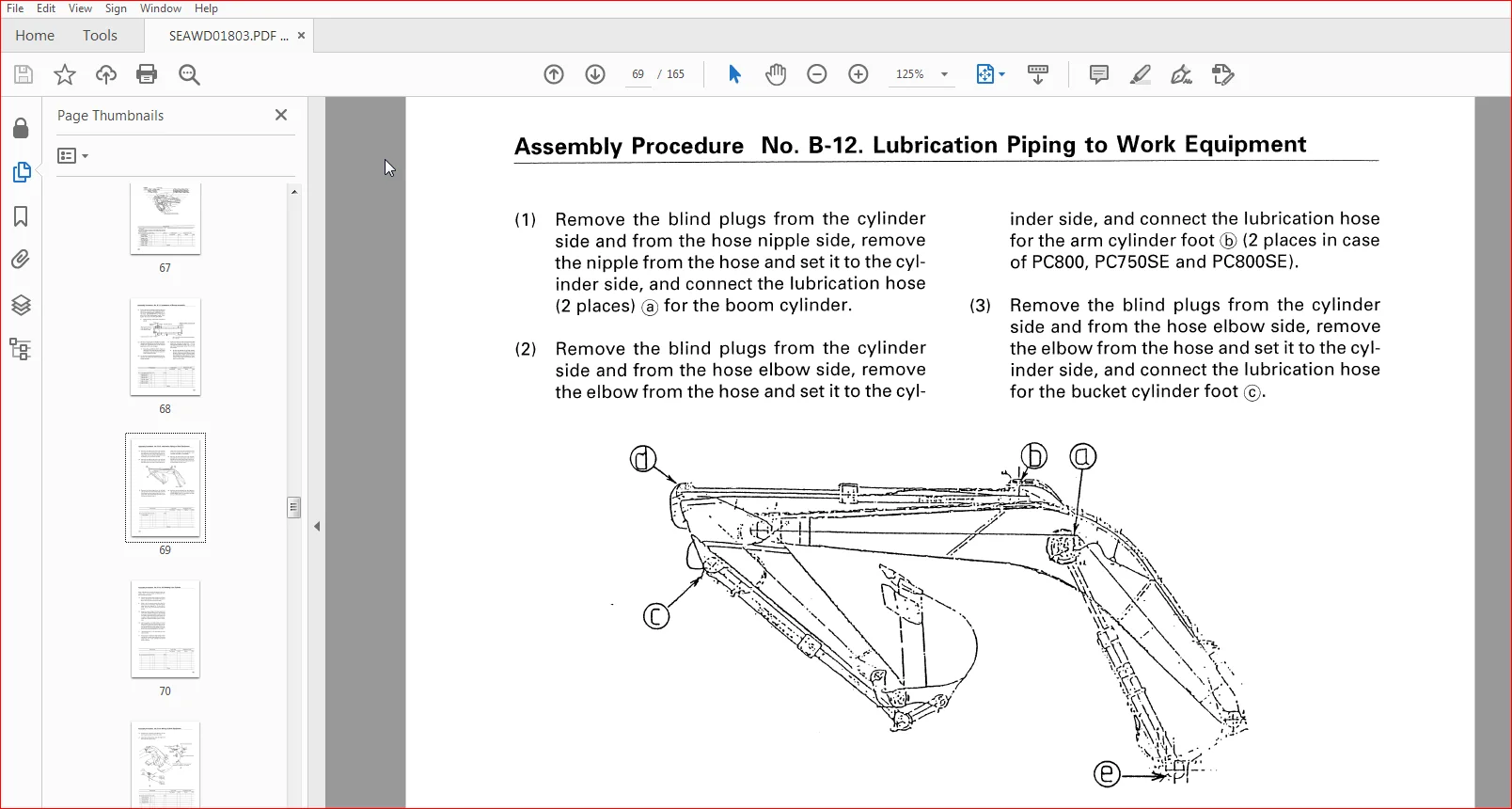

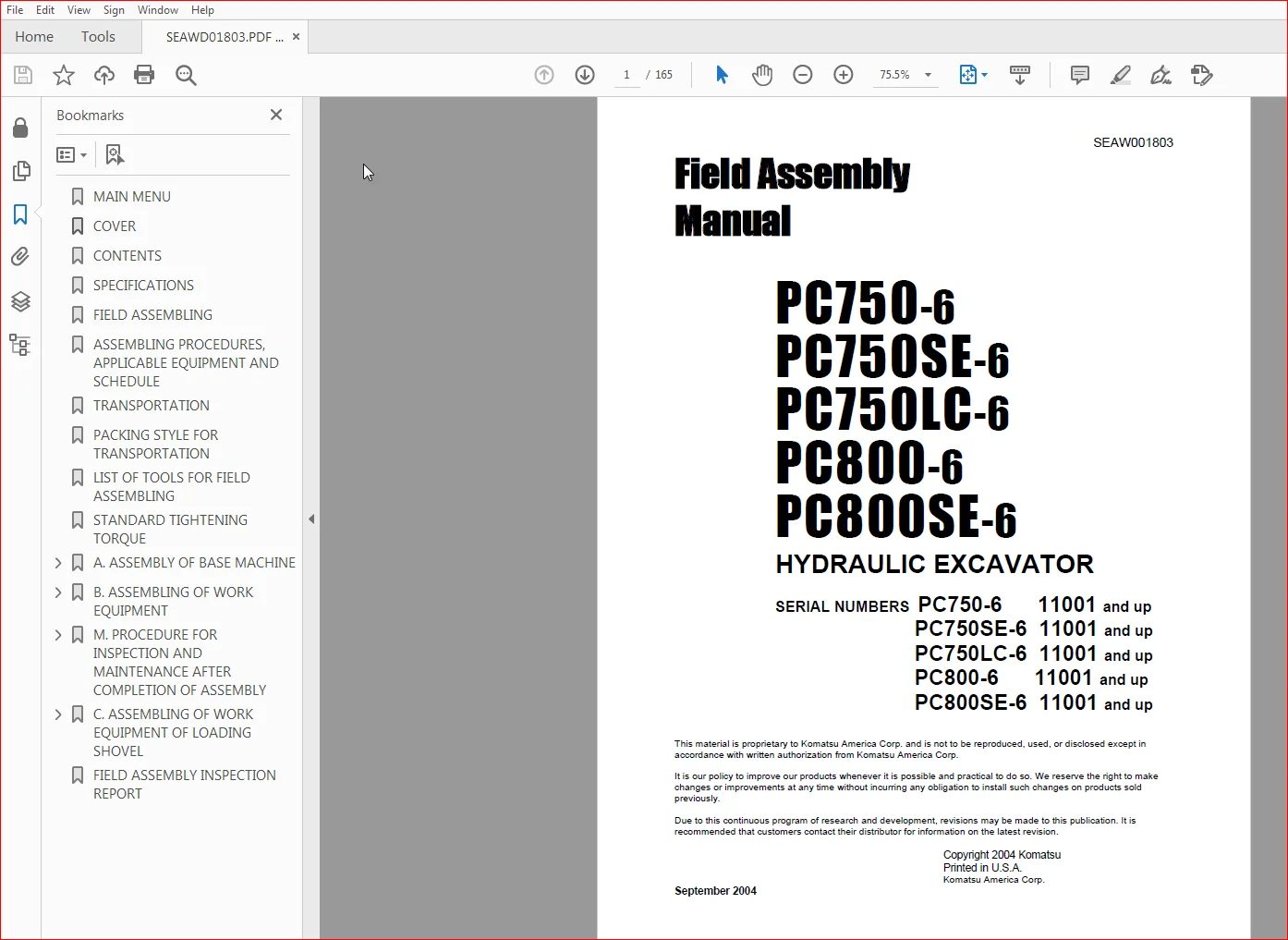

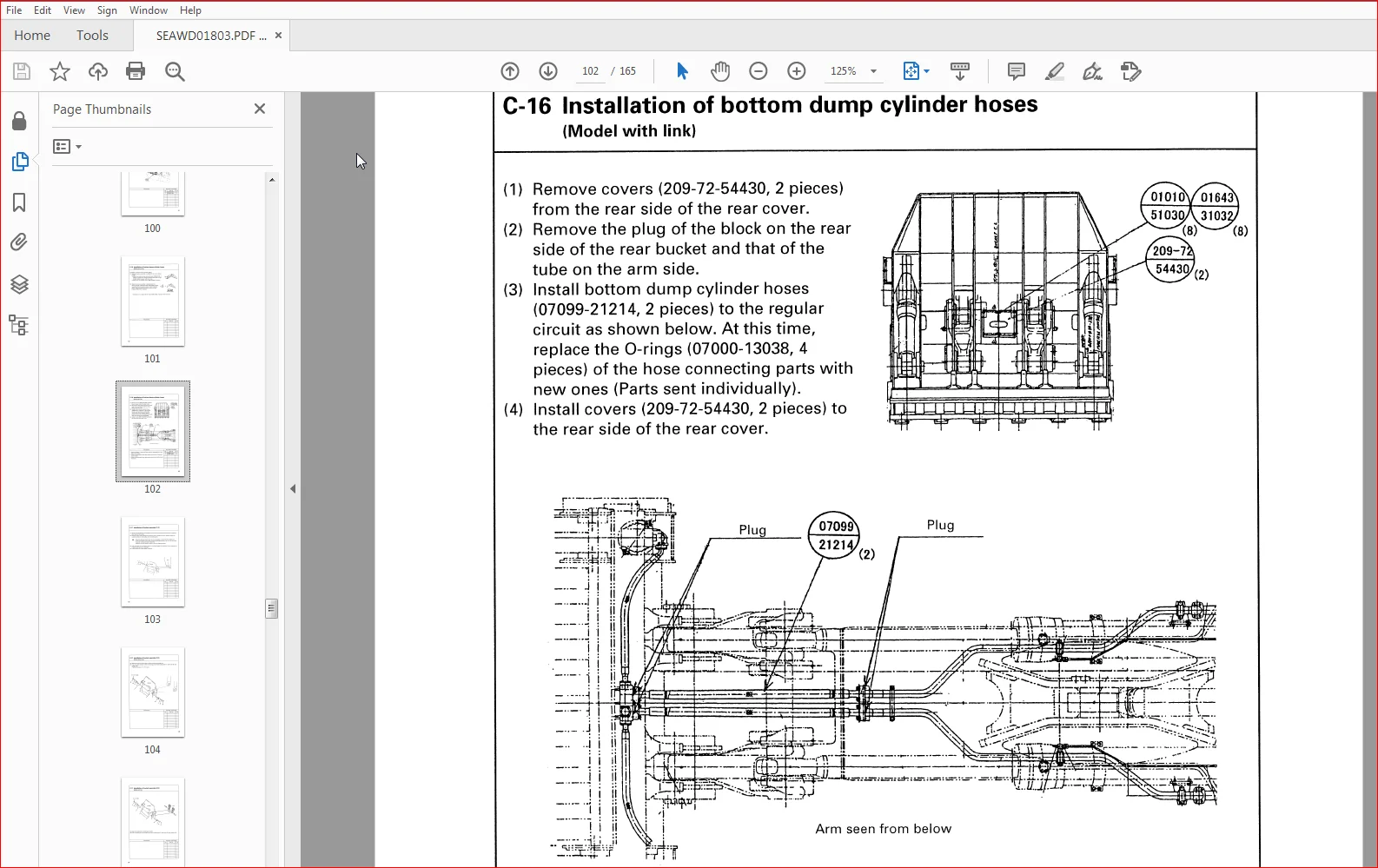

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu Pc750-6, Pc750Se-6, Pc750Lc-6, Pc800-6, Pc800Se-6 Hydraulic Excavator Field Assembly Manual

FOREWORD:

• With this machine, the work equipment is extremely heavy and the hydraulic pressure of the chas- sis is used to install it efficiently. Forthis reason, start the engine and actuate the hydraulic cylinders.
• Before starting the engine and assembling the work equipment. it is necessary to carry out thorough inspection and maintenance. in addition. this work is frequently carried out with more than one worker in a dangerous place and posture.
• To ensure safety, carry out a safety meeting before starting and decide the operation leader and the person to give signals to the crane to ensure that all workers can carry out the operation in safety.
• Particularly in places where the workers speak different languages or have different customs, there are various causes of safety problems, so the local liaison officer and person in charge of the opera- tion should consider fully the above points and take action to ensure safety.

TABLE OF CONTENTS:

Komatsu Pc750-6, Pc750Se-6, Pc750Lc-6, Pc800-6, Pc800Se-6 Hydraulic Excavator Field Assembly Manual

MAIN MENU................................................................................  0
COVER....................................................................................  1
CONTENTS.................................................................................  3
SPECIFICATIONS...........................................................................  4
FIELD ASSEMBLING.........................................................................  5
ASSEMBLING PROCEDURES, APPLICABLE EQUIPMENT AND SCHEDULE.................................  7
TRANSPORTATION...........................................................................  9
PACKING STYLE FOR TRANSPORTATION.........................................................  9
LIST OF TOOLS FOR FIELD ASSEMBLING....................................................... 15
STANDARD TIGHTENING TORQUE............................................................... 16
A. ASSEMBLY OF BASE MACHINE.............................................................. 20
	A-1 FITTING OF LEFT AND RIGHT TRACK FRAMES........................................... 21
	A-2 ARRANGEMENT OF TRAVEL PIPE....................................................... 25
	A-3 INSTALLATION OF FOG.............................................................. 28
	A-4 INSTALLATION OF RADIATOR COVER................................................... 29
	A-5 INSTALLATION OF REAR VIEW MIRROR................................................. 30
	A-6 INSTALLATION OF HANDRAIL......................................................... 34
	A-7 INSTALLATION OF STEP............................................................. 37
	A-8 INSTALLATION OF LEFT SIDE STEP................................................... 38
	A-9 SETTING OF MUFFLER TAIL TUBE..................................................... 39
	A-10 STICKING SHEET (TO COUNTERWEIGHT)............................................... 40
	A-11 INSTALLATION OF COUNTERWEIGHT................................................... 41
	A-12 INSTALLATION OF RADIO ANTENNA................................................... 42
	A-13 INSTALLATION OF CAB TOP LIGHT................................................... 44
	A-14 SETTING OF TRAVEL PIPE COVER.................................................... 47
	A-15 ADJUSTMENT OF TRACK TENSION..................................................... 48
	A-15A EXTENSION OF TRACK FRAME GAUGE (ONLY WHEN 3-SPLIT PACKAGES ARE TRANSPORTED).... 51
	A-16 INSPECTION OF OIL AMOUNT AND WATER AMOUNT....................................... 54
B. ASSEMBLING OF WORK EQUIPMENT.......................................................... 56
	B-1 BOOM FOOT PIN, AND BOOM CYLINDER FOOT PIN........................................ 57
	B-2 BOOM ASSEMBLY.................................................................... 58
	B-3 RELIEVING REMAINING PRESSURE FROM HYDRAULIC CIRCUIT.............................. 59
	B-4 INSTALLATION OF BOOM CYLINDER FOOT............................................... 60
	B-5 ARRANGEMENT OF BOOM CYLINDER HOSE................................................ 61
	B-6 INSTALLATION OF BOOM CYLINDER.................................................... 62
	B-7 INSTALLATION OF ARM CYLINDER..................................................... 63
	B-8 ARRANGEMENT OF ARM CYLINDER HOSE................................................. 64
	B-9 INSTALLATION OF ARM ASSEMBLY..................................................... 65
	B-10 ARRANGEMENT OF HOSE BETWEEN BOOM AND BUCKET CYLINDER............................ 67
	B-11 INSTALLATION OF BUCKET ASSEMBLY................................................. 68
	B-12 LUBRICATION PIPING TO WORK EQUIPMENT............................................ 69
	B-13 AIR BLEEDING FROM CYLINDER...................................................... 70
	B-14 WIRING OF WORK EQUIPMENT........................................................ 71
	B-15 GREASING OF ASSEMBLED WORK EQUIPMENT............................................ 72
M. PROCEDURE FOR INSPECTION AND MAINTENANCE AFTER COMPLETION OF ASSEMBLY................. 74
	M-1 INSPECTION OF OIL LEVEL IN HYDRAULIC TANK AND REFILL............................. 75
	M-2 REPLACEMENT OF RETURN FILTER (STANDARD FILTER TO FLUSHING FILTER)................ 77
	M-3 FLUSHING OF HYDRAULIC CIRCUIT.................................................... 81
C. ASSEMBLING OF WORK EQUIPMENT OF LOADING SHOVEL........................................ 84
	CONTENTS............................................................................. 84
	C-1 RELEASEING RESIDUAL PRESSURE IN HYDRAULIC CIRCUIT................................ 85
	C-2 PULLING OUT BOOM FOOT PIN AND BOOM CYLINDER FOOT PIN............................. 86
	C-3 INSTALLATION OF BOOM AND ARM ASSEMBLY............................................ 87
	C-4 INSTALLATION OF FLUSHING PIPING BETWEEN CHASSIS AND BOOM......................... 88
	C-5 INSTALLATION OF FLUSHING PIPING FOR BOOM CYLINDER AND ARM CYLINDER............... 89
	C-6 INSTALLATION OF FLUSHING PIPING FOR BUCKET CYLINDER.............................. 90
	C-7 INSTALLATION OF FLUSHING PIPING FOR BOTTOM DUMP CYLINDER......................... 91
	C-8 INSTALLATION OF BOOM CYLINDER.................................................... 93
	C-9 ISTALLATION OF BOOM CYLINDER FOOT................................................ 94
	C-10 INSTALLATION OF BOOM CYLINDER HOSES............................................. 95
	C-11 INSTALLATION OF BOOM CYLINDER ROD PIN........................................... 96
	C-12 INSTALLATION OF ARM CYLINDER HOSES.............................................. 97
	C-13 INSTALLATION OF BUCKET CYLINDER................................................. 98
	C-14 INSTALLATION OF BUCKET CYLINDER HOSE............................................ 99
	C-15 INSTALLATION OF CONNECTING HOSES BETWEEN CHASSIS AND BOOM TOP...................100
	C-16 INSTALLATION OF BOTTOM DUMP CYLINDER HOSES......................................101
	C-17 INSTALLATION OF BUCKET ASSEMBLY.................................................103
	C-18 INSTALLATION OF WORKING LAMPS...................................................106
	C-19 INSTALLATION OF WORK EQUIPMENT FREASE PIPING ...................................107
	C-20 GREASING AFTER ASSEMBLING OF WORK EQUIPMENT.....................................109
	C-21 BLEEDING AIR FROM WORK EQUIPMENT CIRCUIT........................................110
	C-22 FLUSHING OF WORK EQUIPMENT PIPING...............................................111
	C-23 CHECKING OIL LEVEL IN HYDRAULIC TANK AND ADDING OIL.............................113
FIELD ASSEMBLY INSPECTION REPORT.........................................................114
