Komatsu Perkins Engine CX DX20 EX (Phaser 1000 Series) Shop Manual BEE06EZ-01 – PDF DOWNLOAD

Description

Komatsu Perkins Engine CX DX20 EX (Phaser 1000 Series) Shop Manual BEE06EZ-01 – PDF DOWNLOAD

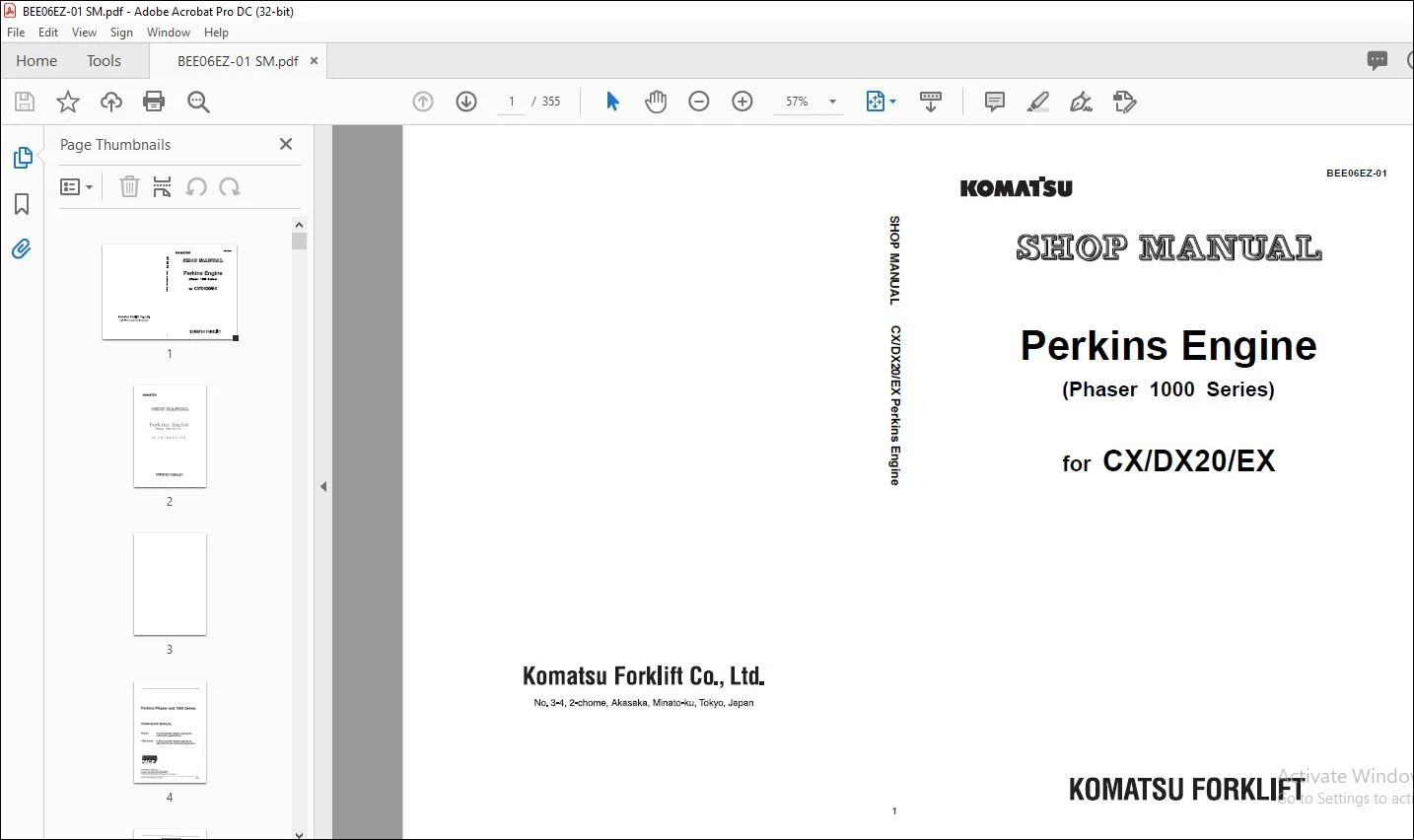

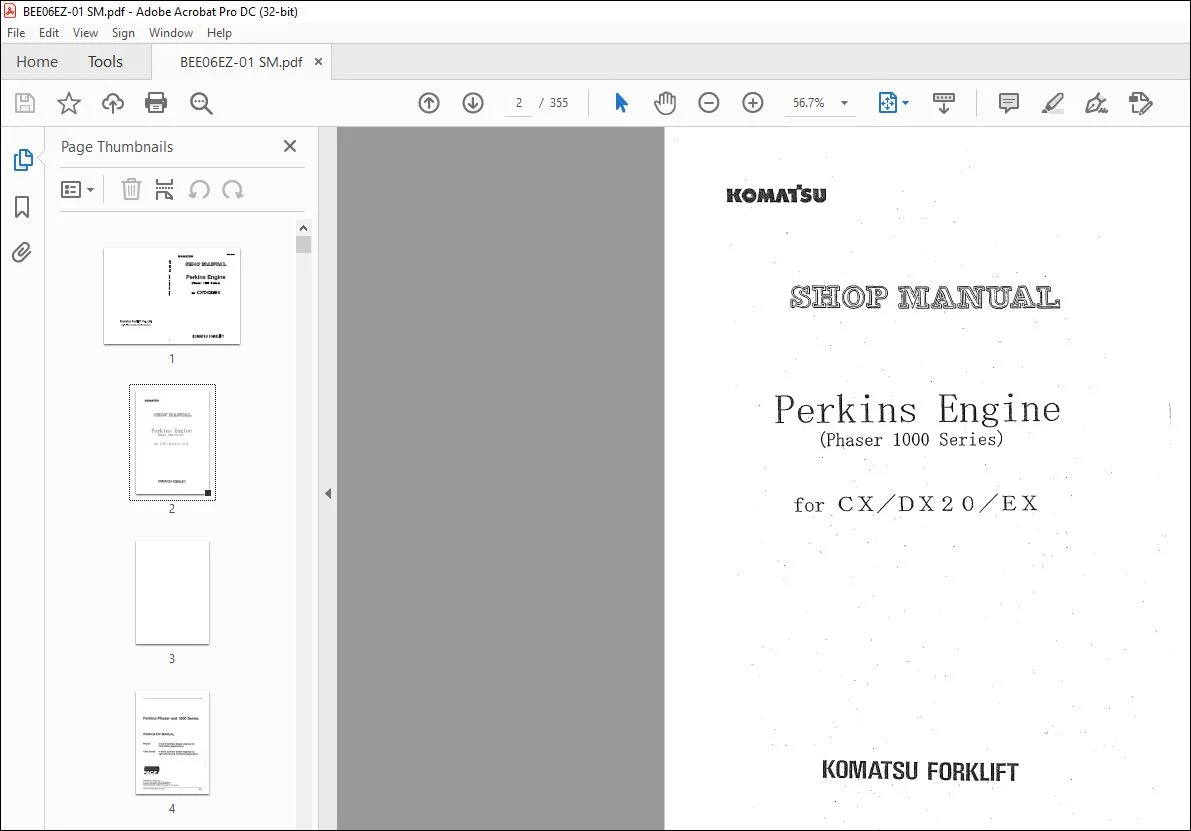

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu Perkins Engine CX DX20 EX (Phaser 1000 Series) Shop Manual BEE06EZ-01 – PDF DOWNLOAD

GENERAL INFORMATION:
lntroduction:

This workshop manual has been designed to provide assistance in the service and overhaul of Perkins Phaser and 1 ООО Series engines. Most of the general information which is included in the relevant User’s Handbook (sections 1 to 9) has not Ьееп repeated in this workshop manual and the two puЫications should Ье used together.

• Where the information applies оп/у to certain engine types, this is indicated. in the text. The details of same aperations will Ье different accarding ta the type of fuel injectian pump which is fitted.
• The specific pump type used сап Ье faund Ьу reference to the manufacturer’s identificatian plate оп the pump body but, generally, the type of pump fitted is as shown below.

Lucas DPA, DPS and DP200 Series
Bosch EPVE and MW
Stanadyne D82 and D84

• When reference is made to the “left” or “right” side af the engine, this is as seen from the flywheel end of the eпgine. Special tools have been made availaЫe and а list of these is given iп section 25.
• Reference to the relevant special tools is also made at the beginning of each operatioп. Data and dimensions are included at the end of each section.

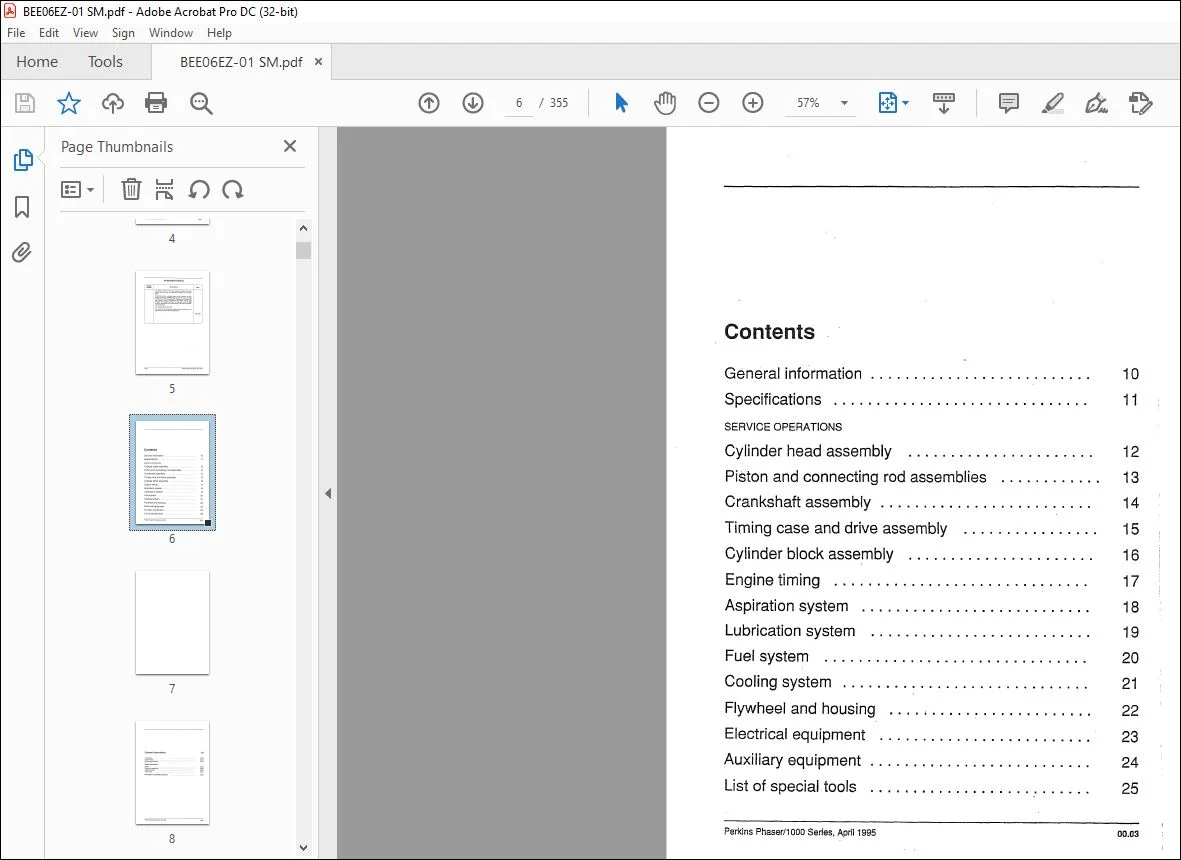

TABLE OF CONTENTS:

Komatsu Perkins Engine CX DX20 EX (Phaser 1000 Series) Shop Manual BEE06EZ-01 – PDF DOWNLOAD

General information 1 О
Specifications 11
SERVICE OPERA TIONS
Cylinder head assemЫy 12
Piston and connecting rod assemЫies 13
Crэ nkshaft assemЫy 14
Timing case and drive assemЫy 15
Cylinder Ыосk assemЫy 16
Engine timing 17
Aspiration system 18
Lubrication system 19
Fuel system 20
Cooling system 21
Flywheel and housing 22
Electrical equipment 23
Auxiliary equipment
List of special tools
Perkins Phaser/1ООО Series, April 1995
