Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 PDF
Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 PDF - Image 2
Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 PDF - Image 3

Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 PDF

$28.95

Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 – PDF DOWNLOAD

Category: Tags: , , Vendor: Crane Manuals
⚡
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 – PDF DOWNLOAD

FILE DETAILS:

Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 – PDF DOWNLOAD

Language : English
Pages : 252
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 – PDF DOWNLOAD

SERIAL NUMBER
SK818-5 37BF50003 and up
SK820-5 turbo 37BTF50003 and up

MAIN MENU 0
COVER 1
CONTENTS 2
SAFETY 5
FOREWORD 7
HOW TO READ THE SHOP MANUAL 8
HOISTING INSTRUCTIONS 9
STANDARD TIGHTENING TORQUE 10
COATING MATERIALS 12
ELECTRIC 13
WEIGHT TABLE 14
TABLE OF OIL AND COOLANT QUANTITIES 15
CONVERSION TABLE 17
10 STRUCTURE AND FUNCTION 25
P T O 26
POWER TRAIN 27
TRANSMISSION 28
FINAL DRIVE 30
HYDRAULIC CIRCUIT SK818-5 37
HYDRAULIC CIRCUIT SK820-5 TURBO 37
HST PUMP LPV40 + 40 (STANDARD) 39
HST PUMP LPV40 + 40 (HIGHFLOW) 40
SUCTION SAFETY VALVE 45
CHARGE SAFETY VALVE 49
CHARGE PUMP 51
ANTI ENGINE-STALL CONTROL VALVE (AS VALVE) 53
SHUTTLE VALVE 55
CONTROL VALVE (3-SPOOL) 56
CONTROL VALVE (4-SPOOL) 59
CLSS 63
SOLENOID VALVE 71
SOLENOID VALVE ST2 72
ACCUMULATOR 73
PATTERN CHANGE VALVE 74
R H PPC VALVE (STANDARD) 78
R H PPC VALVE (PATTERN CHANGE) 82
L H PPC VALVE (STANDARD) 86
L H PPC VALVE (PATTERN CHANGE) 90
CYLINDERS 94
ELECTRICAL DIAGRAM (ENGINE LINE) 95
ELECTRICAL DIAGRAM (FRAME LINE STANDARD) 99
ELECTRICAL DIAGRAM (FRAME LINE OPTIONAL) 103
ELECTRICAL DIAGRAM (CABIN LINE STANDARD) 107
ELECTRICAL DIAGRAM (CABIN LINE OPTIONAL) 113
ELECTRICAL DIAGRAM (TOP-CABIN LIGHT STANDARD) 121
20 TESTING AND ADJUSTMENTS 123
NORMAL OR STANDARD TECHNICAL DATA 124
SPECIAL TOOLS 136
CHECKING THE ENGINE SPEED 137
ADJUSTMENT OF VALVE CLEARANCE 138
MEASUREMENT OF THE COMPRESSION PRESSURE 139
CONTROL AND ADJUSTMENT OF THE FAN BELT TENSION 140
CONTROL AND ADJUSTMENT OF THE INJECTION TIMING 141
CHECKING ENGINE OIL PRESSURE 143
ADJUSTING THE STROKE OF THE ACCELERATOR CABLES 144
REGULATION OF PPC VALVES’ DRIVE PRESSURE 145
ADJUSTMENT OF THE PPC VALVE CLEARANCES 147
ADJUSTING THE POSITION OF THE SERVO-CONTROL ENGAGEMENT SAFETY SENSOR 148
TESTING AND ADJUSTMENT OF GEARING CHAIN TENSION 149
CONTROL AND REGULATION OF THE PRESSURES IN THE HYDRAULIC CIRCUITS 150
TESTING THE HYDRAULIC PUMP 151
VALVE CALIBRATION 152
CHECKING THE TRAVEL DEVIATION 154
CONTROL VALVE 156
CONTROL AND REGULATION OF THE SERVO-CONTROL POWER SUPPLY 157
ELIMINATION OF RESIDUAL PRESSURES – PRESSURIZATION OF THE TANK 159
BLEEDING AIR FROM THE HYDRAULIC CIRCUITS 160
30 REMOVAL AND INSTALLATION 163
HOW TO READ THE MANUAL 165
PRECAUTIONS TO BE TAKEN WHILE WORKING 166
ENGINE HOOD 167
REMOVAL AND INSTALLATION 167
CAB 168
TILTING 168
LOWERING 170
BATTERY 171
REMOVAL AND INSTALLATION 171
STARTING MOTOR 172
REMOVAL AND INSTALLATION 172
ALTERNATOR 173
REMOVAL AND INSTALLATION 173
MUFFLER (SK818-5) 174
REMOVAL AND INSTALLATION 174
MUFFLER (SK820-5 TURBO) 175
REMOVAL AND INSTALLLATION 175
TURBOCHARGER (SK820-5 TURBO) 176
REMOVAL 176
INSTALLATION 177
AIR INTAKE FILTER 178
REMOVAL AND INSTALLATION 178
NOZZLE HOLDER 179
REMOVAL AND INSTALLATION 179
INJECTION PUMP 180
REMOVAL 180
INSTALLATION 182
CYLINDER HEAD (SK818-5) 183
REMOVAL 183
INSTALLATION 184
CYLINDER HEAD (SK820-5 TURBO) 185
REMOVAL 185
INSTALLATION 186
COOLANT LIQUID PUMP 187
REMOVAL AND INSTALLATION 187
RADIATOR GROUP 188
REMOVAL 188
INSTALLATION 189
FUEL TANK (SK818-5) 190
REMOVAL AND INSTALLATION 190
FUEL TANK (SK820-5 TURBO) 191
REMOVAL 191
INSTALLATION 192
CAB 193
REMOVAL 193
INSTALLATION 195
ENGINE-PUMP GROUP 196
REMOVAL 196
INSTALLATION 199
COMPLETE HYDRAULIC PUMP 200
REMOVAL 200
INSTALLATION 202
GEAR PUMP 203
REMOVAL AND INSTALLATION 203
ENGINE-PUMP COUPLING 204
REMOVAL AND INSTALLATION 204
CONTROL VALVE 205
REMOVAL AND INSTALLATION 205
PPC VALVES 206
REMOVAL AND INSTALLATION 206
HEATING FAN 207
REMOVAL 207
INSTALLATION 208
HUB WHEEL 209
REMOVAL 209
INSTALLATION 210
DISMANTLING 211
ASSEMBLY 212
FINAL DRIVE 213
REMOVAL 213
INSTALLATION 214
RAISING CYLINDER 215
REMOVAL 215
INSTALLATION 216
BUCKET CYLINDER 217
REMOVAL 217
INSTALLATION 218
WORK EQUIPMENT CYLINDERS 219
DISASSEMBLY 219
ASSEMBLY 221
COMPLETE WORKING EQUIPMENT 225
REMOVAL 225
INSTALLATION 227
FULCRUM LEVER 228
REMOVAL AND INSTALLATION 228
LIFT LEVER 229
REMOVAL 229
INSTALLATION 230
WORKING EQUIPMENT SUPPORT FRAME 231
REMOVAL 231
INSTALLATION 231
40 STANDARD MAINTENANCE 233
P T O 234
TRANSMISSION 235
FINAL DRIVE 236
HYDRAULIC PUMP 237
AS VALVE 238
CONTROL VALVE (SUPER HIGH-FLOW VERSION) 239
CONTROL VALVE (STANDARD) 240
R H PPC VALVE 245
L H PPC VALVE 246
L H PPC VALVE PATTERN CHANGE 247
PATTERN CHANGE VALVE 248
CYLINDERS 249
WORKING EQUIPMENT 250

DESCRIPTION:

Komatsu SK818-5 SK820-5 Turbo Skid Steer Loader Shop Manual WEBM005200 – PDF DOWNLOAD

SERIAL NUMBER
SK818-5 37BF50003 and up
SK820-5 turbo 37BTF50003 and up

GENERAL PRECAUTIONS :

Mistakes in operation are extremely dangerous. Read the OPERATION & MAINTENANCE MANUAL carefully BEFORE operating the machine.

1. Before carrying out any greasing or repairs, read all the precautions given on the decals which are fixed to the machine.
2. When carrying out any operation, always wear safety shoes and helmet. Do not wear loose work clothes, or clothes with buttons missing.
● Always wear safety glasses when hitting parts with a hammer.
● Always wear safety glasses when grinding parts with a grinder, etc.
3. If welding repairs are needed, always have a trained, experienced welder carry out the work. When carrying out welding work, always wear welding gloves, apron, glasses, cap and other clothes suited for welding work.
4. When carrying out any operation with two or more workers, always agree on the operating procedure before starting. Always inform your fellow workers before starting any step of the operation. Before starting work, hang UNDER REPAIR signs on the controls in the operator’s compartment.
5. Keep all tools in good condition and learn the correct way to use them.
6. Decide a place in the repair workshop to keep tools and removed parts. Always keep the tools and parts in their correct places. Always keep the work area clean and make sure that there is no dirt or oil on the floor. Smoke only in the areas provided for smoking. Never smoke while working.

PREPARATIONS FOR WORK:

7. Before adding oil or making repairs, park the machine on hard, level ground, and block the wheels or tracks to prevent the machine from moving.
8. Before starting work, lower blade, ripper, bucket or any other work equipment to the ground. If this is not possible, insert the safety pin or use blocks to prevent the work equipment from falling. In addition, be sure to lock all the control levers and hang warning signs on them.
9. When disassembling or assembling, support the machine with blocks, jacks or stands before starting work.
10. Remove all mud and oil from the steps or other places used to get on and off the machine. Always use the handrails, ladders or steps when getting on or off the machine. Never jump on or off the machine. If it is impossible to use the handrails, ladders or steps, use a stand to provide safe footing.

PRECAUTIONS DURING WORK :

11. When removing the oil filler cap, drain plug or hydraulic pressure measuring plugs, loosen them slowly to prevent the oil from spurting out. Before disconnecting or removing components of the oil, water or air circuits, first remove the pressure completely from the circuit.
12. The water and oil in the circuits are hot when the engine is stopped, so be careful not to get burned. Wait for the oil and water to cool before carrying out any work on the oil or water circuits.
13. Before starting work, remove the leads from the battery. ALWAYS remove the lead from the negative (-) terminal first.

IMAGES PREVIEW OF THE MANUAL:

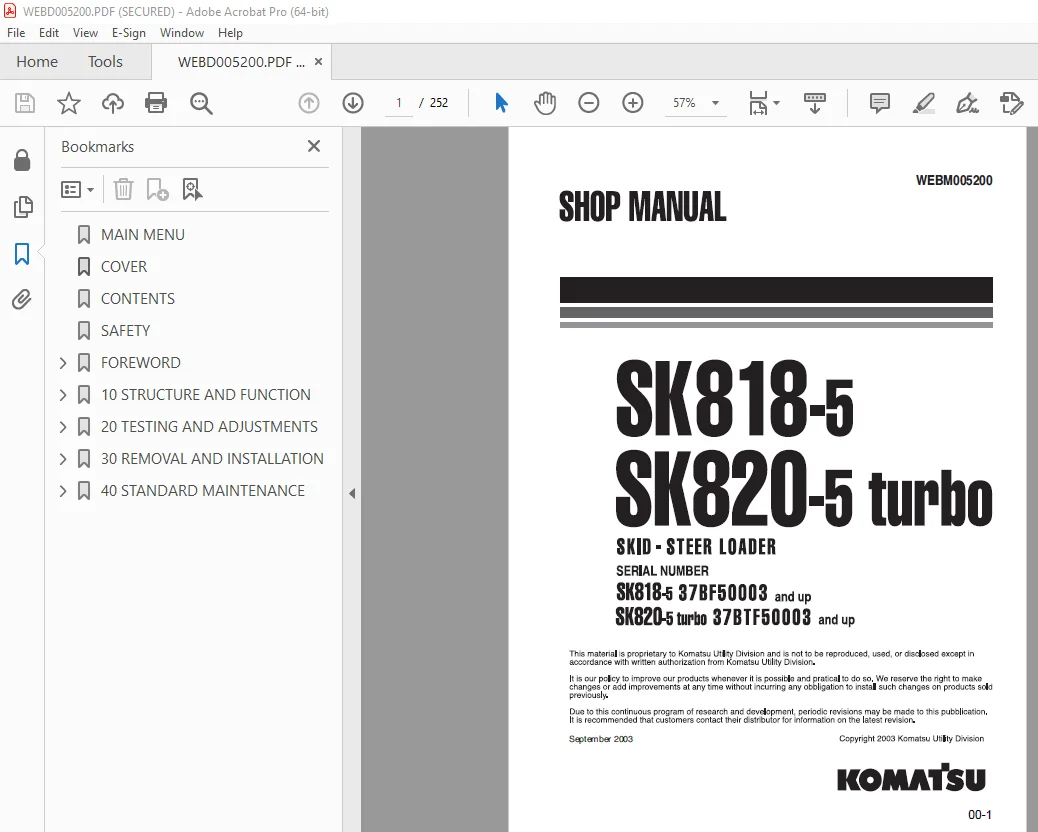

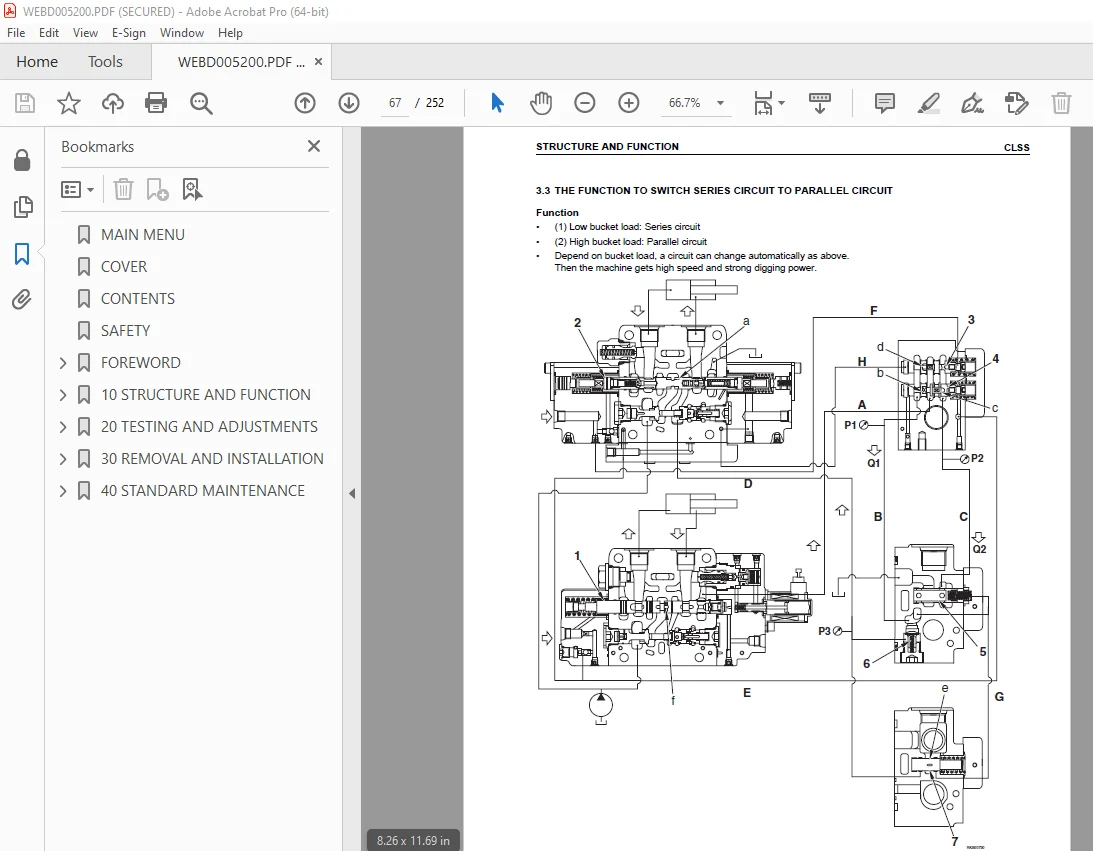

S.V 22/12/24
