Komatsu SM025 FD50/80.6-BE1 Shop Manual PDF
$26.95
Komatsu SM025 FD50/80.6-BE1 Shop Manual – PDF DOWNLOADΒ
Description
Komatsu SM025 FD50/80.6-BE1 Shop Manual – PDF DOWNLOAD
FILE DETAILS:
Komatsu SM025 FD50/80.6-BE1 Shop Manual – PDF DOWNLOADΒ
Language : English
Pages : 186
Downloadable : Yes
File Type : PDF

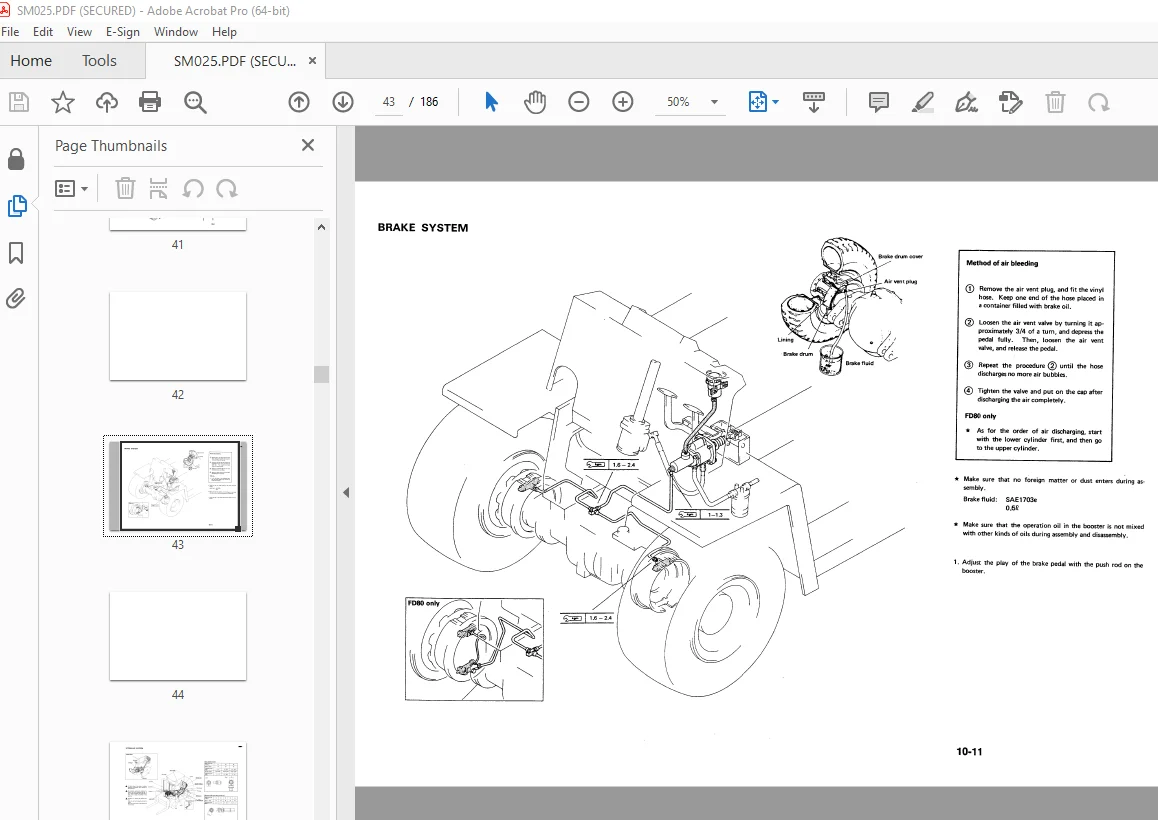

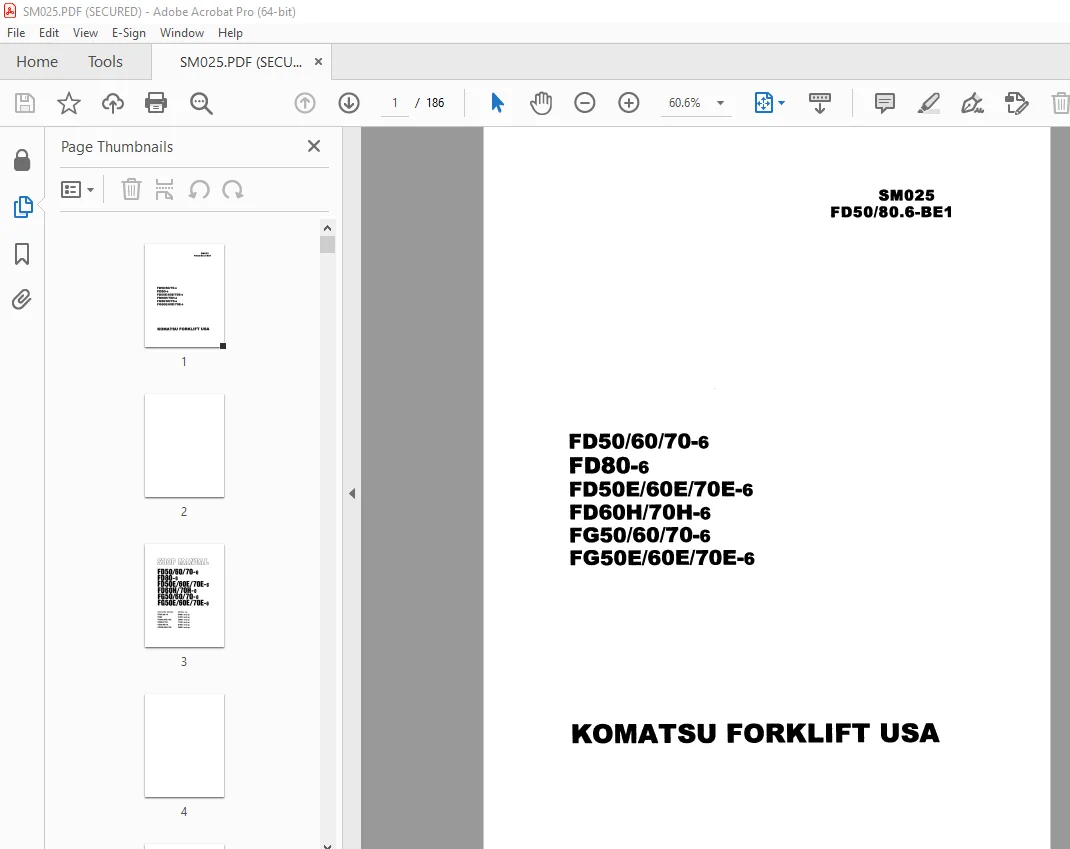

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Komatsu SM025 FD50/80.6-BE1 Shop Manual – PDF DOWNLOADΒ
FOREWORD:
Proper operation, maintenance, trouΠ«eshooting and repairs are necessary to preserve the performance of
vehicles and engines over Π° long period of time and to ensure that fault and breakdowns do not occur.
The object of this Shop Manual is to provide the information necessary especially in connection with the
performance of inspections and repairs mainly in the maintenance areas.
For this purpose, it includes sections ΠΎΠΏ “General and Specifications”, “Removal and lnstallation”, “DisassemΠ¬ly
and AssemΠ¬ly”, “Structure and Function” and the “Maintenance and lnspection Guide”.
Maintenance data necessaryfor the performance of maintenance ΠΎΠΏ the machines is also included, but reference
should Π¬Π΅ made to the Operation and Maintenance Manual for further details.
Reference should also Π¬Π΅ made to this manual in connection with correct operation of the machine.
The content of the items mentioned above is as follows.
General and Specifications
This chapter indicates the Overall Dimensions and Specifications of vehicles.
Removal and lnstallation
This chapter indicates the name of each part of the machine, and the order of Removal of the Mast, Power
train, Brake system etc., and the point of reinstallation of them.
DisassemΠ«y and AssemΠ«y
This chapter explains the point of. DisassemΠ«y, lnspection/Repair (ΠΎΠΏ Replacement), and ReassemΠ«y of
individual component parts.
Structure and Function
This chapter explains the structure of the TORQFLOW transmission as well as the Brake system and Steering
system.
Maintenance and lnspection Guide
This chapter explains the Maintenance Π’Π°Π«Π΅, and dimensions to Π¬Π΅ referred to during servicing.
Reference should Π¬Π΅ made to the “General Shop Manual” for safe operating and working methods which
serve as the basis for the performance of repair and inspection works on machines.
TABLE OF CONTENTS:
Komatsu SM025 FD50/80.6-BE1 Shop Manual – PDF DOWNLOADΒ
MACHINE MODEL SERIAL No.
FDS0/60/70 65001 and up
FDS0 51001 and up
FD50E/60E/70E 36001 and up
FD60H/70H 71001 and up
FGS0/60/70 81001 and up
FG50E/60E/70E 26001 and up
00. FOREWORD
01. GENERAL AND SPECIFICATIONS
1 Π. REMOVAL AND INSTALLATION
20. DISASSEMBLY AND ASSEMBLY
30. STRUCTURE AND FUNCTION
40. MAINTENANCE AND INSPECTION GUIDE
50. CONVERSION TABLE
S.V 12/12/24Β
