Komatsu TD7H TD8H TD9H Crawler Tractor Shop Manual CEBM789H04 – PDF DOWNLOAD

Description

Komatsu TD7H TD8H TD9H Crawler Tractor Shop Manual CEBM789H04 – PDF DOWNLOAD

FILE DETAILS:

Komatsu TD7H TD8H TD9H Crawler Tractor Shop Manual CEBM789H04 – PDF DOWNLOAD

Language : English
Pages : 1072
Downloadable : Yes
File Type : PDF

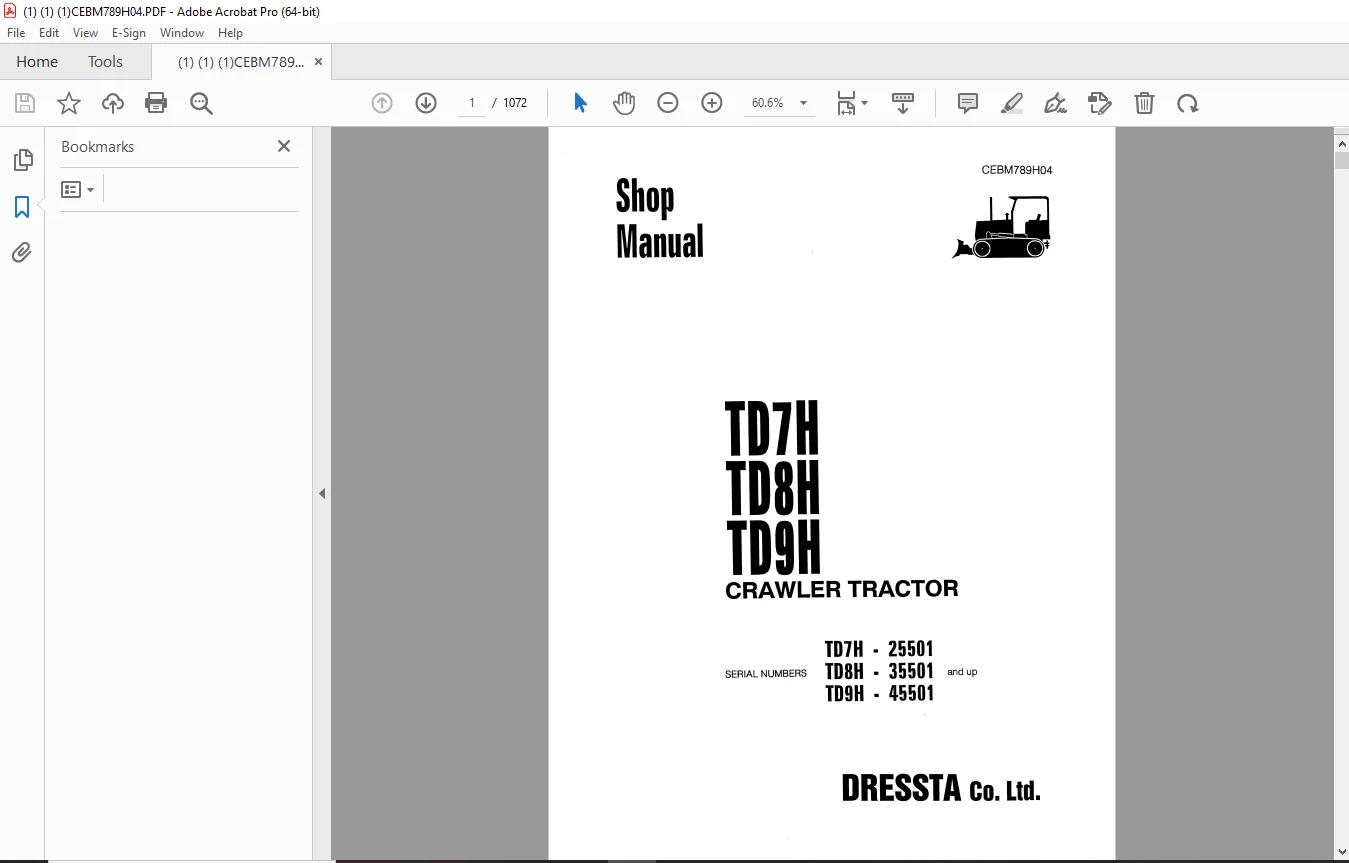

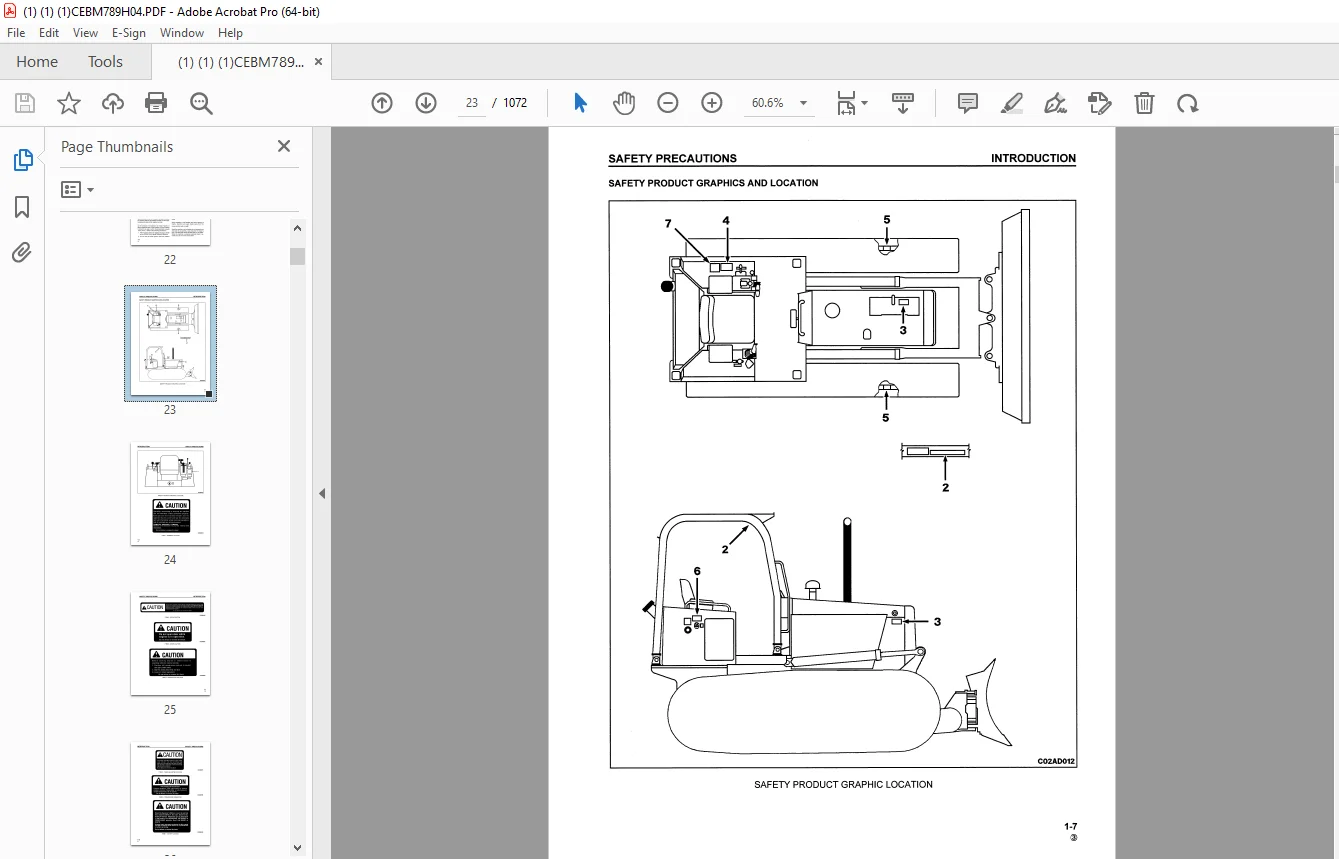

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Komatsu TD7H TD8H TD9H Crawler Tractor Shop Manual CEBM789H04 – PDF DOWNLOAD

SERIAL NUMBERS
TD7H – 25501 TD8H – 35501 TD9H – 45501
and up

INTRODUCTION SECTION 1
MISCELLANEOUS SECTION 2

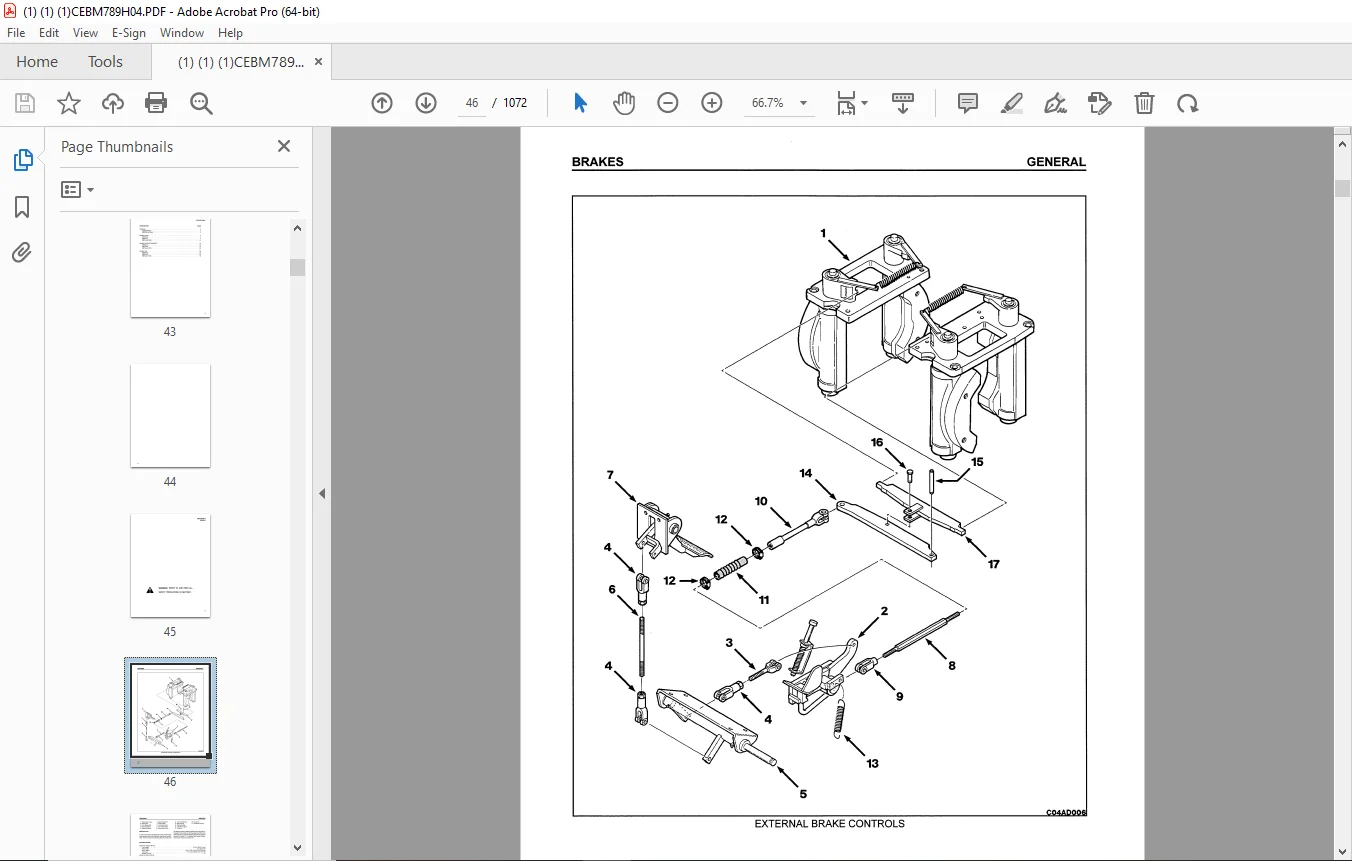

BRAKES – SECTION 4
STEERING SECTION 5
COOLING SECTION 6
DRIVE TRAIN – SECTION 7
DIRECT DRIVE-SECTION 7A
TORQUE CONVERTER – SECTION 7B
TRANSMISSION SECTION 7C
STEERING DRIVE – SECTION TE
SPROCKET DRIVE – SECTION 7F
ELECTRICAL SECTION 8
FRAME SECTION 9
HYDRAULICS – SECTION 10
PUMPS AND MOTORS – SECTION 10A
VALVES – SECTION 10B
CYLINDERS – SECTION 10C
INSTRUMENTS – SECTION 11
POWER – SECTION 12
SUPERSTRUCTURE SECTION 13
UNDERCARRIAGE SECTION 14
TRACK CHAIN SECTION 15
MOUNTED EQUIPMENT SECTION 17

DESCRIPTION:

Komatsu TD7H TD8H TD9H Crawler Tractor Shop Manual CEBM789H04 – PDF DOWNLOAD

SERIAL NUMBERS
TD7H – 25501 TD8H – 35501 TD9H – 45501
and up

GENERAL:
Human error is a contributing factor in most equipment related injuries. Haste, carelessness and lack of training are the primary causes of injuries. Most operating injuries occur because of excessive speed, loss of control, failure to observe warning signs, slipping or falling while entering or dismounting, a lack of berms on roadways or piles, lack of a ROPS or seat belt, or not watching in the direction of travel. Most maintenance injuries occur during welding or when using hammers or wrenches. The most common faults are improper work position, a slipped tool, missed aim, a broken tool, flying chips and/or no welding hood. Think before you act. A careful operator or maintenance person is the best insurance against an accident.
Always wear proper safety equipment. Avoid wearing jewelry and loose fitting clothing; they could catch on moving parts which could result in serious injury or death. Hard hat, sturdy rough soled work shoes or safety shoes, ear protectors, reflective clothing, safety glasses and heavy gloves may be required. Consult your employer for specific safety equipment requirements.
Each job site and application may have personal safety requirements. Carefully evaluate your particular application and machine for equipment such as warning lights, side view and rear view mirrors, back up alarms, fire extinguisher, rotating beacons and additional lights. If in doubt, contact your distributor.
The machine should be equipped with a fully charged fire extinguisher. All personnel should be instructed in proper usage. Recharge immediately after use.
The machine should not be serviced with anyone in the operator’s compartment unless said person is qualified to operate the machine and is assisting in the servicing. No unauthorized personnel should be allowed to operate, maintain or service this machine. Do not rush. Hurrying can lead to accidents. Do not jump on or off the machine. Keep two hands and one foot or two feet and one hand

In contact with steps and grab handles and rails at all times. Place objects on machine from ground level before mounting machine.
Electrical system is 12 volt negative ground. When using jumper cables, precautions must be taken to minimize chances of injury or damage to electrical parts.
1. Attach one end of jumper cable to positive terminal of booster battery and other end to positive terminal of machine battery.
2. Attach one end of second cable to negative terminal of booster battery and other end to machine’s frame away from the battery.
3. To remove cables, reverse above sequence exactly to avoid sparks near the battery. A frozen battery can explode when the booster cables are attached.
NEVER check battery charge by placing a metal object across the battery posts. The sparks could cause an explosion. Use a voltmeter for checking battery state of charge.
