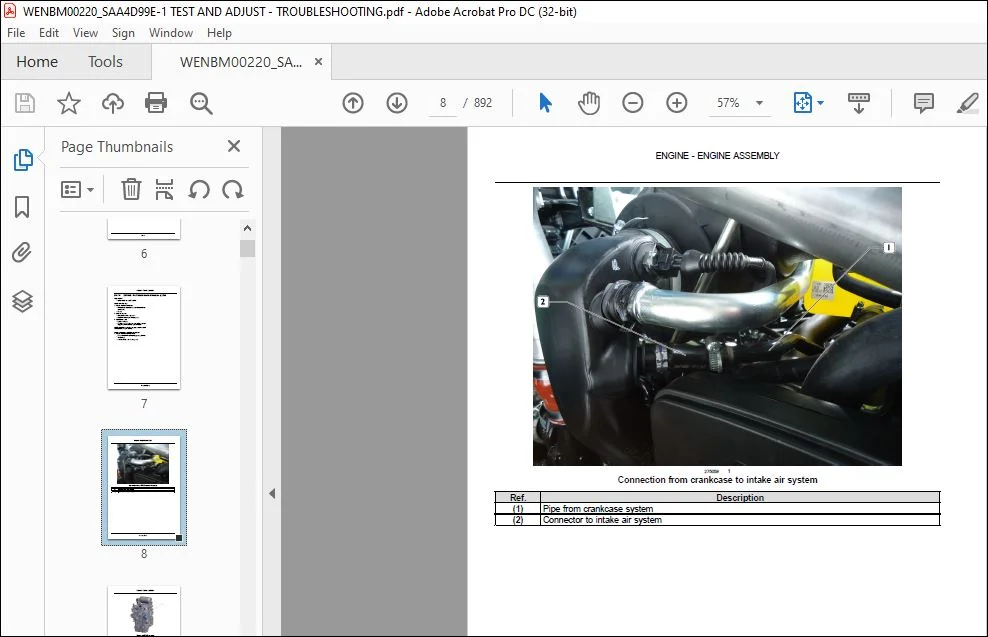

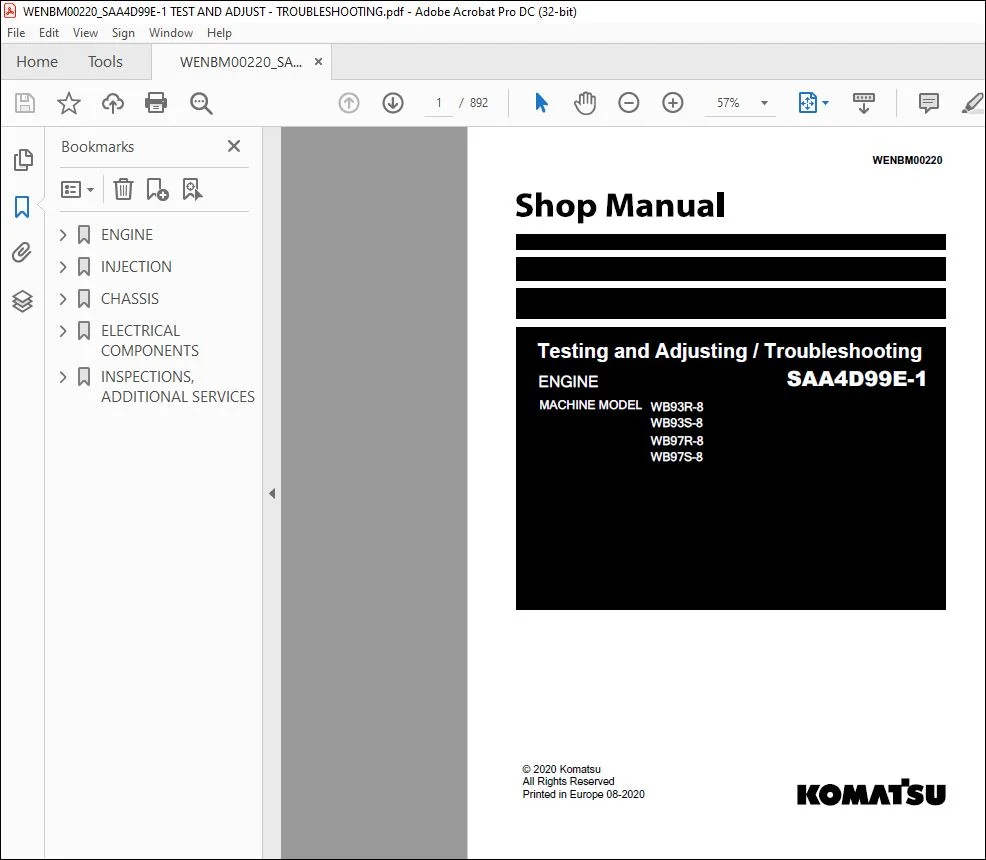

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Komatsu WB93R-8 WB93S-8 WB97R-8 WB97S-8 Testing & Adjusting Troubleshooting SAA4D99E-1 Engine Shop Manual WENBM00220 – PDF DOWNLOAD

540610 CYLINDER HEAD – Test Check cylinder mechanics
Preparation
General checks
• Battery voltage is sufficient
• Vehicle fuses are OK
• Engine oil level correct
• Engine is warm, if possible
• No deposits on the undersides of the valve heads
• Offboard tools: cylinder compression tester tool and
cylinder pressure loss tester tool
Check cylinder compression
Preparation
• Ignition switch set to OFF position
• Remove the fuel injectors
• With suitable piping fixtures, seal off the fuel rail outlets
to the fuel injectors
• Unplug the connectors of the crankshaft and
camshaft speed sensors
1. Check cylinder compression
• Follow the Cylinder compression tester tool operator
manual to connect the pressure gauge to cylinder
number 1
• Crank the engine for 8 s and record the maximum
pressure reached
• Repeat step 1 and 2 for all the 6 cylinders
• Perform compression test for each cylinder twice
• Calculate average compression pressure for each
cylinder and compare the results
• See figure below for aid and go to 2

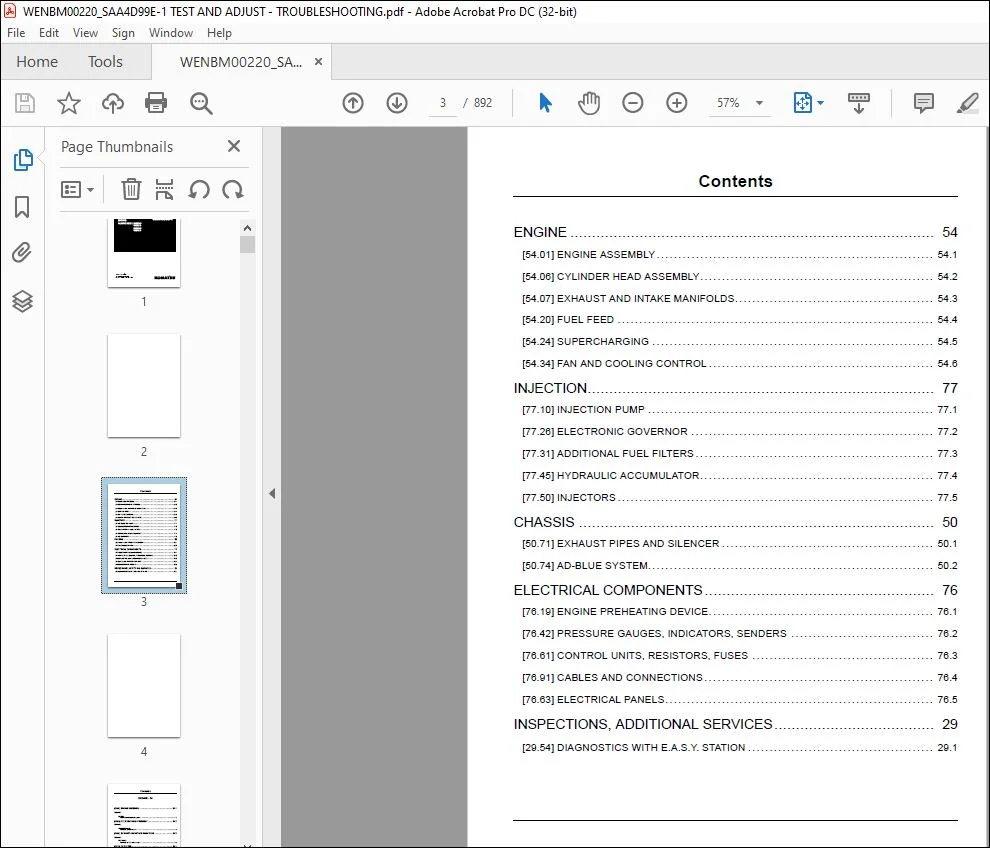

TABLE OF CONTENTS:
