Kubota B7100 HST-D B7100 HST-E Tractor Illustrated Master Parts List Manual – PDF Download

Description

Kubota B7100 HST-D B7100 HST-E Tractor Illustrated Master Parts List Manual

FILE DETAILS:

Kubota B7100 HST-D B7100 HST-E Tractor Illustrated Master Parts List Manual

LANGUAGE:ENGLISH
PAGES:180
DOWNLOADABLE:YES
FILE TYPE:PDF

KUBOTA B7100 HST-D B7100 HST-E TRACTOR ILLUSTRATED MASTER PARTS LIST MANUAL – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota B7100 HST-D B7100 HST-E Tractor Illustrated Master Parts List Manual

The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No -> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C -> Interchangeability of part shown.
<-> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new
Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]

TABLE OF CONTENTS:

Kubota B7100 HST-D B7100 HST-E Tractor Illustrated Master Parts List Manual

Instructions for Parts Books.............  1

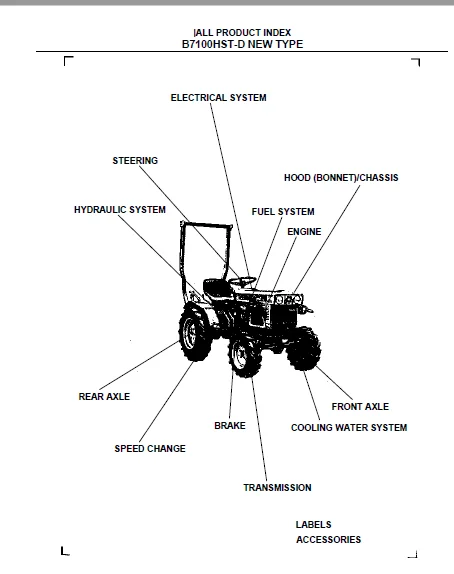

|ALL PRODUCT INDEX.......................  2
CRANKCASE................................  6
OIL PAN..................................  8

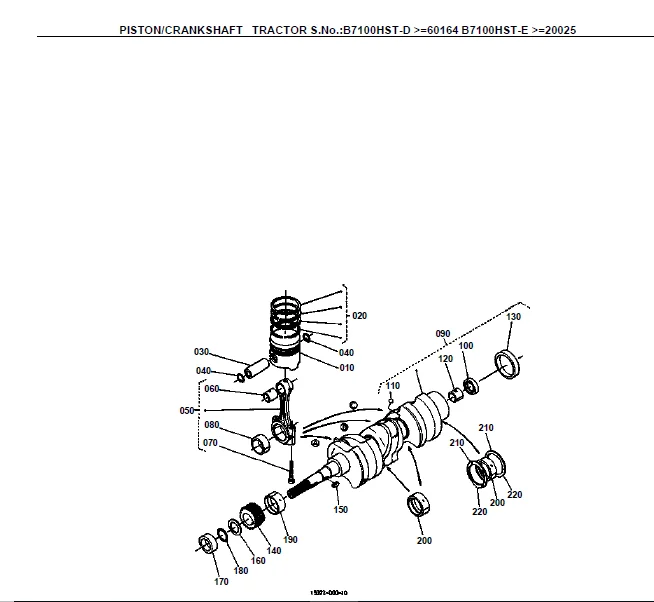

PISTON/CRANKSHAFT........................ 10
MAIN BEARING CASE........................ 12
FLYWHEEL................................. 14
CYLINDER HEAD............................ 16
VALVE/ROCKER ARM......................... 18
NOZZLE HOLDER............................ 20
NOZZLE HOLDER [COMPONENT PARTS].......... 22
CYLINDER HEAD COVER...................... 24
INLET MANIFOLD........................... 26
EXHAUST MANIFOLD......................... 28
CAMSHAFT................................. 30
GEAR CASE................................ 32
FUEL PUMP................................ 34
INJECTION PUMP........................... 36
INJECTION PUMP [COMPONENT PARTS]......... 38
SPEED CONTROL PLATE...................... 40
GOVERNOR................................. 42
UPPER GASKET KIT......................... 44
LOWER GASKET KIT......................... 46
FAN/DYNAMO............................... 48
DYNAMO [COMPONENT PARTS]................. 50
CLUTCH................................... 52

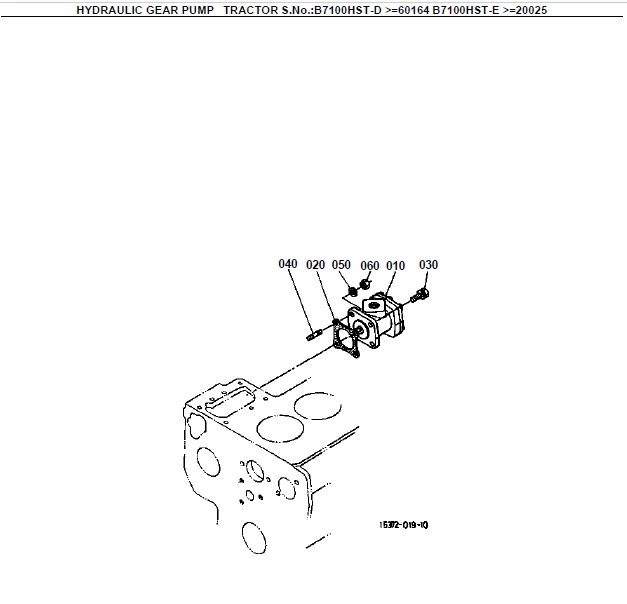

HYDRAULIC GEAR PUMP...................... 54
HYDRAULIC GEAR PUMP [COMPONENT PARTS].... 56
LABEL 1.................................. 58
AIR CLEANER.............................. 60
MUFFLER.................................. 62
ACCELERATOR ROD.......................... 64
FUEL TANK/ACCELERATOR LEVER.............. 66
FUEL FILTER.............................. 68
RADIATOR/OIL COOLER...................... 70
STARTER.................................. 72
STARTER [COMPONENT PARTS]................ 74
BATTERY.................................. 76
LIGHT.................................... 78
PANEL.................................... 80
CLUTCH ROD............................... 82
CLUTCH PEDAL............................. 84
CLUTCH HOUSING........................... 86
TRANSMISSION CASE........................ 88
PTO COVER................................ 90
CASE COVER............................... 92
HST...................................... 94
HST [COMPONENT PARTS].................... 96
PROPELLER SHAFT.......................... 99
2ND SHAFT................................101
3RD SHAFT/5TH SHAFT......................103
4TH SHAFT................................105
FRONT WHEEL DRIVE SHAFT..................107
REAR PTO.................................109
MID PTO..................................111
NEUTRAL HOLDER...........................113
SPEED CONTROL PEDAL......................115
SPEED CHANGE PLATE.......................117
HI-LO GEAR SHIFT LEVER...................119
PTO GEAR SHIFT LEVER.....................121
REAR DIFFERENTIAL........................123
REAR AXLE................................125
REAR AXLE CASE...........................127
WHEEL HUB................................129
BRAKE....................................131
BRAKE ROD/PEDAL..........................133
FRONT WHEEL HUB..........................135
FRONT GEAR CASE..........................137
BEVEL GEAR CASE..........................139
FRONT AXLE ARM...........................141
FRONT DIFFERENTIAL.......................143
FRONT DRIVE SHAFT........................145
FRONT DRIVE LEVER........................147
FRONT WHEEL SUPPORT......................149
KNUCKLE ARM..............................151
STEERING.................................153
HYDRAULIC PIPE 1.........................155
HYDRAULIC PIPE 2.........................157
LIFT ARM.................................159
HYD.CYLINDER CAP.........................161
CONTROL VALVE............................163
CONTROL VALVE [COMPONENT PARTS]..........165
3-POINT LINKAGE..........................167
HOOD.....................................169
FENDER...................................171
SEAT.....................................173
STEP.....................................175
LABEL 2..................................177
ACCESSORIES AND SERVICE PARTS............180
